ASRock Intel Arc B580 Steel Legend OC 12GB GDDR6 2800 MHz - B580 SL 12GO (Boxed)
ASRock Intel Arc B580 Steel Legend OC GPU: 12GB GDDR6 on 192-bit bus, 2800 MHz boost, triple-fan cooling with RGB, 2x8-pin power, 1xHDMI 2.1, 3xDP 2.1. 298mm length, 190W TDP, PCIe 4.0 x8 for 1440p gaming.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | Intel Arc |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 4.0 x16 |
| GPU (Graphics Cards) - Cooler Type | Triple Fan |
| GPU (Graphics Cards) - Color | Black |
| GPU (Graphics Cards) - Backplate | Yes |
| GPU (Graphics Cards) - VRAM Capacity | 12 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR6 |
| GPU (Graphics Cards) - Outputs | DisplayPort 2.1 HDMI 2.1 |
| GPU (Graphics Cards) - Power Connector | 2x8-pin |
| GPU (Graphics Cards) - Card Length | Large (281-300 mm) |
The ASRock Intel Arc B580 Steel Legend OC is a high-performance graphics card powered by Intel's Xe2-HPG architecture, delivering excellent 1440p gaming with 12GB GDDR6 memory on a 192-bit bus at 19 Gbps effective speed. Featuring a factory-overclocked GPU clock of 2800 MHz, it supports DirectX 12 Ultimate, XeSS 2 upscaling, and XMX AI acceleration for smooth frame rates and ray tracing.
Equipped with a premium triple-fan cooling solution including Striped Ring Fans, 0dB silent mode, ultra-fit heatpipes, and a stylish metal backplate with Polychrome SYNC RGB lighting. It requires 2x 8-pin power connectors and a 650W PSU recommendation, fitting in cases with 298mm GPU clearance as a 2.6-slot card.

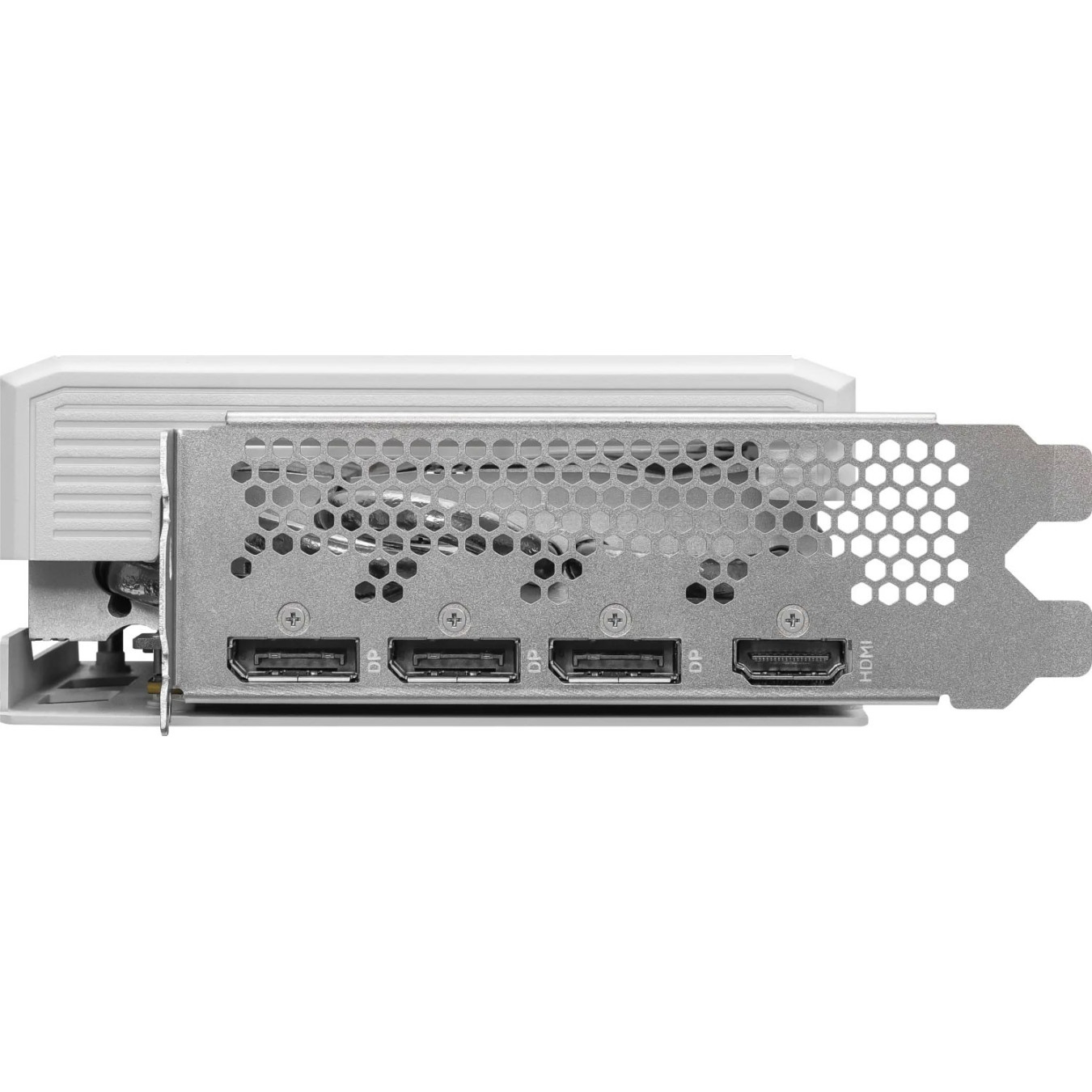

- Outputs: 1x HDMI 2.1a, 3x DisplayPort 2.1 (DSC support, up to 8K)
- Interface: PCI Express 4.0 x8
- TDP: 190W
- Dimensions: 298 mm length
- Key Features: Metal backplate, Air Deflecting Fin, Super Alloy components
| Model | B580 SL 12GO / 90-GA5CZZ-00UANF |
| GPU | Intel Arc B580 |
| GPU Clock (Boost) | 2800 MHz |
| Memory Size | 12 GB |
| Memory Type | GDDR6 |
| Memory Bus | 192-bit |
| Memory Clock | 19 Gbps |
| Interface | PCIe 4.0 x8 |
| TDP | 190 W |
| Power Connectors | 2 x 8-pin |
| Outputs | 1 x HDMI 2.1a, 3 x DisplayPort 2.1 |
| Cooling | Triple Fan |
| Length | 298 mm |
| Slot Width | 2.6 slots |
| Architecture | Intel Xe2-HPG |
| Recommended PSU | 650 W |
