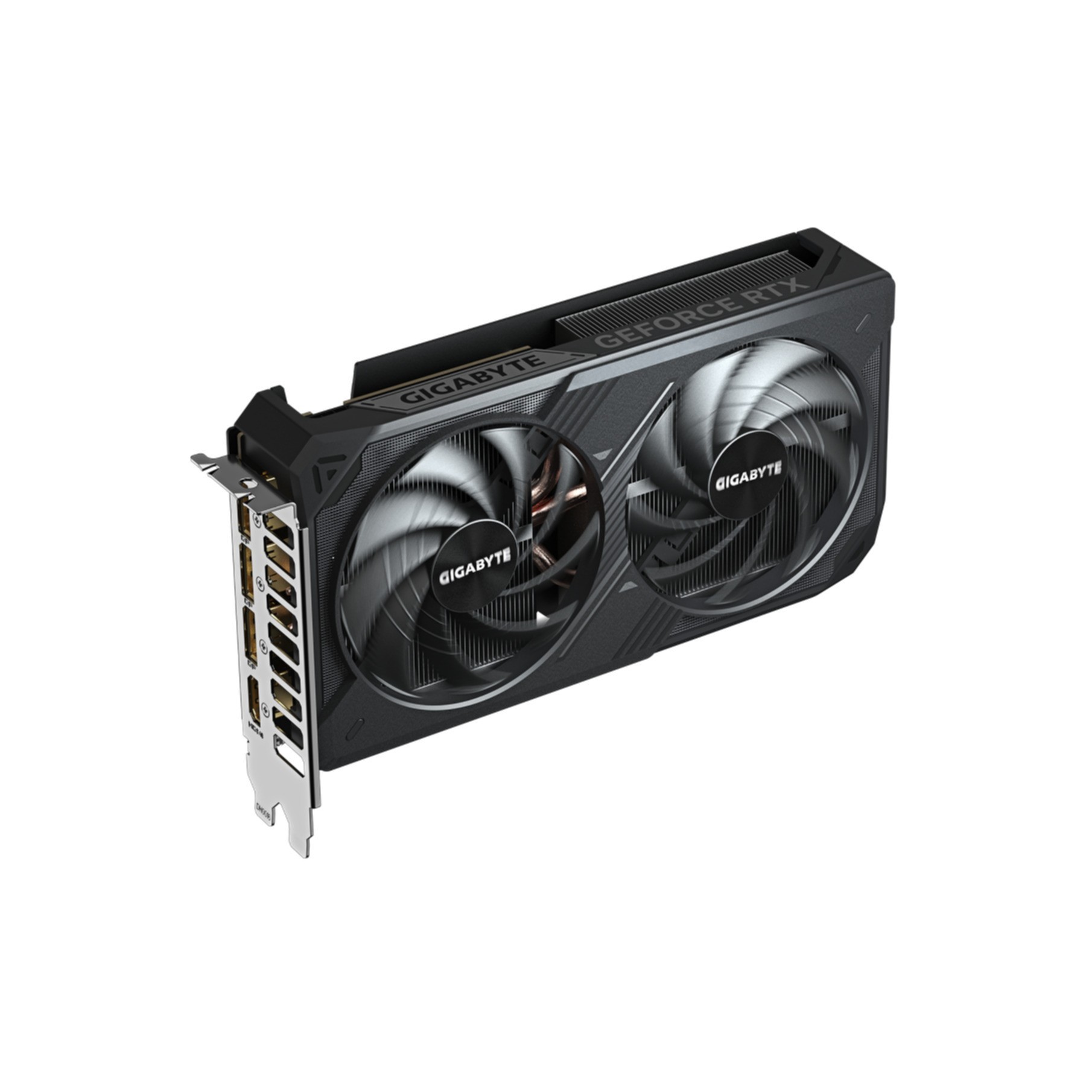

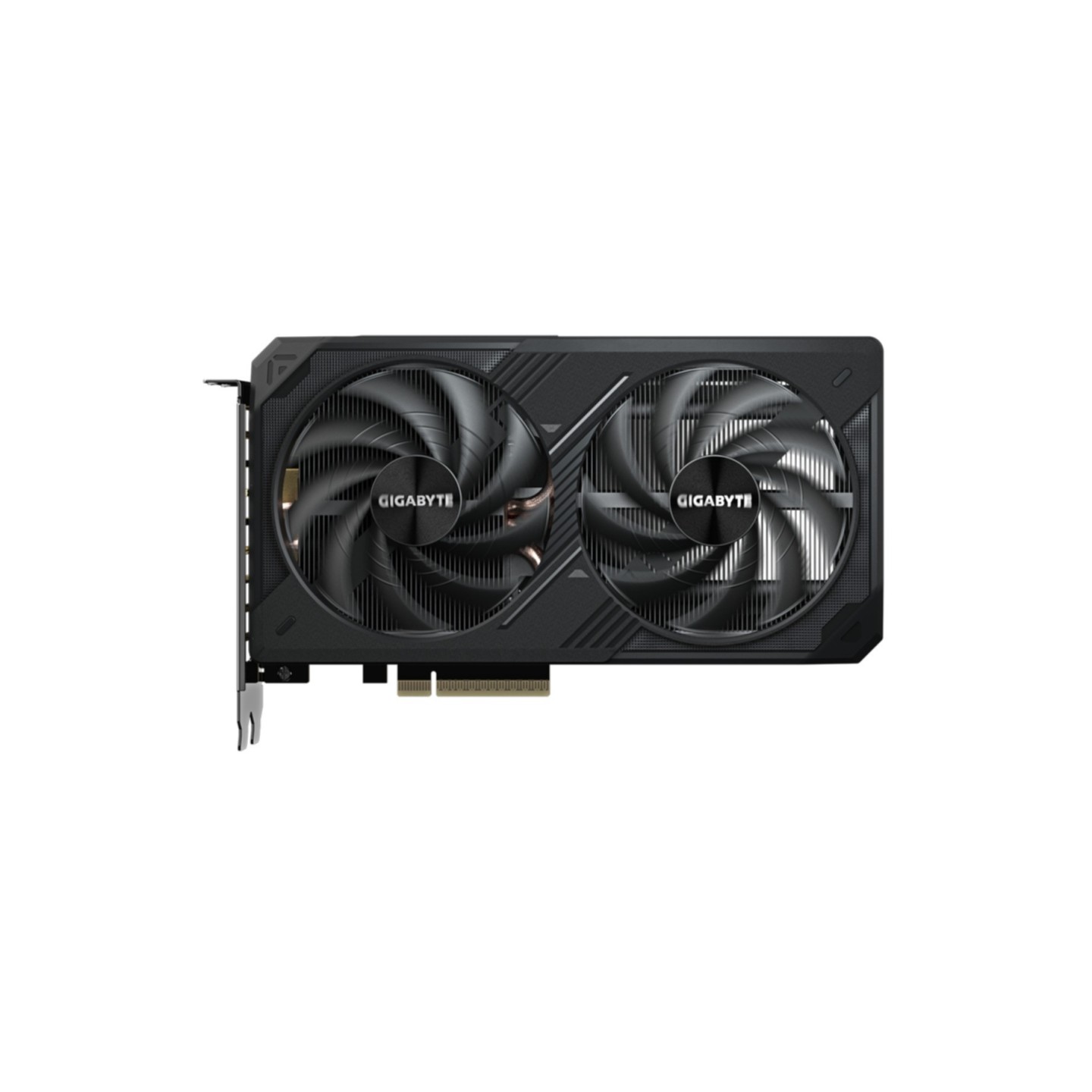

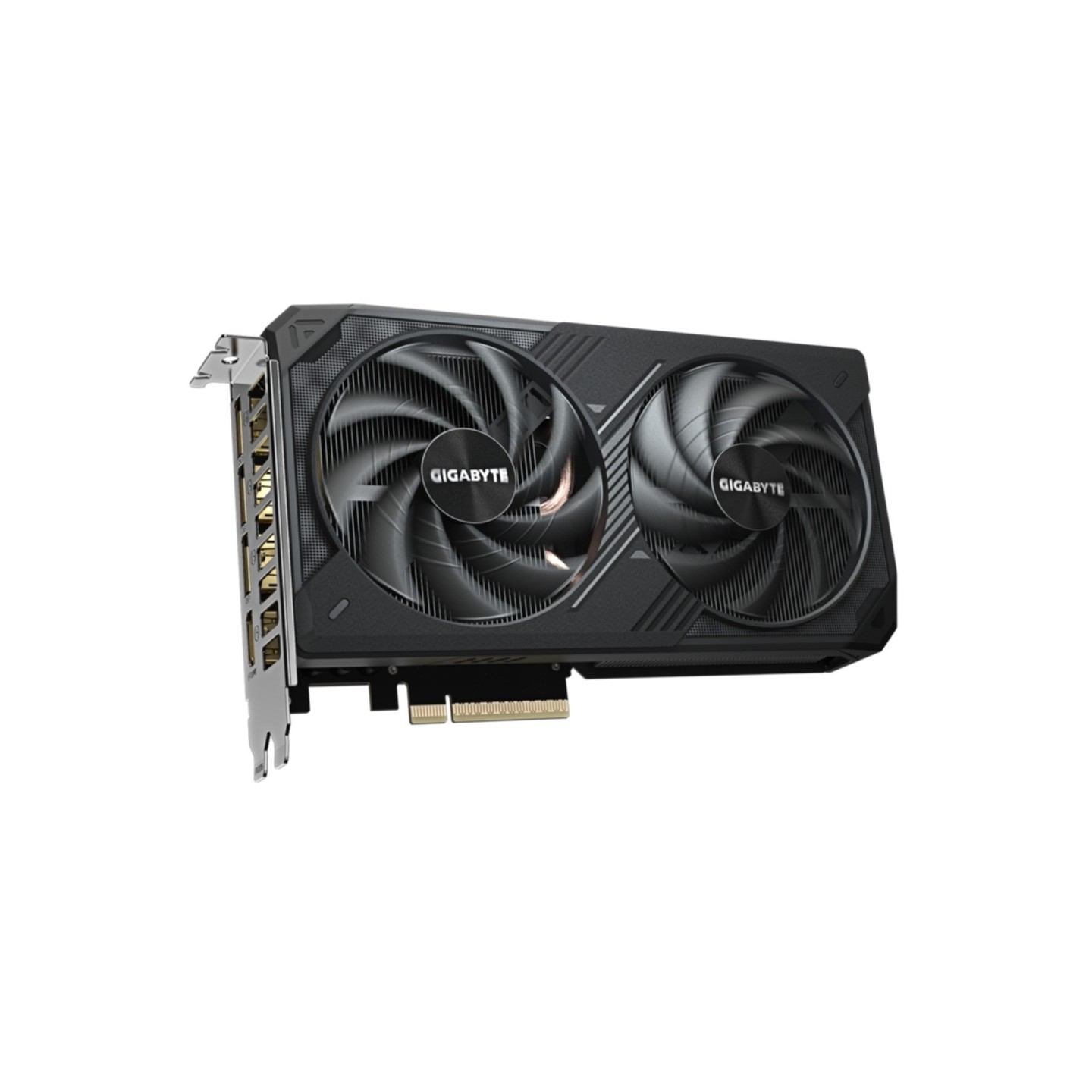

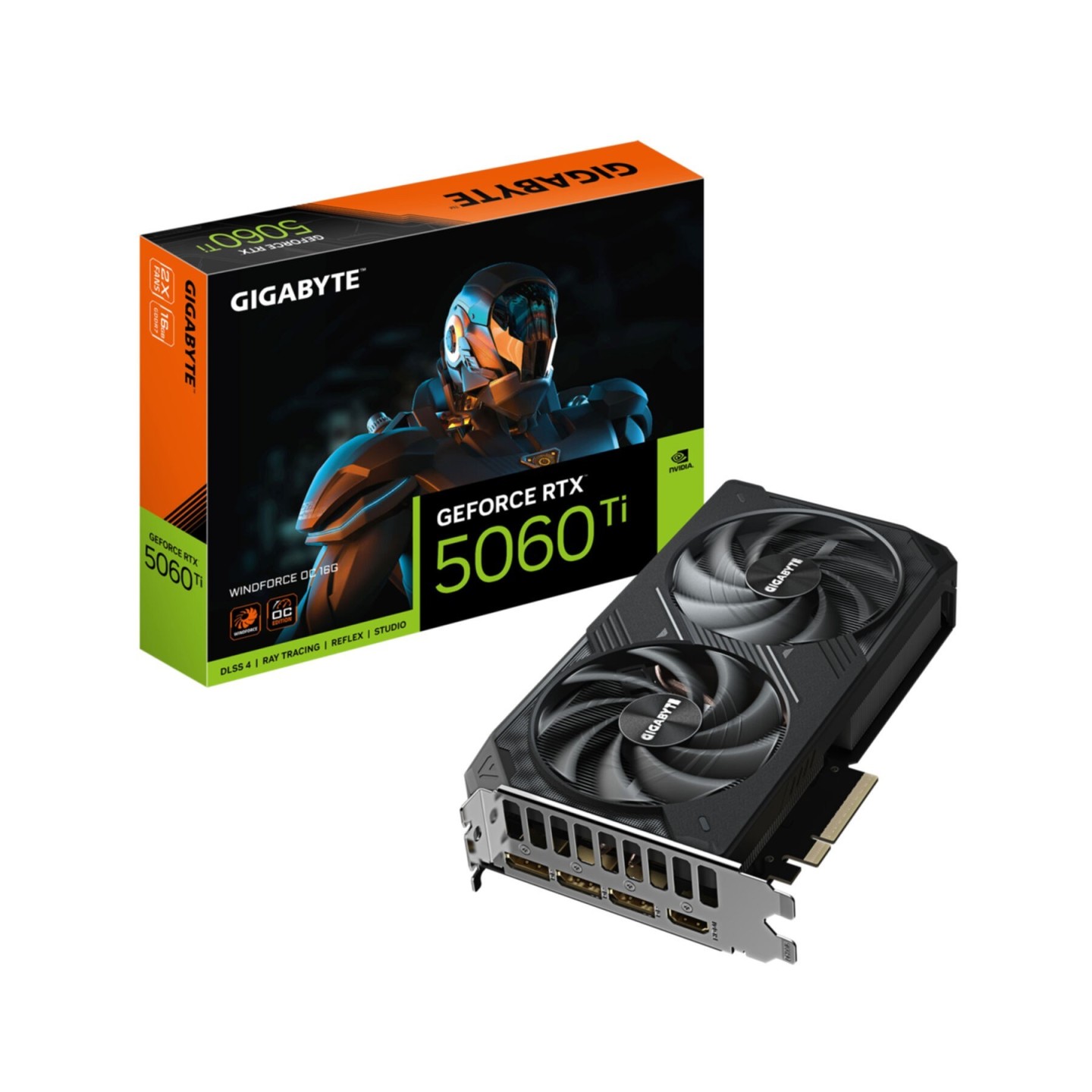

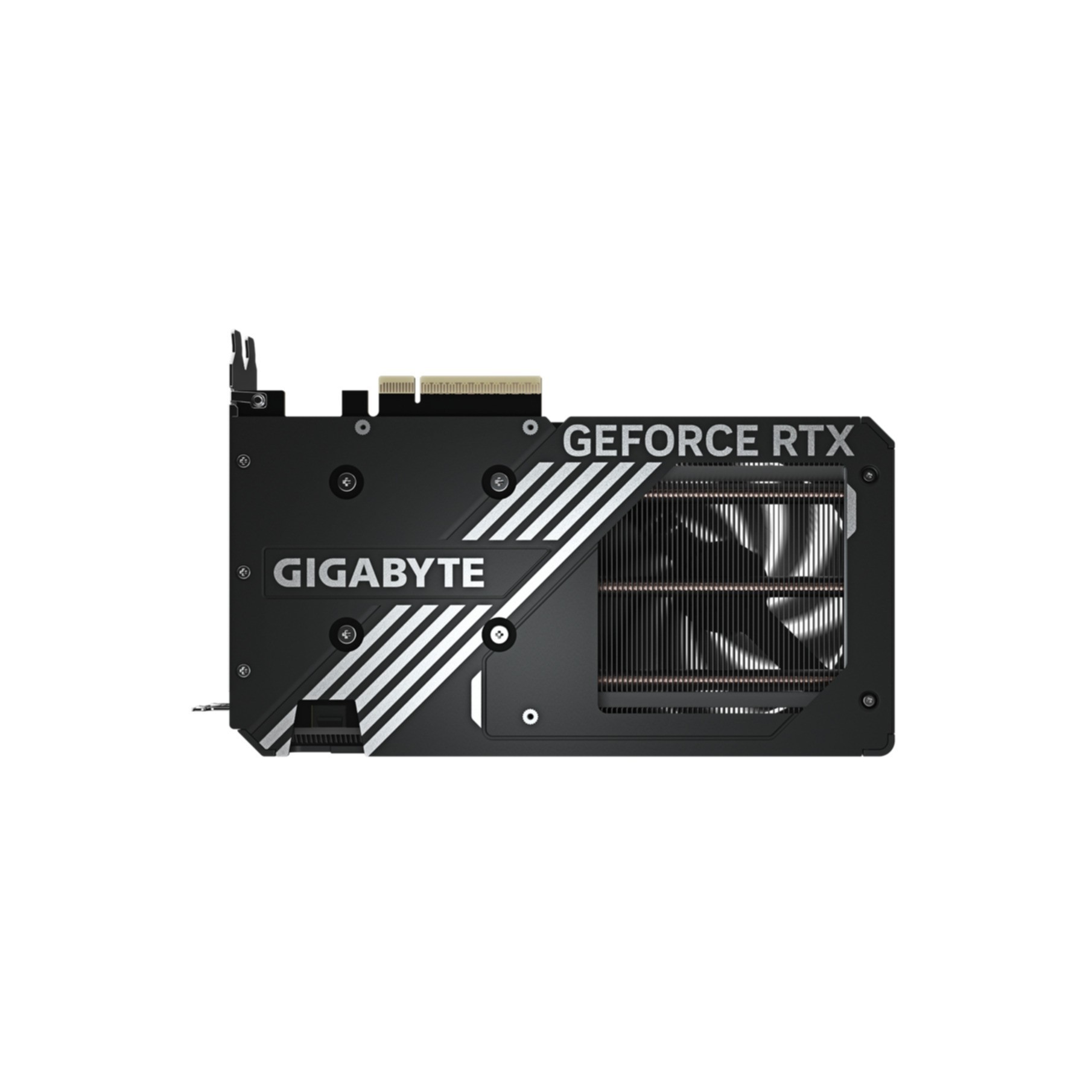

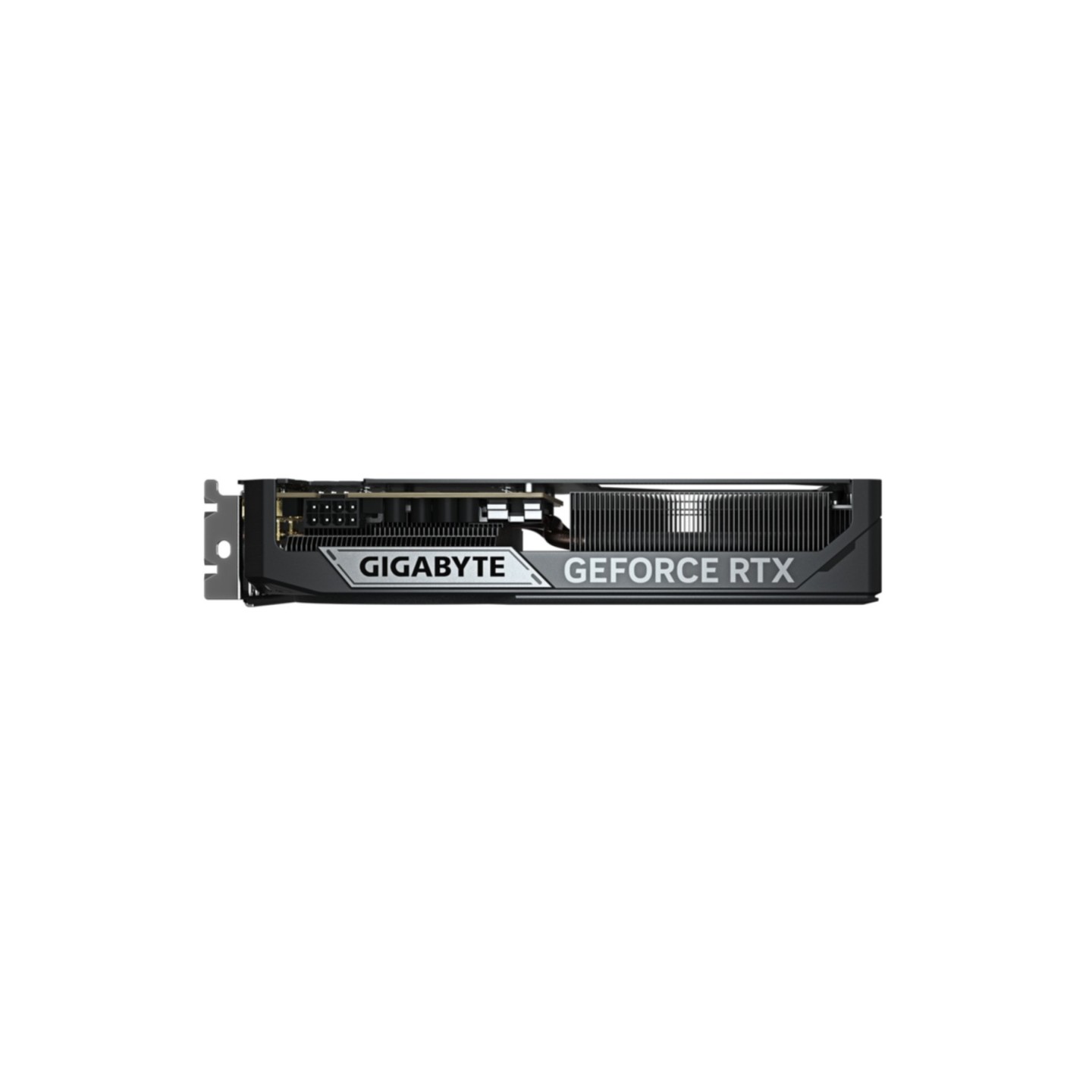

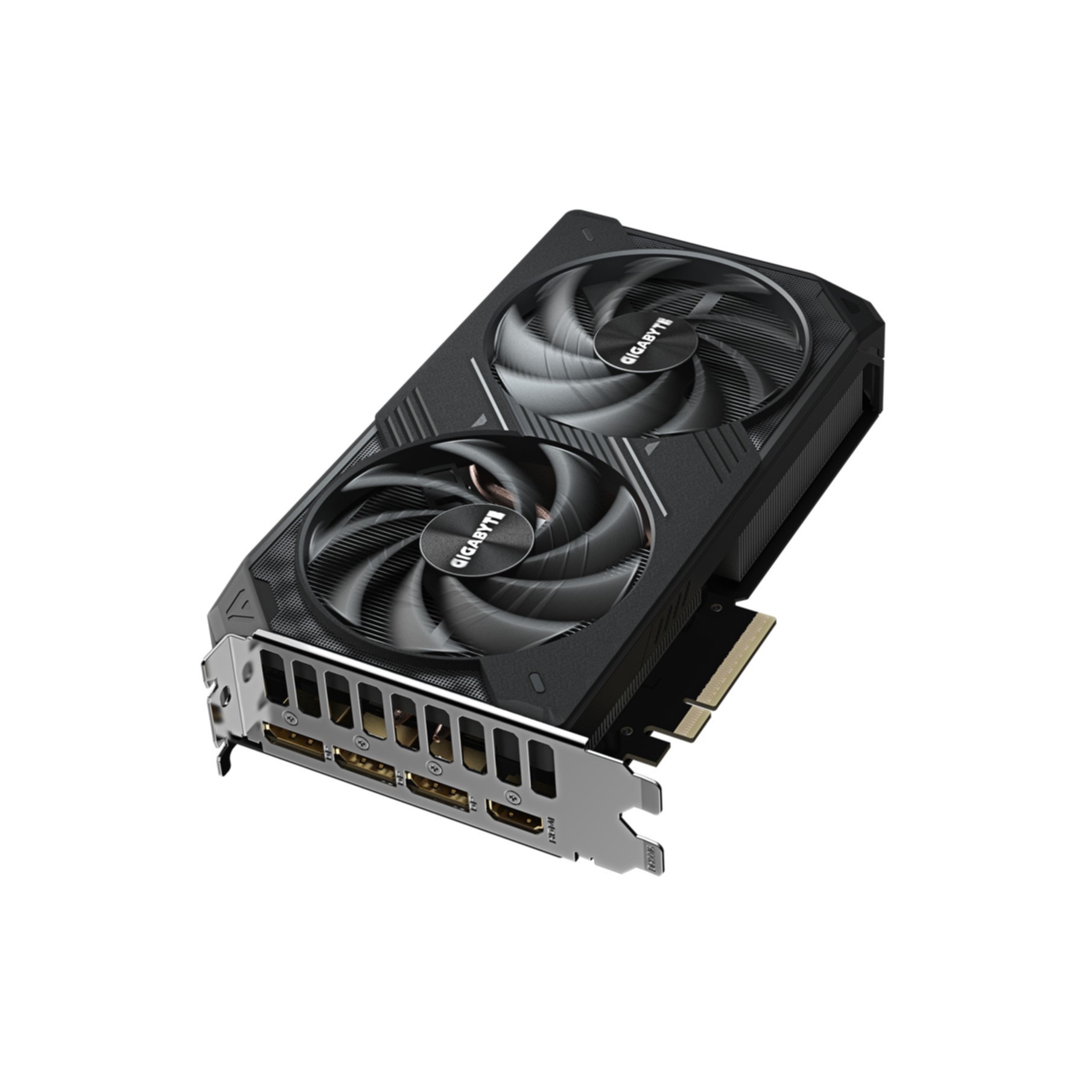

GIGABYTE GeForce RTX 5060 Ti Windforce OC 16GB GDDR7 - 2587 MHz Boost, PCIe 5.0, GV-N506TWF2OC-16GD (Boxed)
GeForce RTX 5060 Ti Windforce OC 16GB: NVIDIA Blackwell arch, DLSS 4, 2587 MHz boost (ref 2572), 16GB GDDR7 128-bit, WINDFORCE dual fans, PCIe 5.0 x8, 1xHDMI 2.1b+3xDP 2.1b, up to 7680x4320.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | NVIDIA GeForce RTX |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 5.0 x16 |
| GPU (Graphics Cards) - Cooler Type | Dual Fan |
| GPU (Graphics Cards) - Color | Black |
| GPU (Graphics Cards) - Backplate | Yes |
| GPU (Graphics Cards) - VRAM Capacity | 16 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR7 |
| GPU (Graphics Cards) - Outputs | DisplayPort 2.1 HDMI 2.1 |
| GPU (Graphics Cards) - Power Connector | 1x8-pin |
| GPU (Graphics Cards) - Card Length | Short (200-220 mm) |
The GIGABYTE GeForce RTX™ 5060 Ti WINDFORCE OC 16G delivers cutting-edge gaming performance powered by NVIDIA Blackwell architecture and DLSS 4 with Multi Frame Generation. Featuring 16GB GDDR7 memory on a 128-bit interface, 2587 MHz boost clock, and 4608 CUDA cores, it excels in ray tracing, AI-enhanced graphics, and high-frame-rate gaming.
Equipped with the advanced WINDFORCE cooling system including Hawk fans, server-grade thermal conductive gel, and screen cooling for optimal thermal performance. Supports full ray tracing with neural rendering, NVIDIA Reflex 2 for low latency, and outputs including 1x HDMI 2.1b and 3x DisplayPort 2.1b for resolutions up to 7680x4320. PCIe 5.0 x8 interface ensures compatibility with modern systems.
- Powered by GeForce RTX™ 5060 Ti and Blackwell architecture
- 16GB GDDR7 128-bit memory
- WINDFORCE cooling: Hawk fans, alternate spinning, composite heat pipes
- 1x HDMI 2.1b + 3x DisplayPort 2.1b
- Core clock: 2587 MHz (OC)
- PCIe 5.0 x8, recommended PSU 650W
| MPN | GV-N506TWF2OC-16GD |
| GPU Model | GeForce RTX 5060 Ti |
| Architecture | NVIDIA Blackwell |
| Core Clock Boost | 2587 MHz (Reference: 2572 MHz) |
| VRAM Capacity | 16GB |
| VRAM Type | GDDR7 |
| Memory Bus | 128-bit |
| Outputs | 1x HDMI 2.1b, 3x DisplayPort 2.1b |
| Cooler Type | WINDFORCE Dual Fan (Hawk fans) |
