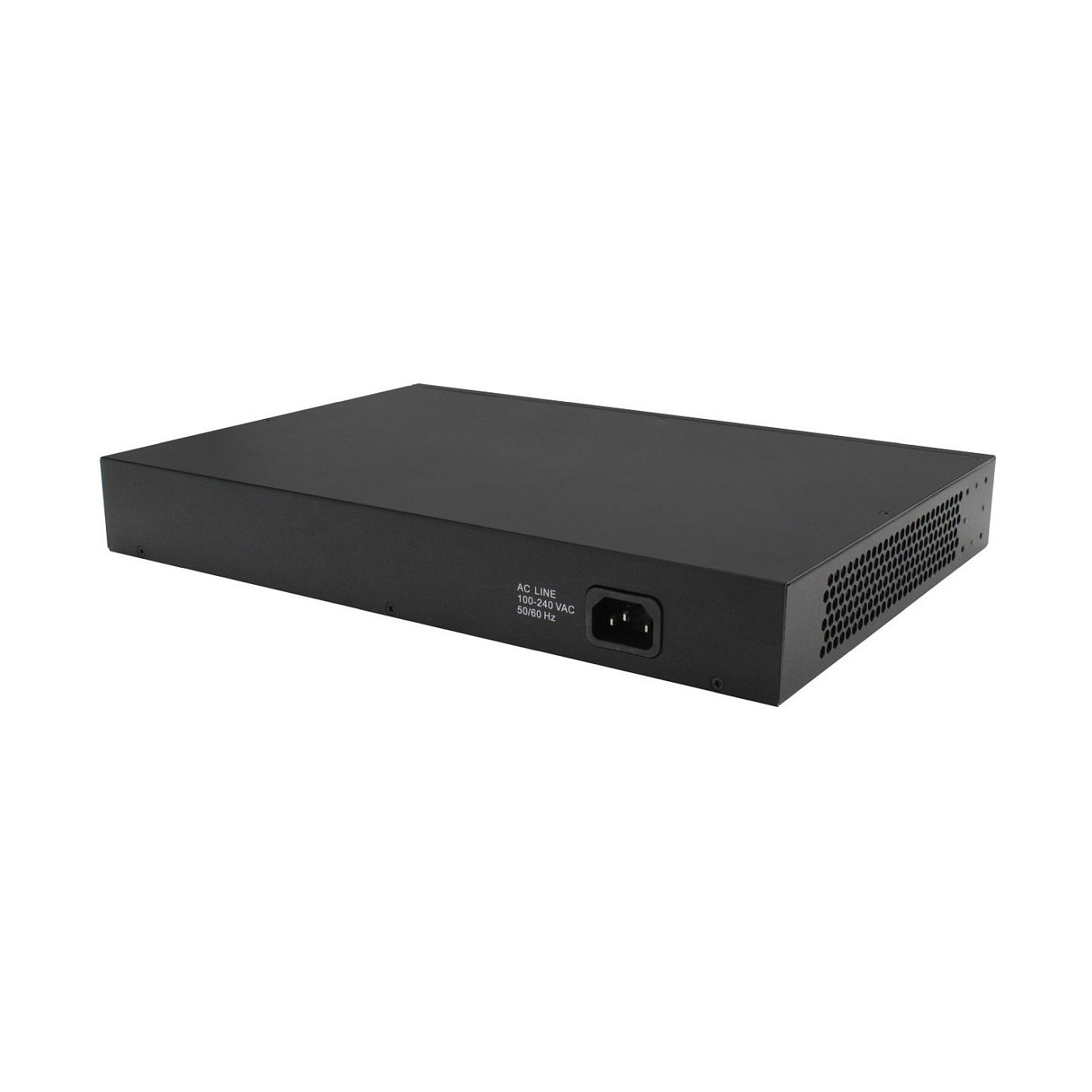

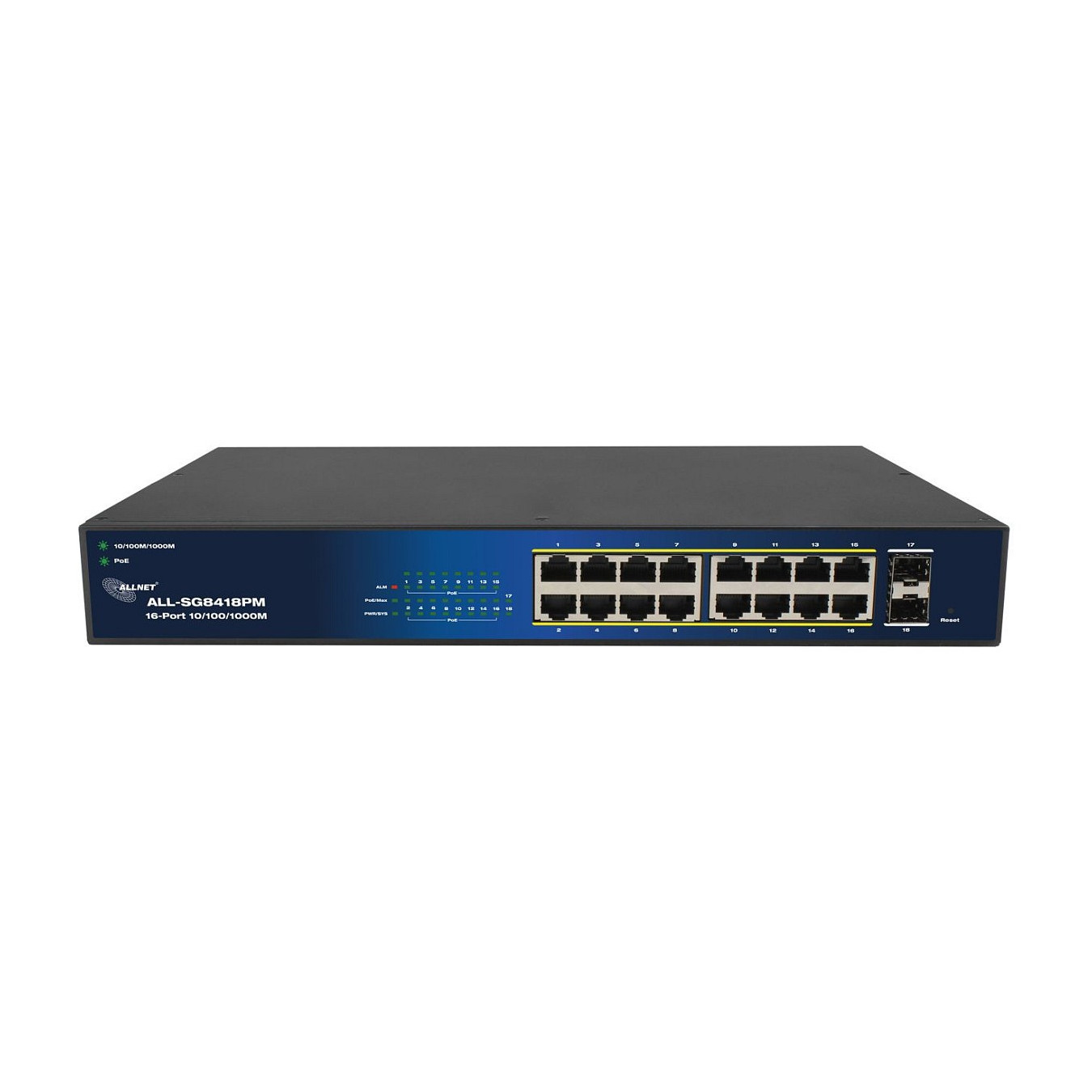

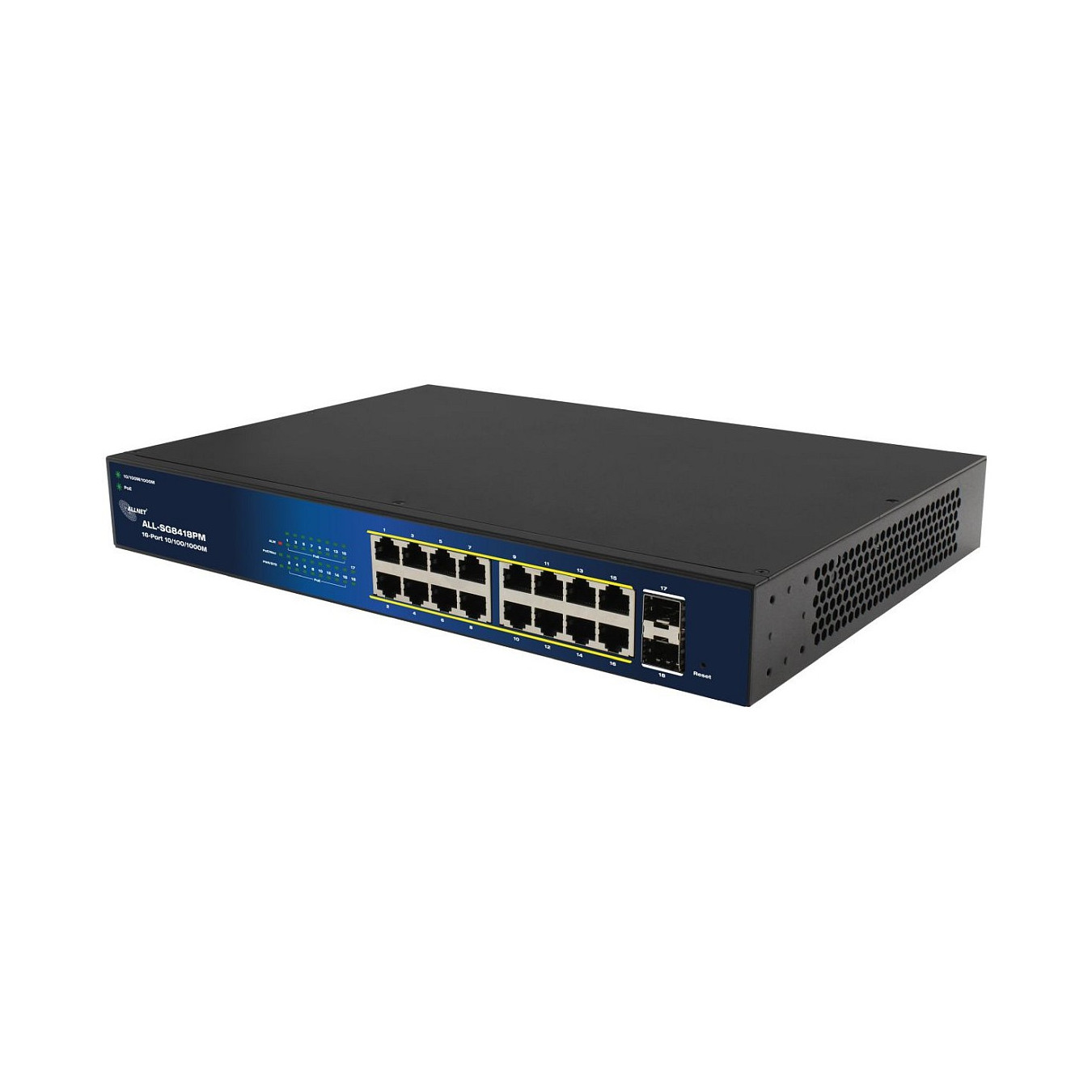

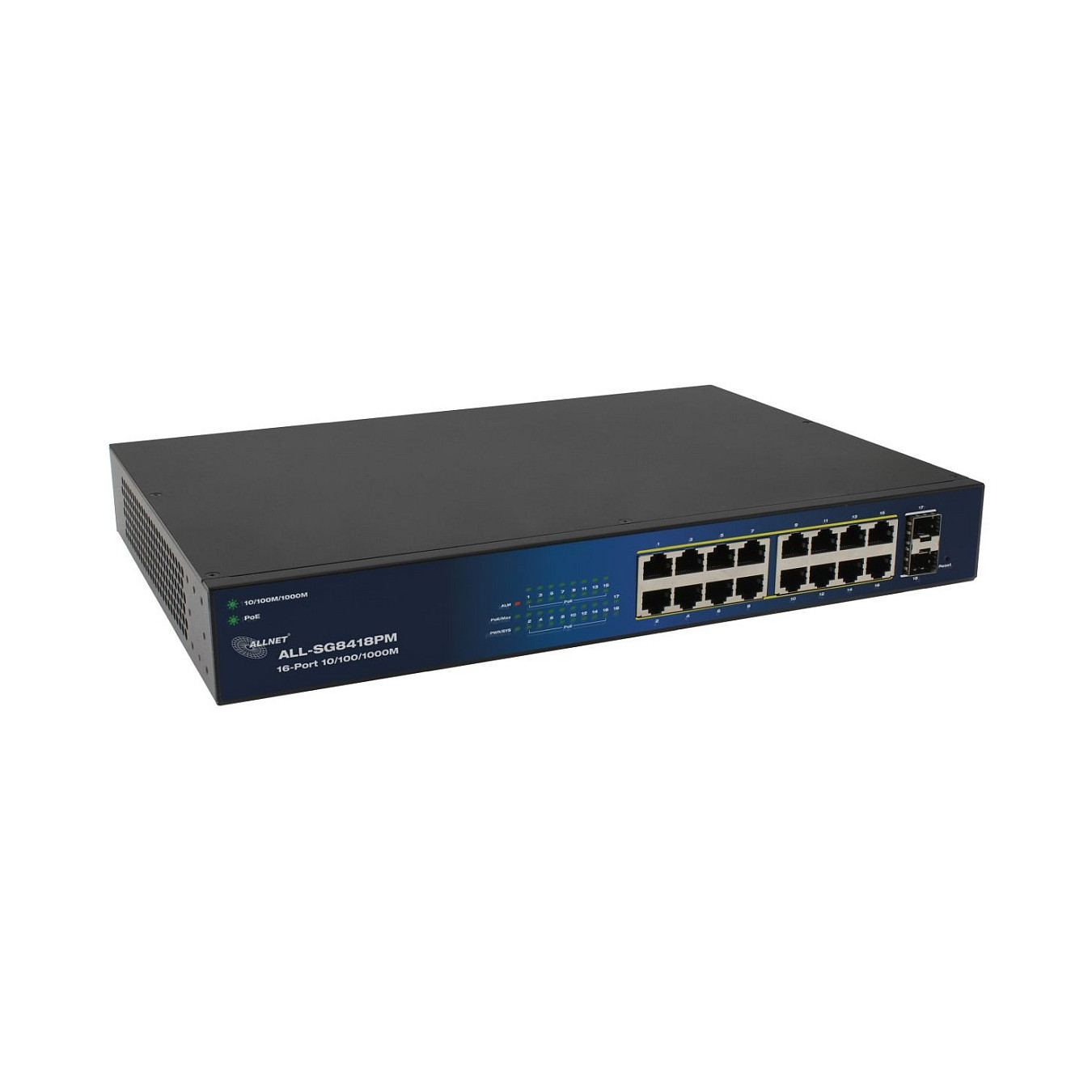

16+2P Allnet ALL-SG8418PM POE M
ALLNET ALL-SG8418PM. Managed. L2. Gigabit Ethernet (10/100/1000). Power over Ethernet (PoE). Rack-Einbau. 19U
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
ALLNET ALL-SG8418PM. Switch-Typ: Managed. Switch-Ebene: L2. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000). Anzahl der basisschaltenden RJ-45 Ethernet Ports: 18. Vollduplex. MAC-Adressentabelle: 8000 Eintragungen. Routing-/Switching-Kapazität: 36 Gbit/s. Netzstandard: IEEE 802.3ab. IEEE 802.3az. IEEE 802.3u. IEEE 802.3x. IEEE 802.3z. Power over Ethernet (PoE). Rack-Einbau. Formfaktor: 19U
| Switch-Typ | Managed |
| Switch-Ebene | L2 |
| Feature | Power over Ethernet (PoE) |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 18 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Anzahl Gigabit Ethernet (Kupfer) Anschlüsse | 18 |
| Menge SFP-Modul-Steckplätze | 2 |
| Netzstandard | IEEE 802.3ab. IEEE 802.3az. IEEE 802.3u. IEEE 802.3x. IEEE 802.3z |
| Kupfer Ethernet Verkabelungstechnologie | 10BASE-T. 10BASE-TX. 1000BASE-LX. 1000BASE-SX. 1000BASE-T |
| Routing-/Switching-Kapazität | 36 Gbit/s |
| MAC-Adressentabelle | 8000 Eintragungen |
| Jumbo-Frames | 9000 |
| Datenpaket-Pufferspeicher | 4.1 MB |
| MAC-Adresseneinträge | Statische MAC-Adresseneinträge |
| Multicast-Funktionen | Steuerbarer Multicast |
| IPv4 & IPv6-Funktionen | IPv4/IPv6 access-control list (ACL) |
| Formfaktor | 19U |
| Produktfarbe | Schwarz |
| Speicherkapazität | 1024 MB |
| Flash-Speicher | 16 MB |
| Energiequelle | AC |
| AC Eingangsspannung | 100 - 240 V |
| Stromverbrauch (Standardbetrieb) | 280 W |
| Power over Ethernet (PoE) Leistung pro Anschluss | 30 W |
| Gesamtleistung Power over Ethernet (PoE) | 240 W |
| Betriebstemperatur | 0 - 40 °C |
| Temperaturbereich bei Lagerung | -40 - 70 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 90% |
| Luftfeuchtigkeit bei Lagerung | 5 - 90% |
| Breite | 441 mm |
| Tiefe | 44 mm |
| Höhe | 190 mm |
| Gewicht | 6.2 kg |
| Konformitätsbescheinigungen | REACH. RoHS |
