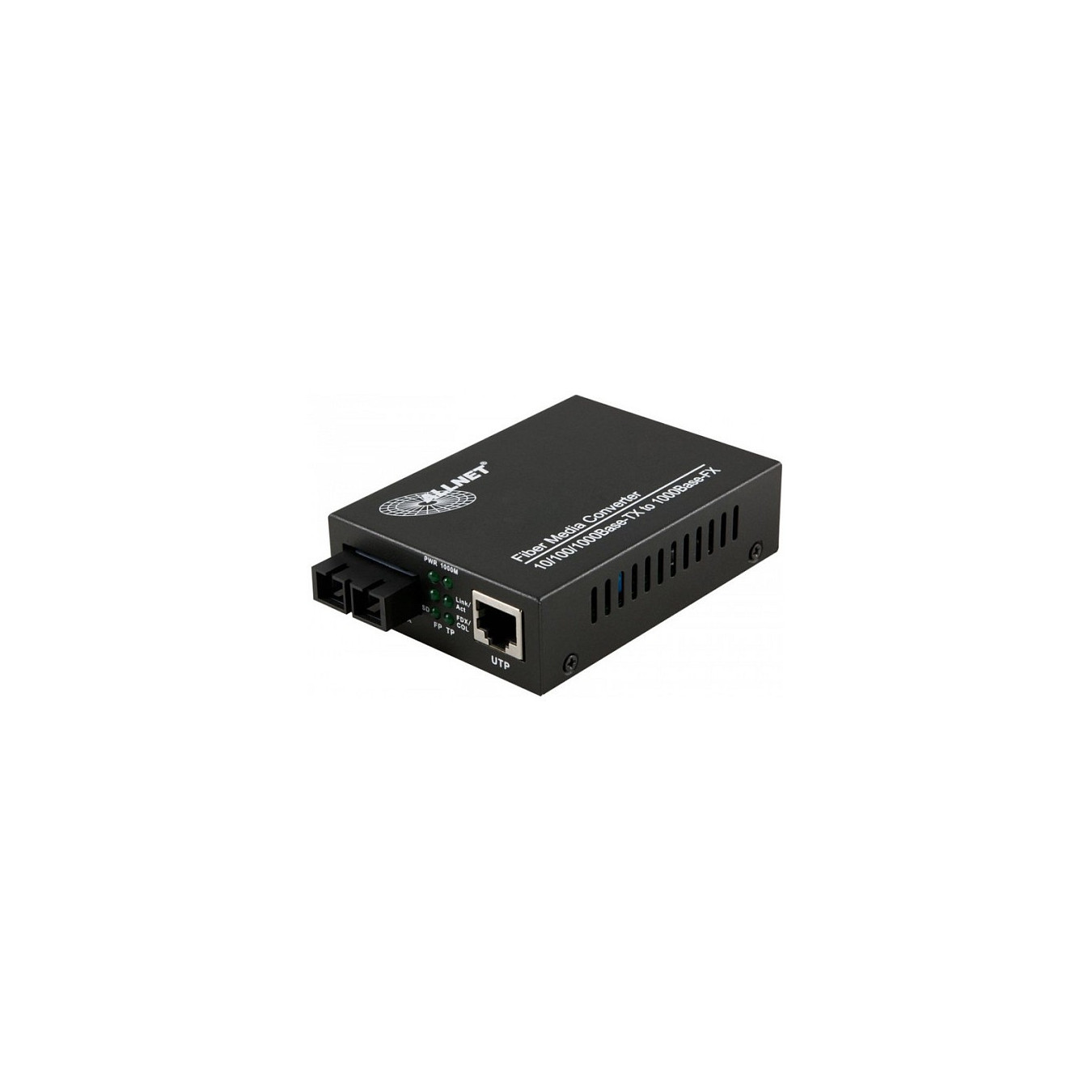

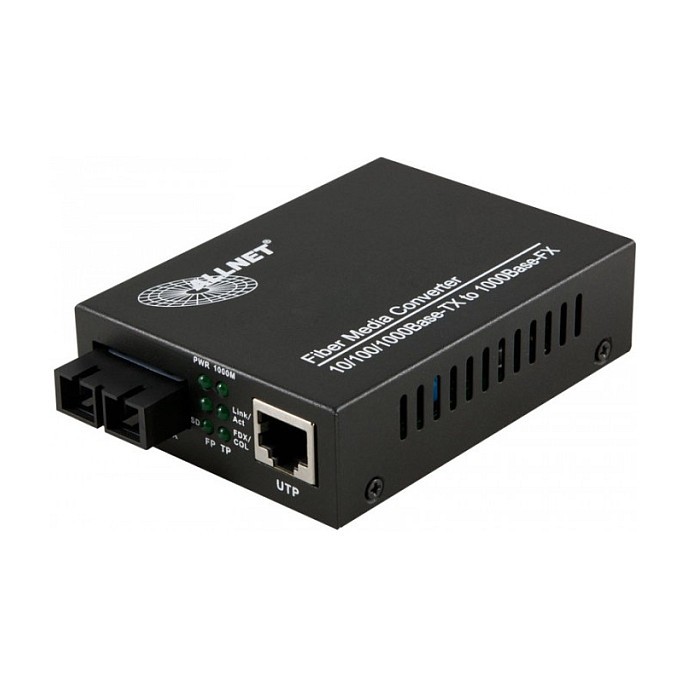

Z ALLNET Medienkonverter 10 100 1000BASE-T auf 1000BASE-LX Singlemode SC Anschluss 10km ALL-MC105G-SC-SM
ALLNET ALL-MC105G-SC-SM. 1000 Mbit/s. IEEE 802.3. IEEE 802.3ab. IEEE 802.3u. IEEE 802.3x. IEEE 802.3z. Gigabit Ethernet. 10.100.1000 Mbit/s. 10BASE-T. 100BASE-TX. 1000BASE-LX. 1000BASE-T. 1000BASE‑LX
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
ALLNET ALL-MC105G-SC-SM. Maximale Datenübertragungsrate: 1000 Mbit/s. Netzstandard: IEEE 802.3. IEEE 802.3ab. IEEE 802.3u. IEEE 802.3x. IEEE 802.3z. Ethernet Schnittstellen Typ: Gigabit Ethernet. Maximal mögliche Übertragungsstrecke: 20000 m. Kabel mode struktur: Einzelmodus. LED-Anzeigen: Link. Leistung. Produktfarbe: Schwarz. Optischer Kabelverbinder: SC. Übertragungstechnik: Kabelgebunden. Stromverbrauch (max.): 3 W
| Maximale Datenübertragungsrate | 1000 Mbit/s |
| Netzstandard | IEEE 802.3. IEEE 802.3ab. IEEE 802.3u. IEEE 802.3x. IEEE 802.3z |
| Ethernet Schnittstellen Typ | Gigabit Ethernet |
| Ethernet LAN Datentransferraten | 10.100.1000 Mbit/s |
| Kupfer Ethernet Verkabelungstechnologie | 10BASE-T. 100BASE-TX. 1000BASE-LX. 1000BASE-T |
| Ethernet-Kabel Verkablungstechnologie | 1000BASE‑LX |
| Feature | Gleichstrom-Anschluss (DC) |
| Duplex-System | Voll. Halb |
| unterstütze Kabeltypen | Cat5. Cat5e. Cat6 |
| Maximal mögliche Übertragungsstrecke | 20000 m |
| Kabel mode struktur | Einzelmodus |
| LED-Anzeigen | Link. Leistung |
| Produktfarbe | Schwarz |
| Übertragungstechnik | Kabelgebunden |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Anzahl Faseranschlüsse | 1 |
| Optischer Kabelverbinder | SC |
| Stromverbrauch (max.) | 3 W |
| Breite | 71 mm |
| Tiefe | 94 mm |
| Höhe | 26 mm |
| Gewicht | 230 g |
| Betriebstemperatur | 0 - 50 °C |
| Temperaturbereich bei Lagerung | -20 - 70 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 90% |
| Luftfeuchtigkeit bei Lagerung | 10 - 90% |
| Zertifizierung | CE |
