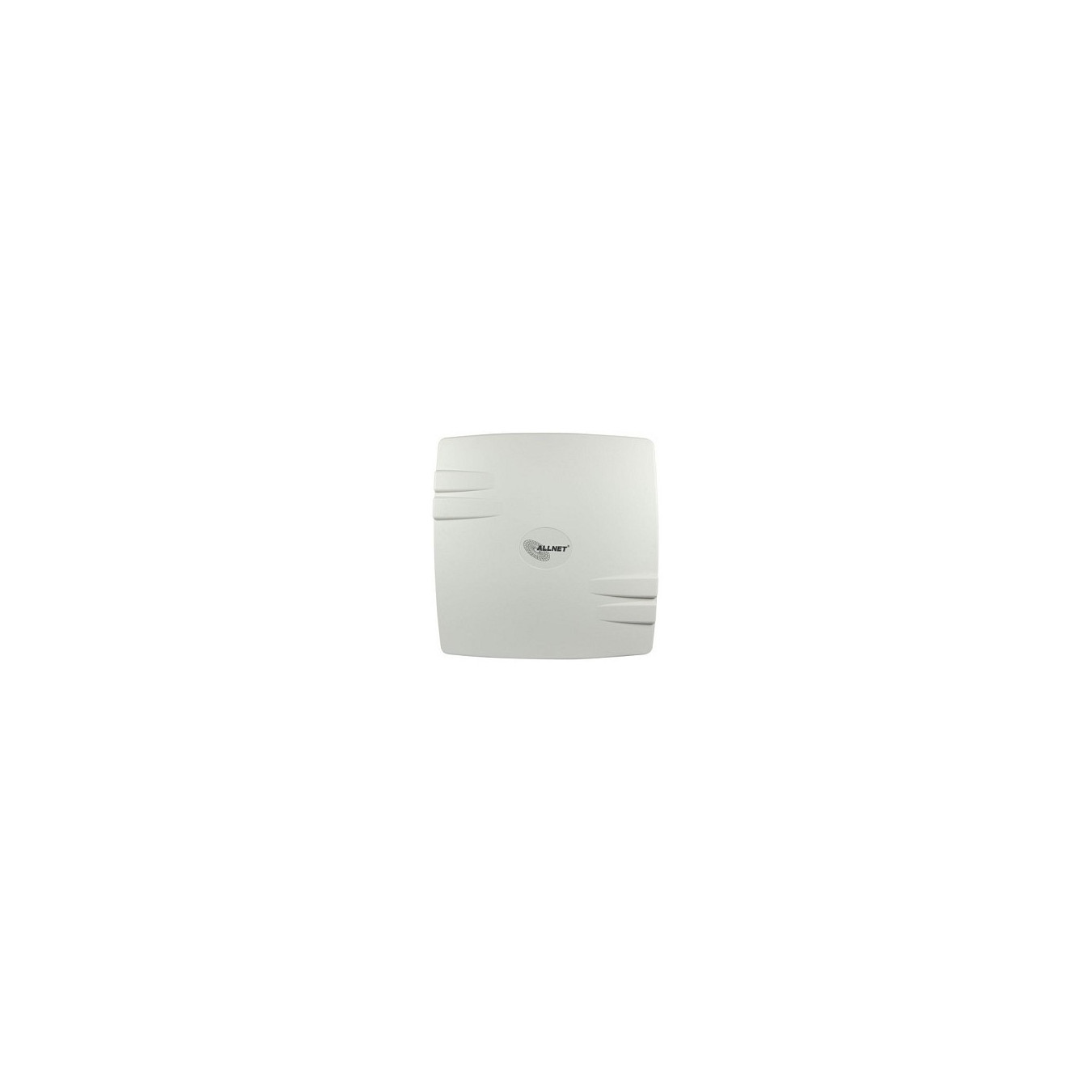

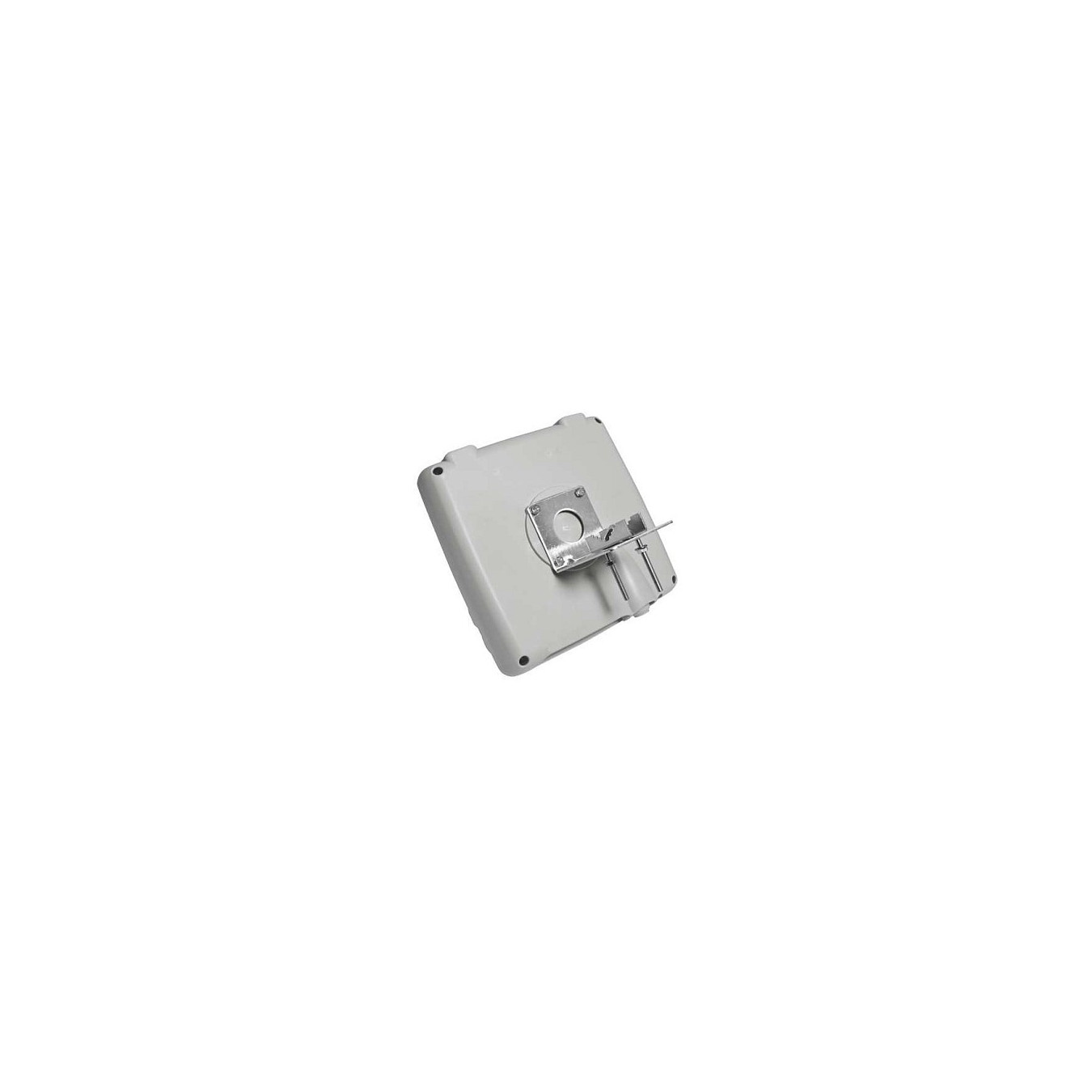

ALLNET Antenne 2.4 5 GHz 6 9dBi Flat Patch Outdoor N-Type female
ALLNET ANT-DUAL-PATCH-270. 9 dBi. 2.4 - 2.483 / 5.15 - 5.85 GHz. 6 dBi. 9 dBi. 50 Ohm. N-Typ
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
ALLNET ANT-DUAL-PATCH-270. Antenne Zunahmeniveau (max): 9 dBi. Frequenzband: 2.4 - 2.483 / 5.15 - 5.85 GHz. Antenna Zuwachs (2.4 GHz): 6 dBi. Antenne Steckertyp: N-Typ. Steckerverbindergeschlecht: Weiblich. Polarisation: Duale Polarisation. Stromverbrauch (max.): 10 W. Breite: 270 mm. Tiefe: 75 mm. Höhe: 270 mm. Menge pro Packung: 1 Stück(e)
| Frequenzband | 2.4 - 2.483 / 5.15 - 5.85 GHz |
| Antenna Zuwachs (2.4 GHz) | 6 dBi |
| Antenna Zuwachs (5 GHz) | 9 dBi |
| Impedanz | 50 Ohm |
| Antenne Zunahmeniveau (max) | 9 dBi |
| Antenne Steckertyp | N-Typ |
| Steckerverbindergeschlecht | Weiblich |
| Polarisation | Duale Polarisation |
| Spannung Stellung-Welle Verhältnis (VSWR) | 2:1 |
| Produktfarbe | Weiß |
| Internationale Schutzart (IP-Code) | IP67 |
| Überlebens-Windgeschwindigkeit | 160 km/h |
| Stromverbrauch (max.) | 10 W |
| Betriebstemperatur | -40 - 80 °C |
| Breite | 270 mm |
| Tiefe | 75 mm |
| Höhe | 270 mm |
| Menge pro Packung | 1 Stück(e) |
