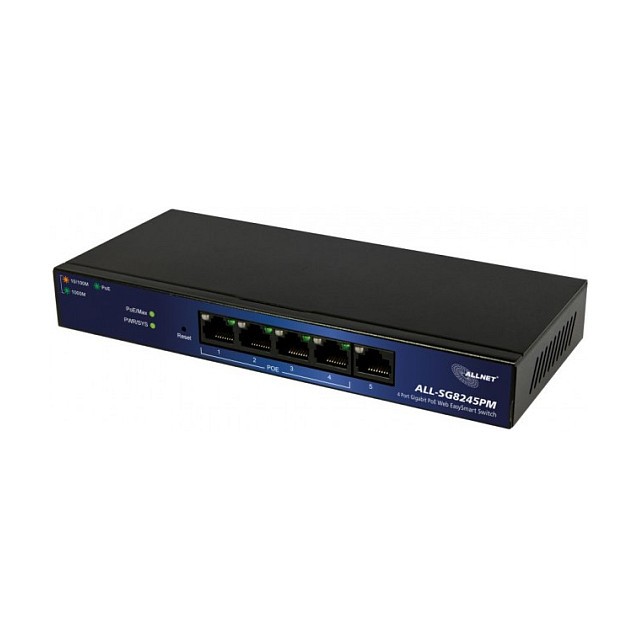

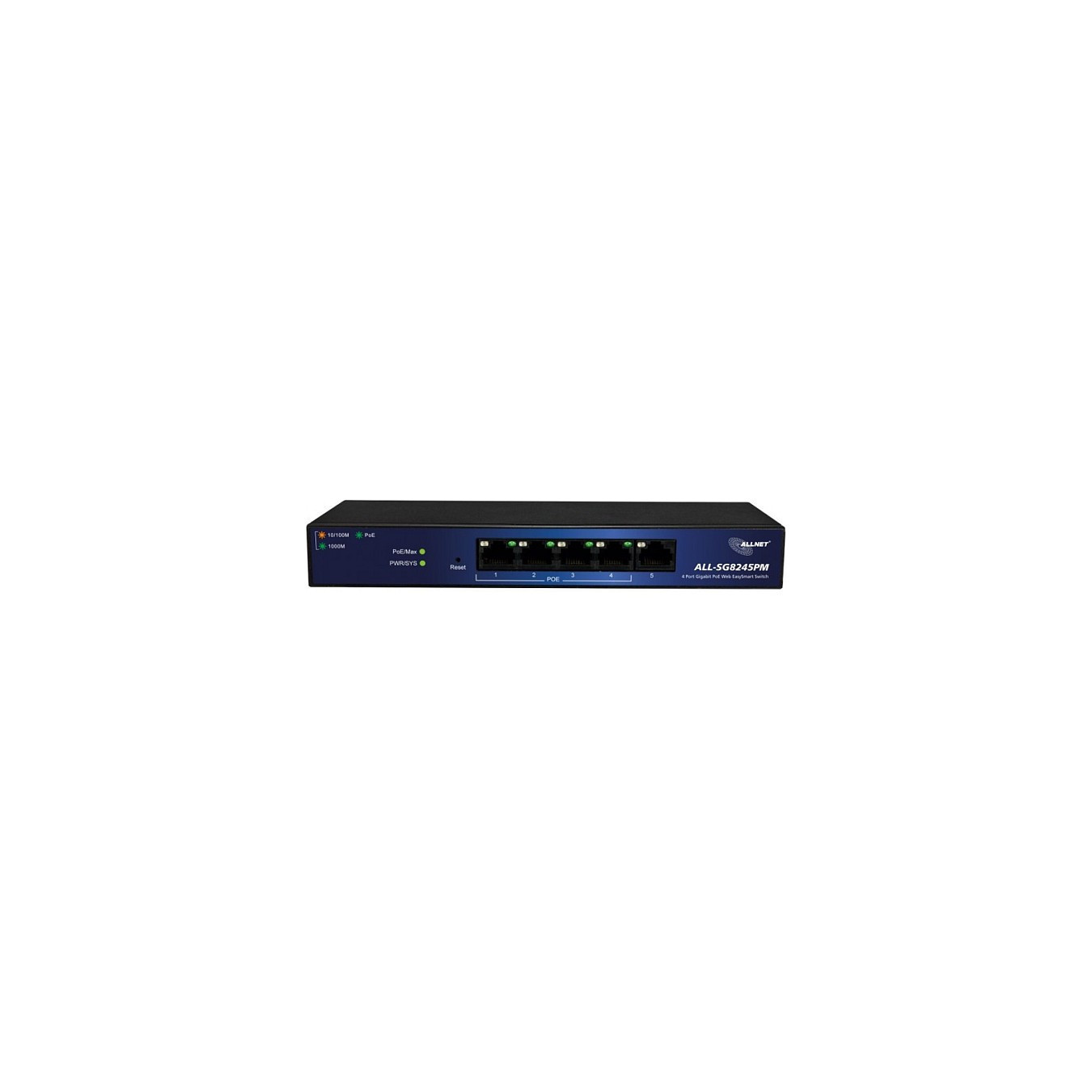

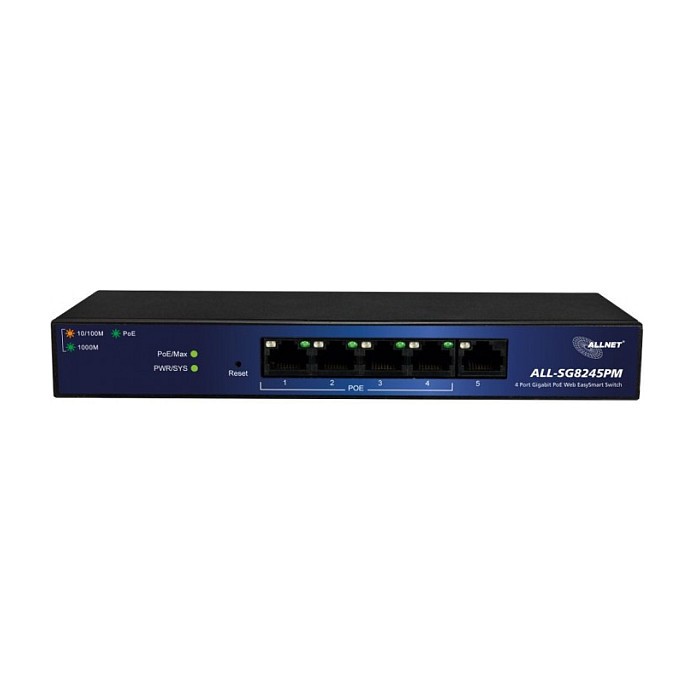

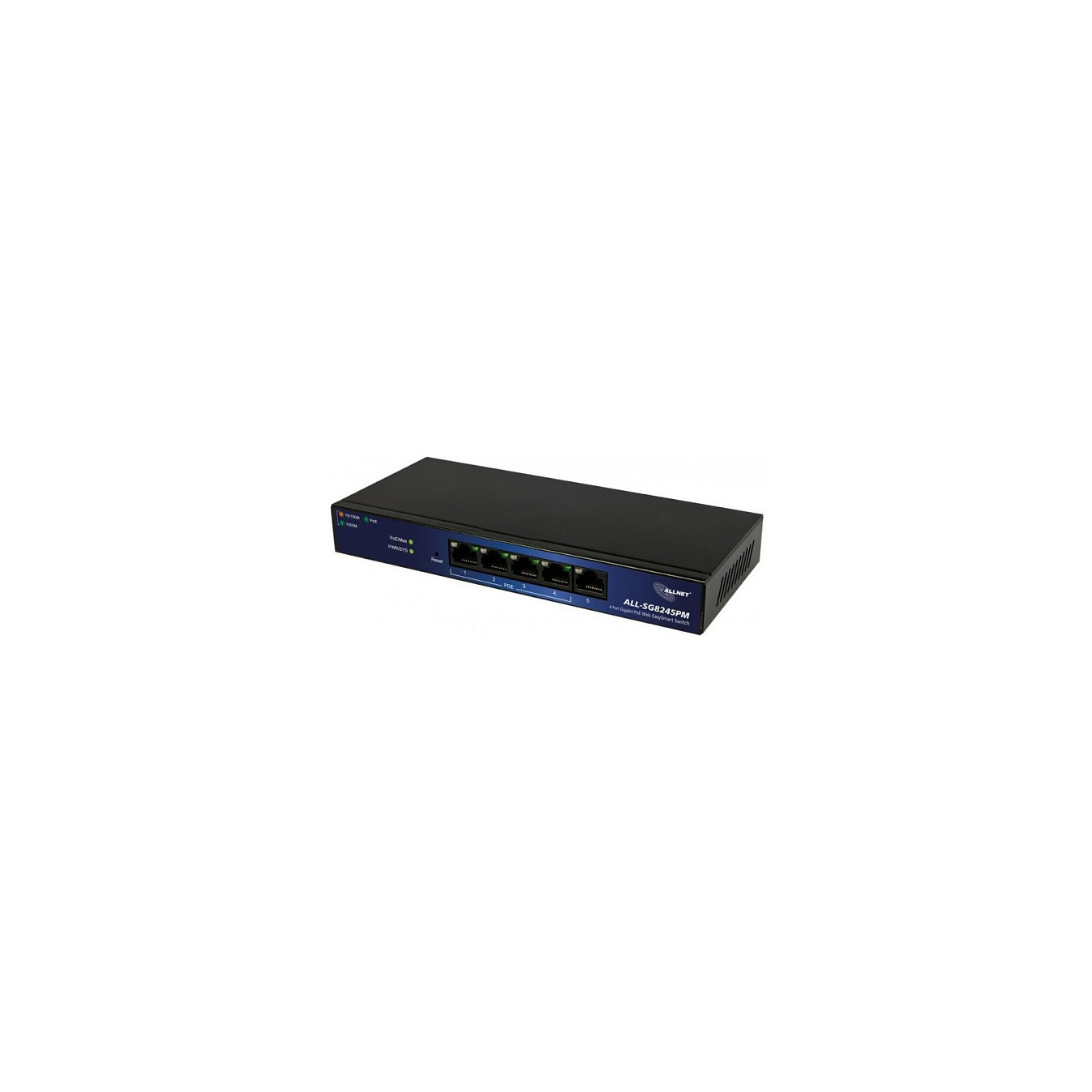

5P ALLNET ALL-SG8245PM POE+ M
ALLNET ALL-SG8245PM. Managed. L2. Gigabit Ethernet (10/100/1000). Vollduplex. Power over Ethernet (PoE)
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
ALLNET ALL-SG8245PM. Switch-Typ: Managed. Switch-Ebene: L2. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000). Anzahl der basisschaltenden RJ-45 Ethernet Ports: 5. Vollduplex. MAC-Adressentabelle: 2048 Eintragungen. Netzstandard: IEEE 802.1Q. IEEE 802.1p. IEEE 802.3. IEEE 802.3ab. IEEE 802.3ad. IEEE 802.3af. IEEE 802.3at. IEEE.... Power over Ethernet (PoE)
| Switch-Typ | Managed |
| Switch-Ebene | L2 |
| Feature | AC-Netzadapter |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 5 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Anzahl Gigabit Ethernet (Kupfer) Anschlüsse | 5 |
| Netzstandard | IEEE 802.1Q. IEEE 802.1p. IEEE 802.3. IEEE 802.3ab. IEEE 802.3ad. IEEE 802.3af. IEEE 802.3at. IEEE 802.3az. IEEE 802.3u |
| Kupfer Ethernet Verkabelungstechnologie | 10BASE-T. 100BASE-TX. 1000BASE-T |
| Virtuelle LAN-Funktionen | Tagged VLAN |
| MAC-Adressentabelle | 2048 Eintragungen |
| Jumbo-Frames | 9216 |
| Datenpaket-Pufferspeicher | 0.125 MB |
| Produktfarbe | Schwarz |
| Gehäusematerial | Metall |
| AC Eingangsspannung | 100 - 240 V |
| Ausgangsspannung | 55 V |
| Ausgangsstrom | 1.3 A |
| Stromverbrauch (Standardbetrieb) | 3 W |
| Anzahl Power over Ethernet plus (PoE+) Anschlüsse | 4 |
| Power over Ethernet (PoE) Leistung pro Anschluss | 30 W |
| Gesamtleistung Power over Ethernet (PoE) | 70 W |
| Betriebstemperatur | 0 - 50 °C |
| Temperaturbereich bei Lagerung | -40 - 70 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 90% |
| Luftfeuchtigkeit bei Lagerung | 5 - 90% |
| Breite | 193 mm |
| Tiefe | 84 mm |
| Höhe | 26 mm |
| Zertifizierung | CE FCC EMI class B. ROHS |
