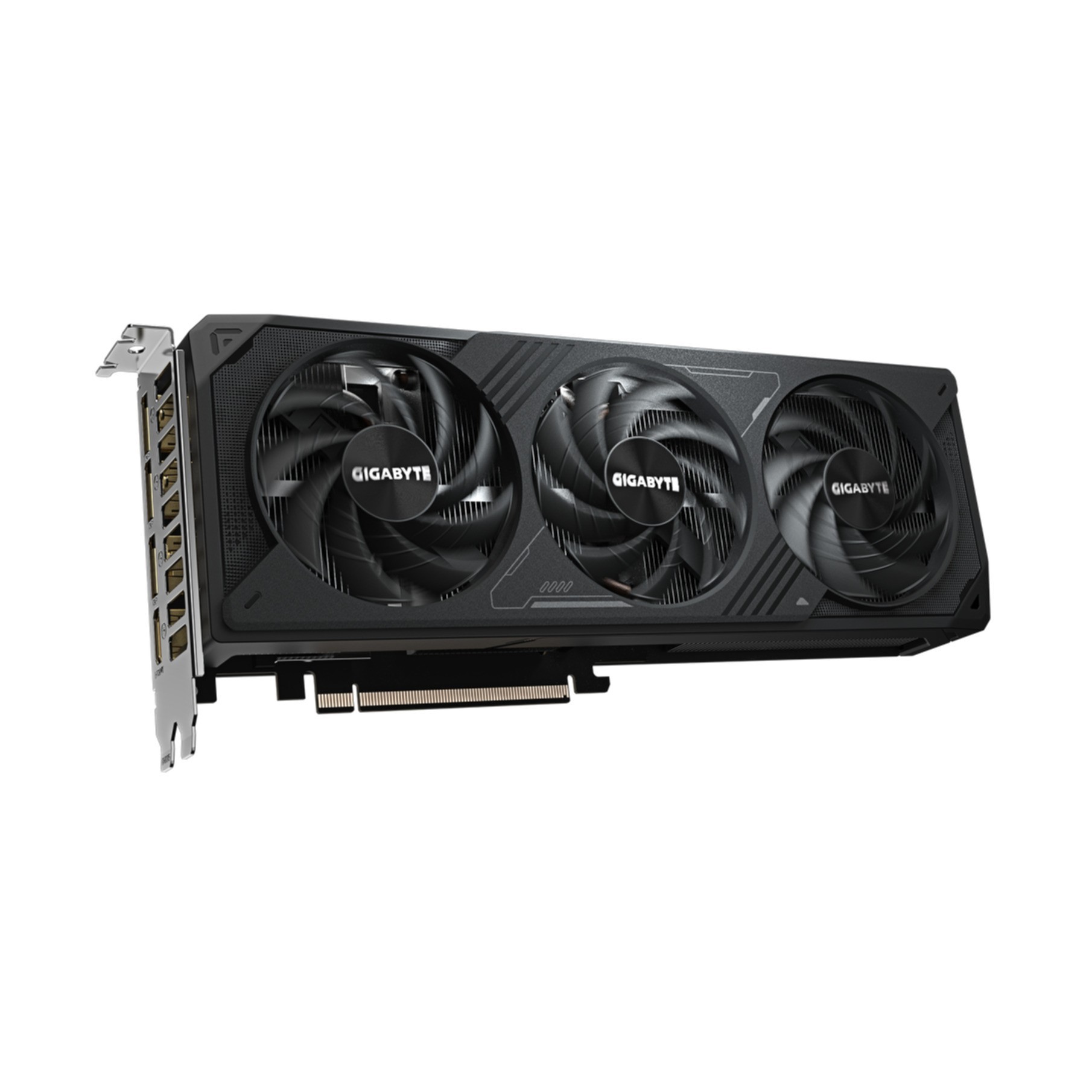

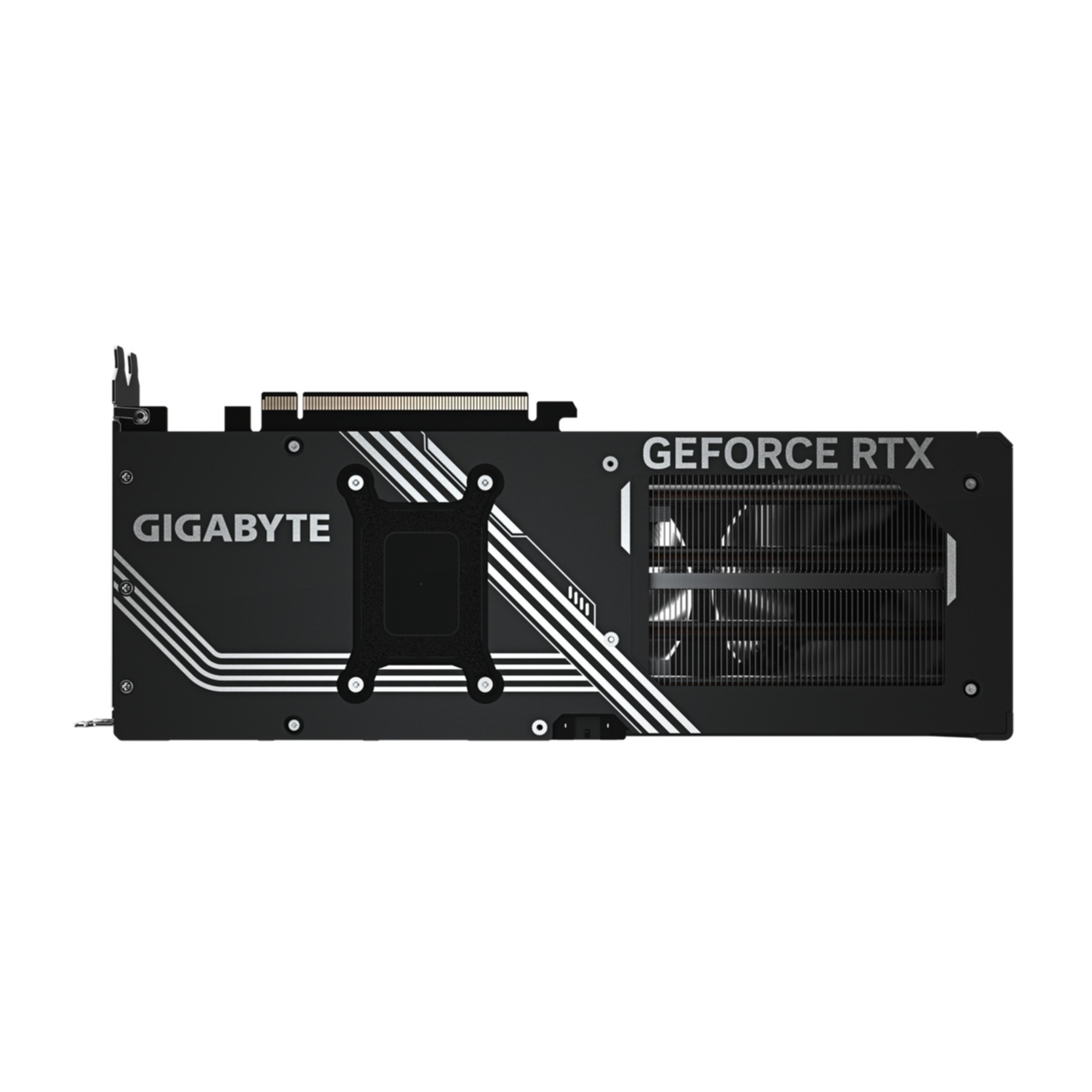

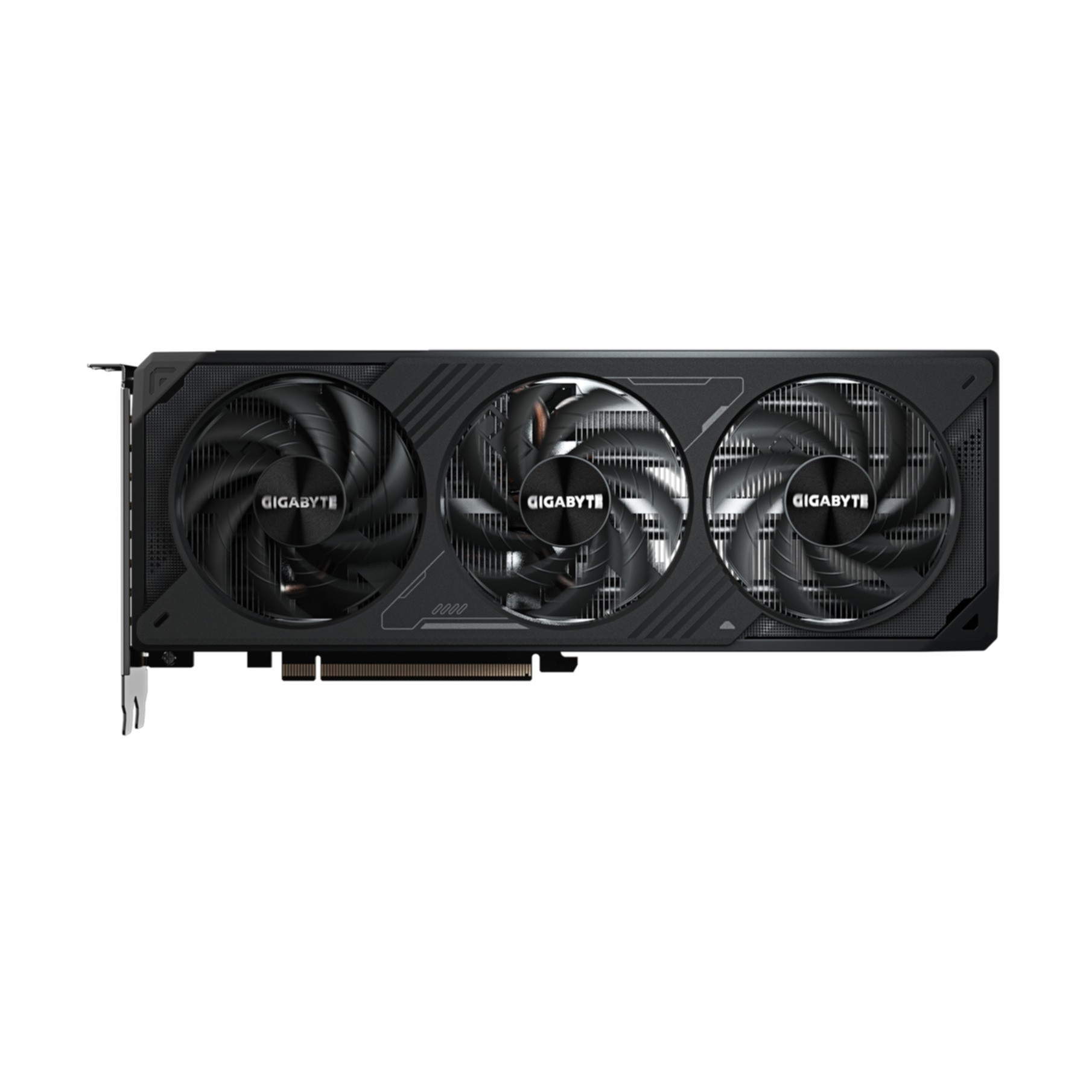

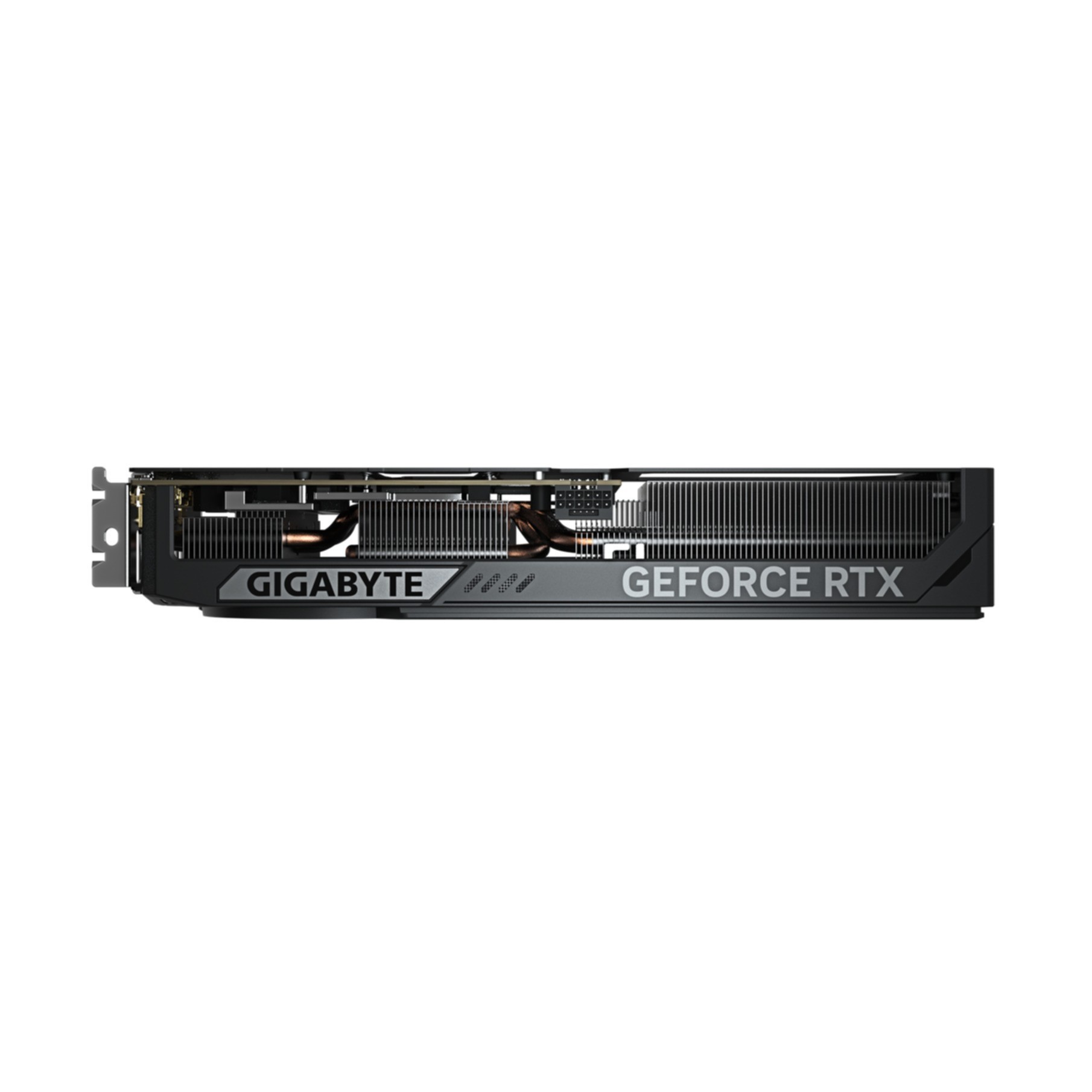

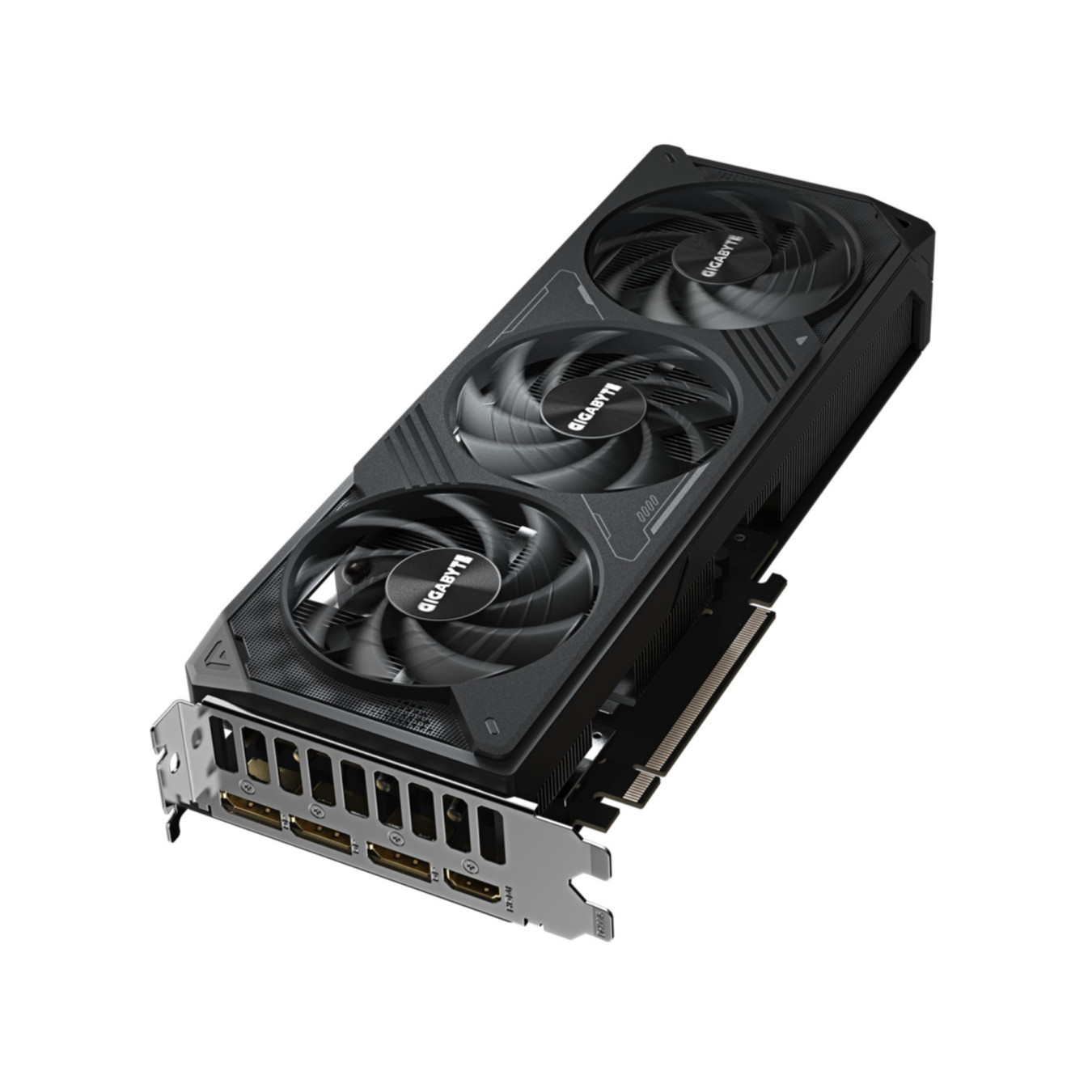

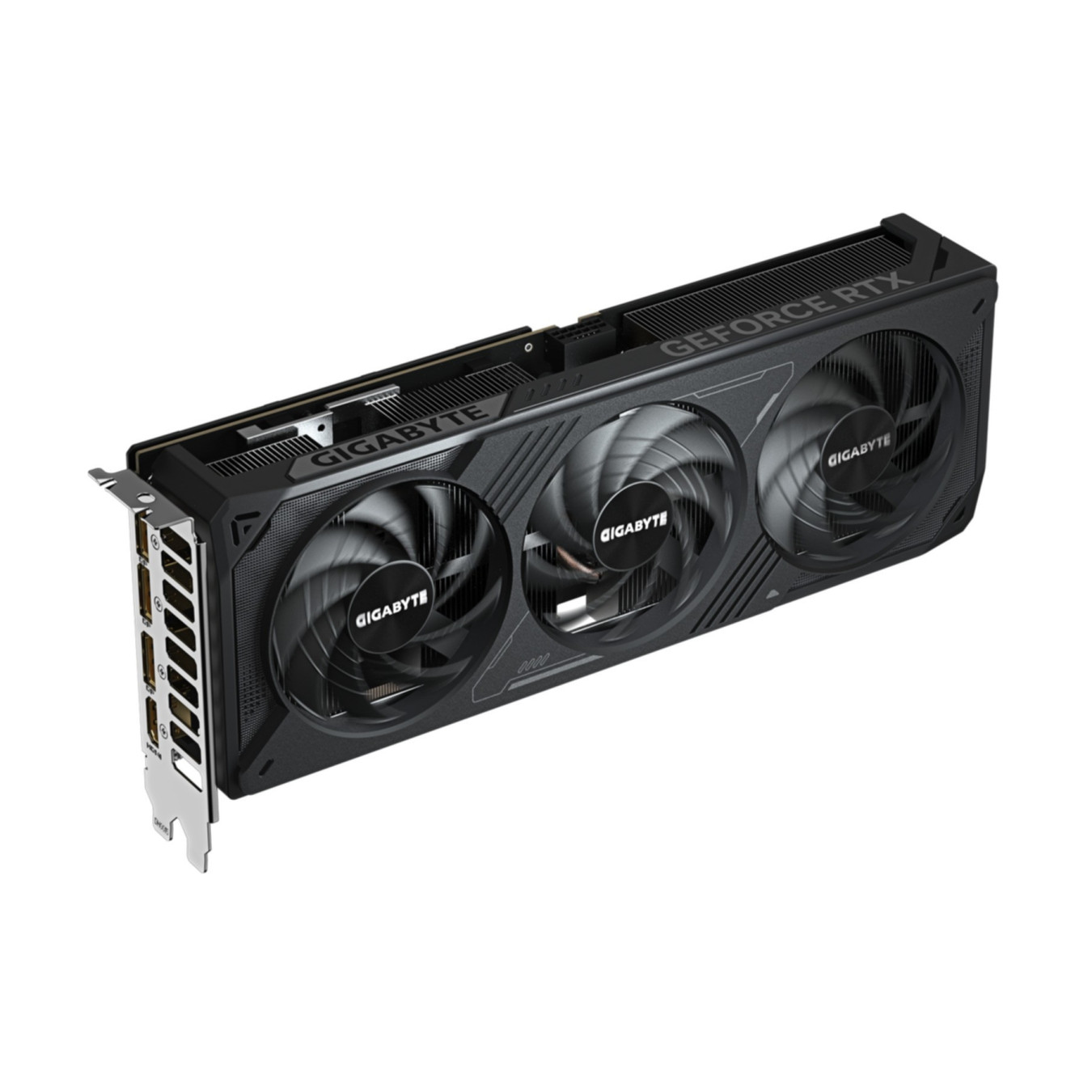

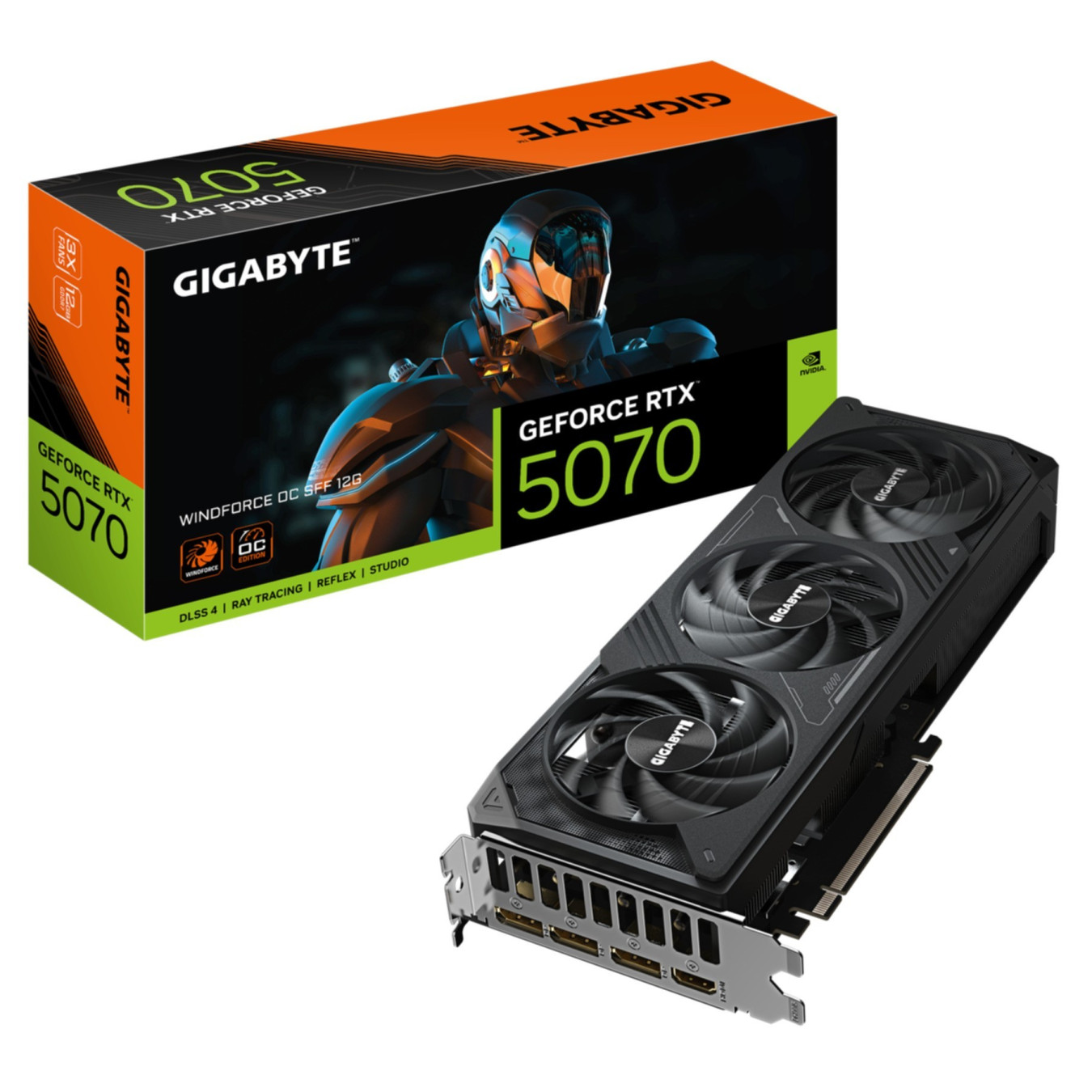

Gigabyte GeForce RTX 5070 Windforce OC - Black, 12GB GDDR7, 2542 MHz Boost, PCIe 5.0
GeForce RTX 5070 GPU with 12GB GDDR7, 6144 CUDA cores, 2542 MHz boost, PCIe 5.0, 3x DisplayPort 2.1a + 1x HDMI 2.1b, WINDFORCE 3X 3-fan active cooler, 2-slot
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| GPU (Graphics Cards) - VRAM Capacity | 12 GB |
|---|---|
| GPU (Graphics Cards) - Power Connector | 12VHPWR (16-pin) |
| GPU (Graphics Cards) - Card Length | 281-320 mm |
| GPU (Graphics Cards) - Slot Thickness | 2-slot |
| GPU (Graphics Cards) - Cooler Type | Open-air (axial) |
GIGABYTE GeForce RTX 5070 WINDFORCE OC SFF 12G Graphics Card - 12GB GDDR7. 192bit. PCI-E 5.0. 2542 MHz Core Clock. 3 x DP 2.1a. 1 x HDMI 2.1b. NVIDIA DLSS 4. GV-N5070WF3OC-12GD. Graphics processor family: NVIDIA. Graphics processor: GeForce RTX 5070. Processor frequency: 2542 MHz. Discrete graphics card memory: 12 GB. Graphics card memory type: GDDR7. Memory bus: 192 bit. Memory clock speed: 28000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12.0. OpenGL version: 4.6. Interface type: PCI Express x16 5.0. Cooling type: Active. Number of fans: 3 fan(s)
| Feature | Quick installation guide |
| CUDA cores | 6144 |
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5070 |
| Processor frequency | 2542 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Discrete graphics card memory | 12 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 192 bit |
| Memory clock speed | 28000 MHz |
| Memory bandwidth (max) | 28 GB/s |
| Interface type | PCI Express x16 5.0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| DisplayPorts quantity | 3 |
| DisplayPort version | 2.1a |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| Warranty period | 4 year(s) |
| Cooling type | Active |
| Cooling technology | GIGABYTE WINDFORCE 3X |
| Number of fans | 3 fan(s) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 2 |
| Product colour | Black |
| Minimum system power supply | 750 W |
| Supplementary power connectors | 1x 16-pin |
| Weight | 2 kg |
| Length | 282 mm |
| Depth | 50 mm |
| Height | 110 mm |
| Package width | 182.5 mm |
| Package depth | 354 mm |
| Package height | 75 mm |
| Package weight | 3 kg |
| Package type | Box |
| Cables included | Power |
| Products per shipping (inner) case | 1 pc(s) |
