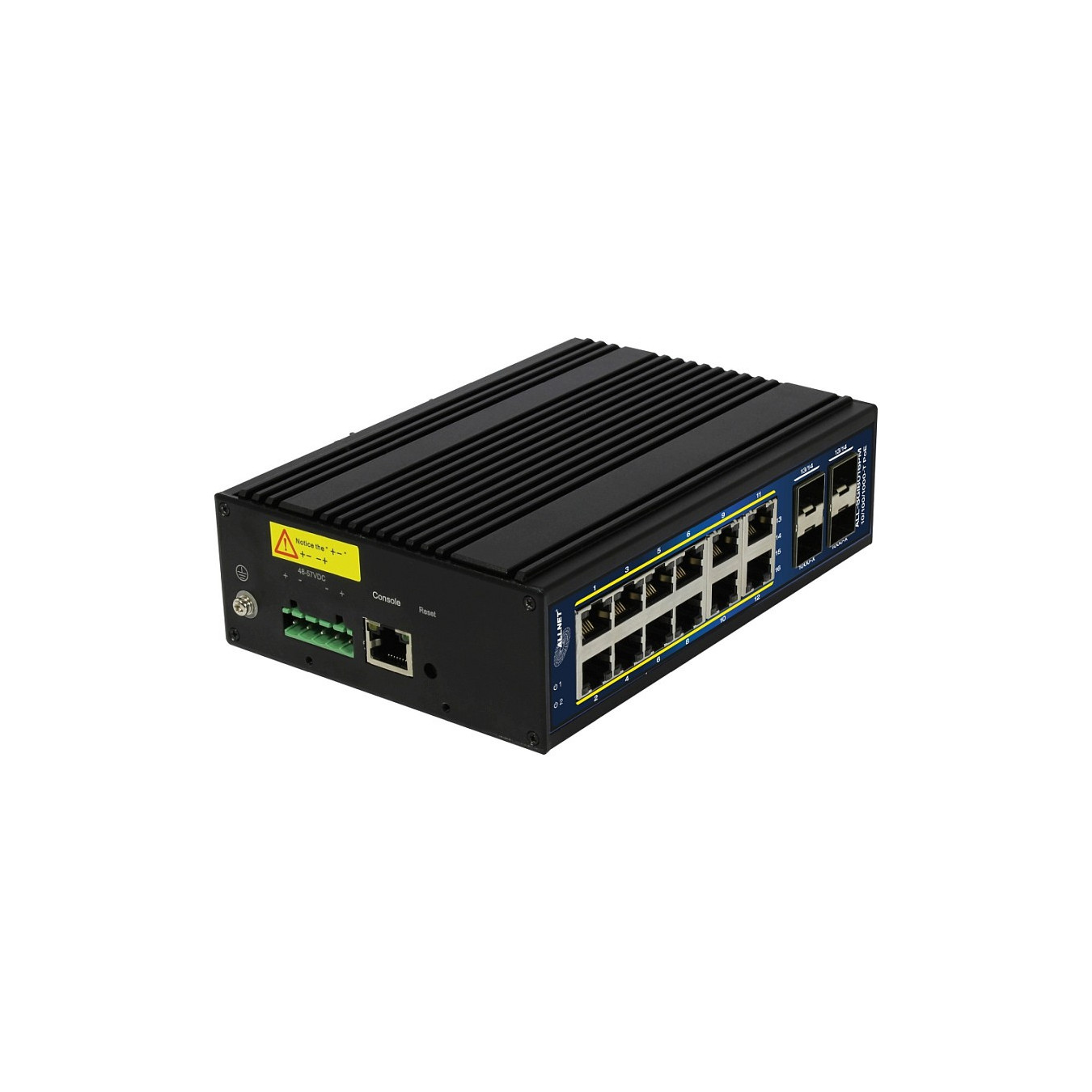

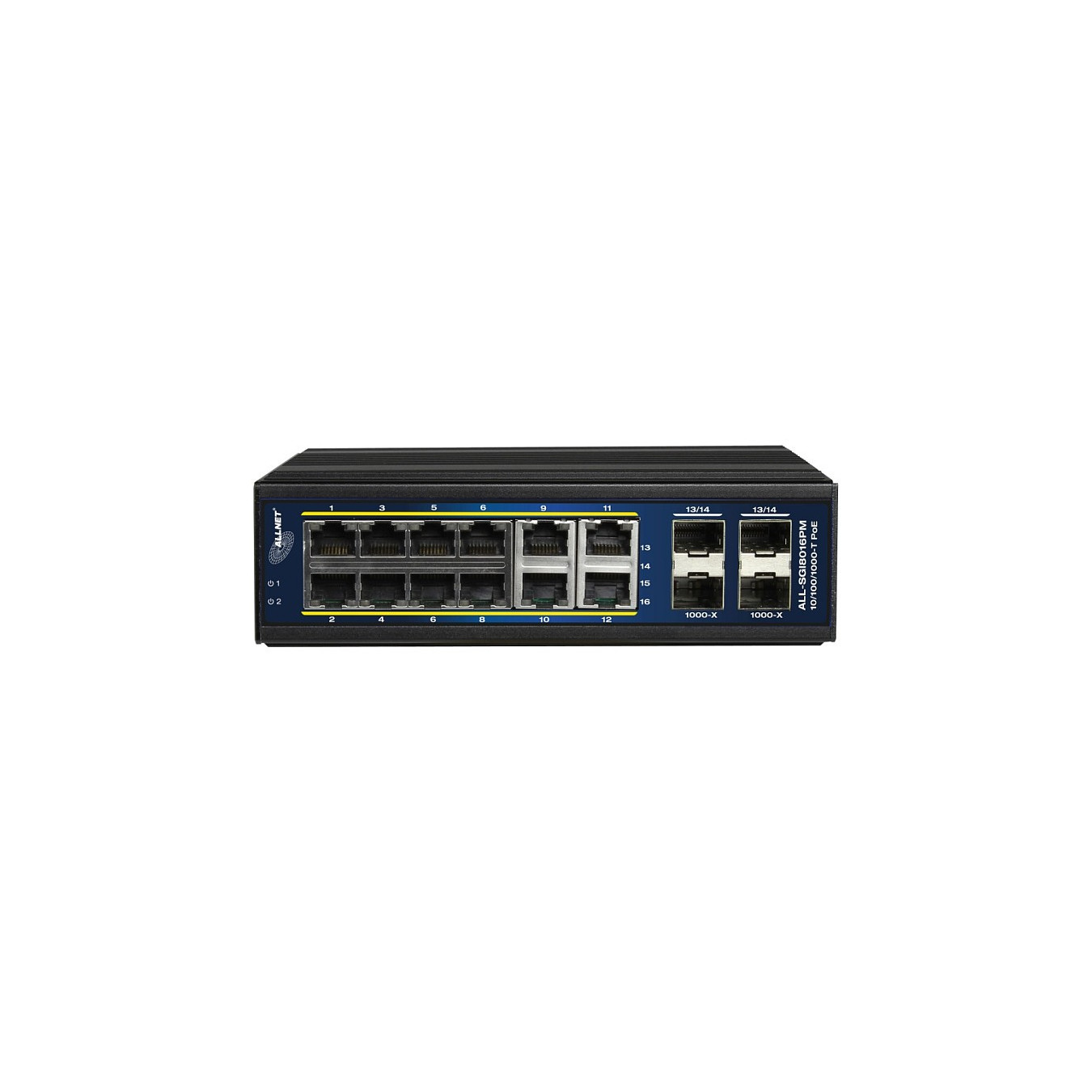

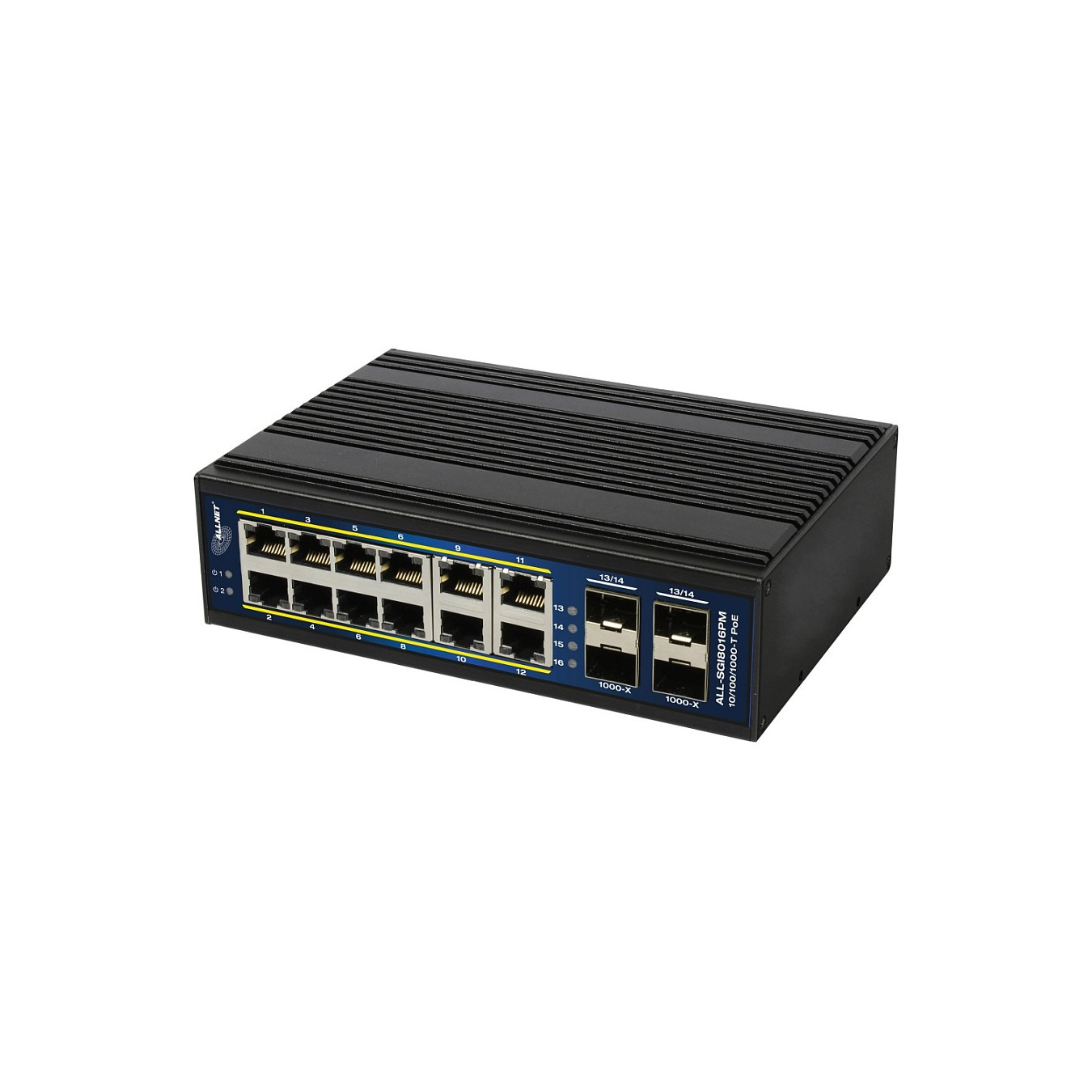

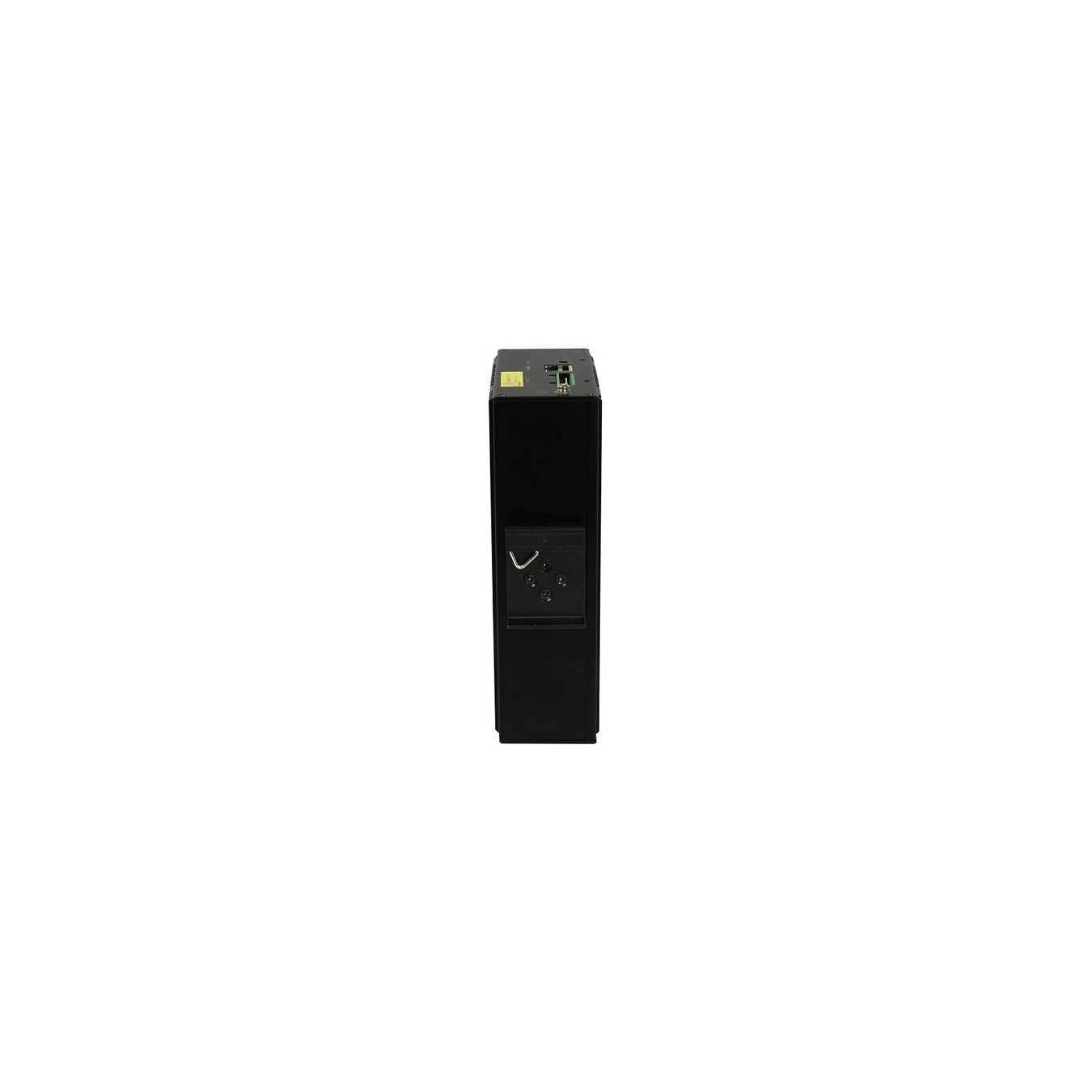

12+4P ALLNET ALL-SGI8016PM POE+ M industrial
ALLNET ALL-SGI8016PM. Managed. L2+/L3. Gigabit Ethernet (10/100/1000). Vollduplex. Power over Ethernet (PoE). Wandmontage
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
ALLNET ALL-SGI8016PM. Switch-Typ: Managed. Switch-Ebene: L2+/L3. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000). Anzahl der basisschaltenden RJ-45 Ethernet Ports: 12. Anzahl installierten SFP Module: 4. Vollduplex. MAC-Adressentabelle: 16000 Eintragungen. Routing-/Switching-Kapazität: 32 Gbit/s. Netzstandard: IEEE 802.1D. IEEE 802.1Q. IEEE 802.1p. IEEE 802.1s. IEEE 802.1w. IEEE 802.1x. IEEE 802.3. IEEE.... DC input Spannung: 48 - 57 V. Power over Ethernet (PoE). Wandmontage
| Switch-Typ | Managed |
| Switch-Ebene | L2+/L3 |
| Feature | Power over Ethernet (PoE) |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 12 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Anzahl Gigabit Ethernet (Kupfer) Anschlüsse | 12 |
| Anzahl installierten SFP Module | 4 |
| Kupfer Ethernet Verkabelungstechnologie | 10BASE-T. 100BASE-TX. 1000BASE-T |
| unterstütze Kabeltypen | Cat5e. Cat6 |
| Ethernet LAN Datentransferraten | 10.100.1000 Mbit/s |
| Virtuelle LAN-Funktionen | MAC address-based VLAN. Multicast VLAN. Port-based VLAN. Private VLAN. Protocol-based VLAN. Stacked VLAN. Tagged VLAN |
| Anzahl der VLANs | 4000 |
| Routing-/Switching-Kapazität | 32 Gbit/s |
| Durchgang | 23.8 Mpps |
| MAC-Adressentabelle | 16000 Eintragungen |
| Anzahl Queues | 4 |
| DHCP-Funktionen | DHCP snooping |
| Unterstützte Sicherheitsalgorithmen | SSH. SSH-2. SSL/TLS |
| Authentifizierung | Gast VLAN. Port-basierte Authentifizierung |
| Autentifizierungstyp | RADIUS. TACACS+ |
| Warteschleifenplanungs-Algorithmen | SP. WRR+SP. Weighted Round Robin (WRR) |
| Router Protokoll | OSPF. RIP |
| Produktfarbe | Schwarz |
| Gehäusematerial | Metall |
| Internationale Schutzart (IP-Code) | IP40 |
| DC input Spannung | 48 - 57 V |
| Stromverbrauch (max.) | 20 W |
| Anzahl Power over Ethernet (PoE) Anschlüsse | 12 |
| Power over Ethernet (PoE) Leistung pro Anschluss | 30 W |
| Betriebstemperatur | -40 - 75 °C |
| Temperaturbereich bei Lagerung | -40 - 85 °C |
| Relative Luftfeuchtigkeit in Betrieb | 0 - 95% |
| Breite | 165 mm |
| Tiefe | 114 mm |
| Höhe | 46 mm |
| Gewicht | 530 g |
