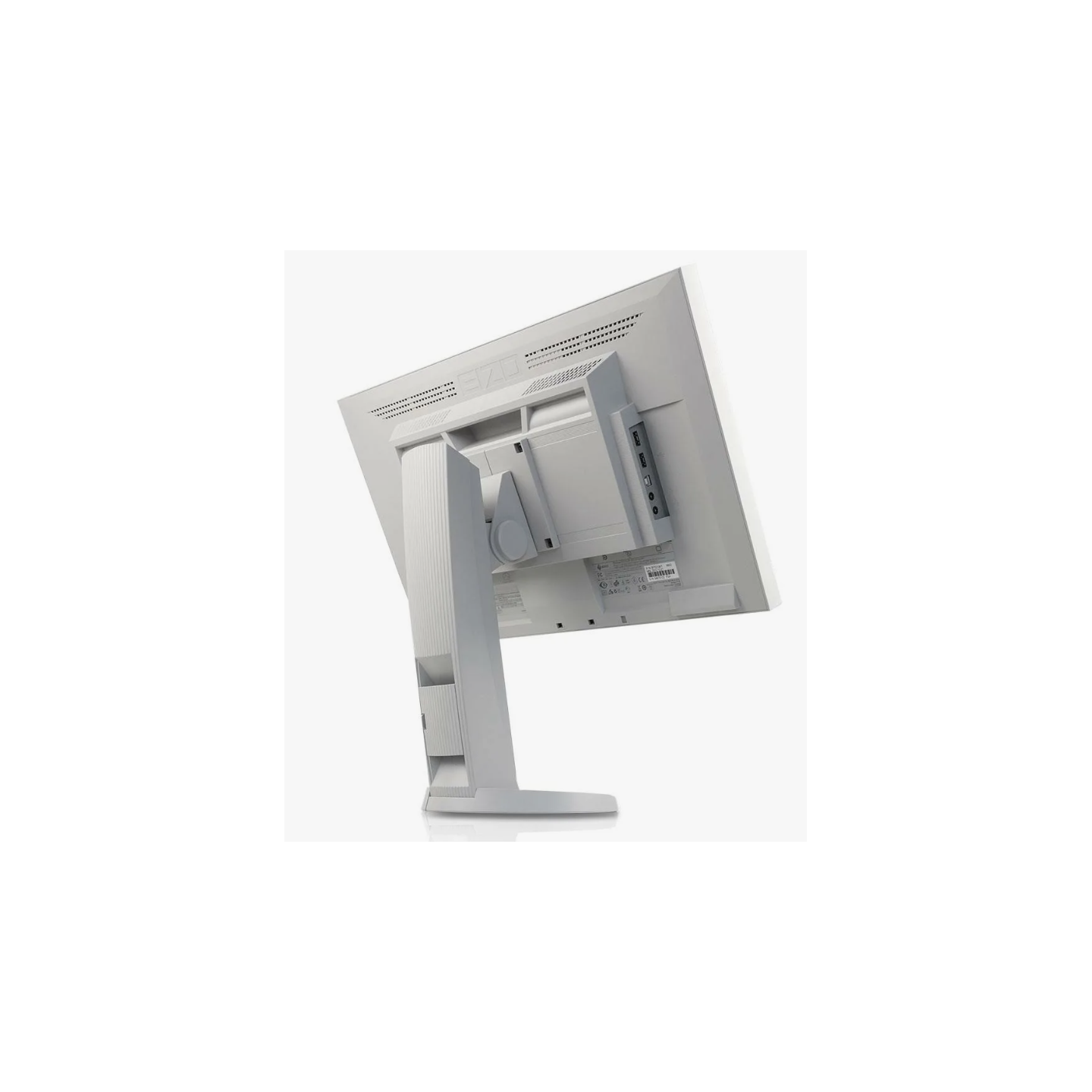

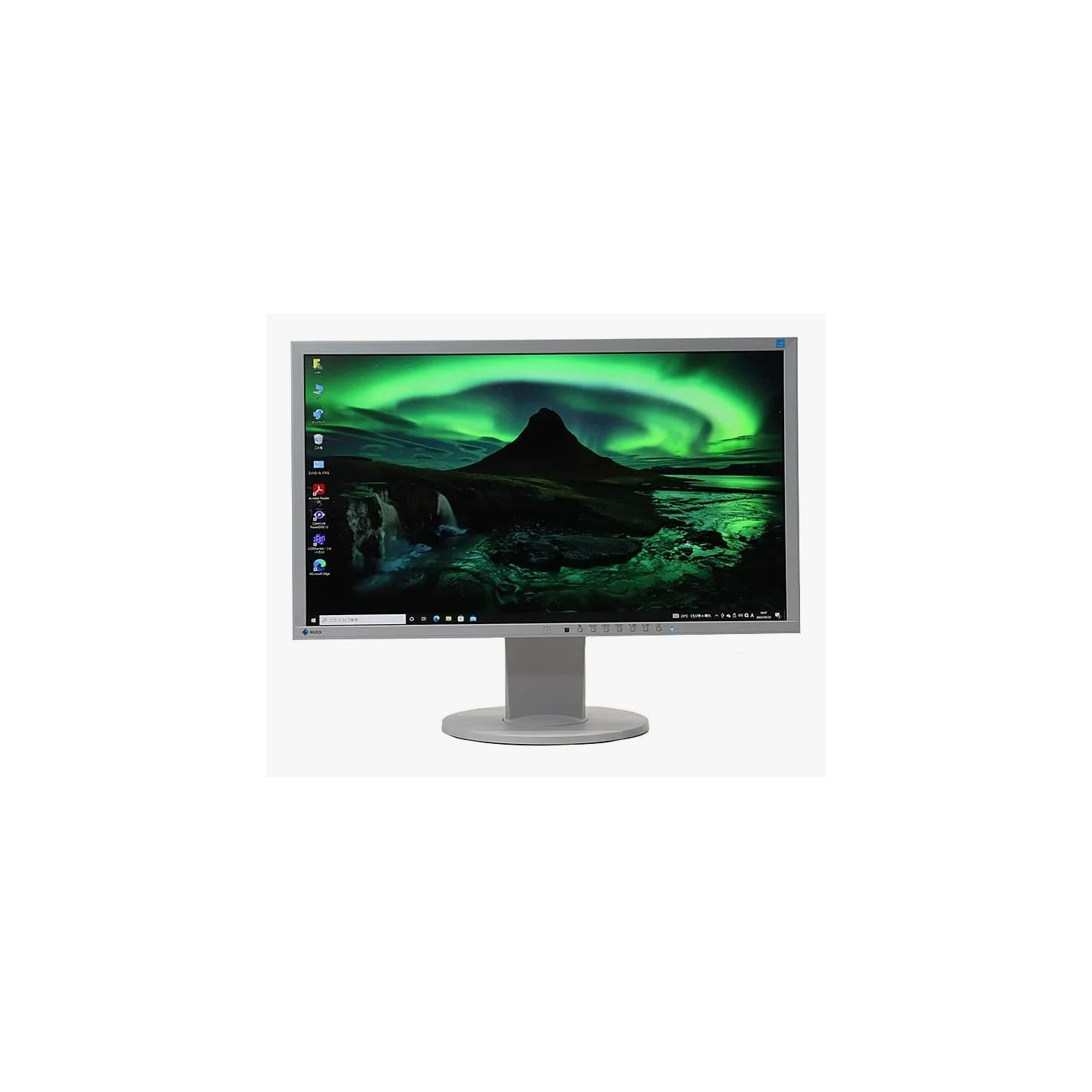

Monitor Eizo EV2316W 23 Inch FHD
Display Size 23 ( 1920 x 1080); TN; Aspect Ratio 16 : 9; Video input : VGA, DVI, Display port; USB ports
Height adjust, tilt, swivel, pivot
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Specification
| Model Variations | With FlexStand | ||
|---|---|---|---|
| Cabinet Color | Gray, Black | ||
| Panel | |||
| Type | TN | ||
| Backlight | LED | ||
| Size | 23.8" / 60 cm (604 mm diagonal) | ||
| Native Resolution | 1920 x 1080 (16: 9 aspect ratio) | ||
| Viewable Image Size (H x V) | 527 x 296.4 mm | ||
| Pixel Pitch | 0.2745 x 0.2745 mm | ||
| Display Colors | 16.77 million | ||
| Viewing Angles (H / V, typical) | 178°, 178° | ||
| Brightness (typical) | 250 cd/m2 | ||
| Contrast Ratio (typical) | 1000:1 | ||
| Response Time (typical) | 5 ms (black-white-black) | ||
| Video Signals | |||
| Input Terminals | D-Sub mini 15 pin x 1, DVI-D 24 pin x 1 (with HDCP), HDMI x 1 (with HDCP), DisplayPort x 1 (with HDCP) | ||
| Digital Scanning Frequency (H / V) | 31 - 68 kHz, 59 - 61 Hz (VGA Text: 69 - 71 Hz) | ||
| Analog Scanning Frequency (H / V) | 31 - 81 kHz, 55 - 76 Hz | ||
| Sync Formats | Separate | ||
| USB | |||
| Function |
1 port for monitor control 2-port USB hub |
||
| Standard | USB 2.0 | ||
| Audio | |||
| Speakers | 1.0 W +1.0 W | ||
| Input Terminals | 3.5 mm stereo jack | ||
| Output Terminals | 3.5 mm headphone jack | ||
| Sound Adjustment | Volume, Power Save, Source (DisplayPort, HDMI) | ||
| Power | |||
| Power Requirements | AC 100 - 120 V / 200 - 240 V, 50 / 60 Hz | ||
| Maximum Power Consumption | 47 W | ||
| Typical Power Consumption | 12 W | ||
| Power Save Mode | Less than 0.3 W | ||
| Power Management | Power Save (VESA DPM, DisplayPort Rev. 1.1a, and DVI DMPM), Eco Timer | ||
| Features & Functions | |||
| Preset Modes | Color mode (Paper, Movie, sRGB, User1, User2, DICOM) | ||
| Auto EcoView / BrightRegulator | Yes | ||
| EcoView Sense | Yes | ||
| OSD Languages | English, French, German, Italian, Japanese, Simplified and Traditional Chinese, Spanish, Swedish | ||
| Physical Specifications | |||
| Dimensions (Landscape, W x H x D) | 537.6 x 368 - 473.5 x 233 mm | ||
| Dimensions (Without Stand, W x H x D) | 537.6 x 317.6 x 47.9 mm | ||
| Net Weight | 6.2 kg / 13.7 lbs | ||
| Net Weight (Without Stand) | 3.8 kg / 8.4 lbs | ||
| Height Adjustment Range | 140 mm | ||
| Tilt | 35° Up, 5° Down | ||
| Swivel | 344° | ||
| Pivot | 90°(both clockwise and counter clockwise) | ||
| Hole Spacing (VESA Standard) | 100 x 100 mm | ||
| Environmental Requirements | |||
| Operating Temperature | 5 - 35 °C | ||
| Operating Humidity (R.H., non condensing) | 20 - 80 % | ||
| Certifications & Standards (Please contact EIZO for the latest information.) | TCO Displays 6.0, EPEAT Gold (US), TUV/Ergonomics (including ISO9241-307), TUV/GS, RCM, CE, CB, cTUVus, FCC-B, Canadian ICES-003-B, TUV/S, VCCI-B, EPA Energy Star, RoHS, WEEE, China RoHS, CCC, GOST-R | ||
| Supplied Accessories | AC power cord, signal cables (DisplayPort - DisplayPort), USB cable, EIZO LCD Utility Disk (PDF user's manual), setup guide | ||
| Warranty | 2 Years | ||
