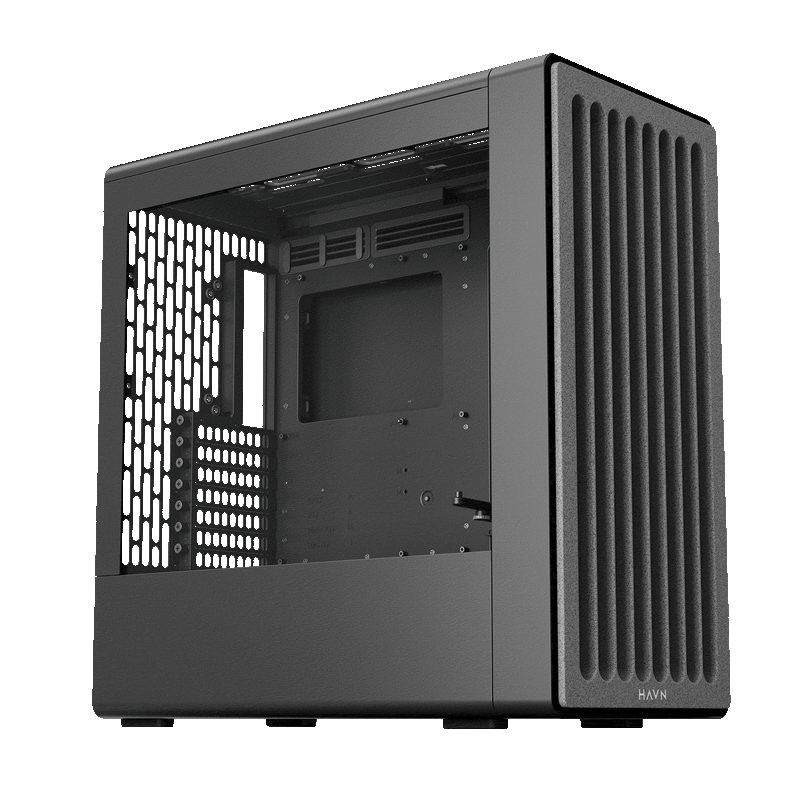

HAVN BF 360 Black without fans - premium ATX mid-tower (Boxed)
High-airflow ATX mid-tower designed for superior cooling with support for up to four 180mm fans and 360/420mm radiators. Features GPU-focused air guide, semi-open frame, and premium build for quiet, efficient PC builds.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PC Cases - Motherboard Support | ATX EATX Micro ATX Mini ITX |
|---|---|
| PC Cases - Radiator Support | 240 mm 280 mm 360 mm 420 mm |
| PC Cases - Included Fans | 0 |
| PC Cases - Front I/O | Audio Jacks USB A USB C Gen2 |
| PC Cases - GPU Orientation | Horizontal |
| PC Cases - Form Factor | Mid Tower |
| PC Cases - Max GPU Length | 401–450 mm |
| PC Cases - Color | Black |
| PC Cases - CPU Cooler Clearance | 170+ mm |
DESIGNED FOR HIGH AIRFLOW
Supports up to four 180mm fans and 360mm/420mm radiator installation for superior thermal performance. Engineered to maximize cooling and minimize noise with aerodynamic design directing air to GPU hot zones.

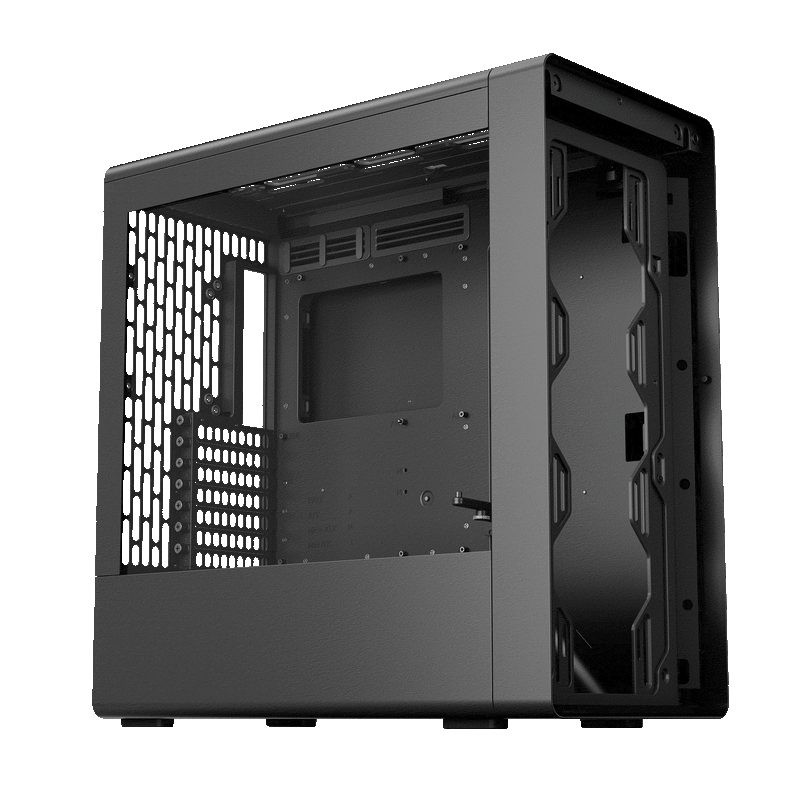

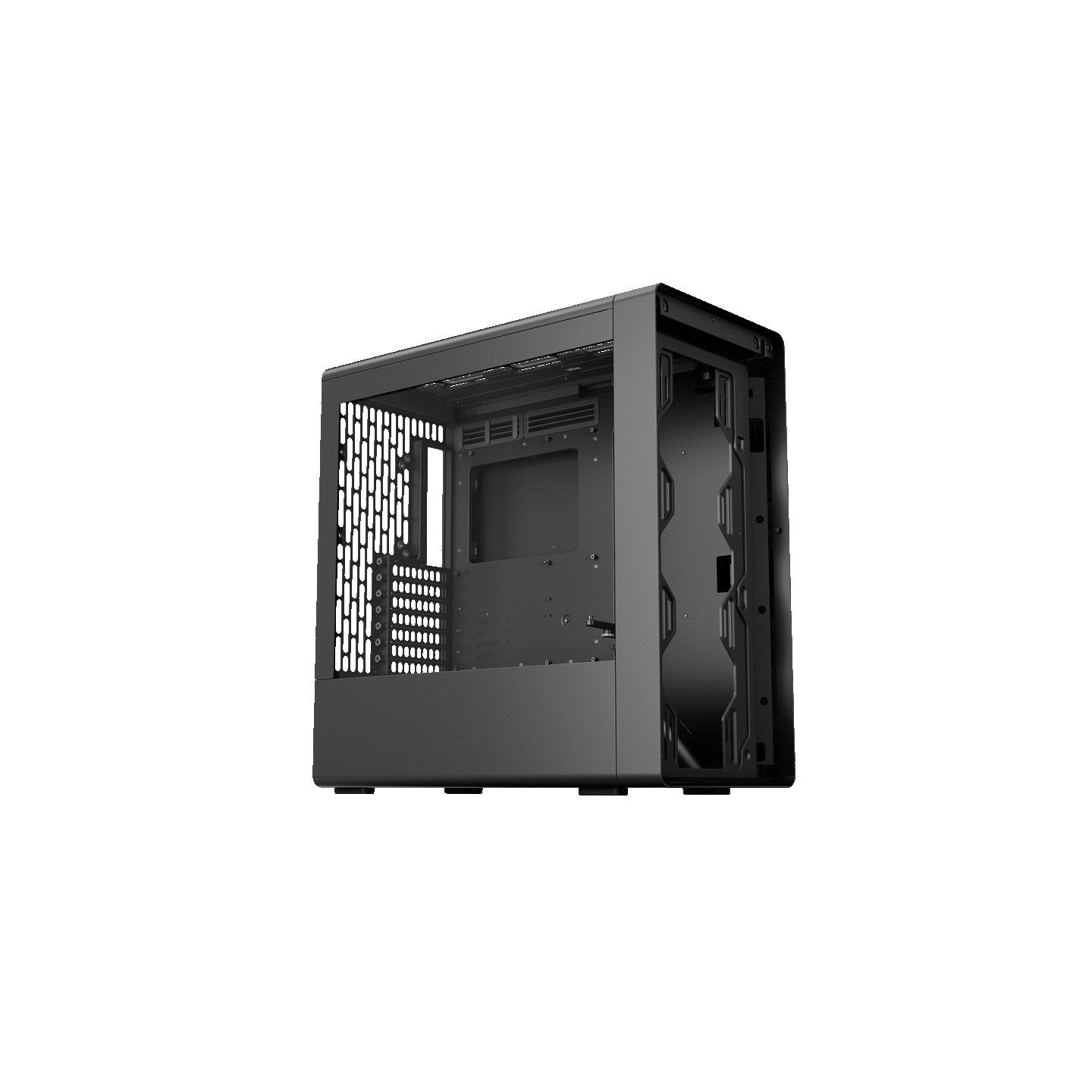

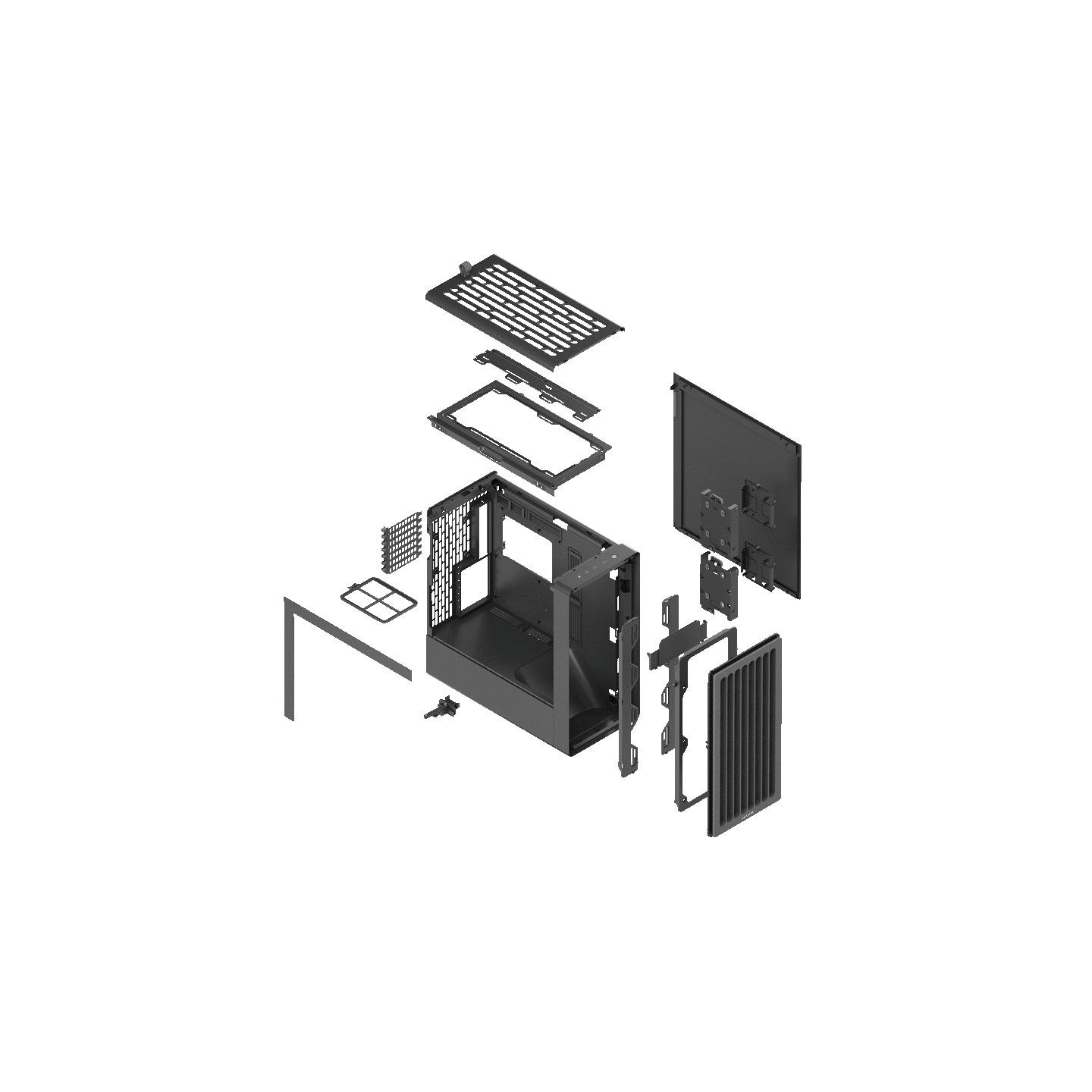

PREMIUM SEMI-OPEN FRAME

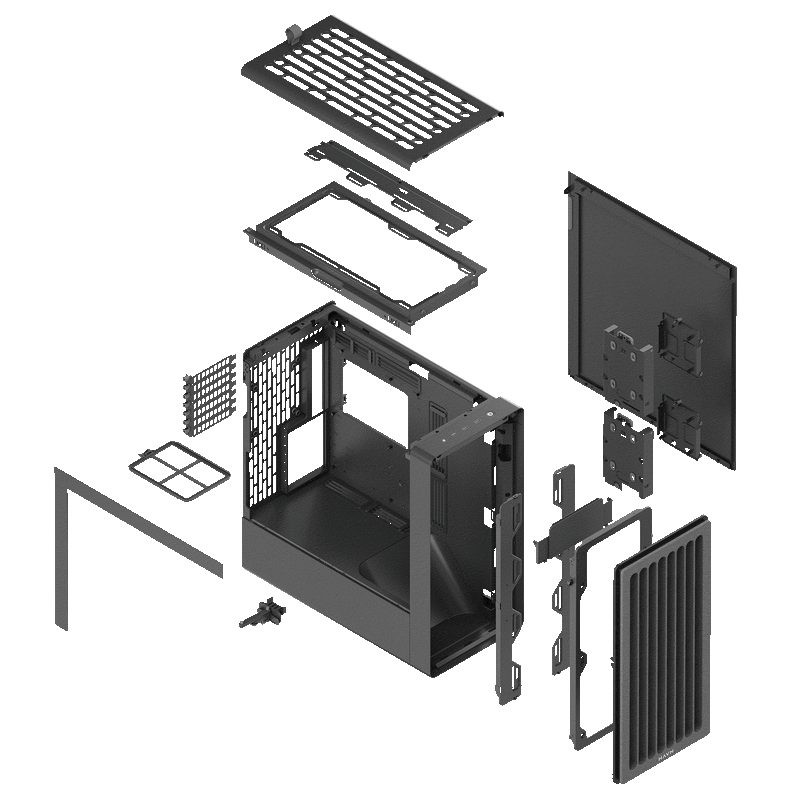

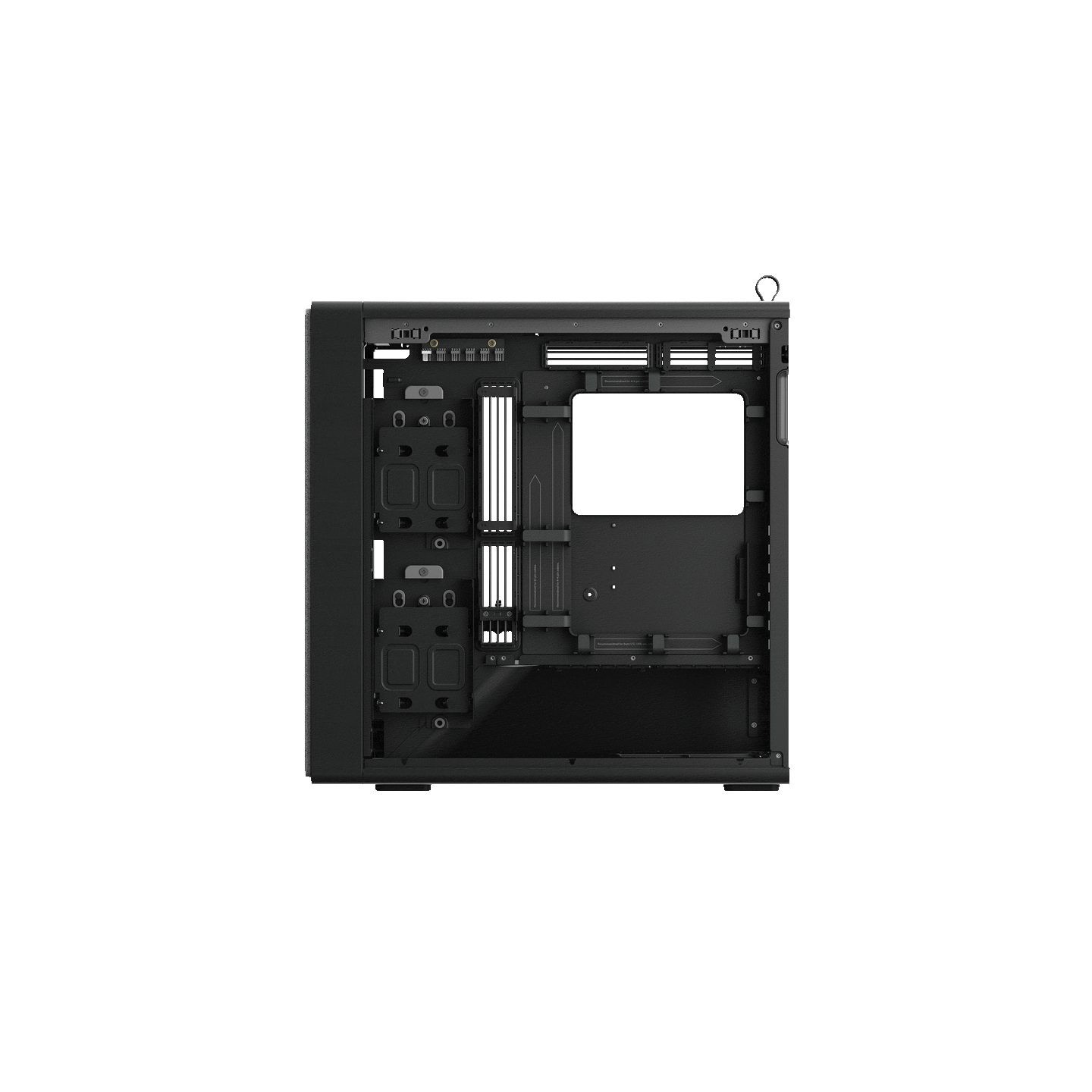

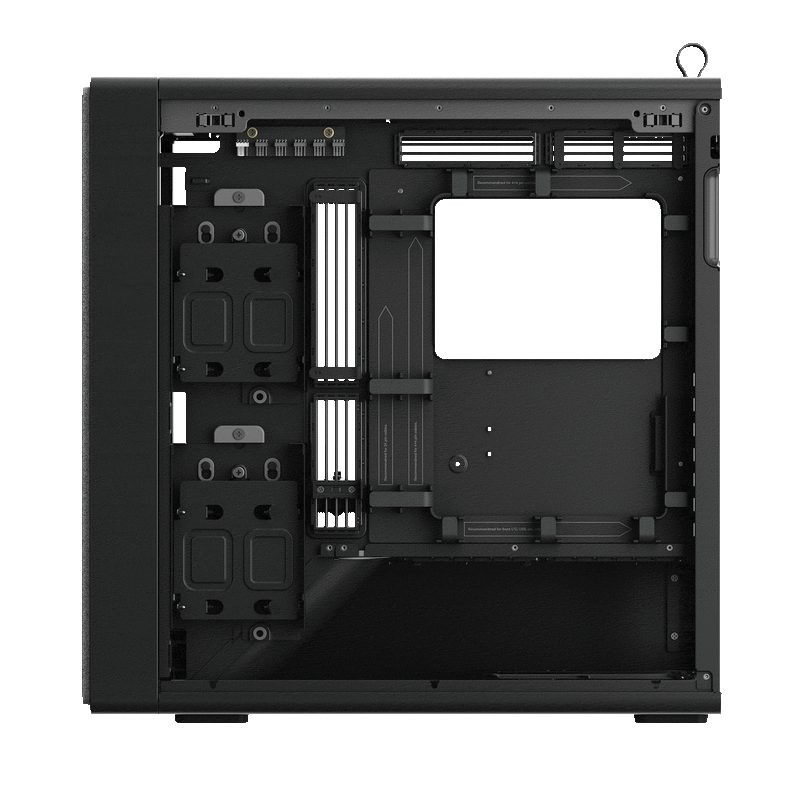

Built from durable SGCC steel with removable U-shaped fan bracket for rigidity and easy assembly. Enhanced structure improves durability while allowing smooth cooling hardware installation. Includes 33mm cable management space with Velcro straps.
- ✅ Motherboard: E-ATX (max 277mm) / ATX / M-ATX / Mini-ITX
- ✅ GPU Clearance: Up to 410mm length, 195mm width (1-4.5 slots)
- ✅ CPU Cooler: Up to 195mm height
- ✅ Fans: Front 2x180/3x140/3x120mm, Top 2x180/2x140/3x120mm, Rear 1x140/120mm
- ✅ Radiators: Front 240/280/360/420mm, Top 240/280/360mm
- ✅ Front I/O: USB-C 3.2 Gen2 x1, USB-A 3.2 Gen1 x2, Audio x1
- ✅ PWM Fan Repeater: 6 ports (12V, 2.6A max, SATA power)
| Model | BF 360 / BF 360 Flow |
| Form Factor | Mid Tower |
| Material | SGCC sheet metal, tempered glass, ABS, Nylon, Silicon, Zinc alloy, NdFeB magnets |
| Dimensions (L x W x H) | 515 x 254 x 522.6 mm |
| Net Weight | 13.63 kg |
| Motherboard Support | E-ATX (Max Width 277 mm) / ATX / M-ATX / Mini-ITX |
| Expansion Slots | 7 |
| CPU Tower Cooler Clearance | Up to 195 mm (Height) |
| Graphics Card Clearance (Length) | Up to 410 mm |
| Graphics Card Clearance (Width) | Up to 195 mm |
| GPU Support | 1 - 4.5 Slots |
| Power Supply Support | ATX |
| Power Supply Length | Up to 200 mm (Clearance - 260 mm) |
| Fan Support (Max 7 Total) - Top | 2 x 180 mm / 2 x 140 mm / 3 x 120 mm |
| Fan Support (Max 7 Total) - Front | 2 x 180 mm / 3 x 140 mm / 3 x 120 mm |
| Fan Support (Max 7 Total) - Rear | 1 x 140 mm / 1 x 120 mm |
| Liquid Cooling Support - Top | 240 / 280 / 360 mm |
| Liquid Cooling Support - Front | 240 / 280 / 360 / 420 mm |

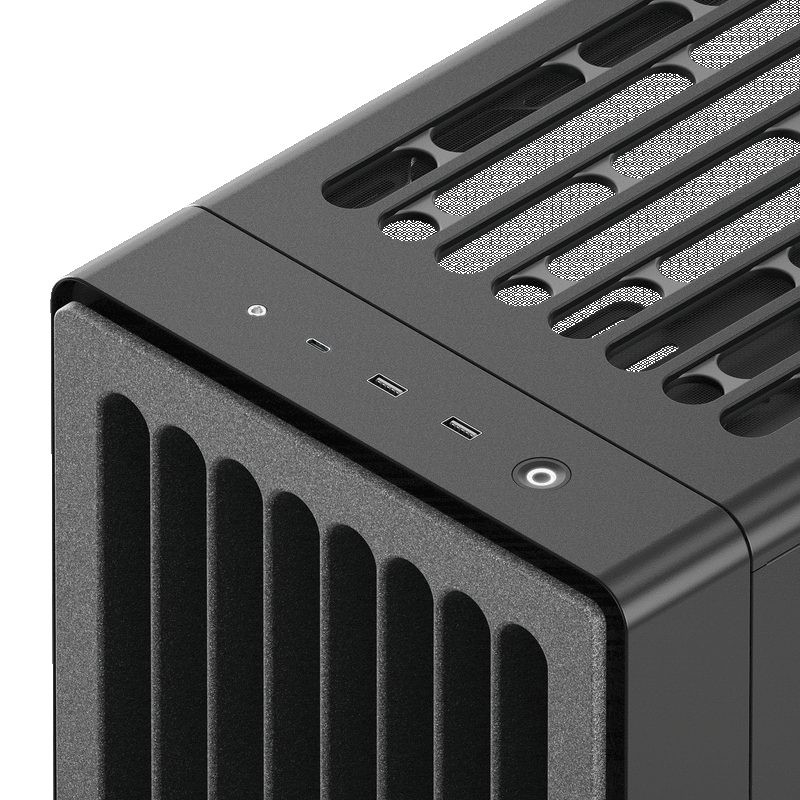

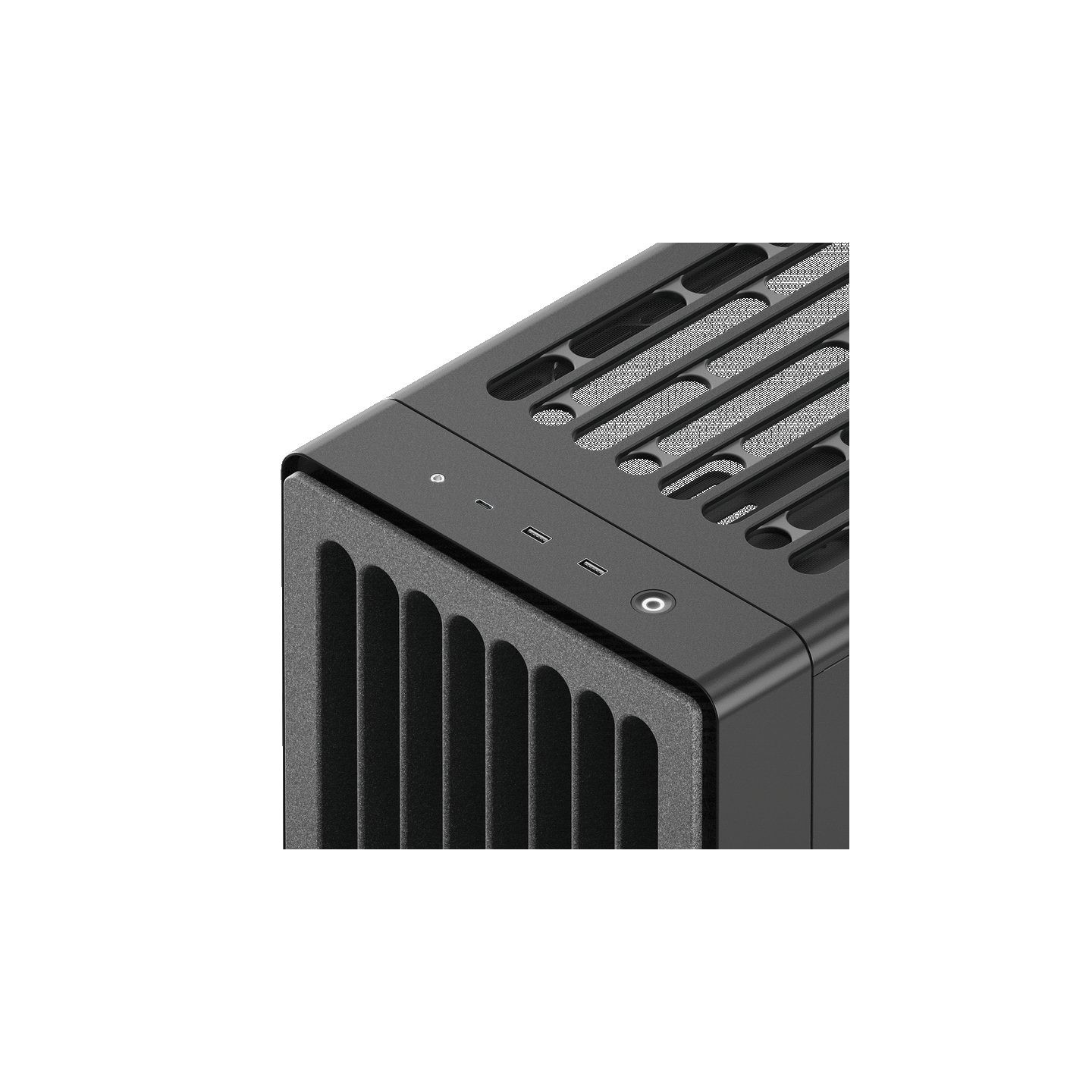

| Front I/O Ports | USB 3.2 Gen 2 Type-C x1, USB 3.2 Gen 1 Type-A x2, Audio Jack x1, Power & Reset Button x1 |
| Fan PWM Repeater | 1 repeater with 6 ports total (4-pin PWM), Rated Voltage: 12V, Safety Current: Up to 2.6A, Power Connector: 1 x SATA Power |
| Warranty | 1 year (US shipping only) |
