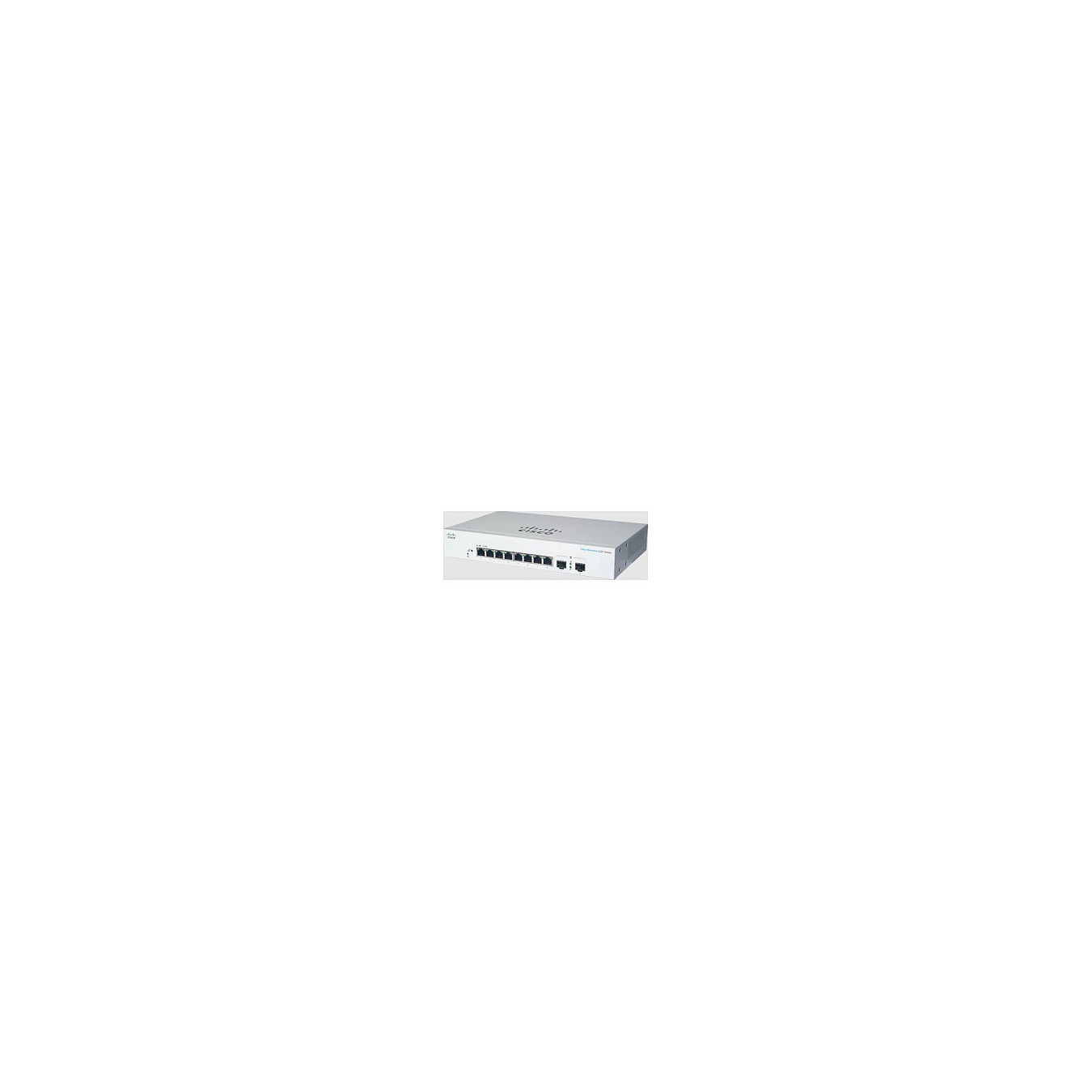

Cisco GSwitch 10P Business CBS220-8T-E-2G
Cisco CBS220-8T-E-2G. Managed. L2. Gigabit Ethernet (10/100/1000). Rack-Einbau. 1U
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Cisco CBS220-8T-E-2G. Switch-Typ: Managed. Switch-Ebene: L2. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000). Anzahl der basisschaltenden RJ-45 Ethernet Ports: 8. MAC-Adressentabelle: 8192 Eintragungen. Routing-/Switching-Kapazität: 20 Gbit/s. Netzstandard: IEEE 802.1D. IEEE 802.1s. IEEE 802.1w. IEEE 802.1x. IEEE 802.3. IEEE 802.3ab. IEEE 802.3ad. IEEE.... Rack-Einbau. Formfaktor: 1U
| Switch-Typ | Managed |
| Switch-Ebene | L2 |
| Feature | Upgradefähige Firmware |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 8 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Menge SFP-Modul-Steckplätze | 2 |
| Ethernet LAN Datentransferraten | 10.100.1000 Mbit/s |
| Anzahl der VLANs | 256 |
| Routing-/Switching-Kapazität | 20 Gbit/s |
| Transferrate | 14.88 Mpps |
| MAC-Adressentabelle | 8192 Eintragungen |
| Anzahl Queues | 8 |
| Jumbo-Frames | 9216 |
| Datenpaket-Pufferspeicher | 4.1 MB |
| DHCP-Funktionen | DHCP client |
| Unterstützte Sicherheitsalgorithmen | SNMP. SNMPv2. SNMPv3 |
| Autentifizierungstyp | IEEE 802.1x. RADIUS |
| Warteschleifenplanungs-Algorithmen | Weighted Round Robin (WRR) |
| Multicast MAC-Adresstabelle | 8192 Eintragungen |
| Management-Protokolle | SNMP v1/2c/3. Telnet. TFTP. HTTP/HTTPS. SNTP |
| Formfaktor | 1U |
| Produktfarbe | Weiß |
| Speicherkapazität | 256 MB |
| Flash-Speicher | 64 MB |
| AC Eingangsspannung | 100 - 240 V |
| AC Eingangsfrequenz | 50 - 60 Hz |
| Betriebstemperatur | 0 - 50 °C |
| Temperaturbereich bei Lagerung | -20 - 70 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 90% |
| Luftfeuchtigkeit bei Lagerung | 10 - 90% |
| Wärmeableitung | 20.13 BTU/h |
| Breite | 279 mm |
| Tiefe | 170 mm |
| Höhe | 44 mm |
| Gewicht | 1.16 kg |
| Warentarifnummer (HS) | 85176990 |
