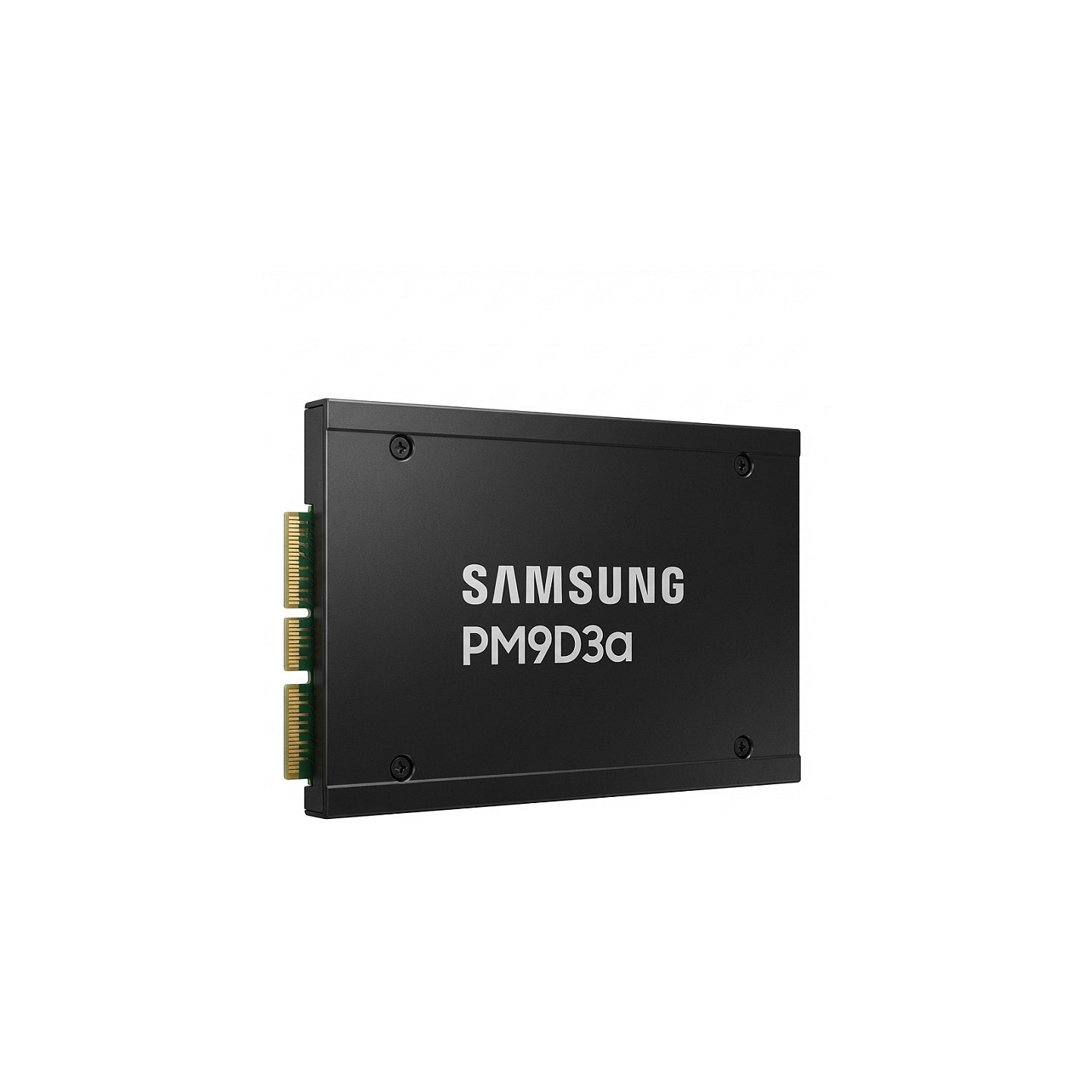

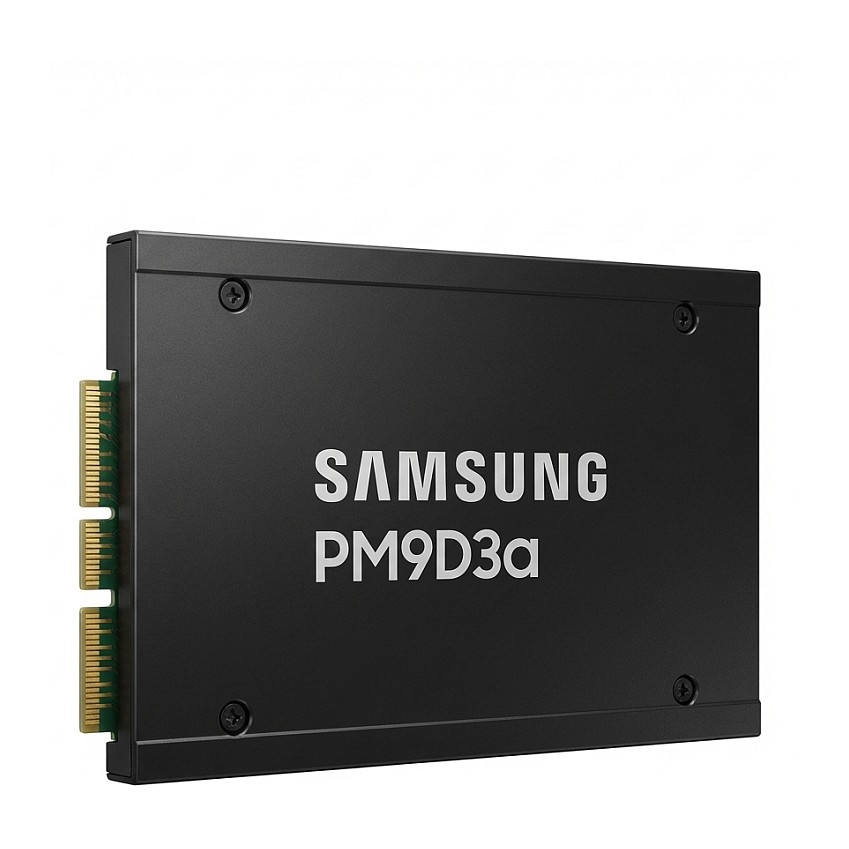

Samsung PM9D3a 1.92TB PCIe 5.0 x4 NVMe SSD - 2.5-inch U.2 12000/3500 MB/s Read-Intensive Enterprise (Bulk)
Samsung PM9D3a 1.92TB PCIe Gen5 x4 NVMe SSD. 2.5-inch U.2 form factor for servers. Seq read 12,000 MB/s, write 3,500 MB/s. Rand read 1M IOPS, write 70K IOPS. Read-intensive enterprise drive with 1 DWPD endurance.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Storage (SSD & HDD) - Device Type | Internal SSD |
|---|---|
| Storage (SSD & HDD) - Capacity | 20TB |
| Storage (SSD & HDD) - Sequential Read Speed (SSD) | Above 10000 MB s |
| Storage (SSD & HDD) - Interface | PCIe 5.0 (Gen5) |
| Storage (SSD & HDD) - DRAM Cache (SSD) | Yes |
| Storage (SSD & HDD) - Heatsink (SSD) | Not Included |
| Storage (SSD & HDD) - Form Factor | 2.5 inch |
| Storage (SSD & HDD) - PCIe Lanes (SSD) | x4 |
The Samsung PM9D3a is a high-performance PCIe 5.0 NVMe SSD designed for read-intensive enterprise and data center applications, such as AI, machine learning, and real-time analytics. This 1.92TB model (MPN: MZWL61T9HFLT-00AW7) features a 2.5-inch U.2 form factor, delivering sequential read speeds up to 12,000 MB/s and write speeds up to 3,500 MB/s. Random performance reaches 1,000,000 IOPS read and 70,000 IOPS write, ensuring low latency for demanding workloads.
Built with Samsung's eighth-generation 3D V-NAND TLC technology, it offers robust endurance rated at 1.0 DWPD over 5 years (approx. 1,752 TBW). Security features include TCG Opal 2.0 encryption and end-to-end data protection. Optimized for servers with power-loss protection, it's ideal for hyperscale cloud and multicore systems. This bulk version lacks retail packaging.
- Form Factor: 2.5-inch U.2 (PCIe Gen5 x4)
- Capacity: 1.92 TB
- Speeds: 12,000/3,500 MB/s sequential, 1M/70K IOPS random
- Endurance: 1 DWPD / 5 years
- Encryption: TCG Opal 2.0
| SSD Capacity | 1.92 TB |
| SSD Form Factor | 2.5-inch U.2 |
| Interface | PCIe 5.0 x4 |
| NVMe | Yes |
| Component for | Server |
| Sequential Read Speed | 12000 MB/s |
| Sequential Write Speed | 3500 MB/s |
| Random Read (4KB) | 1000000 IOPS |
| Random Write (4KB) | 70000 IOPS |
| Endurance DWPD | 1.0 DWPD (5 years) |
| Total Bytes Written | 1752 TB |
| NAND Type | 3D V-NAND TLC (8th Gen) |
| Encryption | TCG Opal 2.0 |
| MTBF | 2,500,000 hours |
| DRAM Cache | Yes |
