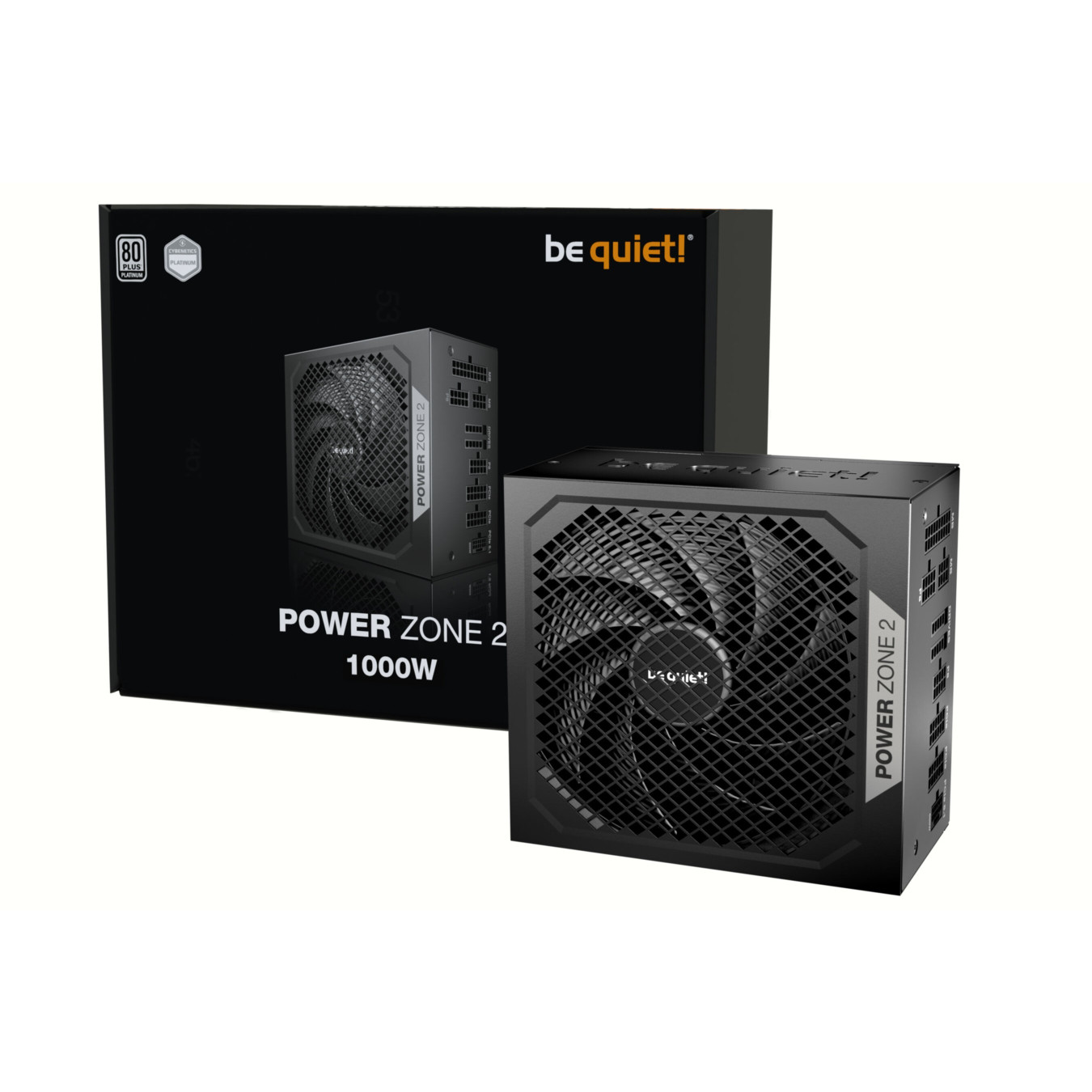

be quiet! Power Zone 2 1000W 80 PLUS Platinum ATX 3.1 PSU (Boxed)
1000W fully-modular ATX 3.1 PSU with 80 PLUS Platinum & Cybenetics Platinum efficiency. Single +12V rail (83.3A), semi-passive 140mm fan, 1x 12V-2x6 + 3x PCIe 6+2 connectors, 10-year warranty.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 1000 - 1199 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Platinum Cybenetics Platinum |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 12V-2x6 3x 8/6 pins |
| PSU (Power Supplies) - Length | 141-160 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V |

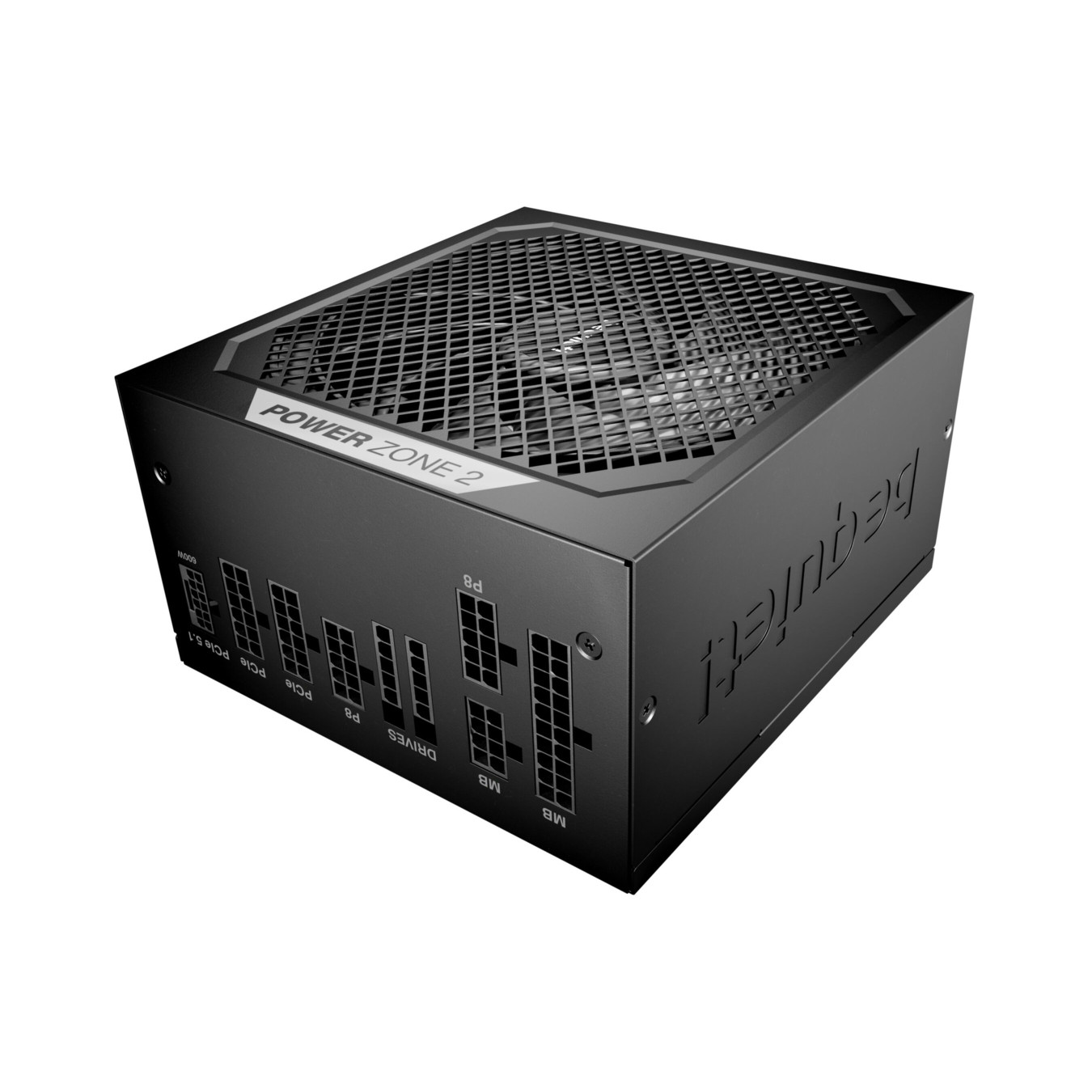

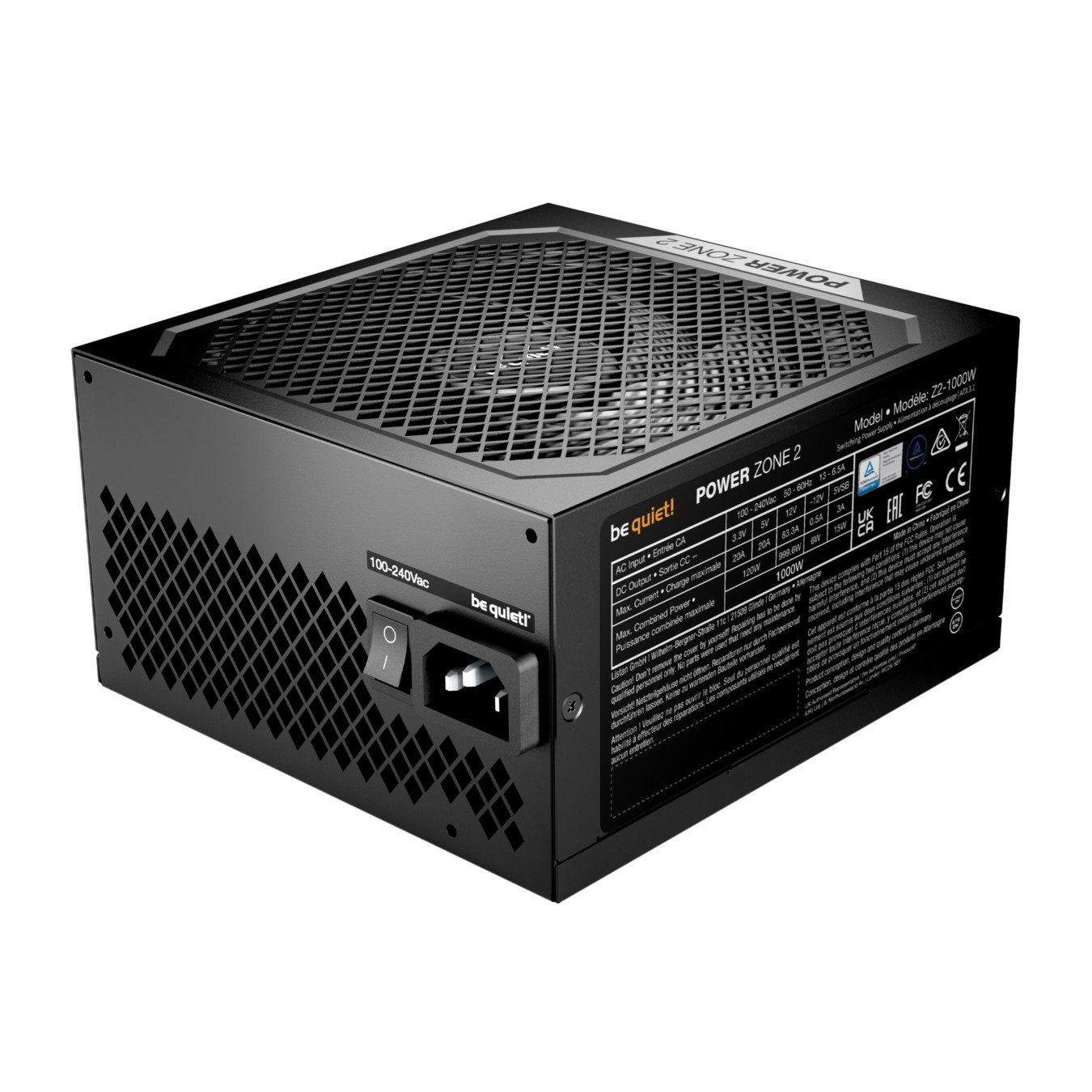

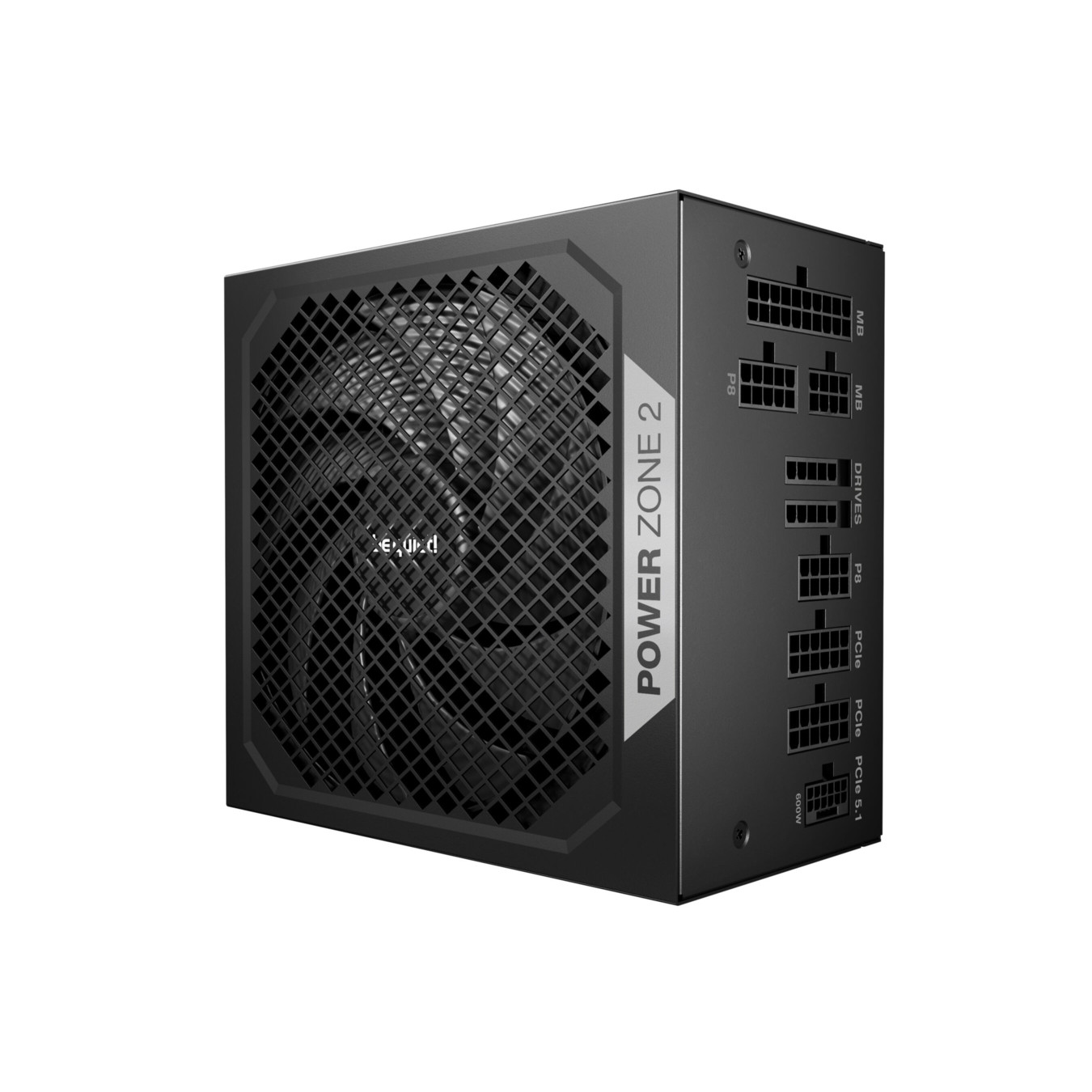

The be quiet! Power Zone 2 1000W is a premium fully-modular ATX 3.1 power supply designed for high-performance gaming and workstation builds. Delivering 1000W continuous power with a peak output of 1070W, this PSU features dual efficiency certifications: 80 PLUS Platinum and Cybenetics Platinum, achieving up to 94.0% efficiency at 50% load. The single +12V rail design with 83.3A capacity provides stable power delivery for demanding systems, including next-generation graphics cards.

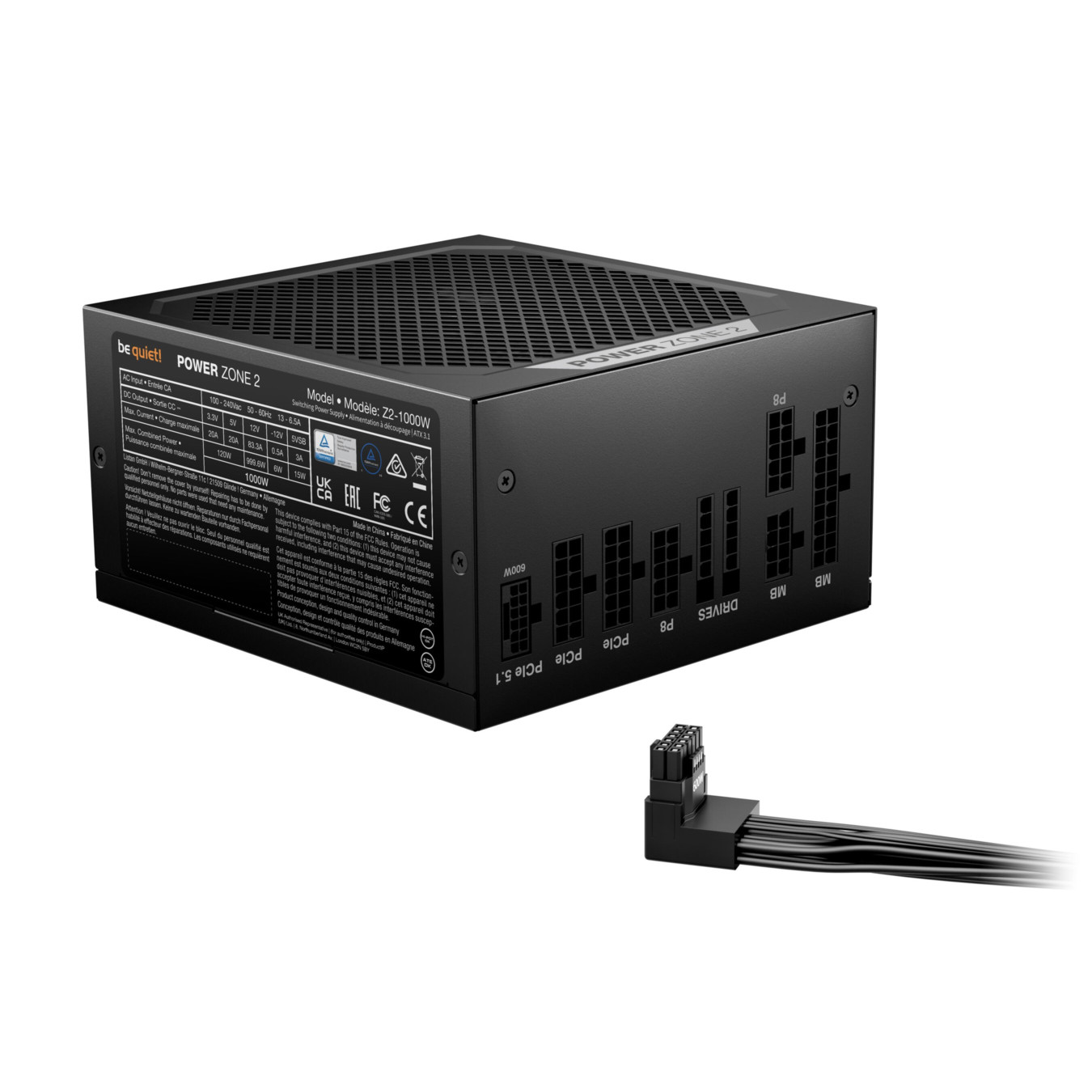

Built with semi-passive zero-RPM cooling technology, the Power Zone 2 remains completely silent during light loads thanks to its specially designed 140mm Pure Wings 3 fan with rifle bearing technology. The unit features an LLC topology with synchronous rectification and DC/DC conversion for best-in-class voltage regulation. Connectivity includes 1x 12V-2x6 connector (90° angled for PCIe 5.1 compatibility), 3x PCIe 6+2 pins, 1x 8-pin EPS, and comprehensive modular cabling with sleeved and flat cable options. The distinctive mesh front design and printed cable designations enhance both aesthetics and usability.
- 80 PLUS Platinum & Cybenetics Platinum certified efficiency
- Semi-passive zero-RPM cooling with 140mm Pure Wings 3 fan
- ATX 3.1 & PCIe 5.1 compatible with 12V-2x6 connector
- Single +12V rail with 83.3A capacity
- Fully-modular cable management
- 10-year manufacturer warranty
- Operating temperature range: 0-40°C
- Average lifespan: >100,000 hours
| Total Power Output | 1000 W |
| Peak Power | 1070 W |
| AC Input Voltage | 100 - 240 V |
| AC Input Frequency | 50 - 60 Hz |
| Maximum Input Current (110V) | 13 A |
| Maximum Input Current (220V) | 6.5 A |
| Power Factor at 100% Load | >0.98 |
| Form Factor | ATX 3.1 |
| EPS Version | 2.92 |
| Topology | LLC + SR + DC/DC |
| Number of +12V Rails | 1 |
| +12V Rail Output | 999.6 W |
| +12V Rail Maximum Current | 83.3 A |
| +3.3V Output | 120 W |
| +3.3V Maximum Current | 20 A |
| +5V Output | 120 W |
| +5V Maximum Current | 20 A |
| -12V Output | 6 W |
| -12V Maximum Current | 0.5 A |
| +5Vsb Output | 15 W |
| +5Vsb Maximum Current | 3 A |
| 80 PLUS Certification | Platinum |
| Cybenetics Certification | Platinum |
| Efficiency at 10% Load (230V) | 89.8% |
| Efficiency at 20% Load (230V) | 93.0% |
| Efficiency at 50% Load (230V) | 94.0% |
| Efficiency at 100% Load (230V) | 92.6% |
| Motherboard Power Connector | 20+4 pin ATX |
| Motherboard Power Cable Length | 60 cm |
| CPU Power Connector | 1x 8-pin EPS |
| CPU Power Cable Length | 70 cm |
| PCIe 12V-2x6 Connectors | 1 |
| PCIe 12V-2x6 Connector Angle | 90° |
| PCIe 6+2 Pin Connectors | 3 |
| PCIe Power Cable Length | 60 cm |
| SATA Power Connectors | 7 |

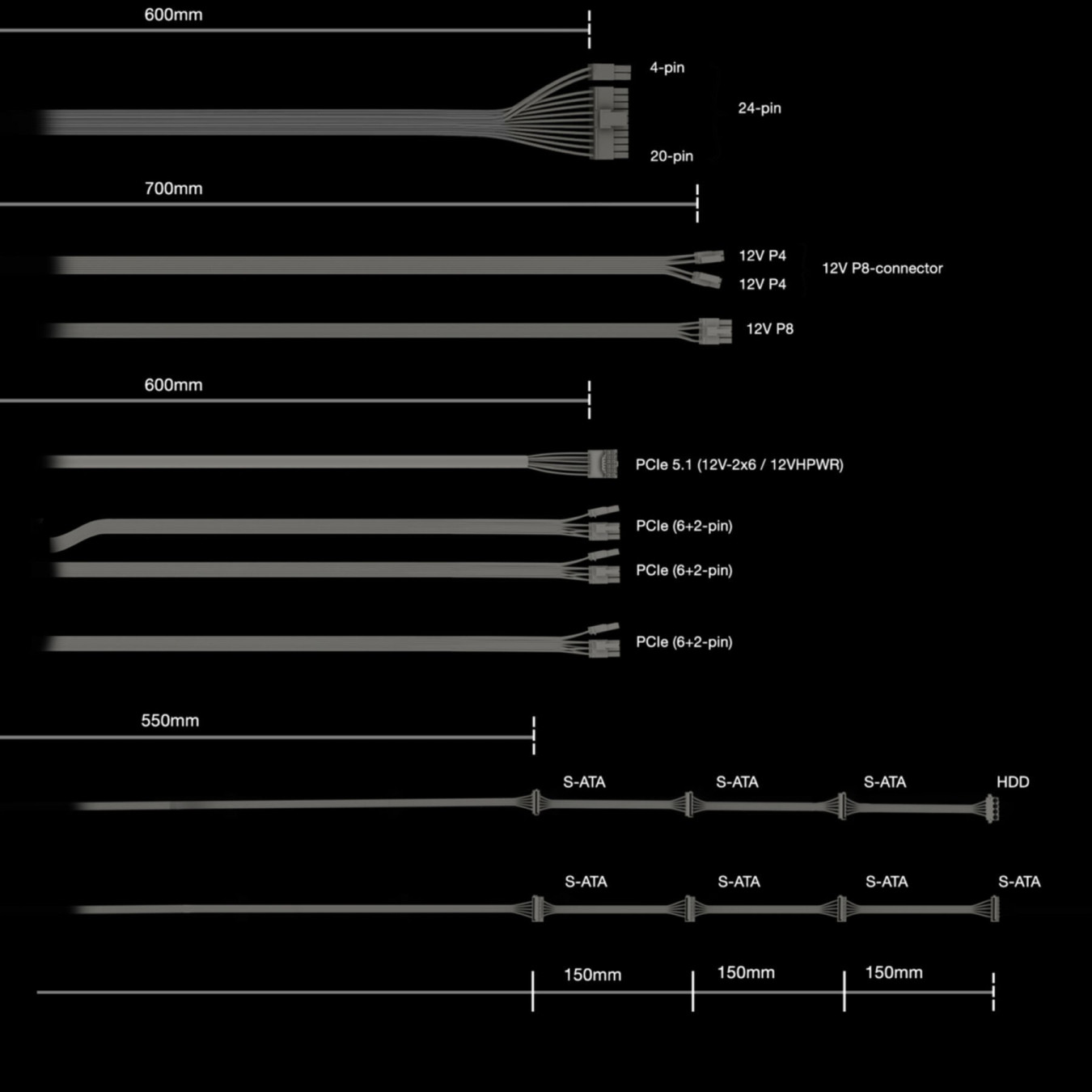

| SATA Power Cable Lengths | 550, 700, 850, 1000 mm |
| Molex 4-pin Connectors | 1 |
| Molex Power Cable Length | 1000 mm |
| Cabling Type | Fully-Modular |
| Cable Features | Modular, Sleeved, Flat cables with cable ties included |
| Maximum Cable Length | 100 cm |
| Cooling Type | Semi-passive with zero-RPM mode |
| Fan Model | Pure Wings 3 |
| Fan Diameter | 140 mm |
| Fan Bearing Technology | Rifle |
| Fan Motor | 4-pole |
| Maximum Fan Speed | 2100 RPM |
| Noise Level at 10% Load | 6.5 dB(A) |
| Noise Level at 20% Load | 6.5 dB(A) |
| Noise Level at 50% Load | 6.5 dB(A) |
| Noise Level at 100% Load | 27.2 dB(A) |
| Hold-up Time at 100% Load | 22.7 ms |
| Hold-up Time at 80% Load | 30.5 ms |
| Power Good Signal | 100 - 150 ms |
| Protection Features | Over-current, Over-power, Over-voltage, Overheating, Short-circuit, Surge & inrush, Under-voltage |
| Operating Temperature Range | 0 - 40°C |
| Storage Temperature Range | -40 - 70°C |
| Operating Humidity Range | 0 - 85% |
| Storage Humidity Range | 0 - 95% |
| Average Lifespan (MTBF) | >100,000 hours at 25°C |
| Unit Dimensions (L x W x H) | 160 x 150 x 86 mm |
| Unit Weight | 1.78 kg |
| Package Dimensions (L x W x H) | 328 x 248 x 102 mm |
| Package Weight | 3.28 kg |
| Color | Black |
| Warranty | 10 years |
| Express Replacement Service | Available in DE, FR (first year) |
| International Hotline | Available (DE, FR, US) |
| Manufacturer Part Number | BP008EU |
| EAN Code | 4260052191385 |
| Compliance Certifications | BSMI, CB, CCC, CE, FCC, RCM, RoHS, TÜV, UKCA, WEEE |
| Sustainability Certifications | ENERGY STAR, ErP, Triman |
| Modern Standby Support | Yes |
| Standby Power Consumption | <0.18 W |
