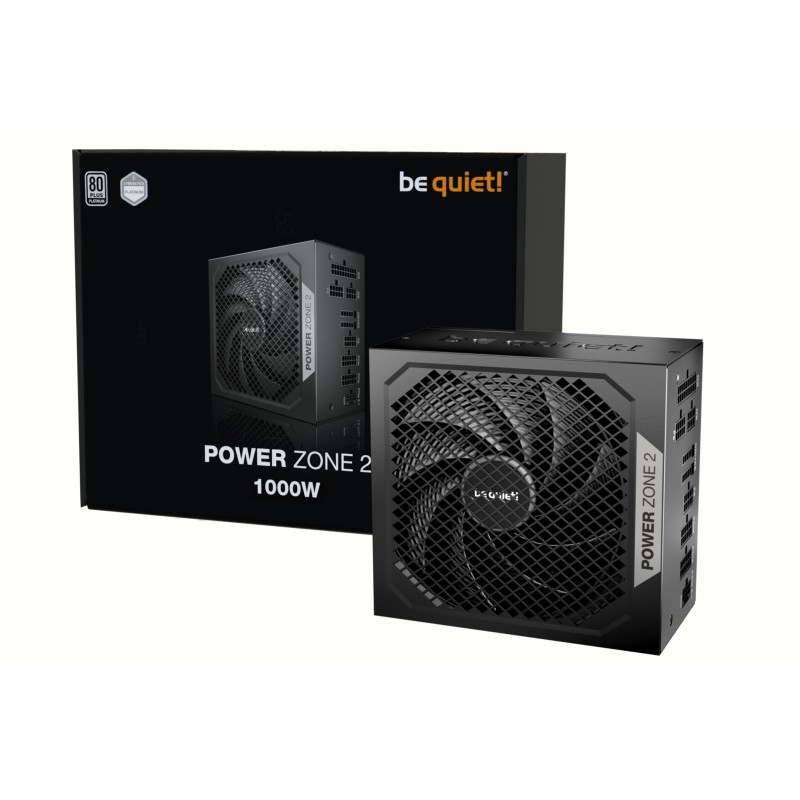

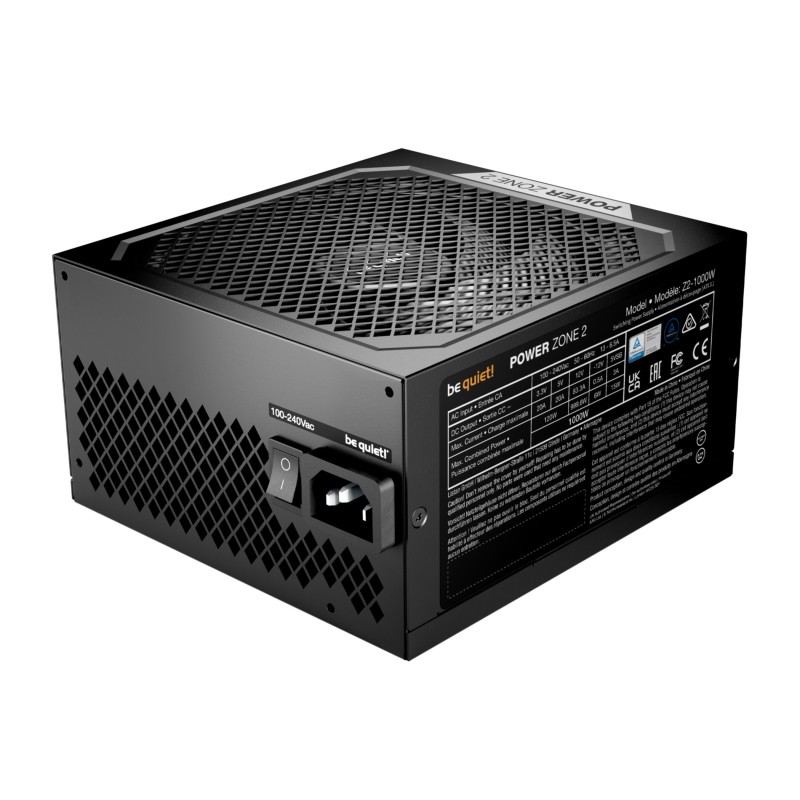

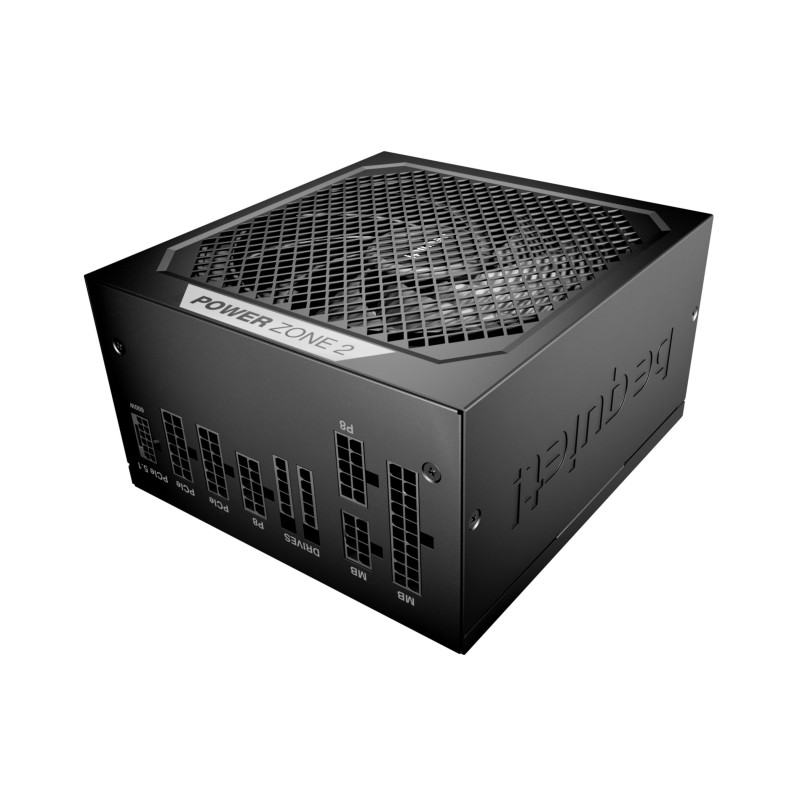

Be Quiet Power Zone 2 1000W - BP008EU - 80 PLUS Platinum, Fully-Modular ATX 3.1, 140mm Fan, Black
1000W fully-modular ATX 3.1 PSU, 80 PLUS Platinum efficiency. Single +12V rail (83.3A). Includes 3x 6+2 PCIe, 1x 16-pin 12VHPWR, 1x 8-pin EPS, quiet 140mm fan.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 1000 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80+ Platinum |
| PSU (Power Supplies) - ATX Standard | ATX 3.1 |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 12VHPWR (16-pin) |
| PSU (Power Supplies) - EPS CPU Connectors | 8+4-pin |
| PSU (Power Supplies) - Fan Size | 140 mm |
| PSU (Power Supplies) - Length | 141-160 mm |
be quiet! POWER ZONE 2 1000W. Total power: 1000 W. AC input voltage: 100 - 240 V. Peak power: 1070 W. Motherboard power connector: 20+4 pin ATX. Motherboard power cable length: 60 cm. SATA power cable length: 550.700.850.1000 mm. Purpose: PC. Power supply unit (PSU) form factor: ATX. 80 PLUS certification: 80 PLUS Platinum. Product colour: Black. Cooling type: Active. Fan diameter: 14 cm. Compliance certificates: BSMI. CB. CCC. CE. Federal Communications Commission (FCC). RCM. RoHS. TÜV mark. UKCA. WEEE
| Total power | 1000 W |
| Peak power | 1070 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Maximum input current (@110V) | 13 A |
| Maximum input current (@220V) | 6.5 A |
| Power factor | 0.98 |
| Number of +12V rail(s) | 1 |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 999.6 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 83.3 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 22.7 ms |
| Efficiency | 92.6% |
| Power protection features | Over current. Over power. Over voltage. Overheating. Short circuit. Surge & inrush. Under voltage |

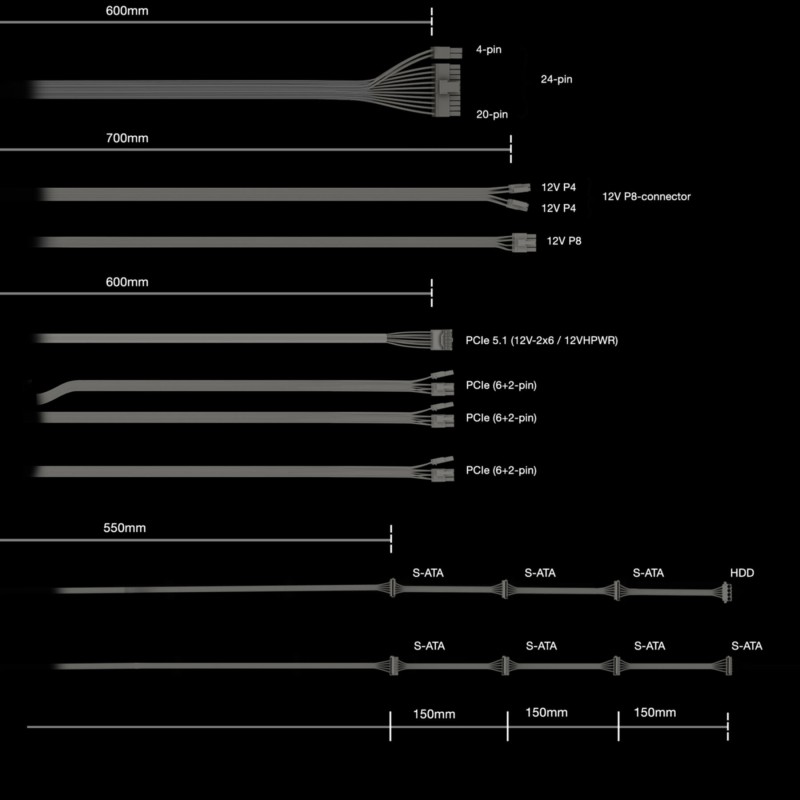

| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 7 |
| SATA power cable length | 550.700.850.1000 mm |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Peripheral (Molex) power cable length | 1000 mm |

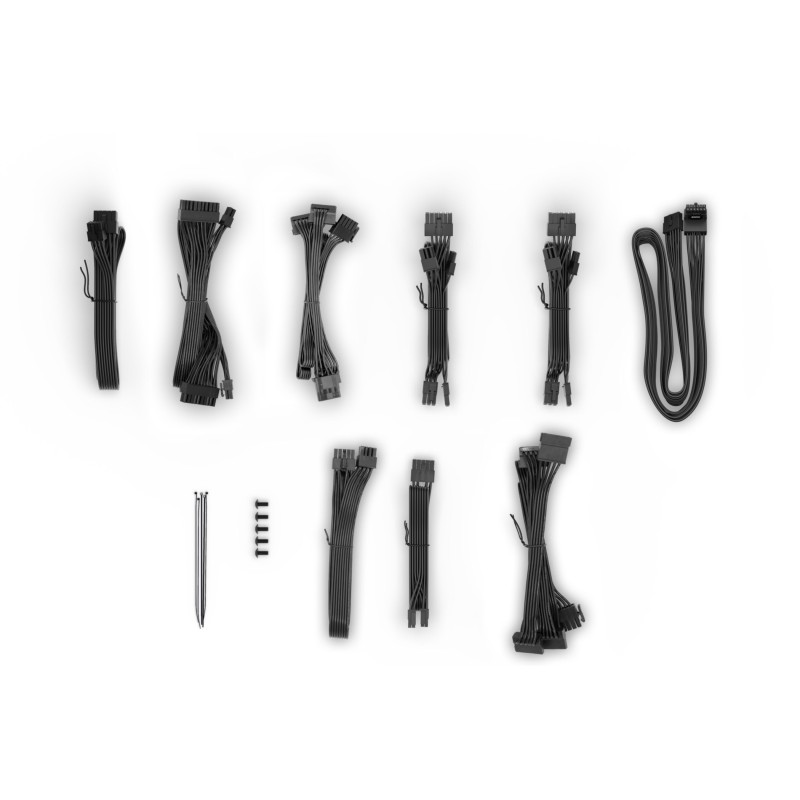

| Feature | Cable ties included |
| PCI Express power connectors (6+2 pin) | 3 |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power cable length | 60 cm |
| CPU P4 connector (4-pin) | 1 |
| CPU power cable length | 70 cm |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Platinum |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| EPS version | 2.92 |
| Noise level | 27.2 dB |
| Bearing technology | Rifle |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 95% |
| Compliance certificates | BSMI. CB. CCC. CE. Federal Communications Commission (FCC). RCM. RoHS. TÜV mark. UKCA. WEEE |
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
| Weight | 2.82 kg |
| Manual languages | German. English. Spanish. French. Polish. Russian. Ukrainian |
| Package width | 248 mm |
| Package depth | 328 mm |
| Package height | 102 mm |
| Package weight | 3.28 kg |
| Package type | Box |
| Sustainability certificates | ENERGY STAR. ErP. Triman |
| Shipping (inner) case length | 65.1 cm |
| Shipping (inner) case width | 28.2 cm |
| Shipping (inner) case height | 34.6 cm |
| Products per shipping (inner) case | 6 pc(s) |
| Shipping (inner) case gross weight | 19.6 kg |
