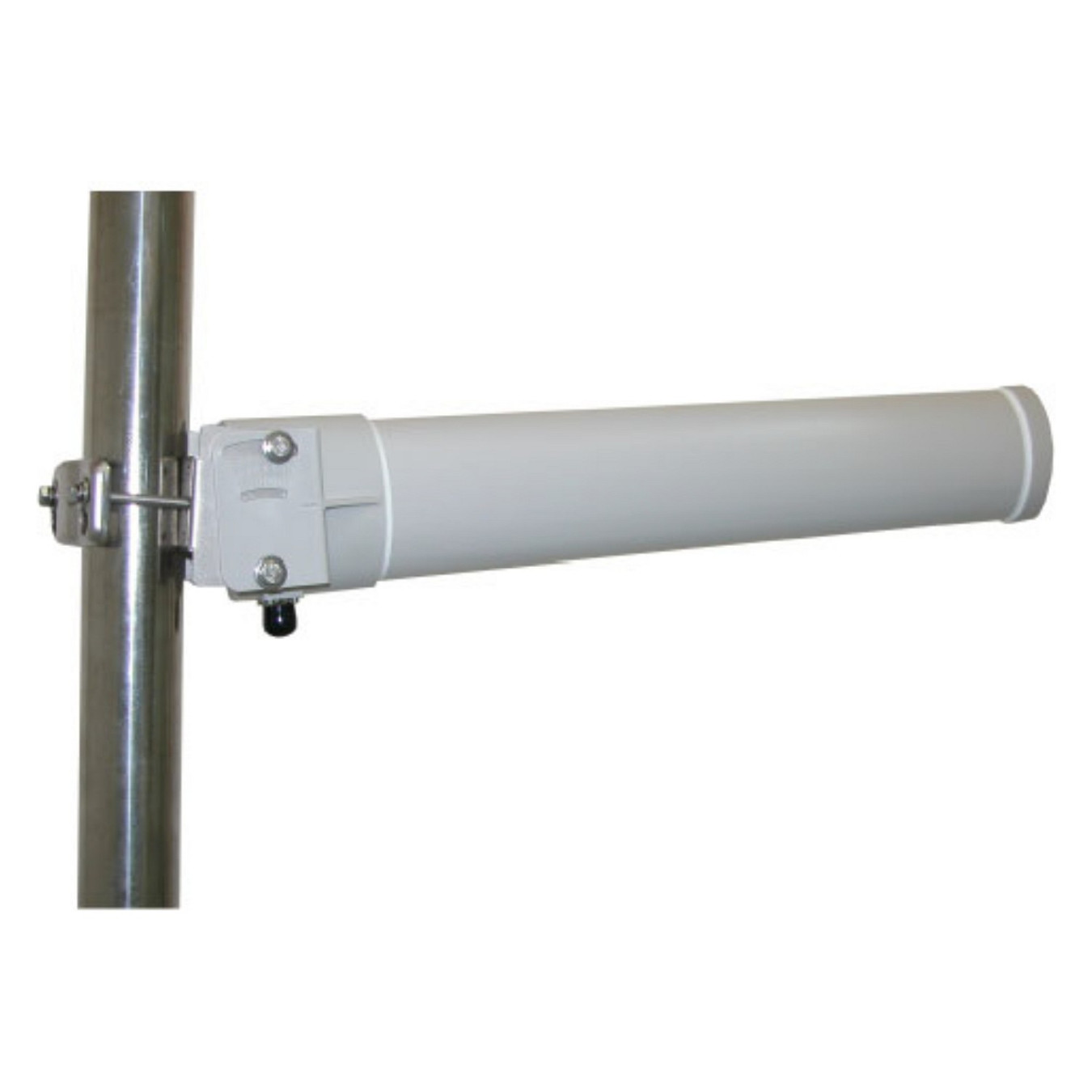

ALLNET Antenne 2.4 GHz 14dBi Yagi outdoor N-Type
ALLNET ALL19022. 14 dBi. 2.4 - 2.5 GHz. 50 Ohm. 25°. 30°. Richtantenne
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
ALLNET ALL19022. Antenne Zunahmeniveau (max): 14 dBi. Frequenzband: 2.4 - 2.5 GHz. Impedanz: 50 Ohm. Antennentyp: Richtantenne. Antenne Steckertyp: N-Typ. Produktfarbe: Grau. Breite: 560 mm. Höhe: 89 mm. Durchmesser: 5 cm
| Frequenzband | 2.4 - 2.5 GHz |
| Impedanz | 50 Ohm |
| Horizontale Lichtstrahlbreite | 25° |
| Vertikale Lichtstrahlbreite | 30° |
| Antenne Zunahmeniveau (max) | 14 dBi |
| Antennentyp | Richtantenne |
| Antenne Steckertyp | N-Typ |
| Produktfarbe | Grau |
| Maximale Eingangsleistung | 10 W |
| Zweck | Draußen |
| Betriebstemperatur | -40 - 80 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 95% |
| Breite | 560 mm |
| Höhe | 89 mm |
| Durchmesser | 5 cm |
| Gewicht | 600 g |
