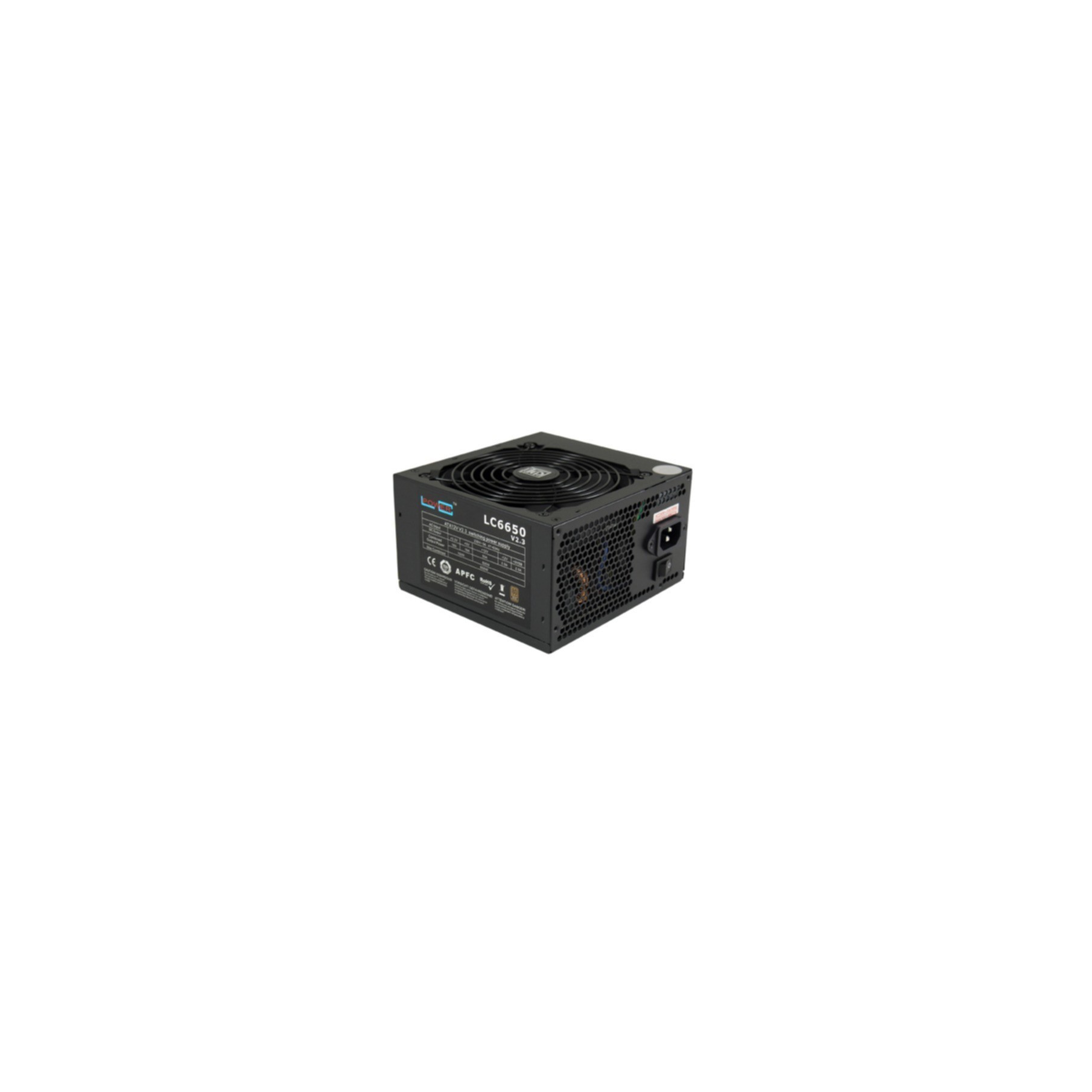

LC-Power Super Silent LC6650 V2.3 - 650W 80 PLUS Bronze, Non-Modular ATX PSU, 120mm Fan
650W 80 PLUS Bronze non-modular ATX power supply with quiet 120mm fan, active PFC, standby <0.5W and PCIe 2.0 connector — reliable mid-range office/home PSU.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| PSU (Power Supplies) - Wattage | 650 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80+ Bronze |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - Fan Size | 120 mm |
The legendary SUPER SILENT SERIES by LC-POWER offers the optimum price-performance ratio: thanks to its high-value 120mm fan, the LC6650 V2.3 lets you experience a stress-free and super-silent work in your office as well as at home. Despite the low sound level, the power supply offers an excellent cooling capacity for your system thanks to its honeycomb styled ventilation grille on its back.
The power supply features all current connectors of the office and mid-range sector. Besides current mainboards you can connect several SATA and PATA hard disk drives respectively optical drives. A graphic card can be added due to the PCI-Express V2.0 connector.
The state-of-the-art energy saving technology decreases the power consumption in standby mode (<0,5W) and increases the efficiency of the power supply to >88%!
| Total power | 650 W |
| AC input voltage | 230 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 600 W |
| Combined power (+5V) | 100 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V) | 50 A |
| Max output current (+5V) | 18 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 88% |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 55 cm |
| Number of SATA power connectors | 5 |
| Number of PATA power connectors | 3 |
| SATA power cable length | 550, 650, 750 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 45 cm |
| ATX power connector (20+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Floppy disk drive connector | Yes |
| Floppy disk drive cable length | 55 cm |
| PCI Express connector | Yes |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.3 |
| Product colour | Black |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Compliance certificates | RoHS |
| Certification | CE, TÜV |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 2.08 kg |
| Package type | Box |
| Harmonized System (HS) code | 84733020 |
