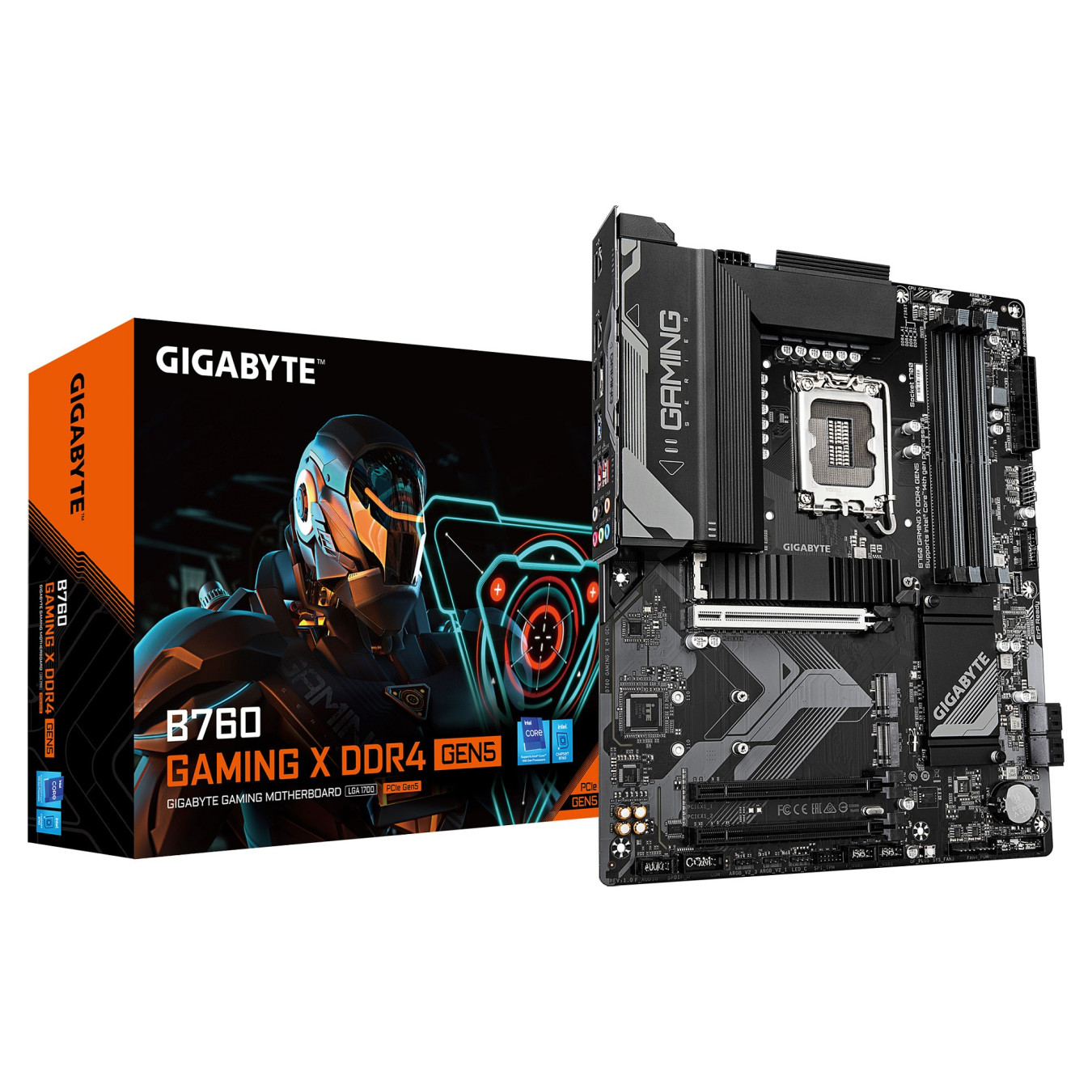

Gigabyte B760 GAMING X DDR4 GEN5 LGA1700 ATX (Boxed)
Gigabyte B760 GAMING X DDR4 GEN5: LGA1700 Intel 12-14th Gen, PCIe 5.0 x16, 3x PCIe4 M.2, DDR4-5333 OC/128GB, 2.5GbE, USB-C 10Gbps, ATX.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | LGA 1700 |
|---|---|
| Motherboards - Chipset | Intel B760 |
| Motherboards - Form Factor | ATX |
| Motherboards - Memory Type | DDR4 |
| Motherboards - Memory Profile Support | XMP |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 128 GB |
| Motherboards - Main Slot PCIe Version | PCIe 5.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 3 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | Front Panel Type-C header |
| Motherboards - RGB Headers | 3-pin 5V ARGB 4-pin 12V RGB |
| Motherboards - Wireless Connectivity | None |

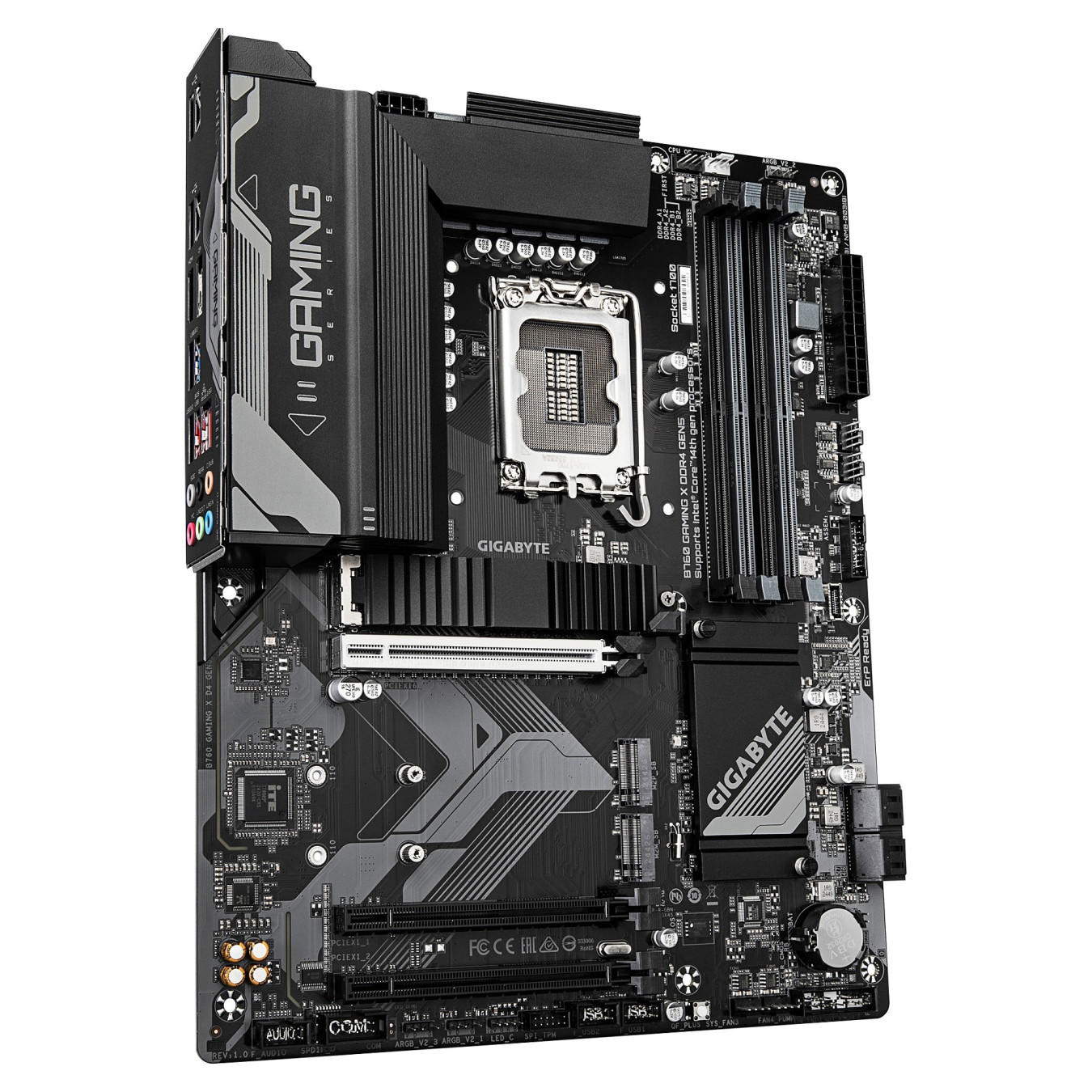

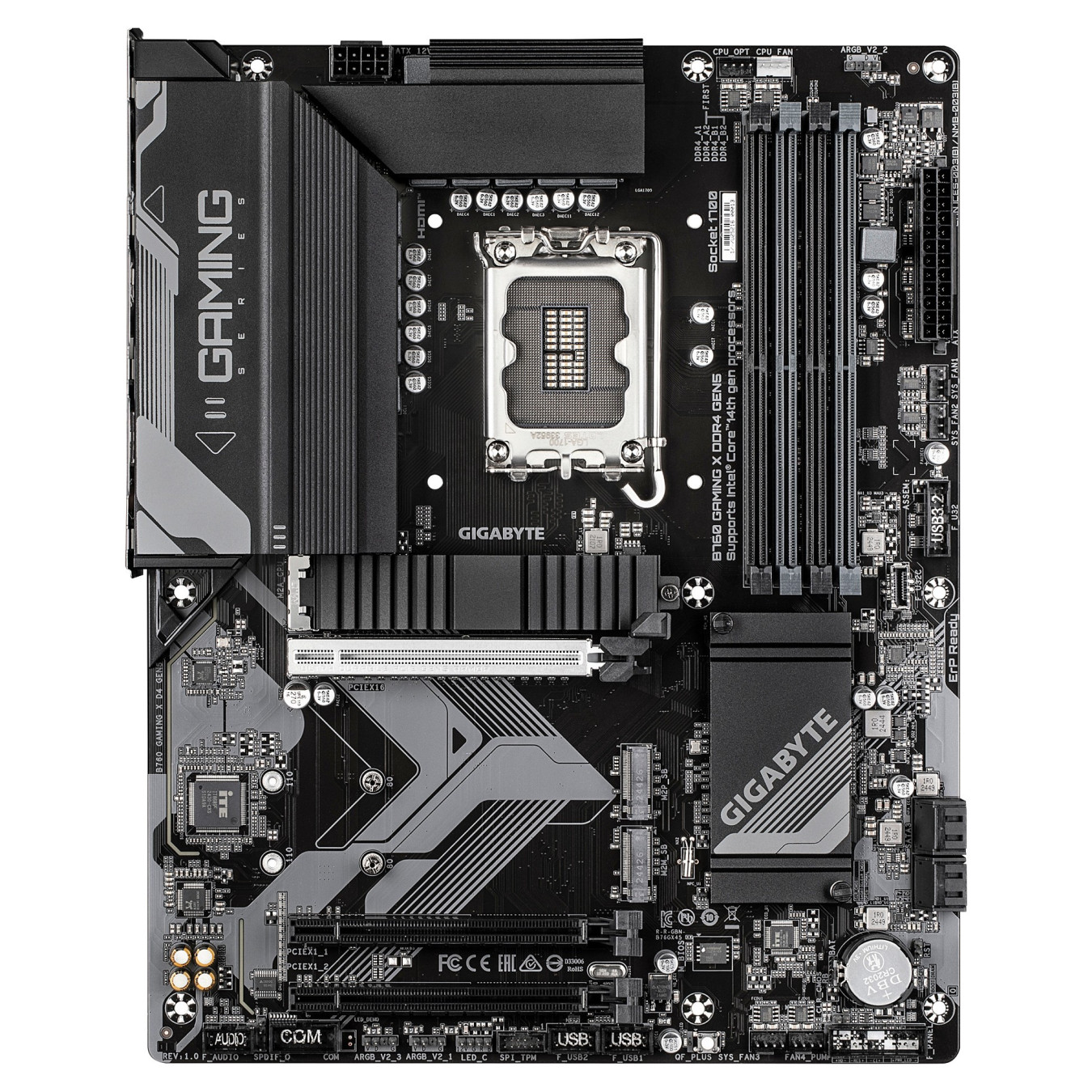

The Gigabyte B760 GAMING X DDR4 GEN5 is a high-performance ATX motherboard designed for Intel LGA1700 socket processors from 12th, 13th, and 14th generations, including Core i9/i7/i5/i3, Pentium Gold, and Celeron. Built on the Intel B760 chipset, it features a robust 8+1+1 hybrid digital VRM with 60A DrMOS for stable power delivery even under heavy loads. This board supports dual-channel DDR4 memory up to 128GB (4x32GB) with overclocking potential up to 5333MHz via XMP profiles.

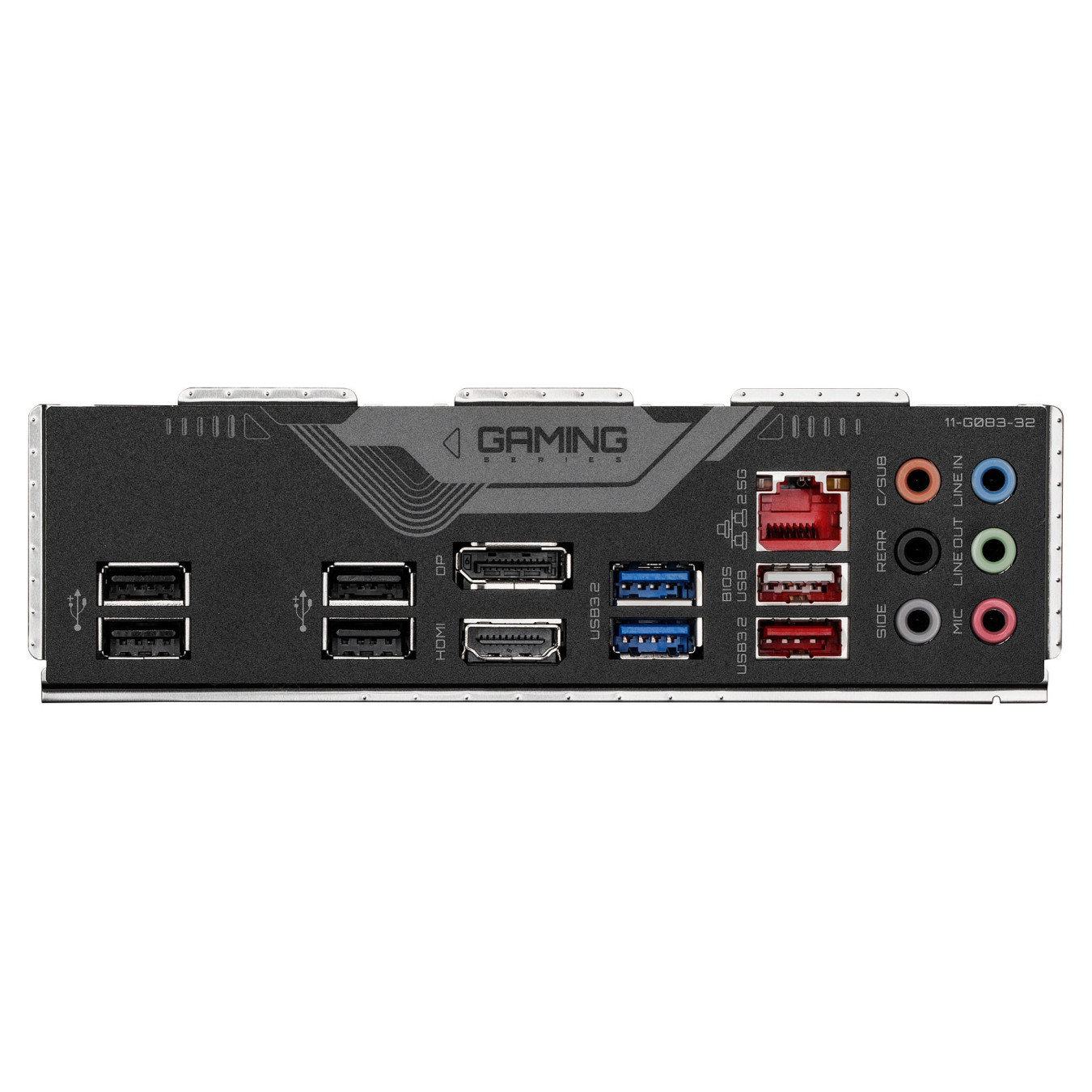

Storage and expansion are top-tier with 1x PCIe 5.0 x16 slot (with UD Slot and EZ-Latch), 3x PCIe 4.0 x4 M.2 slots (up to 22110 size, one with Thermal Guard), 4x SATA 6Gb/s, and RAID 0/1/5/10 support. Networking includes Realtek 2.5GbE LAN, while rear I/O offers HDMI 2.1, DP 1.2 (4K@60Hz), USB 3.2 Gen2 Type-A/C (10Gbps), and front USB-C 10Gbps header. Audio is handled by Realtek ALC897 7.1-channel HD with premium capacitors. RGB FUSION provides 3x ARGB and 1x RGB headers for lighting customization.
- ✅ PCIe 5.0 GPU-ready with metal-reinforced slot
- ✅ 3x M.2 PCIe 4.0 for fast NVMe SSDs
- ✅ DDR4 XMP support up to 5333MHz OC
- ✅ 2.5GbE LAN + USB-C 10Gbps connectivity
- ✅ Comprehensive cooling: VRM Thermal Armor, M.2 Guard
- ✅ Q-Flash Plus for BIOS updates without CPU
| CPU Manufacturer | Intel |
| CPU Socket | LGA 1700 |
| Chipset | Intel B760 |
| Form Factor | ATX (30.5 x 24.4 cm) |
| Memory Type | DDR4-SDRAM |
| Memory Slots | 4x DIMM |
| Max Memory | 128 GB (32 GB per slot) |
| Max Memory Speed | 5333 MHz (OC) |
| PCIe Main Slot | 1x PCIe 5.0 x16 |
| M.2 Slots | 3x PCIe 4.0 x4 (22110) |
| SATA Ports | 4x SATA III 6Gb/s |
| LAN | Realtek 2.5 Gigabit Ethernet (RTL8125) |
| Audio Chip | Realtek ALC897 7.1-channel |
| VRM | 8+1+1 Phases 60A DrMOS |
| RGB Headers | 3x ARGB (3-pin 5V), 1x RGB (4-pin 12V) |
| USB Rear | 1x USB 3.2 Gen2 Type-C 10Gbps, 1x USB 3.2 Gen2 Type-A, 2x USB 3.2 Gen1 Type-A, 4x USB 2.0 |
| Video Outputs | 1x HDMI 2.1, 1x DisplayPort 1.2 (4096x2304@60Hz) |
| RAID Levels | 0, 1, 5, 10 |
| BIOS | UEFI AMI with Q-Flash Plus |
| Weight (net) | 1.59 kg |
| Warranty | 3 Years |
