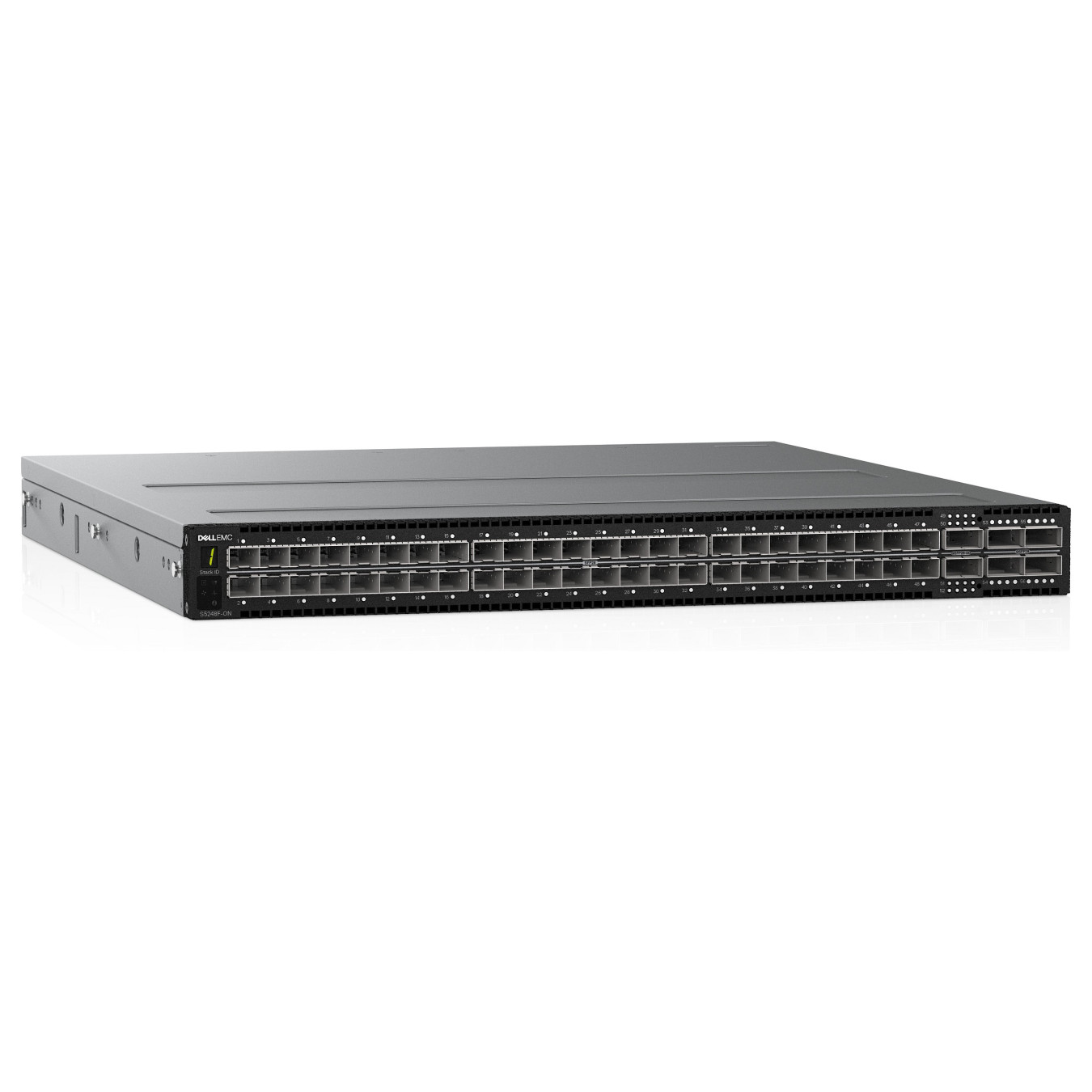

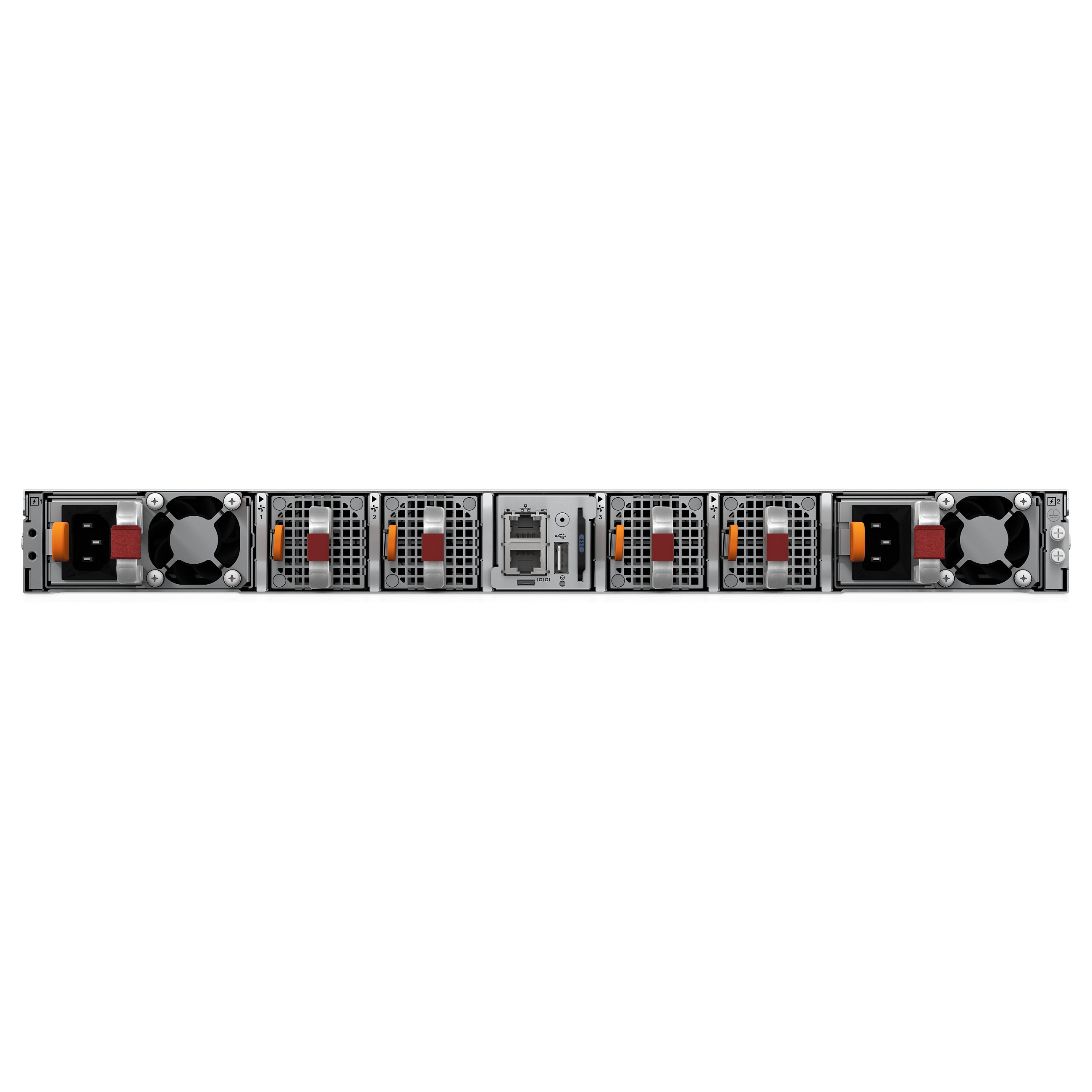

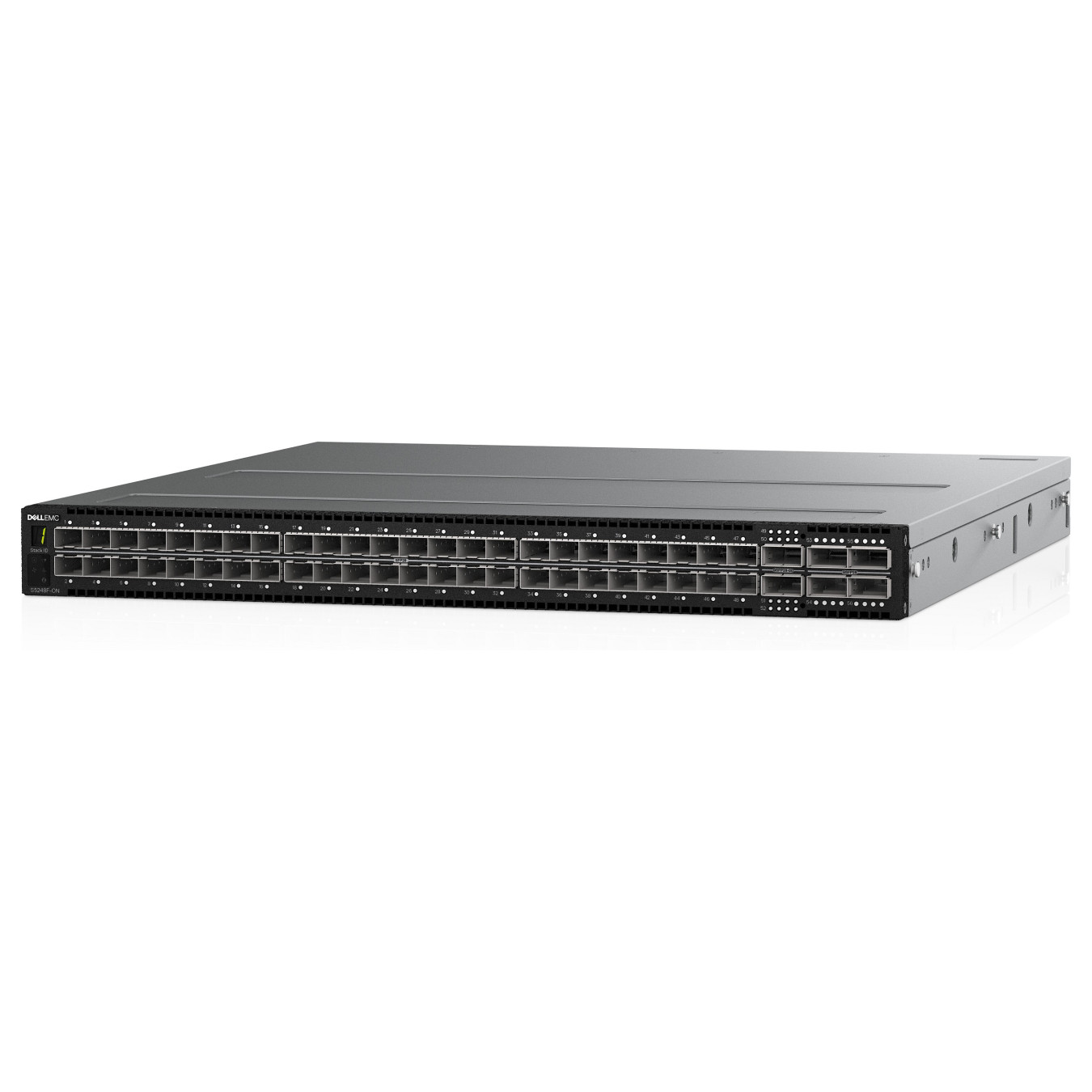

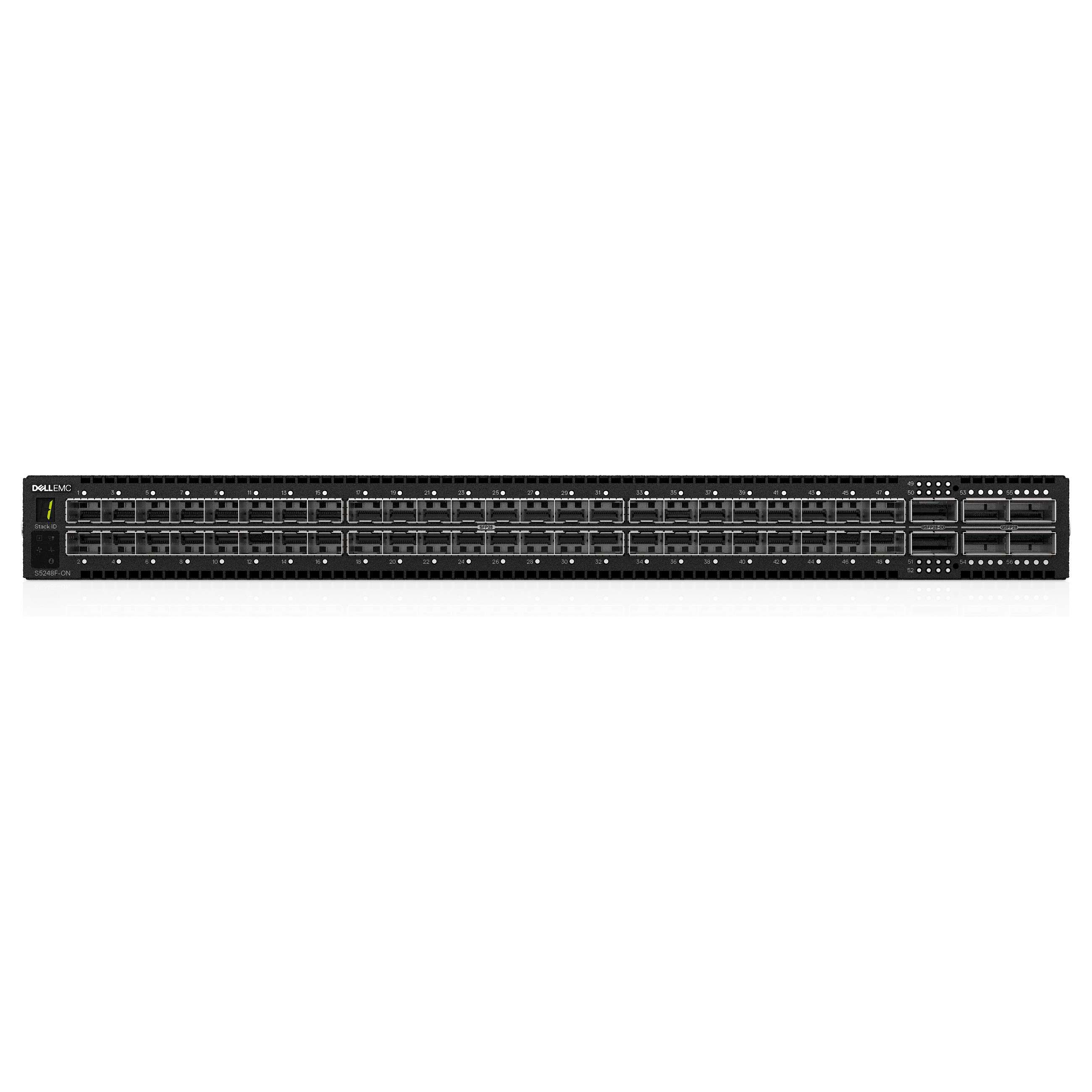

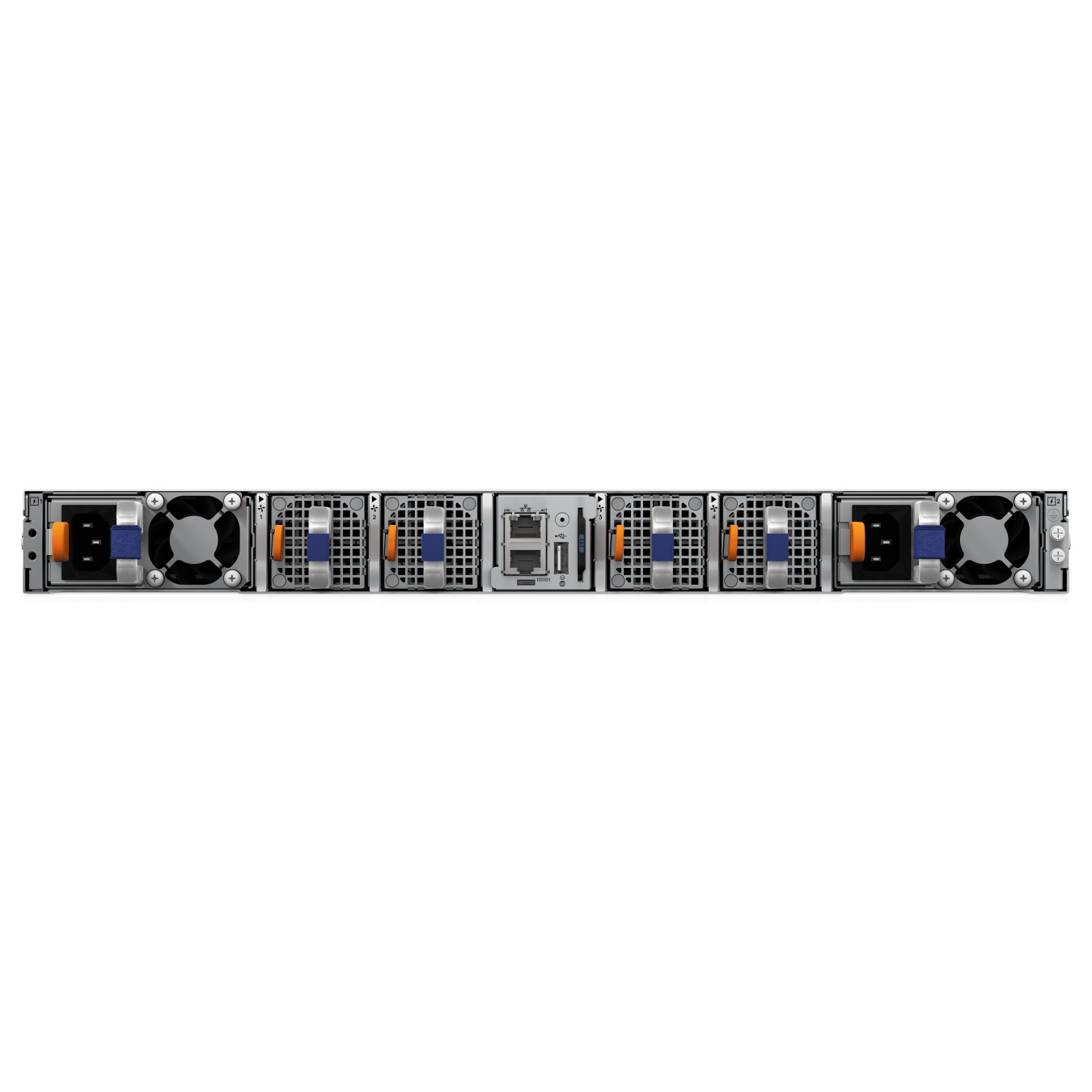

DELL Switch S5248F 48SFP28 4QSFP28 2 48x25Gbit 4x100GBit 2x200Gbit red.NT
DELL S-Series S5248F-ON. Managed. L2/L3. 100 Gigabit Ethernet. Rack-Einbau. 1U
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
DELL S-Series S5248F-ON. Switch-Typ: Managed. Switch-Ebene: L2/L3. Schalttyp optisches Modul: 100 Gigabit Ethernet. Konsolen-Port: RJ-45. MAC-Adressentabelle: 16000 Eintragungen. Routing-/Switching-Kapazität: 2000 Gbit/s. Netzstandard: IEEE 802.1D. IEEE 802.1Q. IEEE 802.1Qaz. IEEE 802.1Qbb. IEEE 802.1ab. IEEE 802.1p. IEEE 802.1s..... Netzstecker: AC-Eingangsbuchse. Rack-Einbau. Formfaktor: 1U
| Switch-Typ | Managed |
| Switch-Ebene | L2/L3 |
| Feature | Unterstützung für redundantes Netzteil |
| Menge SFP-Modul-Steckplätze | 48 |
| Optischer Kabelverbinder | QSFP-DD. QSFP28-DD. QSFP28. SFP28 |
| Konsolen-Port | RJ-45 |
| Netzstecker | AC-Eingangsbuchse |
| Adressauflösung Protokoll (ARP) Einträge (max.) | 128000 |
| Virtuelle LAN-Funktionen | Tagged VLAN |
| Schalttyp optisches Modul | 100 Gigabit Ethernet |
| Routing-/Switching-Kapazität | 2000 Gbit/s |
| MAC-Adressentabelle | 16000 Eintragungen |
| Datenpaket-Pufferspeicher | 32 MB |
| Unterstützte Sicherheitsalgorithmen | 802.1x RADIUS. AES. EAP |
| Management-Protokolle | CLI. SNMP. REST. API’s |
| Formfaktor | 1U |
| Produktfarbe | Schwarz |
| Display-Typ | LED |
| Anzahl Lüfter | 4 Lüfter |
| Speicherkapazität | 16000 MB |
| Kompatible Betriebssysteme | Debian Linux version 9 |
| Liste der RFCs | IP. IPv4. IPv6. RIP. OSPF. IS-IS. BGP |
| Mindestsystemvoraussetzungen | Linux Kernel 4.9 |
| Anzahl von Stromversorgungseinheiten | 2 |
| AC Eingangsspannung | 100 - 240 V |
| AC Eingangsfrequenz | 50 - 60 Hz |
| Stromverbrauch (Standardbetrieb) | 400 W |
| Stromverbrauch (max.) | 602 W |
| Betriebstemperatur | 0 - 45 °C |
| Temperaturbereich bei Lagerung | -40 - 70 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 90% |
| Luftfeuchtigkeit bei Lagerung | 5 - 90% |
| Wärmeableitung | 2054 BTU/h |
| Breite | 434 mm |
| Tiefe | 460 mm |
| Höhe | 44 mm |
| Gewicht | 9.7 kg |
| Zertifizierung | RoHS |
| Warentarifnummer (HS) | 85176990 |
