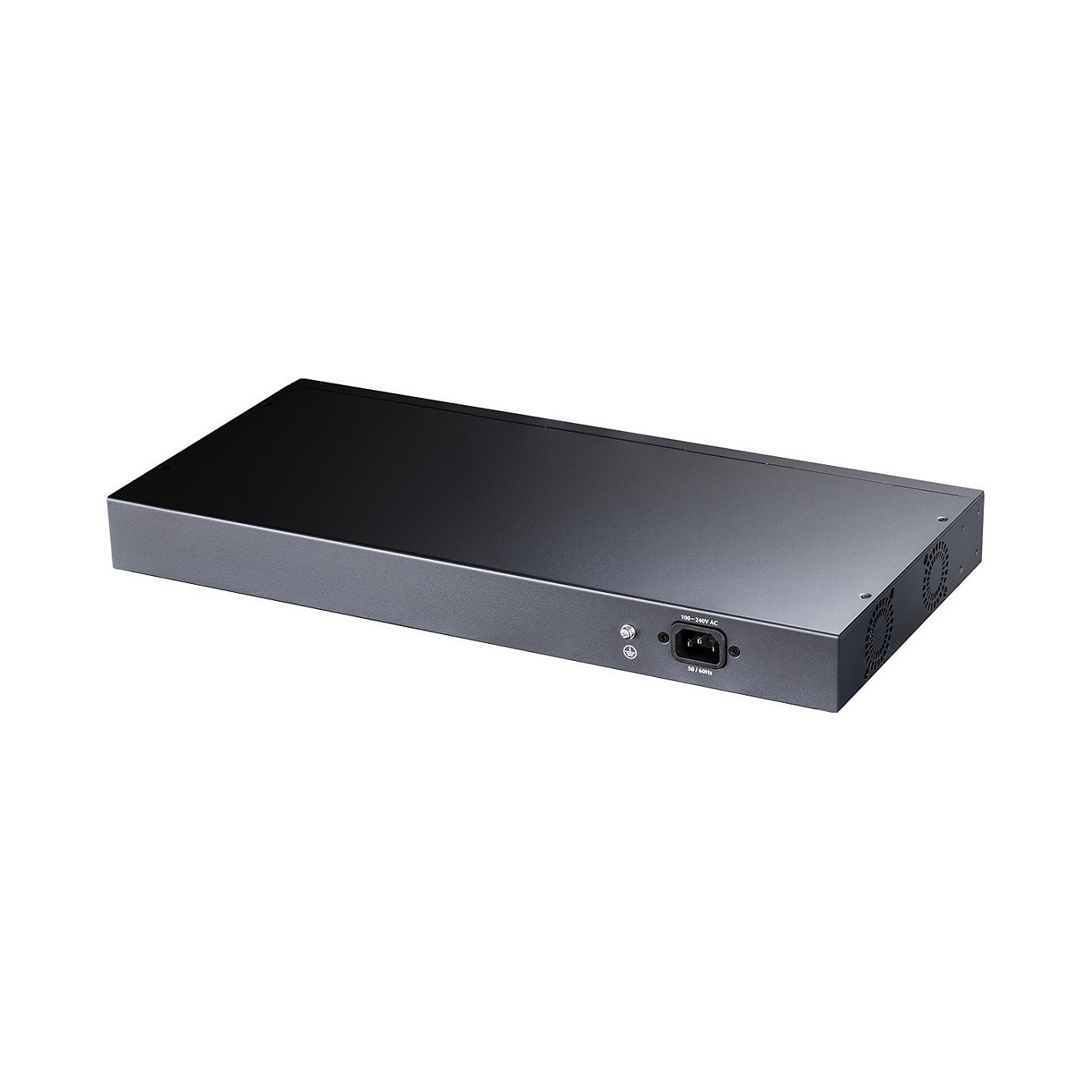

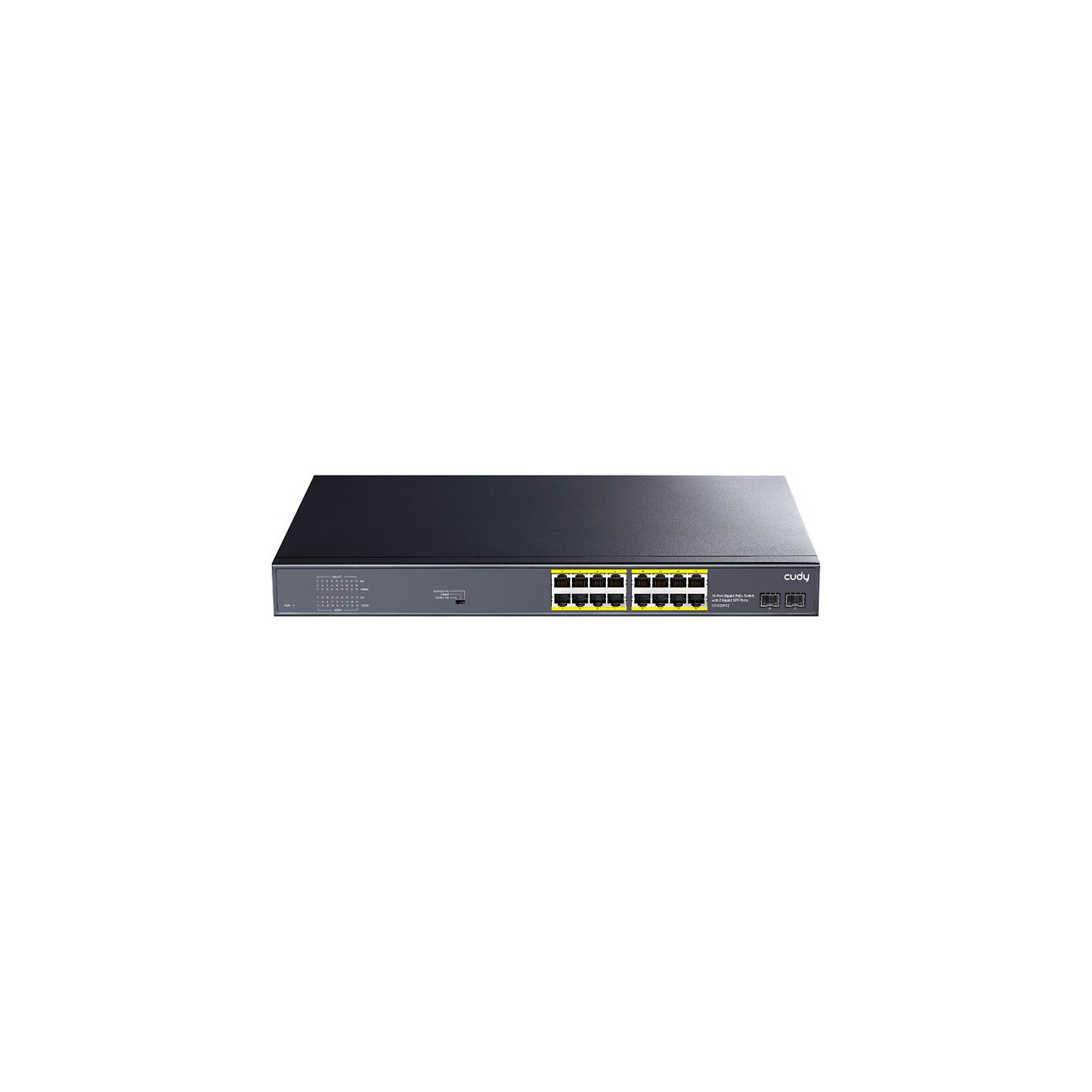

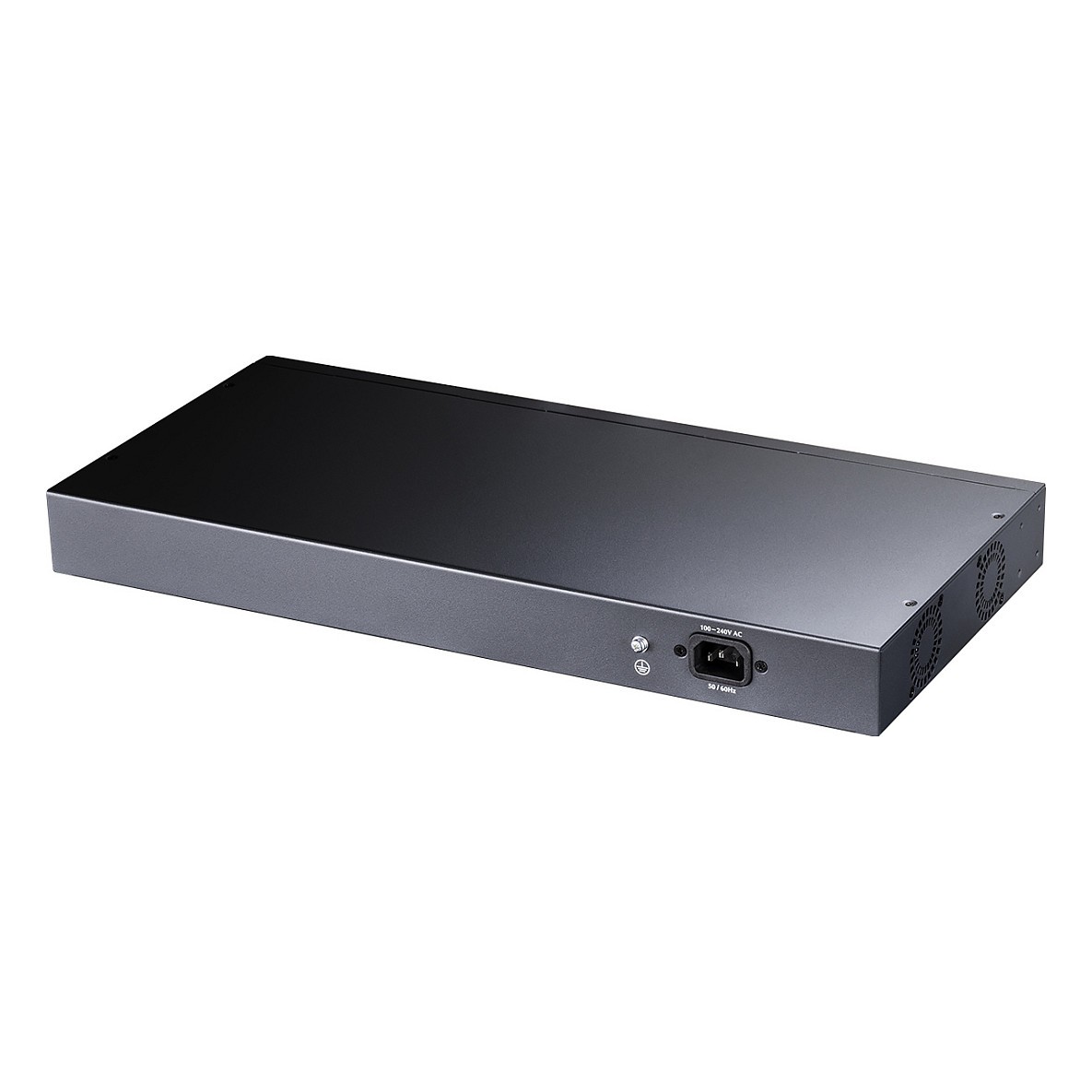

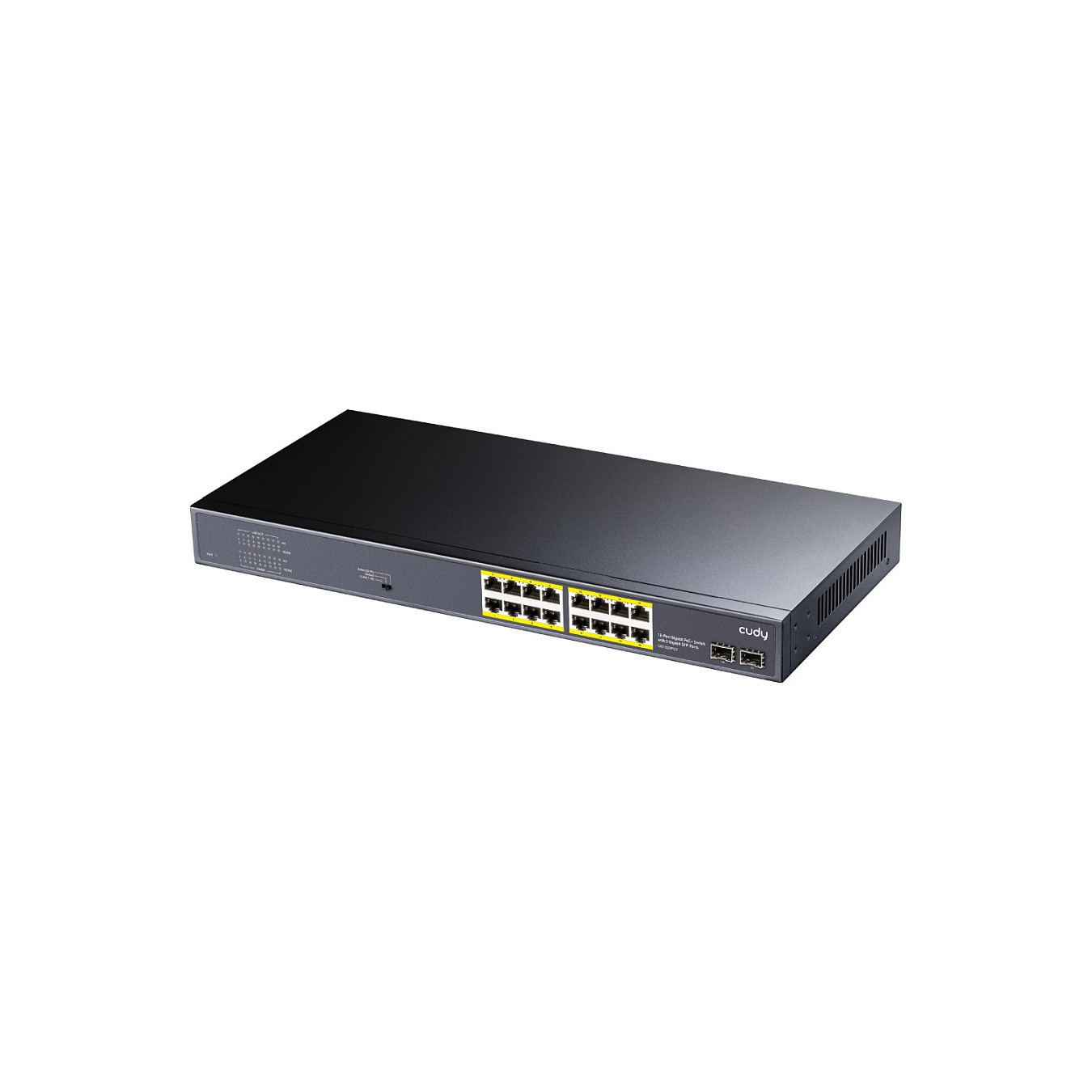

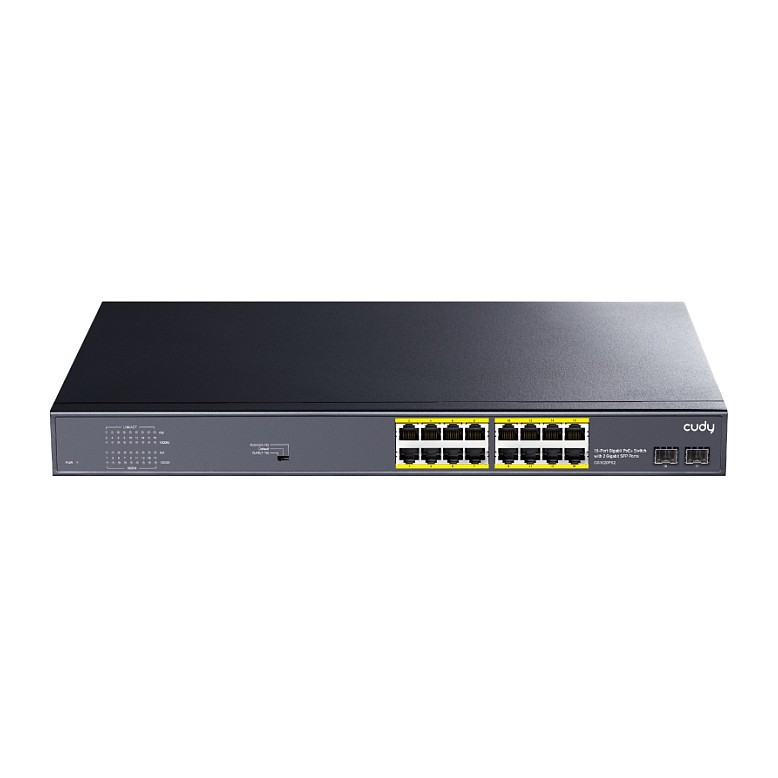

16+2P Cudy GS1020PS2 PoE+ SFP
Cudy GS1020PS2. Gigabit Ethernet (10/100/1000). Gigabit Ethernet. Power over Ethernet (PoE). Rack-Einbau
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Cudy GS1020PS2. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000). Anzahl der basisschaltenden RJ-45 Ethernet Ports: 16. Schalttyp optisches Modul: Gigabit Ethernet. Anzahl installierten SFP Module: 2. MAC-Adressentabelle: 8000 Eintragungen. Netzstandard: IEEE 802.3. IEEE 802.3ab. IEEE 802.3af. IEEE 802.3at. IEEE 802.3u. IEEE 802.3x. IEEE 802.3z. Netzstecker: AC-Eingangsbuchse. Power over Ethernet (PoE). Rack-Einbau
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 16 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Anzahl installierten SFP Module | 2 |
| Anzahl Combo-SPF-Anschlüsse | 2 |
| Anzahl der Glasfaser-Uplink-Anschlüsse | 2 |
| Netzstecker | AC-Eingangsbuchse |
| Netzstandard | IEEE 802.3. IEEE 802.3ab. IEEE 802.3af. IEEE 802.3at. IEEE 802.3u. IEEE 802.3x. IEEE 802.3z |
| Kupfer Ethernet Verkabelungstechnologie | 10BASE-T. 100BASE-TX. 1000BASE-TX |
| unterstütze Kabeltypen | Cat5. Cat5e. Cat6. Cat6+. Cat6a. Cat6e. Cat7. Cat7e. Cat8. Cat8.1 |
| Ethernet LAN Datentransferraten | 10.100.1000 Mbit/s |
| Feature | Rackmontageset |
| Schalttyp optisches Modul | Gigabit Ethernet |
| Fibertyp | Multi-Modus |
| Transmissionsentfernung (max) | 120 km |
| Maximale Übertragungsdistanz (Single-Mode) | 120000 m |
| Maximale Übertragungsdistanz (Multi-Mode) | 2000 m |
| Transferrate | 38.7 Mpps |
| MAC-Adressentabelle | 8000 Eintragungen |
| Datenpaket-Pufferspeicher | 4 MB |
| Produktfarbe | Schwarz |
| Gehäusematerial | Metall |
| LED-Anzeigen | Aktivität. Link. Leistung |
| Luftstromrichtung | Lufstrom Seite auf Seite |
| Mittlere Betriebsdauer zwischen Ausfällen (MTBF) | 50000 h |
| Energiequelle | AC |
| AC Eingangsspannung | 100 - 240 V |
| AC Eingangsfrequenz | 50 - 60 Hz |
| Ausgangsspannung | 52 V |
| Ausgangsstrom | 3.85 A |
| Anzahl Power over Ethernet (PoE) Anschlüsse | 16 |
| Anzahl Power over Ethernet plus (PoE+) Anschlüsse | 16 |
| Power over Ethernet (PoE) Leistung pro Anschluss | 30 W |
| Gesamtleistung Power over Ethernet (PoE) | 200 W |
| Bandbreite | 52 Gbit/s |
| Betriebstemperatur | -20 - 50 °C |
| Temperaturbereich bei Lagerung | -40 - 80 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 90% |
| Luftfeuchtigkeit bei Lagerung | 5 - 95% |
| Höhe bei Betrieb | 0 - 3000 m |
| Mitgelieferte Kabel | AC |
