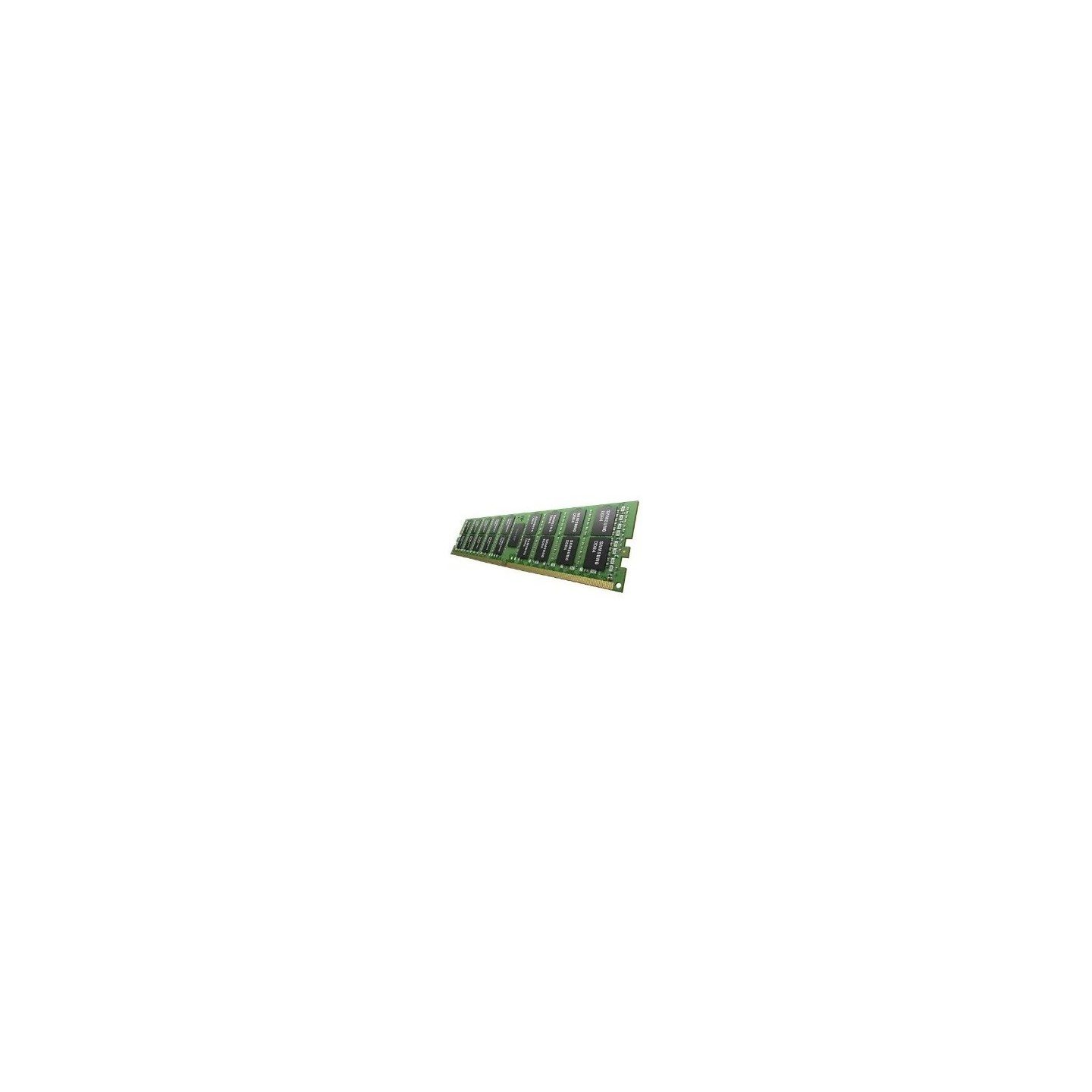

Samsung M321R2GA3BB6-CQK 16GB DDR5-4800 ECC Registered RDIMM (Bulk)
Samsung M321R2GA3BB6-CQK 16GB DDR5-4800 ECC Registered RDIMM server memory module with CL40 latency, 1Rx8 rank configuration, and 1.1V operation for enterprise systems.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| RAM Memory - Memory Type | DDR5 |
|---|---|
| RAM Memory - Profiles | None |
| RAM Memory - ECC | ECC Registered |
| RAM Memory - CAS Latency | CL40 |
| RAM Memory - RGB Lighting | No |
| RAM Memory - Total Capacity | 16 GB |
| RAM Memory - Color | Green (PCB) |
| RAM Memory - Speed (MT/s) | 4800 MT/s |
| RAM Memory - Kit Size | 1 |
| RAM Memory - Heatsink | No |
The Samsung M321R2GA3BB6-CQK is a professional-grade server memory module designed for enterprise computing environments. This single 16GB DDR5-4800 (PC5-38400) registered DIMM operates at 1.1V with CL40 latency and features a 1Rx8 rank configuration, making it ideal for high-performance server applications requiring error correction and data integrity.
This ECC Registered RDIMM is fully compatible with major OEM platforms including Dell, HP, and IBM server systems. The 288-pin form factor and registered signal processing enhance clock, command, and control signal integrity, while the 8-bit parity ECC ensures reliable operation in mission-critical environments. The module supports up to 3DPC (3 DIMMs per channel) configurations and is optimized for Intel-based server platforms.
Key specifications and features:
- Capacity: 16GB single module
- Memory Type: DDR5 SDRAM
- Speed: 4800 MHz (PC5-38400)
- ECC Type: Registered (Buffered)
- CAS Latency: CL40
- Voltage: 1.1V
- Rank: Single Rank x8 (1Rx8)
- Form Factor: 288-pin RDIMM
- Dimensions: 8" length x 2" width x 0.5" height
| Manufacturer | Samsung |
| Manufacturer Part Number | M321R2GA3BB6-CQK |
| Product Type | Server Memory Module |
| Memory Capacity | 16GB |
| Number of Modules | 1 x 16GB |
| Memory Technology | DDR5 SDRAM |
| Memory Speed | 4800 MHz |
| Memory Standard | DDR5-4800 / PC5-38400 |
| Form Factor | RDIMM (Registered DIMM) |
| Number of Pins | 288-pin |
| Memory Rank | Single Rank x8 (1Rx8) |
| CAS Latency | CL40 |
| Memory Voltage | 1.1V |
| Error Correction | ECC Registered |
| Signal Processing | Registered (Buffered) |
| Module Configuration | 2048M x 8 |
| Chip Organization | 1Rx8 |
| Physical Length | 8 inches |
| Physical Width | 2 inches |
| Physical Thickness | 500 mil (0.5 inches) |
| Module Weight | 1.60 oz (approximately 45 grams) |
| Compatible Platforms | Intel-based servers (Dell, HP, IBM compatible) |
| Maximum Configuration | Up to 3DPC (3 DIMMs per channel) |
| Warranty | Lifetime warranty (varies by retailer; manufacturer limited warranty 1 year) |
