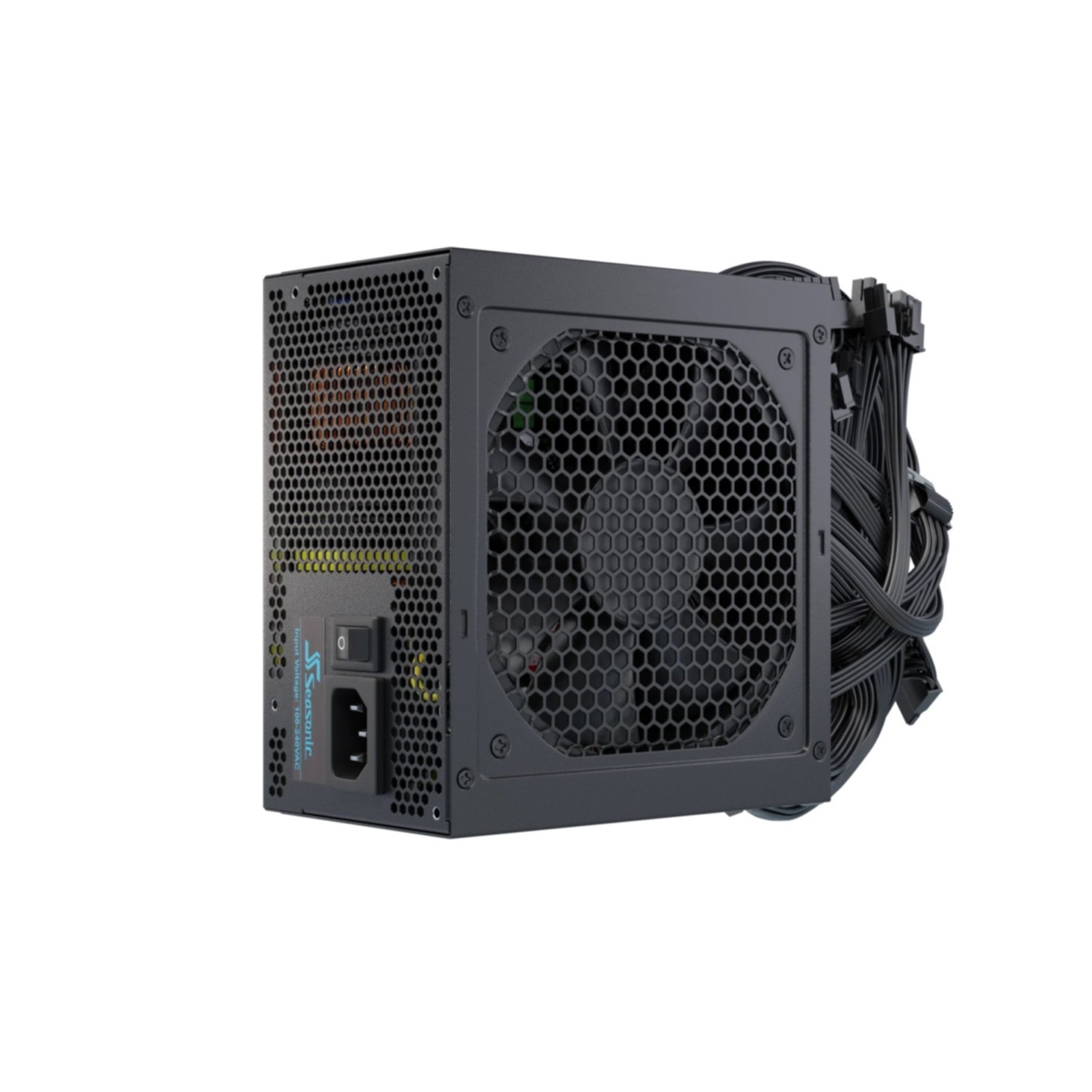

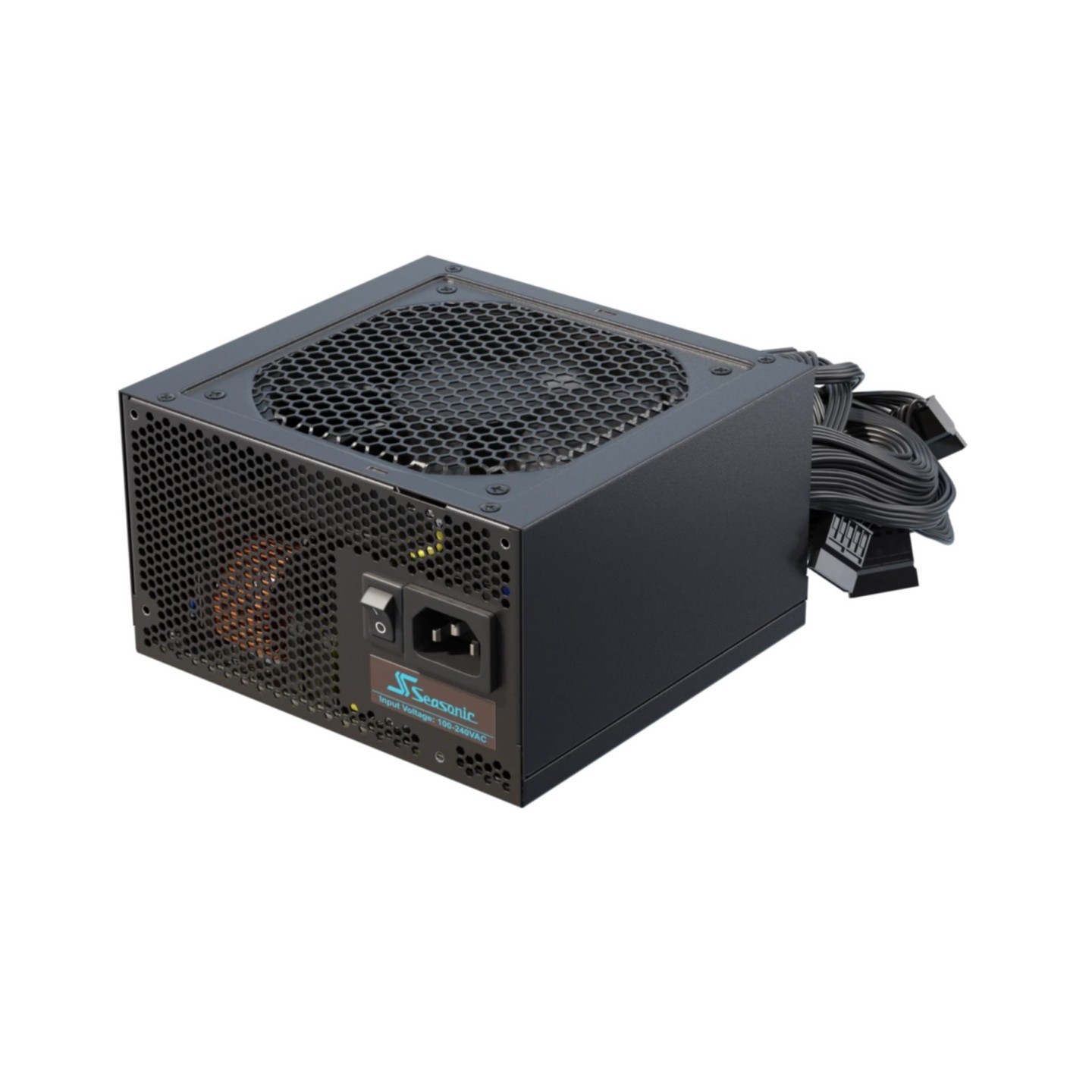

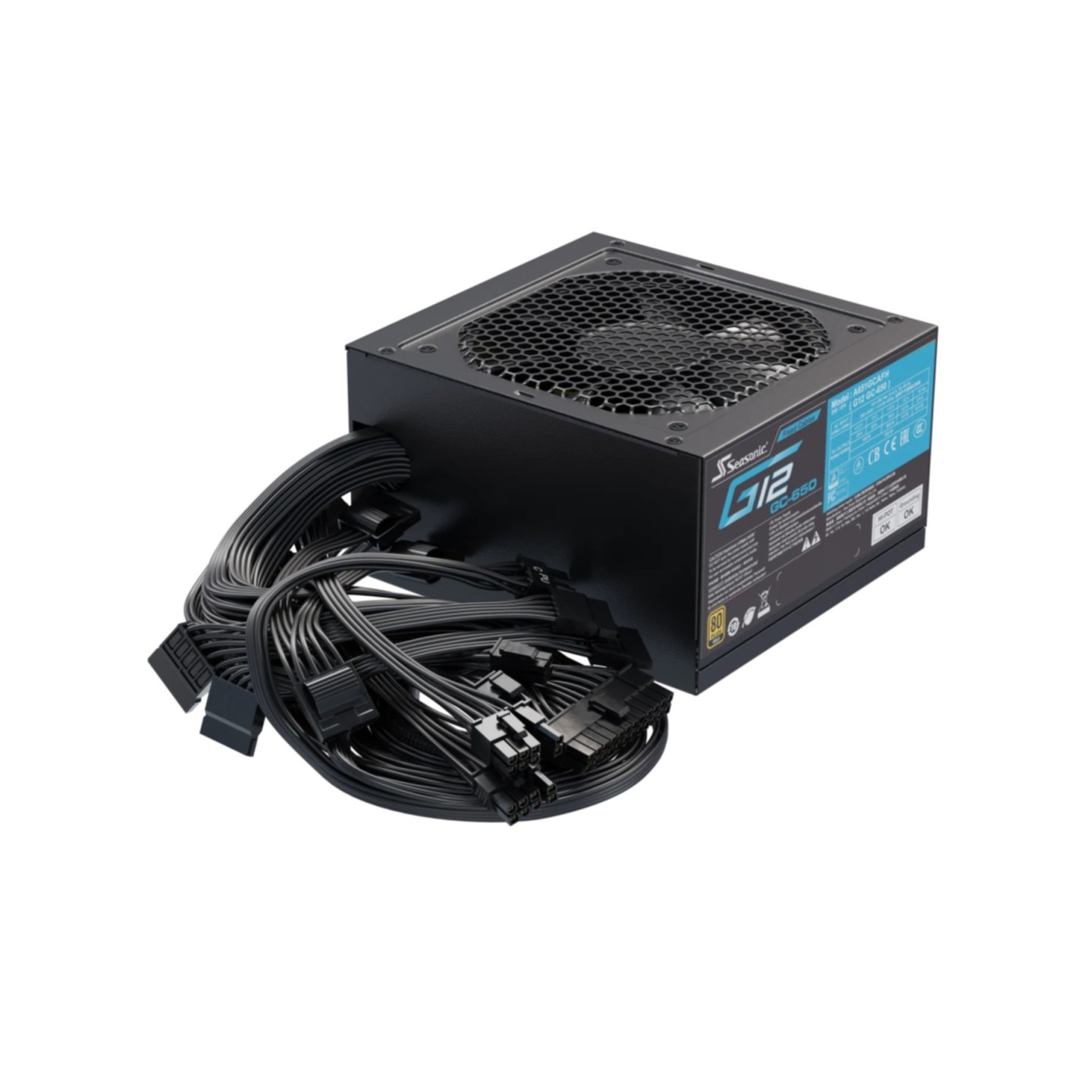

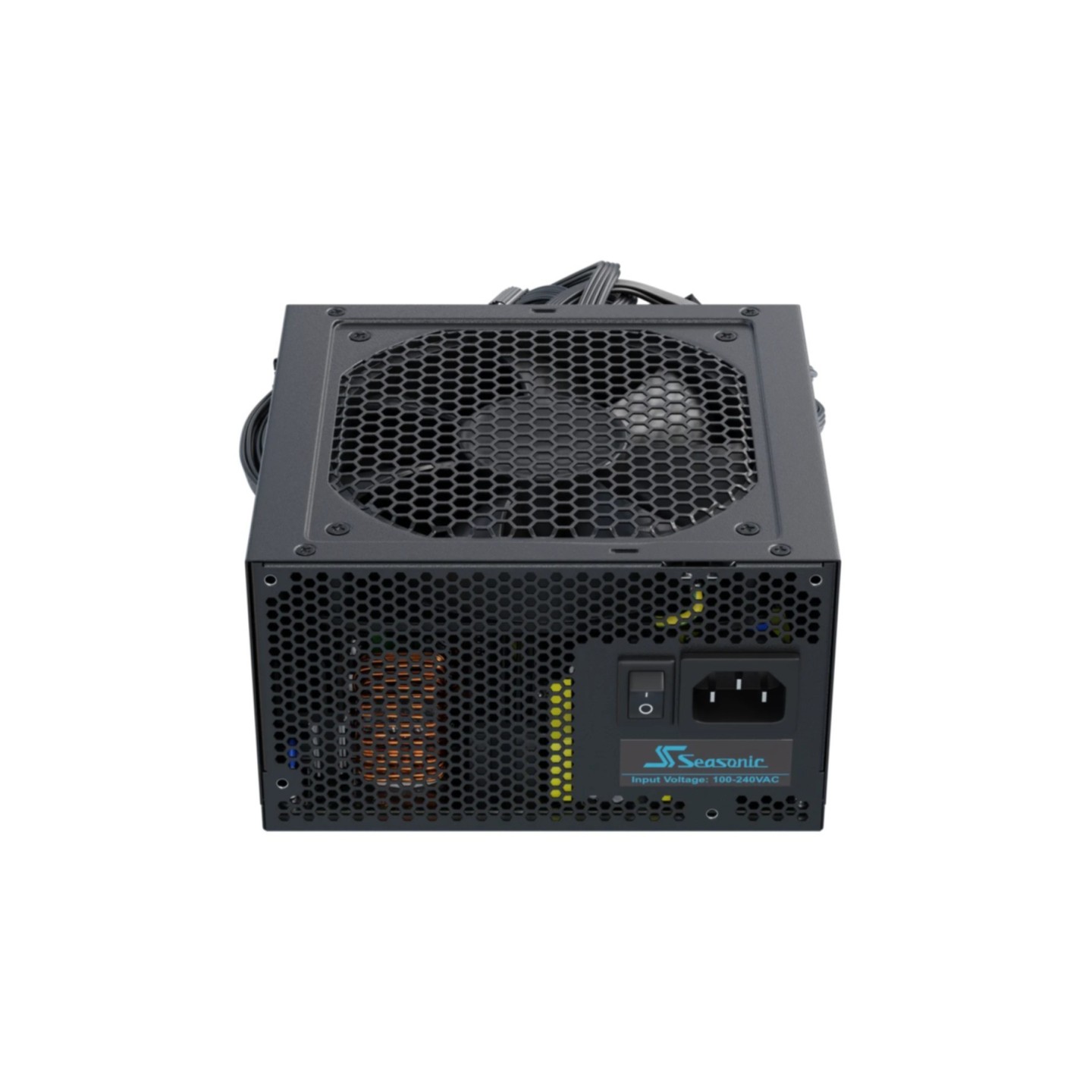

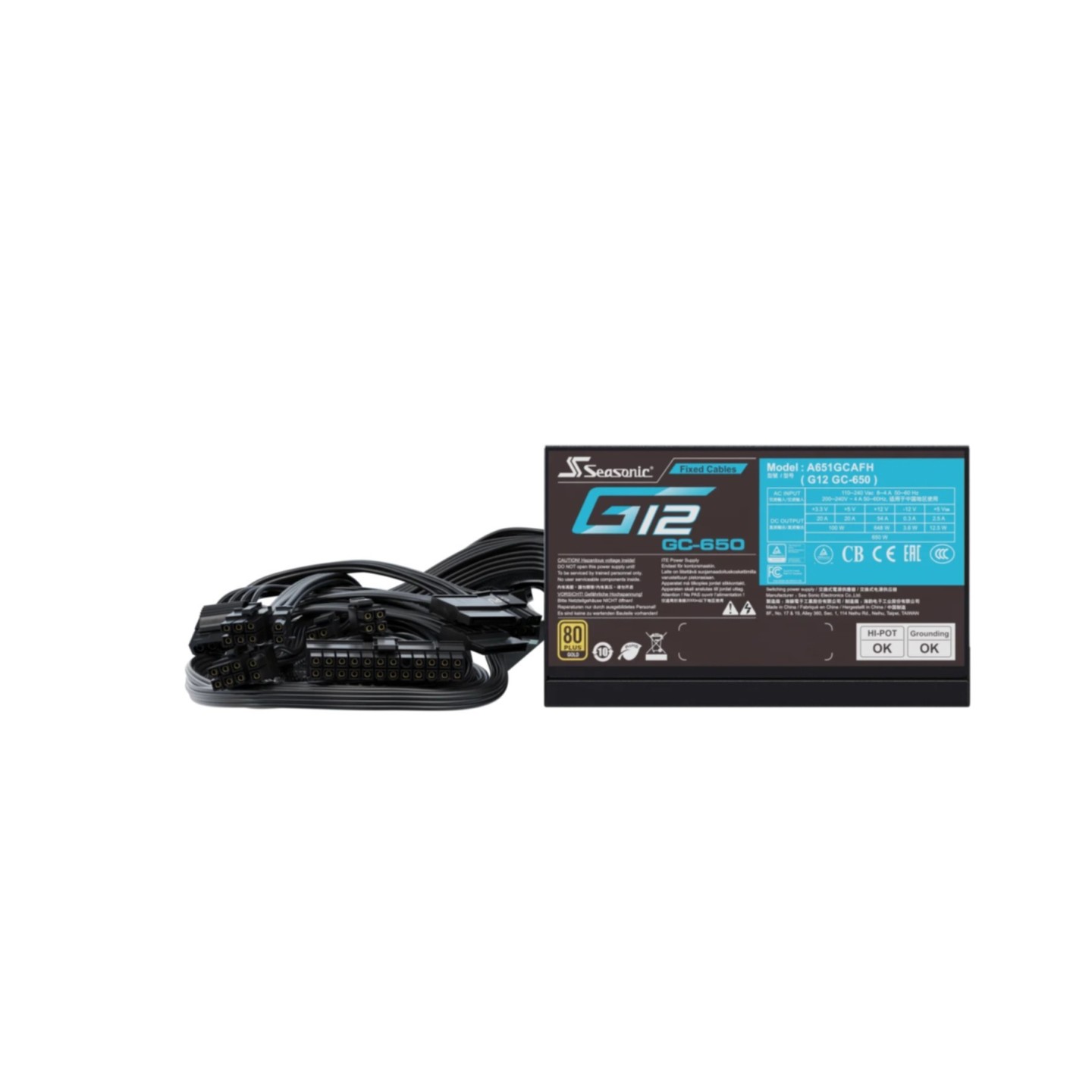

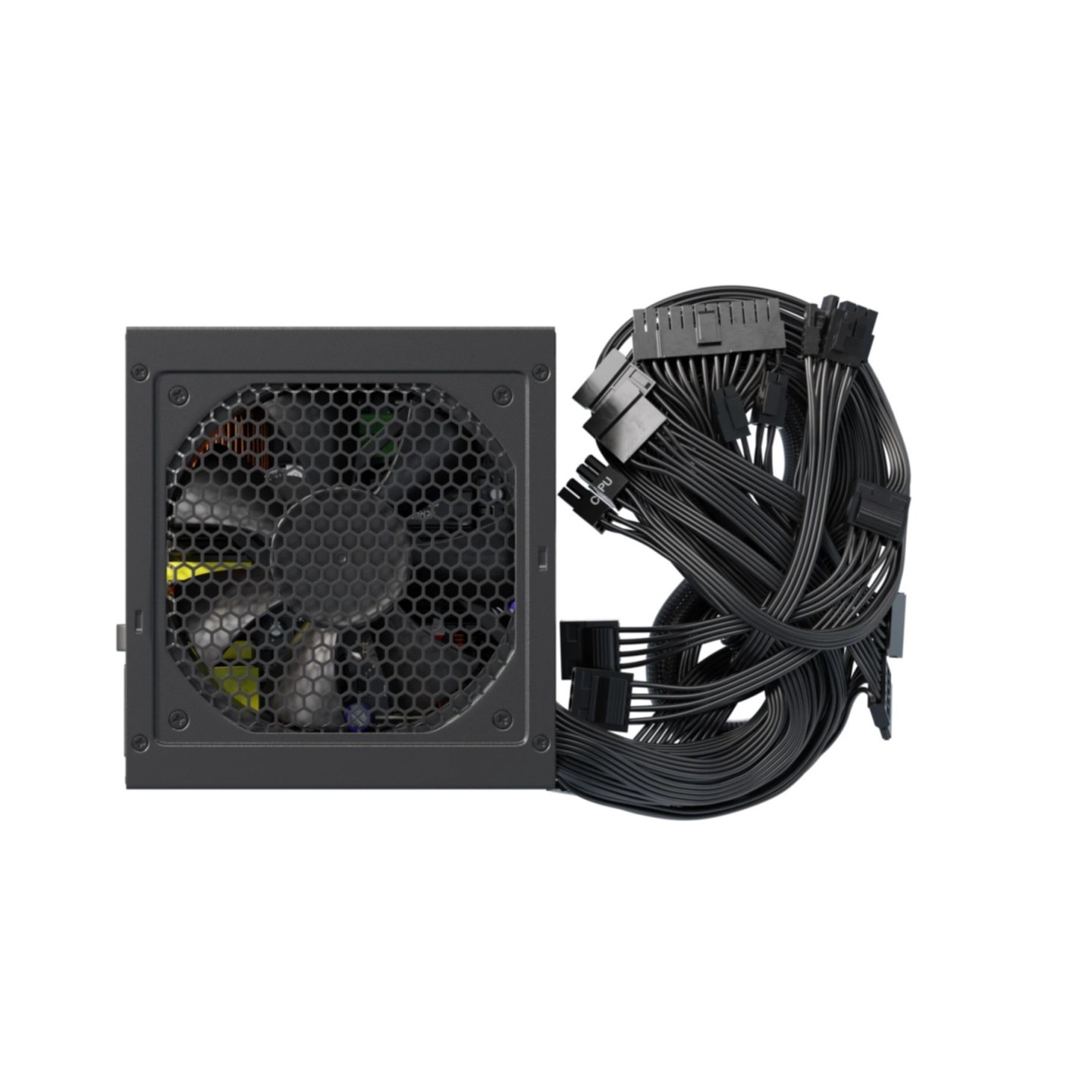

Seasonic G12 GC-650 650W 80+ Gold ATX PSU Non-Modular (Boxed)
650W ATX non-modular PSU with 80 PLUS Gold efficiency (90% at 50% load), Active PFC, LLC design & Smart Silent Fan Control. Compact 140mm depth, full protections, ideal for reliable PC builds.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 600 - 699 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 2x 8/6 pins |
| PSU (Power Supplies) - Length | Up to 140 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V |
The Seasonic G12 GC-650 delivers reliable 650W power in standard ATX form factor, achieving 80 PLUS Gold certification with at least 87/90/87% efficiency at 20/50/100% loads. Featuring Active PFC and LLC resonant converter for minimal energy waste and cost savings.
Equipped with industry's Smart & Silent Fan Control (S2FC) and a 120mm fan for optimal cooling and low noise. Full suite of protections (OCP, OVP, OPP, SCP, UVP, OTP) ensures component safety. Fixed non-modular cabling includes ATX, EPS12V (4+4 pin), PCIe (6+2 pin), SATA, Molex, FDD connectors.
- 80 PLUS Gold certified efficiency
- Compact 140mm depth fits most cases
- 5-year warranty
- MTBF 100,000 hours
- Universal 100-240V input
| Total power | 650 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 8 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 648 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 54 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 90% |
| Power protection features | Over current, Over power, Under voltage, Over total voltage, Over voltage, Short circuit |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Operating temperature (T-T) | 0 - 50 °C |
| Cables included | AC, CPU 4+4pin, PCIe 6+2pin (2x), SATA, Molex |
| Compliance certificates | REACH, RoHS, WEEE |
| Certification | cTUVus, TUV, CB, CCC, BSMI, CE, FCC |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Package type | Box |
| Warranty | 5 Years |
| Fan Control | Smart & Silent Fan Control (S2FC) |
