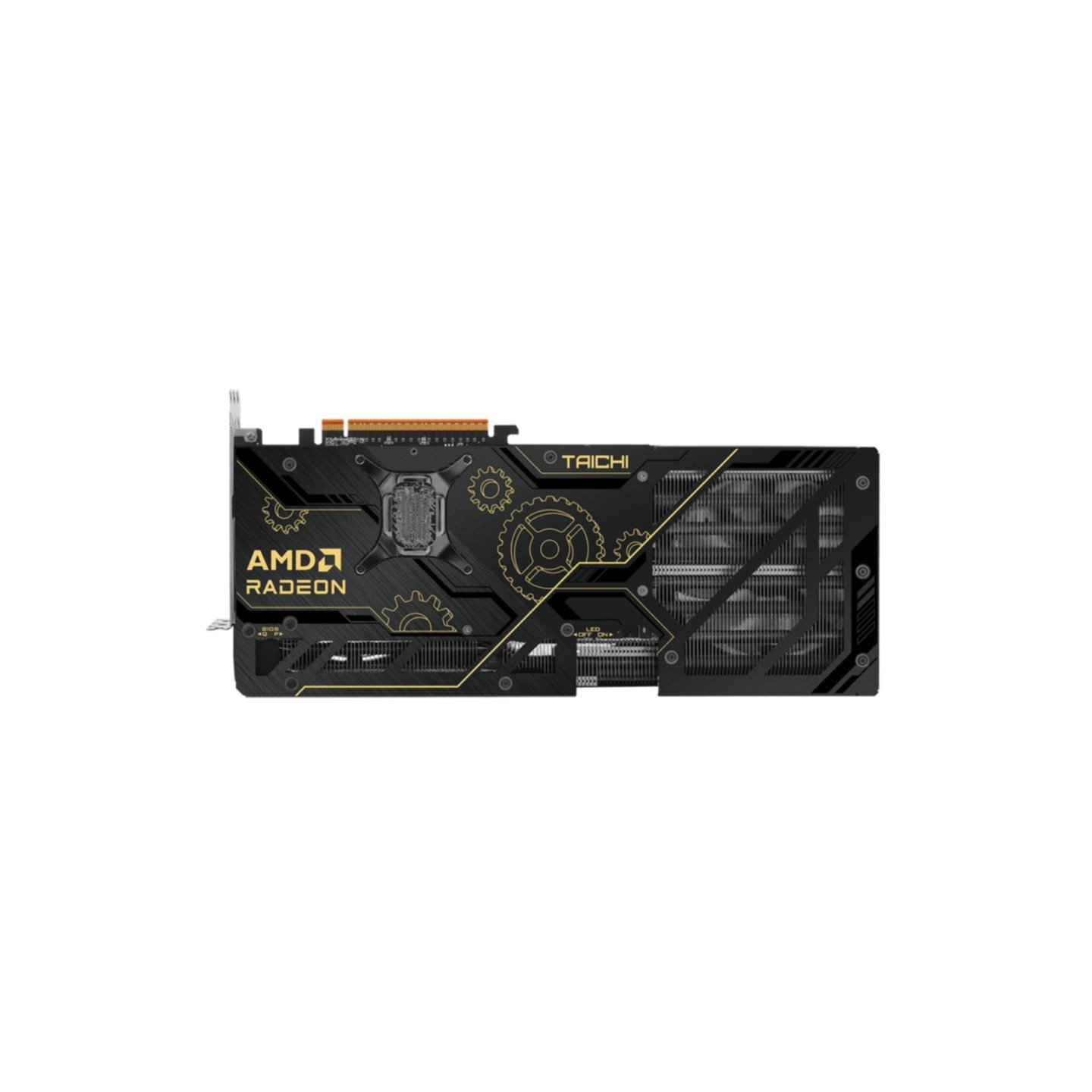

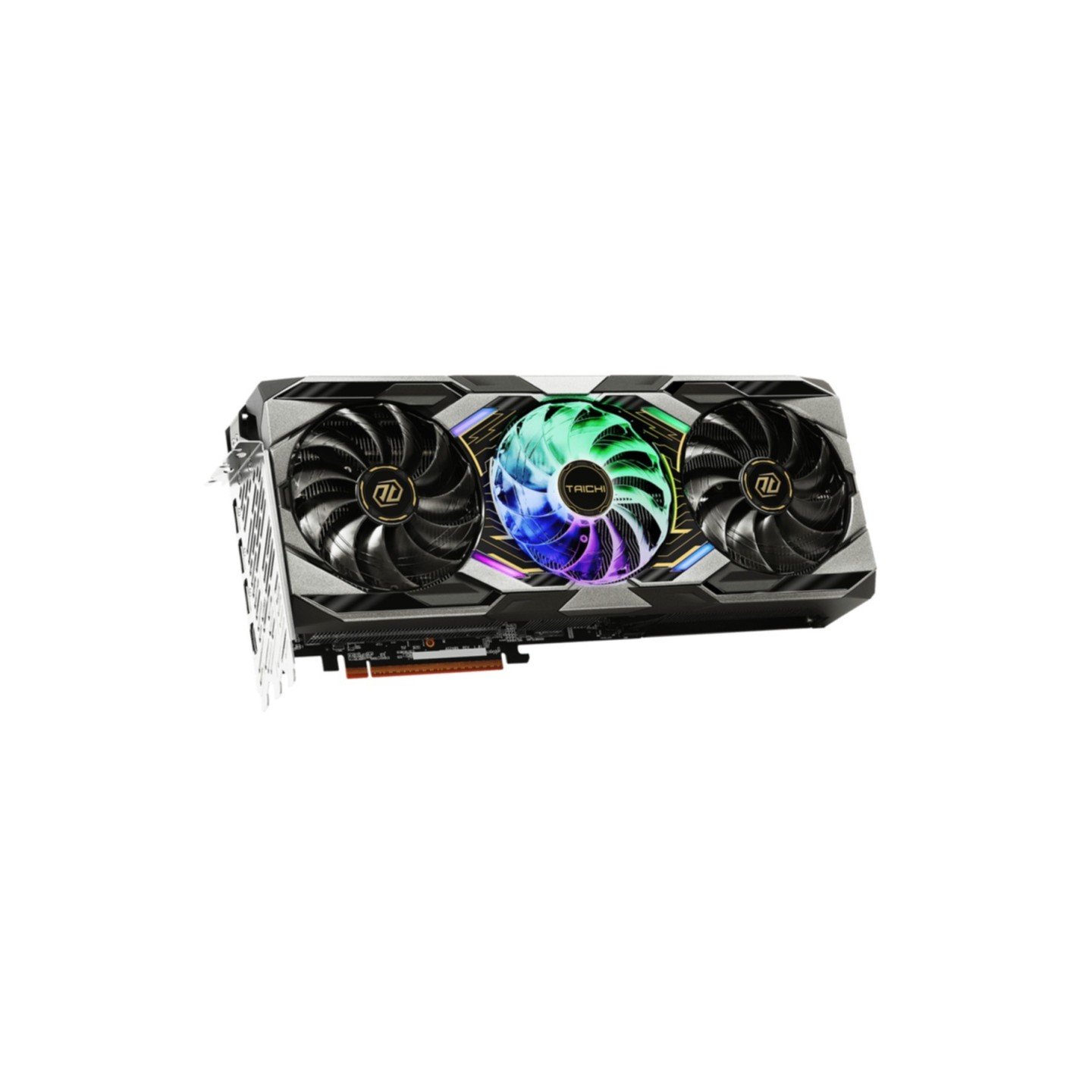

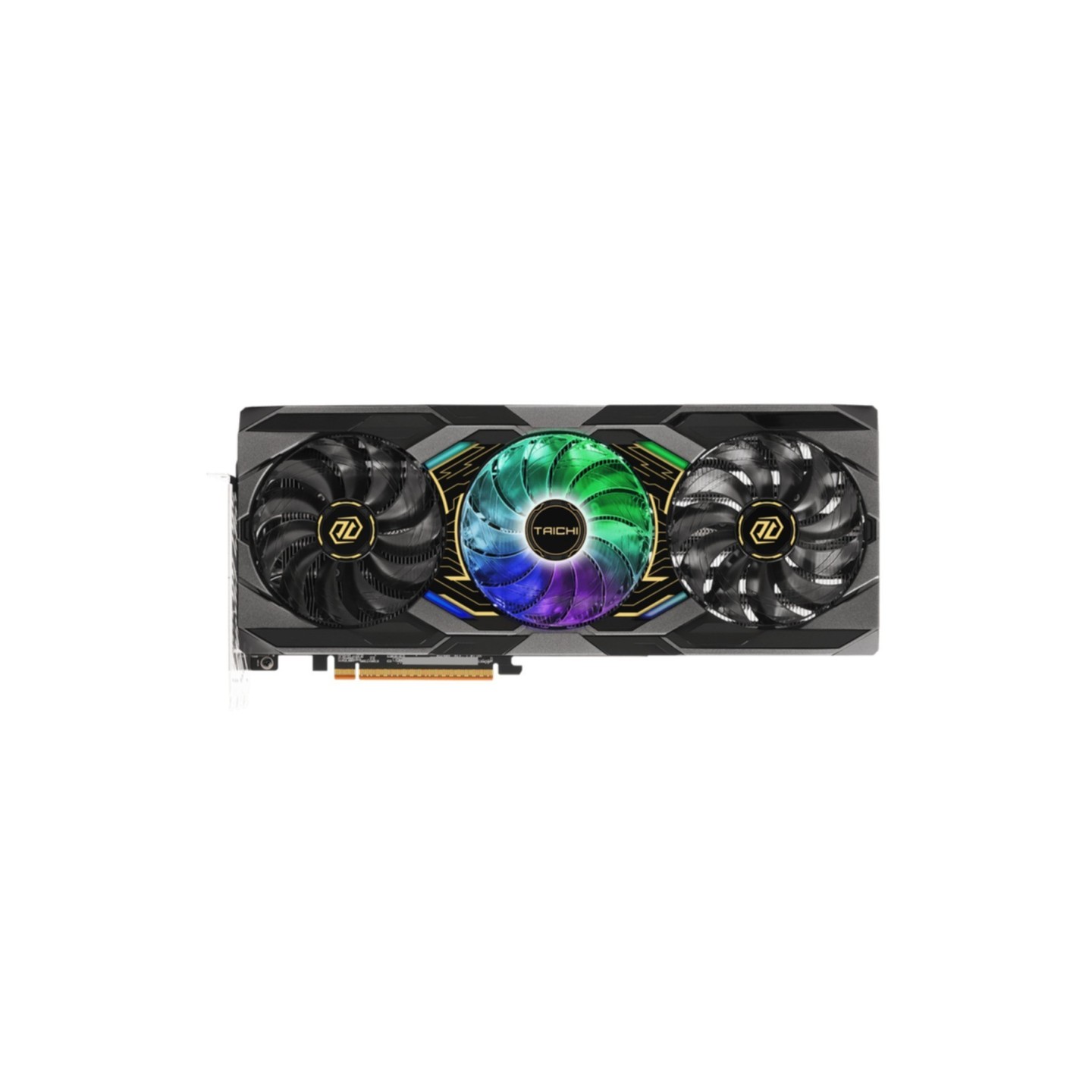

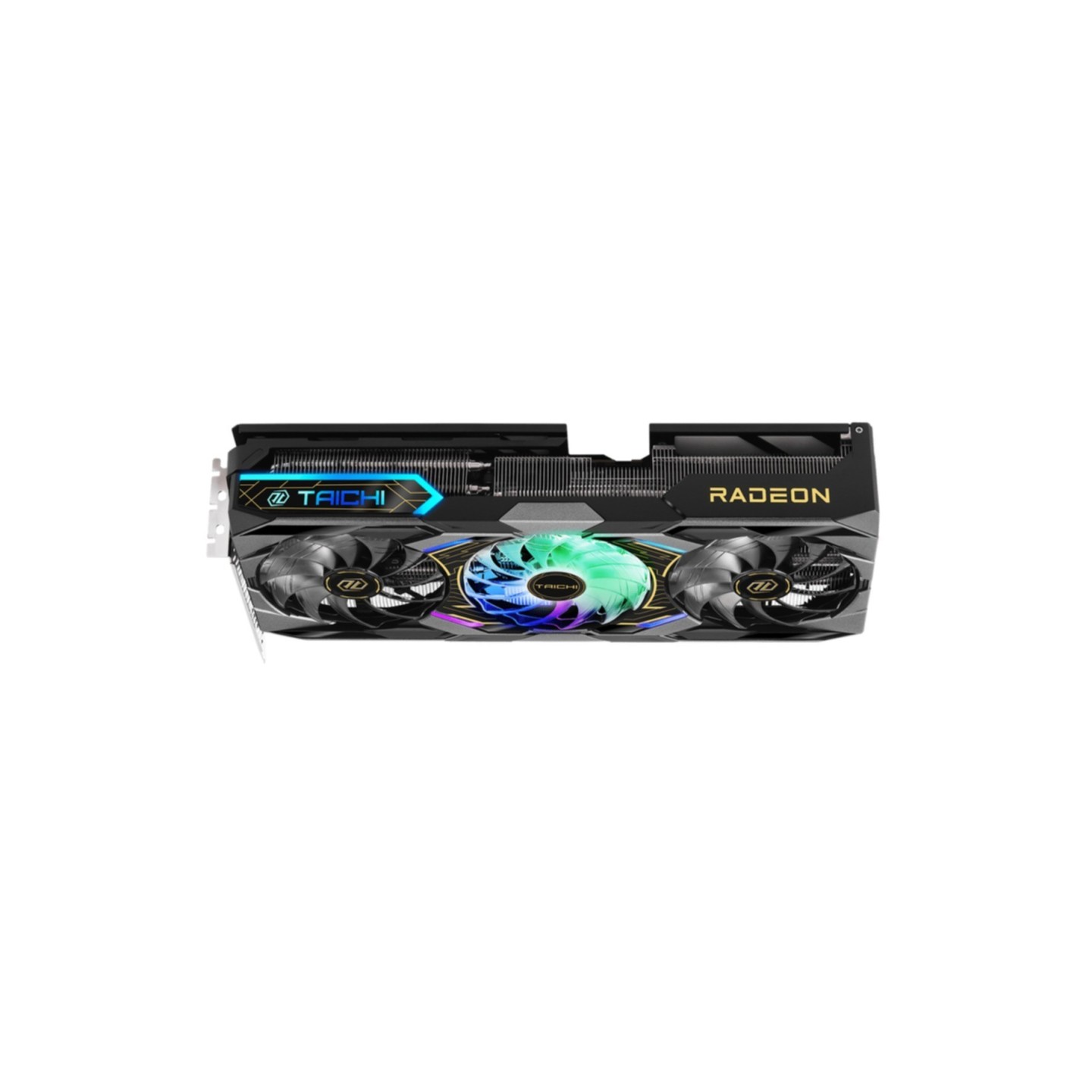

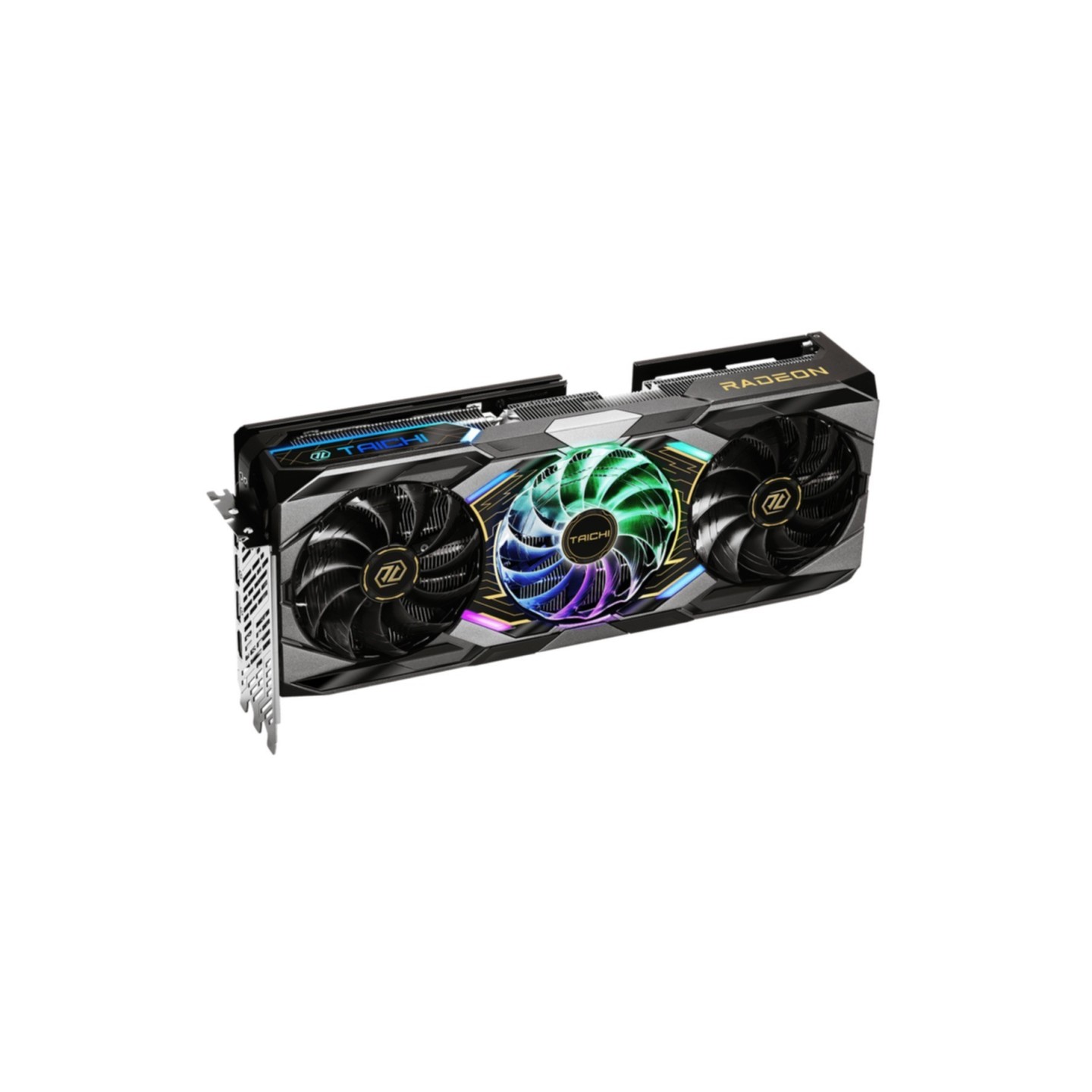

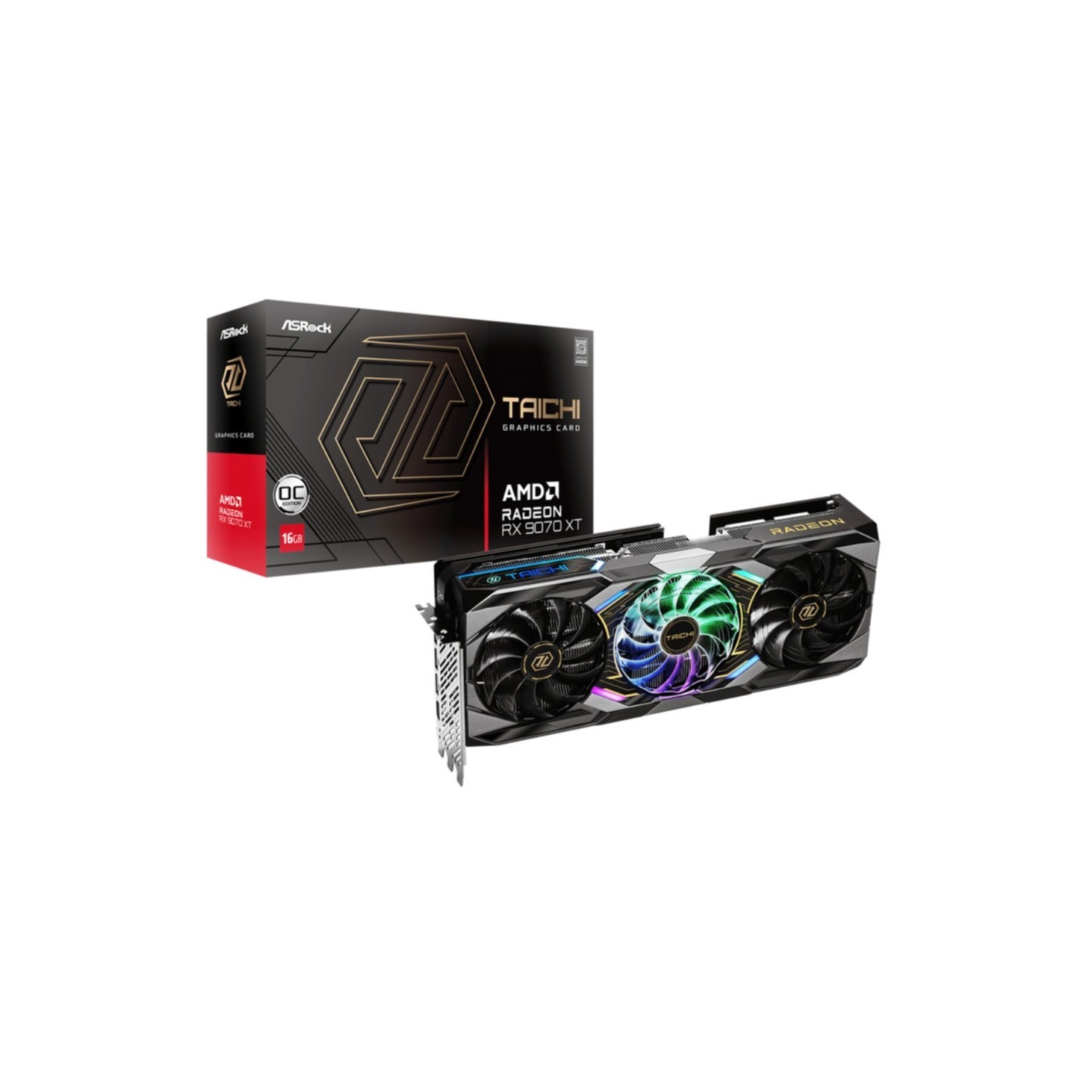

ASRock Radeon RX 9070 XT Taichi OC 16GB - Boost 3100 MHz Triple-Fan (Black) (Boxed)
ASRock Radeon RX 9070 XT Taichi OC: 16GB GDDR6, boost up to 3100 MHz/20 Gbps. Taichi 3X reverse-spin triple-fan cooling, PCIe 5.0, 12V-2x6 power. Supports 7680x4320, 3xDP 2.1a + HDMI 2.1b.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | AMD Radeon RX |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 5.0 x16 |
| GPU (Graphics Cards) - Cooler Type | Triple Fan |
| GPU (Graphics Cards) - Color | Black |
| GPU (Graphics Cards) - Backplate | Yes |
| GPU (Graphics Cards) - VRAM Capacity | 16 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR6 |
| GPU (Graphics Cards) - Outputs | DisplayPort 2.1 HDMI 2.1 |
| GPU (Graphics Cards) - Power Connector | 12VHPWR 16-pin |
| GPU (Graphics Cards) - Card Length | Extended (301-320 mm) |
The ASRock Radeon RX 9070 XT Taichi OC 16GB is a high-performance graphics card featuring the AMD Radeon RX 9070 XT GPU with 64 RDNA Compute Units including RT and AI accelerators. It delivers exceptional gaming and compute performance with a boost clock up to 3100 MHz and game clock of 2570 MHz, paired with 16GB GDDR6 memory at 20 Gbps on a 256-bit bus.
Advanced Taichi 3X Cooling with 100mm striped ring fans in reverse spin configuration ensures optimal temperatures even under heavy loads, up to 340W power limit. The stylish metal backplate adds rigidity and aesthetics, while Dual BIOS and 16-phase power design with SPS provide reliability. Supports PCIe 5.0 x16 and max resolution of 7680x4320 @60Hz via 3x DisplayPort 2.1a and 1x HDMI 2.1b.
- AMD Radeon RX 9070 XT GPU with 4096 stream processors
- 16GB GDDR6 256-bit, 20 Gbps effective
- Boost Clock: 3100 MHz | Game Clock: 2570 MHz
- Power: 1x 12V-2x6 (16-pin), recommended 850W PSU
- Cooling: Triple reverse-spin fans, metal backplate
- Dimensions: 330 x 140 x 61 mm (3-slot)
- Outputs: 3x DP 2.1a, 1x HDMI 2.1b
| GPU | AMD Radeon RX 9070 XT |
| Stream Processors | 4096 |
| Boost Clock | Up to 3100 MHz |
| Game Clock | 2570 MHz |
| VRAM | 16GB GDDR6 |
| Memory Bus | 256-bit |
| Memory Clock | 20 Gbps |
| PCIe Interface | PCIe 5.0 x16 |
| Outputs | 3x DisplayPort 2.1a, 1x HDMI 2.1b |
| Power Connector | 1x 12V-2x6 (16-pin) |
| Recommended PSU | 850W |
| TDP | 304W (OC up to 340W) |
| Cooler | Taichi 3X Triple Fan (Reverse Spin) |
| Backplate | Yes (Metal) |
| Dimensions (Card) | 330 x 140 x 61 mm |
| Slot Width | 3-slot |
| Max Resolution | 7680 x 4320 @ 60Hz |
| Architecture | RDNA 4 |
| Compute Units | 64 (with RT+AI) |
| Dual BIOS | Yes |
| Power Design | 16 Power Phase with SPS |
