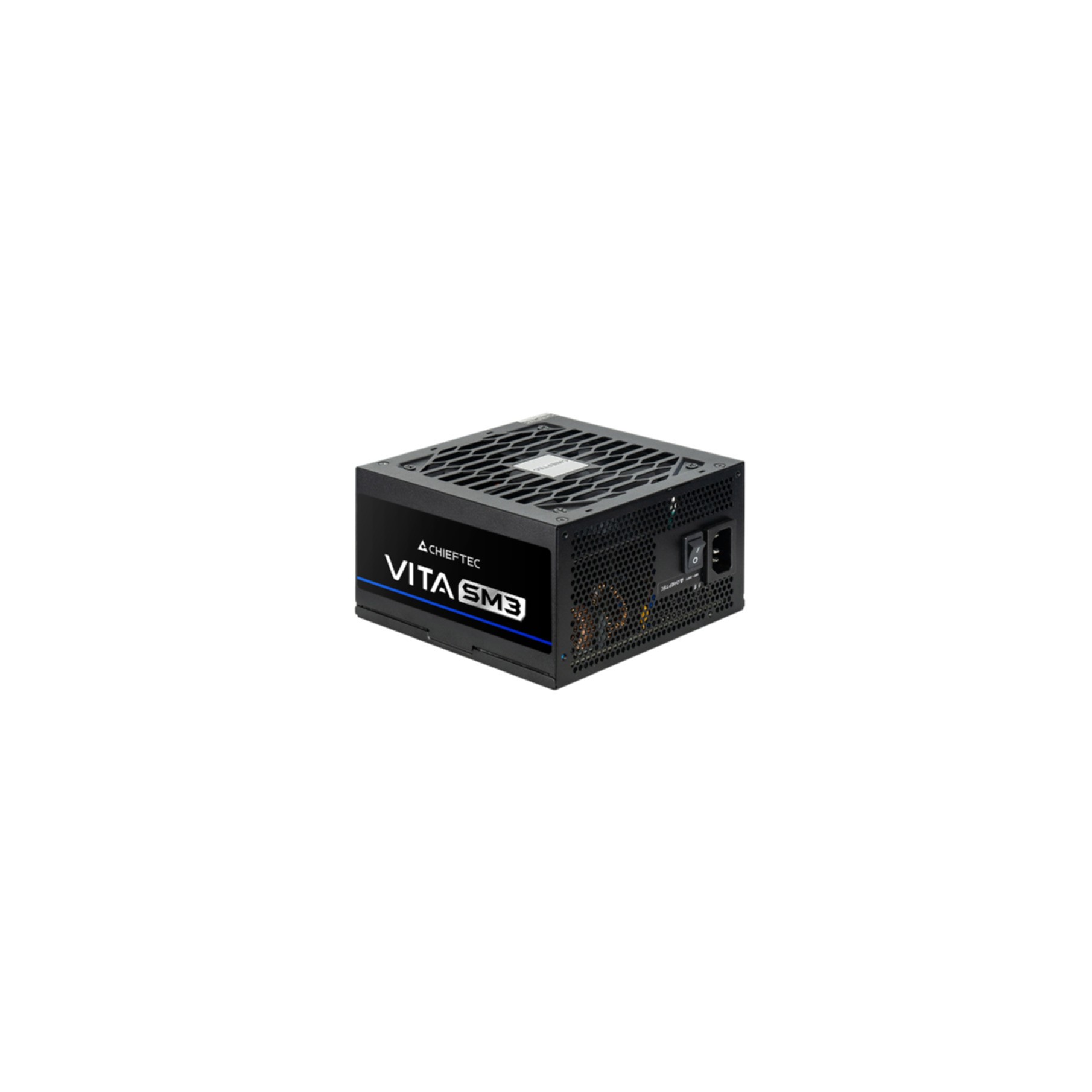

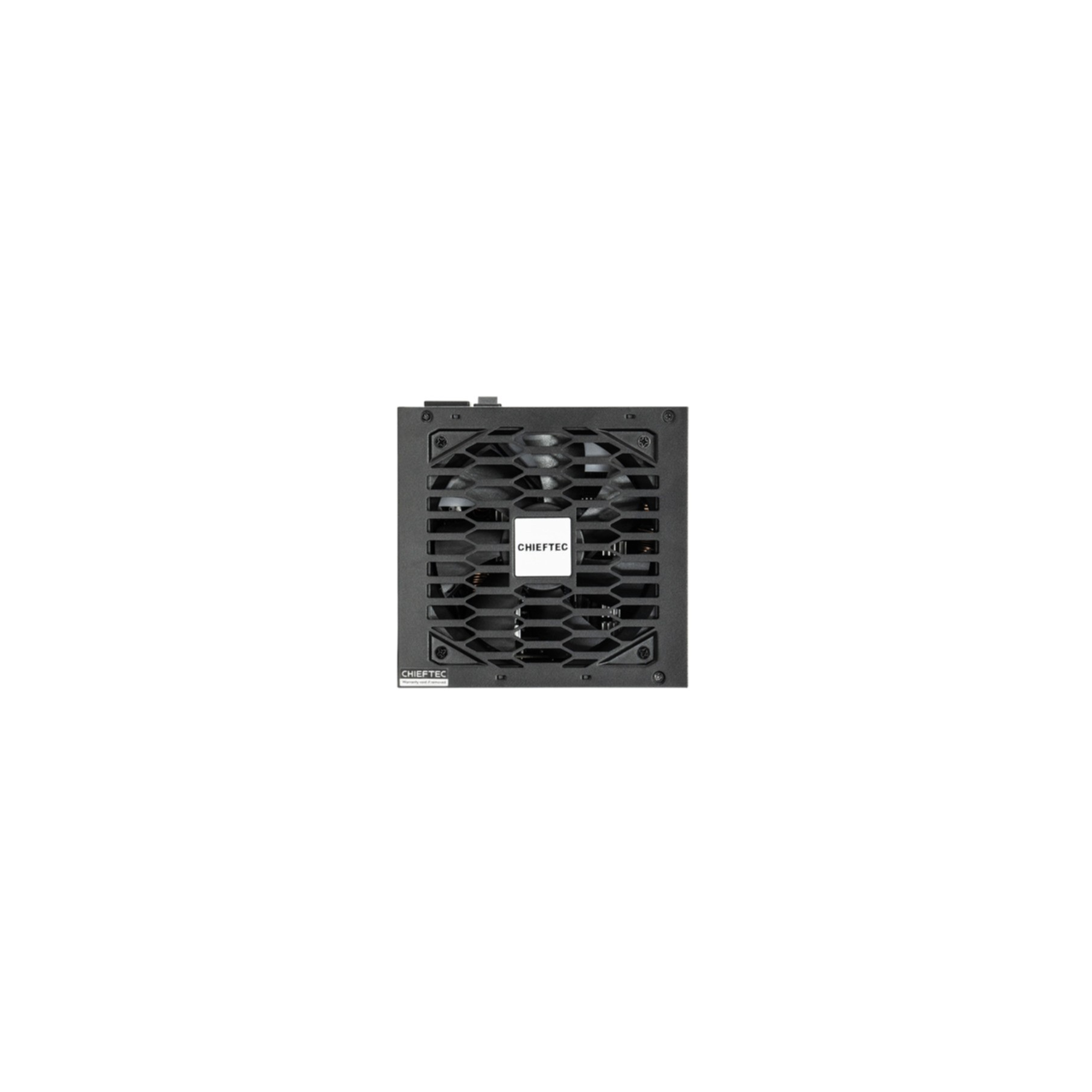

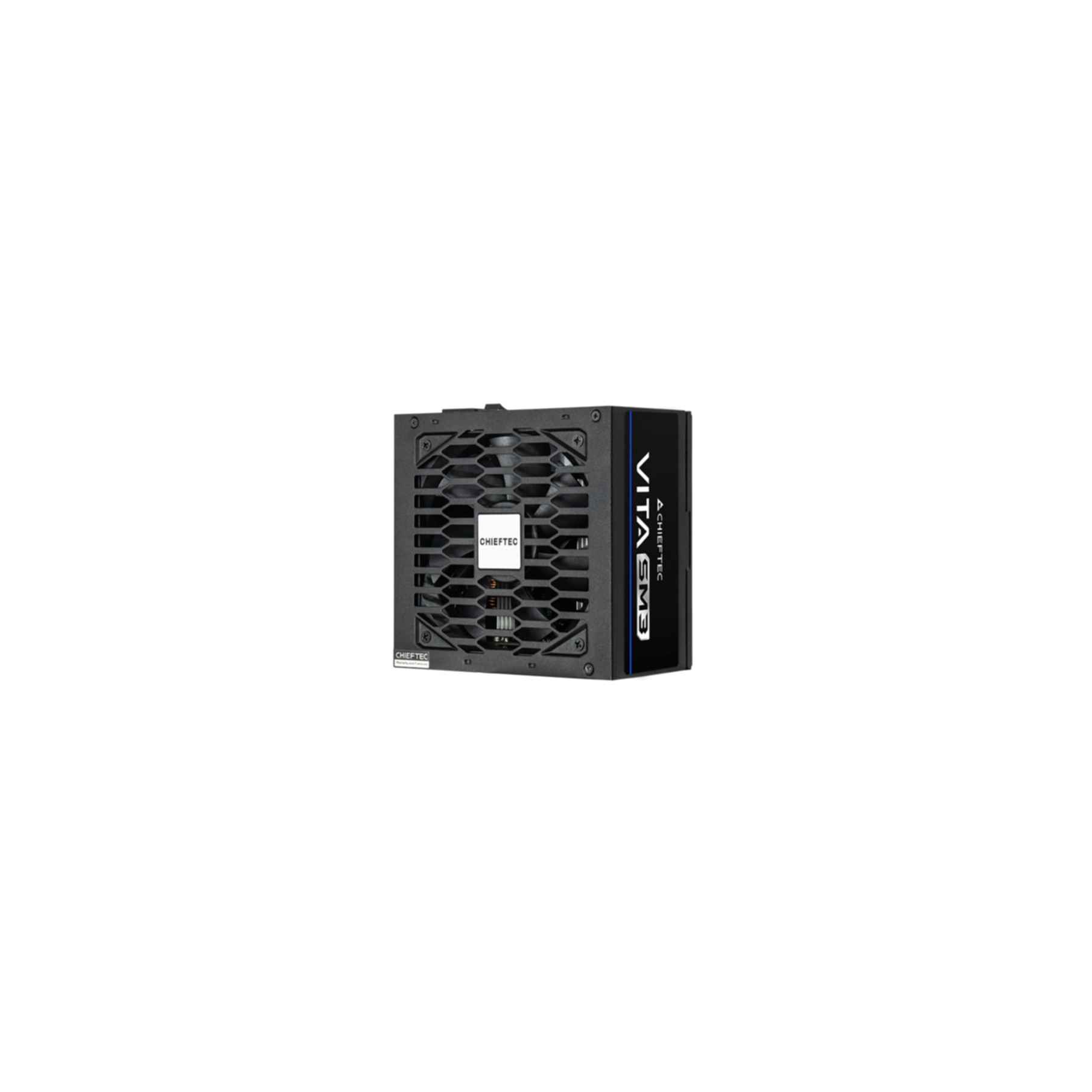

Chieftec Vita SM3 BPX-750-C - 750W Semi-Modular ATX 3.1 PSU, 80 PLUS Bronze, Black
750W semi-modular ATX 3.1 power supply, 80 PLUS Bronze, 4x PCIe 6+2, EPS 4+4, 6x SATA, 20+4 ATX; compact 150mm depth, black chassis.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| PSU (Power Supplies) - Wattage | 750 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80+ Bronze |
| PSU (Power Supplies) - ATX Standard | ATX 3.1 |
| PSU (Power Supplies) - Modularity | Semi-modular |
| PSU (Power Supplies) - EPS CPU Connectors | 1x8-pin |
| PSU (Power Supplies) - Length | 141-160 mm |
| Total power | 750 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+12V1) | 62.5 A |
| Max output current (-12V) | 0.3 A |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 65 cm |
| Number of SATA power connectors | 6 |
| SATA power cable length | 120, 450 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Peripheral (Molex) power cable length | 120, 450 mm |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power cable length | 60 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 70 cm |
| Cabling type | Semi-Modular |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose | PC/Server |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| Product colour | Black |
| Cooling type | Active |
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1.9 kg |
| Package weight | 2.7 kg |
| Package type | Box |
