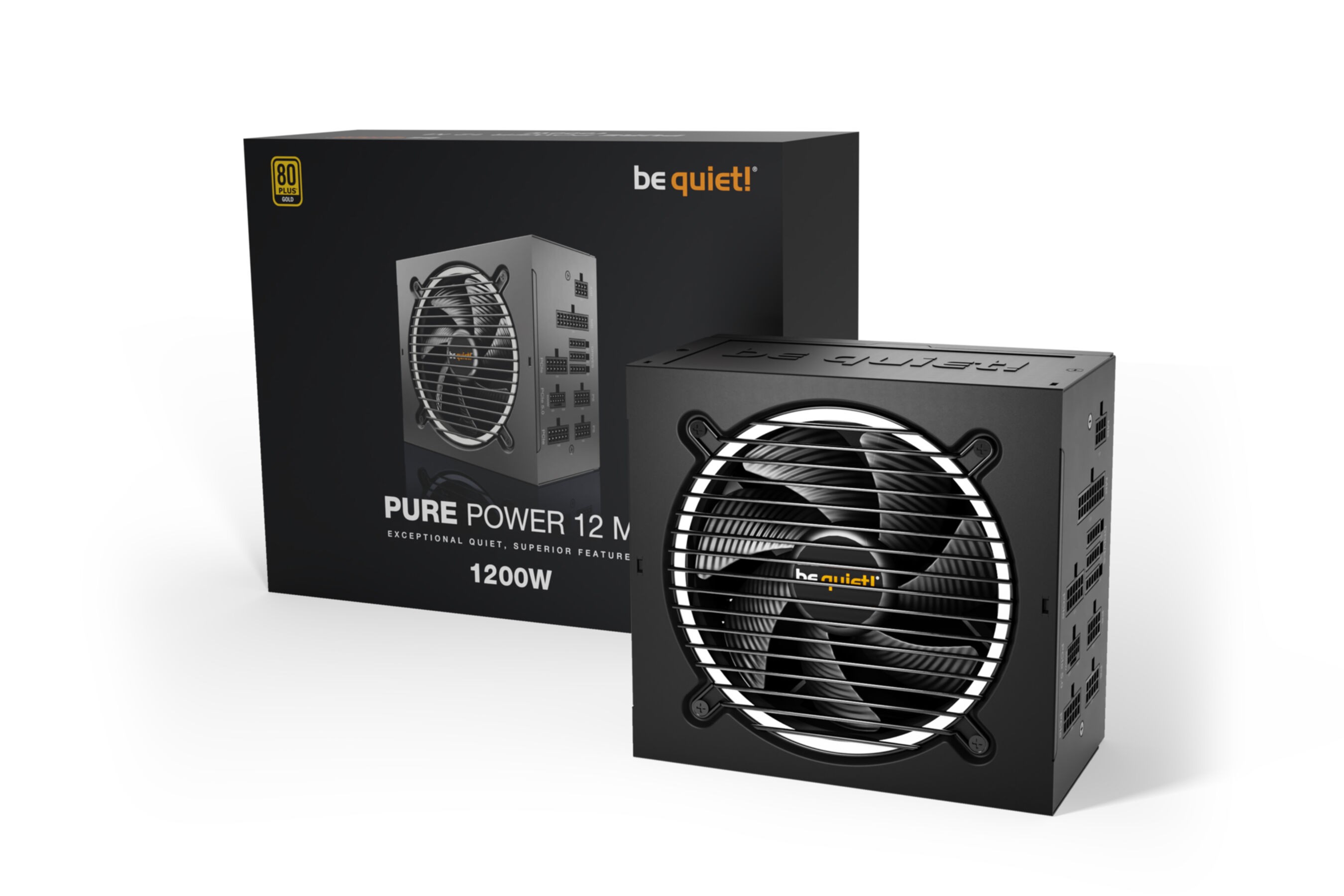

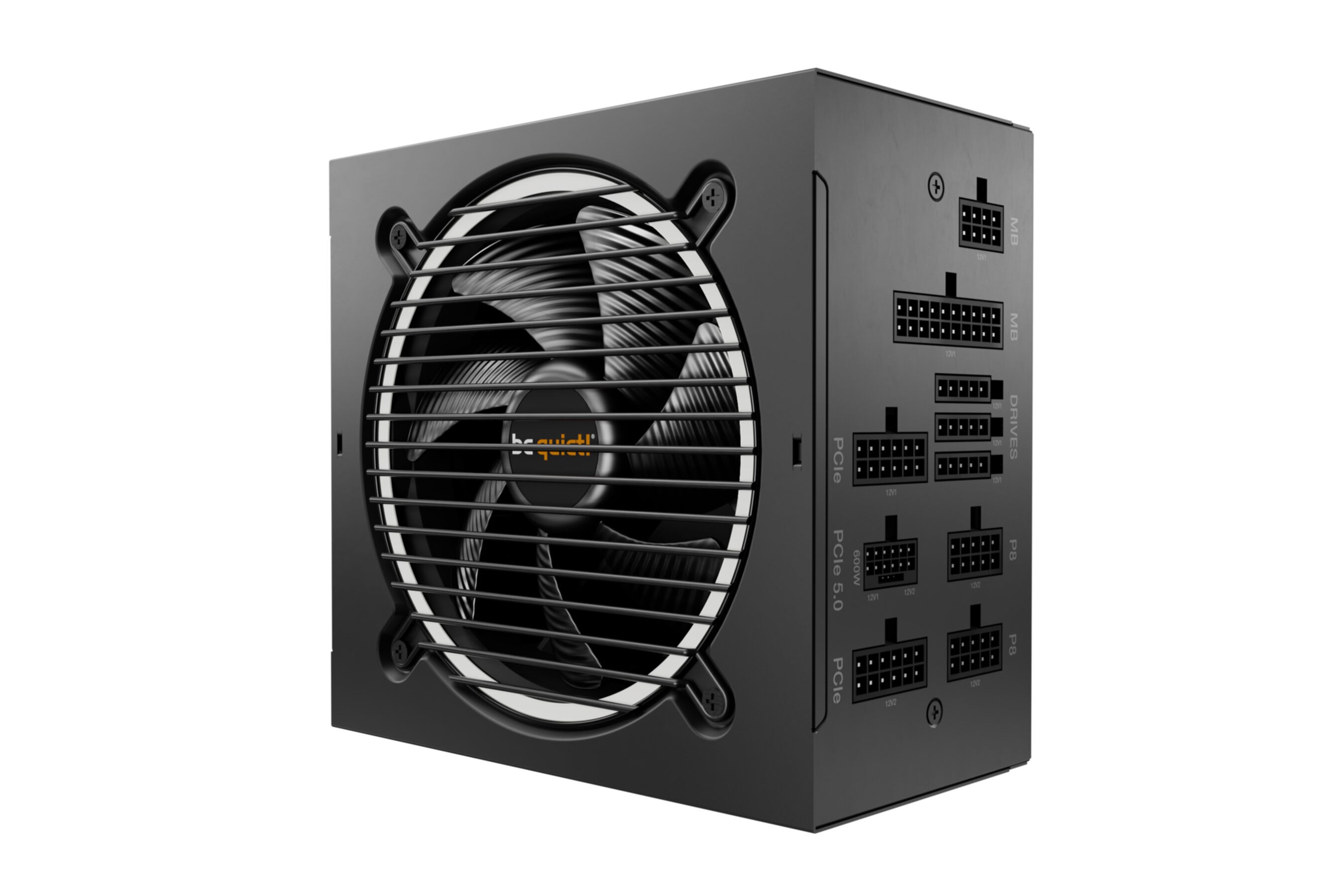

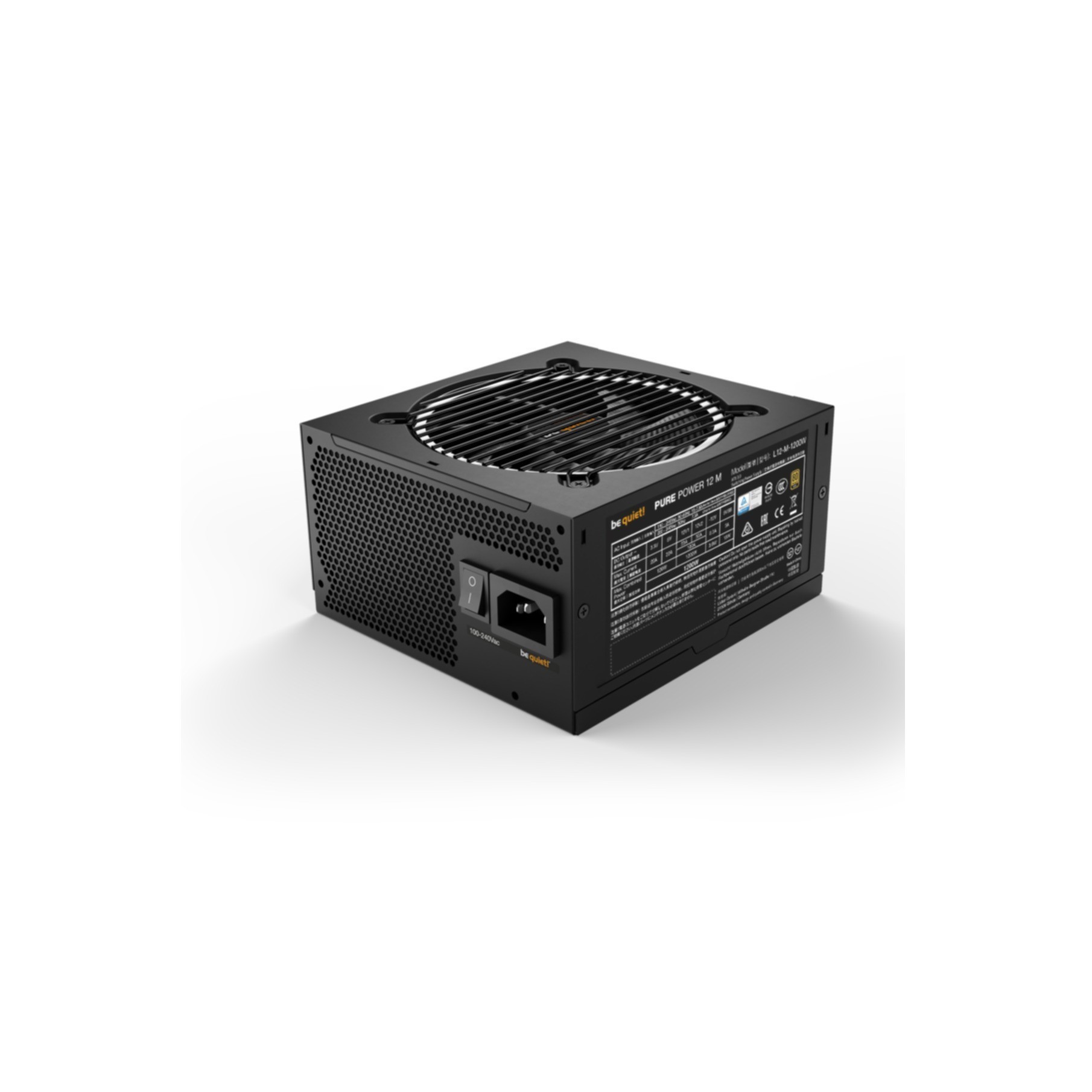

be quiet! Pure Power 12 M 1200W (BN346) - Fully-Modular ATX 3.1 PSU, 80 PLUS Gold, Black
1200W fully-modular ATX 3.1 power supply with 80 PLUS Gold efficiency, 120mm rifle-bearing fan, silent mode and comprehensive protections. Multiple PCIe (6+2) and SATA connectors.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 1200 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80+ Gold |
| PSU (Power Supplies) - ATX Standard | ATX 3.1 |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - EPS CPU Connectors | 1x8-pin |
| PSU (Power Supplies) - Fan Size | 120 mm |
| PSU (Power Supplies) - Length | 141-160 mm |
be quiet! PURE POWER 12 M | 1200W. Total power: 1200 W. AC input voltage: 100 - 240 V. Peak power: 1250 W. Motherboard power connector: 20+4 pin ATX. Motherboard power cable length: 55 cm. SATA power cable length: 500.650.800.950 mm. Purpose: PC. Power supply unit (PSU) form factor: ATX. 80 PLUS certification: 80 PLUS Gold. Product colour: Black. Cooling type: Active. Fan diameter: 12 cm. Cables included: AC. CPU. PATA. PCIe. SATA
| Total power | 1200 W |
| Peak power | 1250 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 15 - 7.5 A |
| Power factor | 0.98 |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 1200 W |
| Combined power (+5V) | 120 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V1) | 55 A |
| Max output current (+12V2) | 50 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Hold time | 19 ms |
| Efficiency | 91.5% |
| Power protection features | Over current. Over power. Over voltage. Overheating. Short circuit. Under power. Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 55 cm |
| Number of SATA power connectors | 6 |
| Number of PATA power connectors | 2 |
| SATA power cable length | 500.650.800.950 mm |
| Peripheral (Molex) power cable length | 800.950 mm |
| Feature | Sustainability compliance |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power cable length | 60 cm |
| CPU power cable length | 60 cm |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Supported motherboard form factors | ATX |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| EPS version | 2.92 |
| Noise level | 34.3 dB |
| Bearing technology | Rifle |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan speed | 0 - 2700 RPM |
| Operating temperature (T-T) | 0 - 40 °C |
| Cables included | AC. CPU. PATA. PCIe. SATA |
| Compliance certificates | BSMI. CB. CCC. CE. Federal Communications Commission (FCC). RoHS. cTUVus. UKCA. WEEE |
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
| Weight | 1.92 kg |
| Package width | 220 mm |
| Package depth | 284 mm |
| Package height | 100 mm |
| Package weight | 3.19 kg |
| Package type | Box |
| Sustainability certificates | ENERGY STAR. ErP. Triman |
| Shipping (inner) case length | 29.8 cm |
| Shipping (inner) case width | 42.6 cm |
| Shipping (inner) case height | 24.3 cm |
| Shipping (inner) case net weight | 12.7 kg |
| Products per shipping (inner) case | 4 pc(s) |
