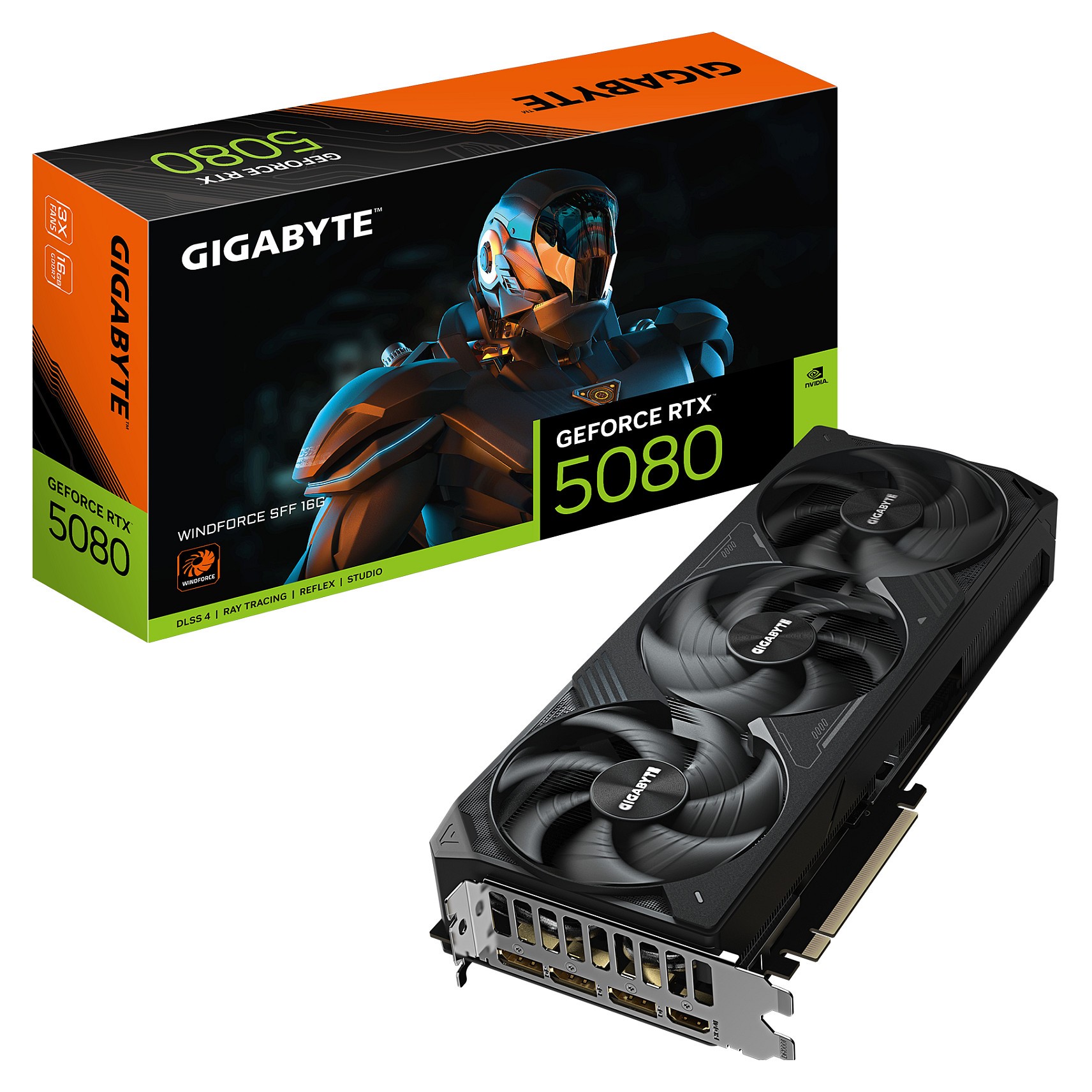

RTX 5080 16GB Gigabyte Windforce SFF OC GDDR7 3Fan (Boxed)
Gigabyte GeForce RTX 5080 WINDFORCE SFF OC 16G: 16GB GDDR7, 256-bit, PCIe 5.0, 2670 MHz boost (ref 2617), 10752 CUDA cores. 3x DP 2.1b, 1x HDMI 2.1b. SFF-ready, DLSS 4, Blackwell arch.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | NVIDIA GeForce RTX |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 5.0 x16 |
| GPU (Graphics Cards) - Cooler Type | Triple Fan |
| GPU (Graphics Cards) - Color | Black |
| GPU (Graphics Cards) - VRAM Capacity | 16 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR7 |
| GPU (Graphics Cards) - Outputs | DisplayPort 2.1 HDMI 2.1 |
| GPU (Graphics Cards) - Power Connector | 12VHPWR 16-pin |
| GPU (Graphics Cards) - Card Length | Extended (301-320 mm) |
The Gigabyte GeForce RTX 5080 WINDFORCE SFF 16G is a high-performance graphics card powered by NVIDIA's Blackwell architecture and equipped with DLSS 4 for AI-enhanced gaming. Featuring 16GB of GDDR7 memory on a 256-bit interface, it delivers exceptional speed with a reference core clock of 2617 MHz and OC boost up to 2670 MHz, supported by 10,752 CUDA cores.
Designed for small form factor builds, this SFF-ready card measures 304 x 126 x 50 mm and uses the advanced WINDFORCE 3X cooling system with Hawk fans, vapor chamber, and server-grade thermal gel for optimal thermal performance. It supports up to 4 displays at 7680x4320 resolution via 3x DisplayPort 2.1b and 1x HDMI 2.1b, with PCI Express 5.0 interface and a single 16-pin power connector (850W PSU recommended).
- Key Features: NVIDIA Reflex 2, full ray tracing, Dual BIOS (Performance/Silent)
- Cooling: Triple fans, composite copper heat pipes
- Build: Reinforced structure, ATX PCB form factor, 2.5 slots
- Warranty: 3 years
| GPU | GeForce RTX 5080 |
| Core Clock | 2670 MHz (Reference: 2617 MHz) |
| CUDA Cores | 10752 |
| Memory Size | 16 GB |
| Memory Type | GDDR7 |
| Memory Bus | 256 bit |
| Memory Clock | 30 Gbps |
| Interface | PCI Express 5.0 |
| Max Resolution | 7680 x 4320 Pixel |
| Max Displays | 4 |

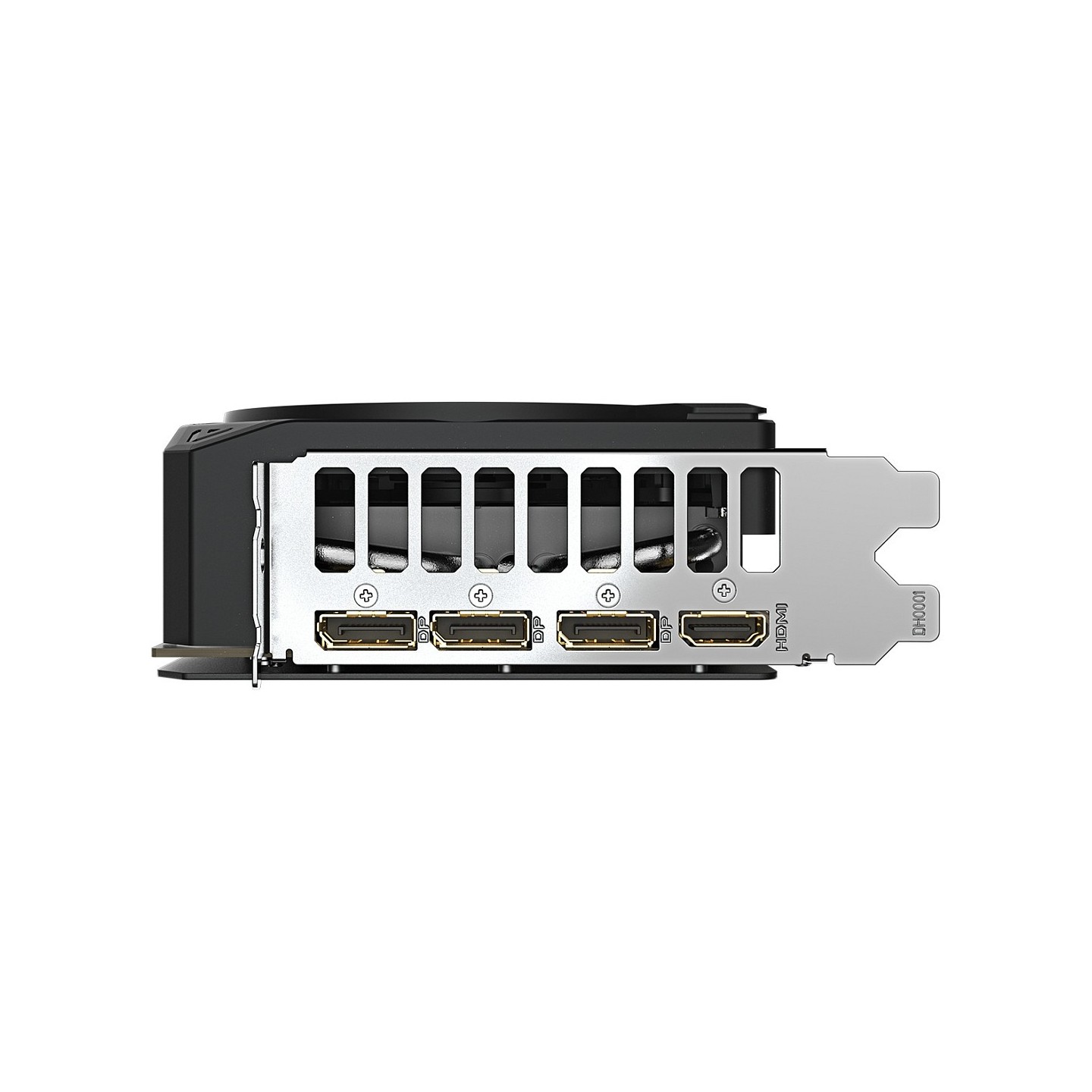

| Outputs | 3x DisplayPort 2.1b, 1x HDMI 2.1b |
| Cooling | WINDFORCE 3X Active |
| Fan Count | 3 |
| Power Connector | 1x 16-pin |
| Recommended PSU | 850 W |
| Card Length | 304 mm |
| Card Width | 126 mm |
| Card Height | 50 mm |
| Slots | 2.5 |
| DirectX | 12 |
| OpenGL | 4.6 |
| Form Factor | ATX SFF-Ready |
| Color | Black |
| Architecture | NVIDIA Blackwell |
| Warranty | 3 Years |
