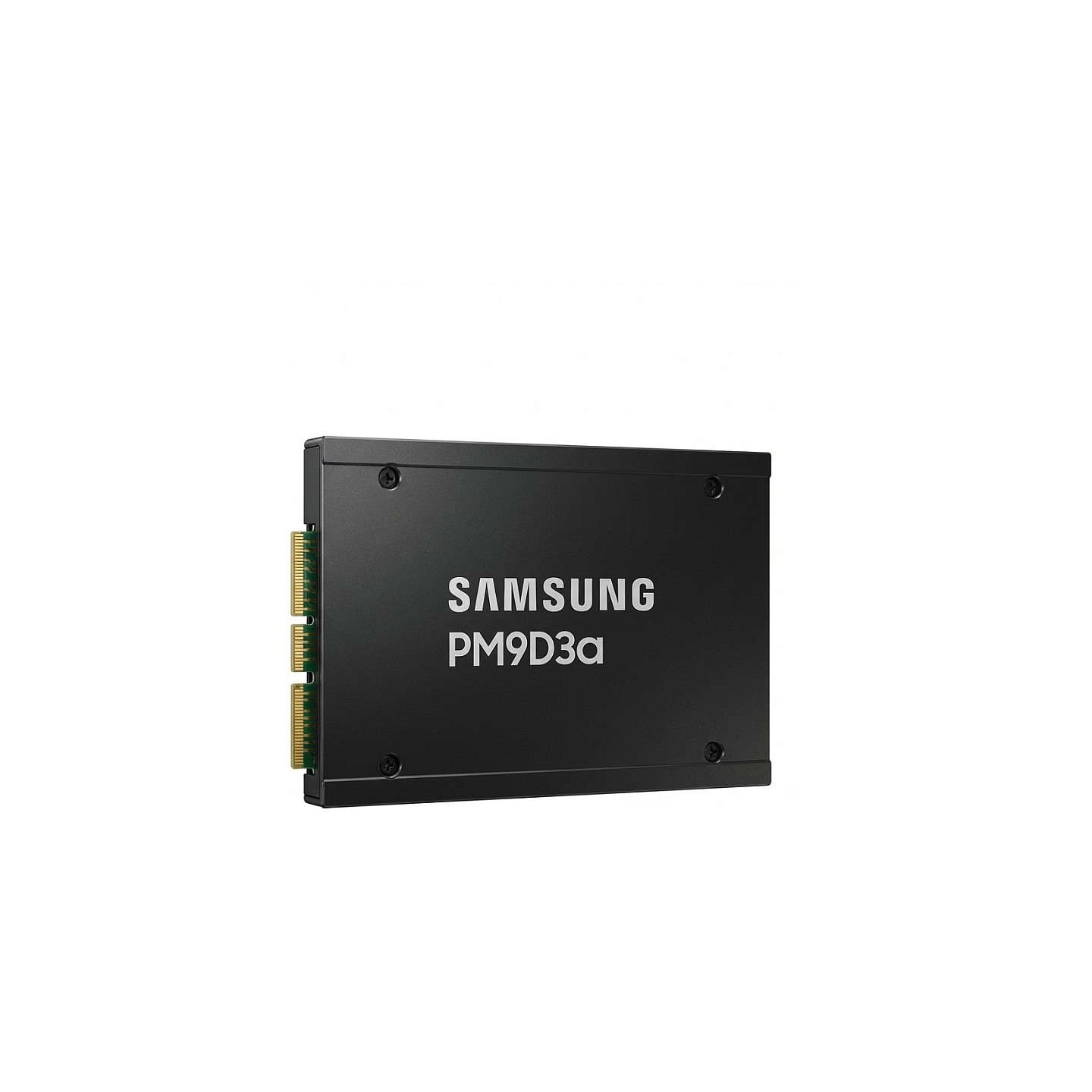

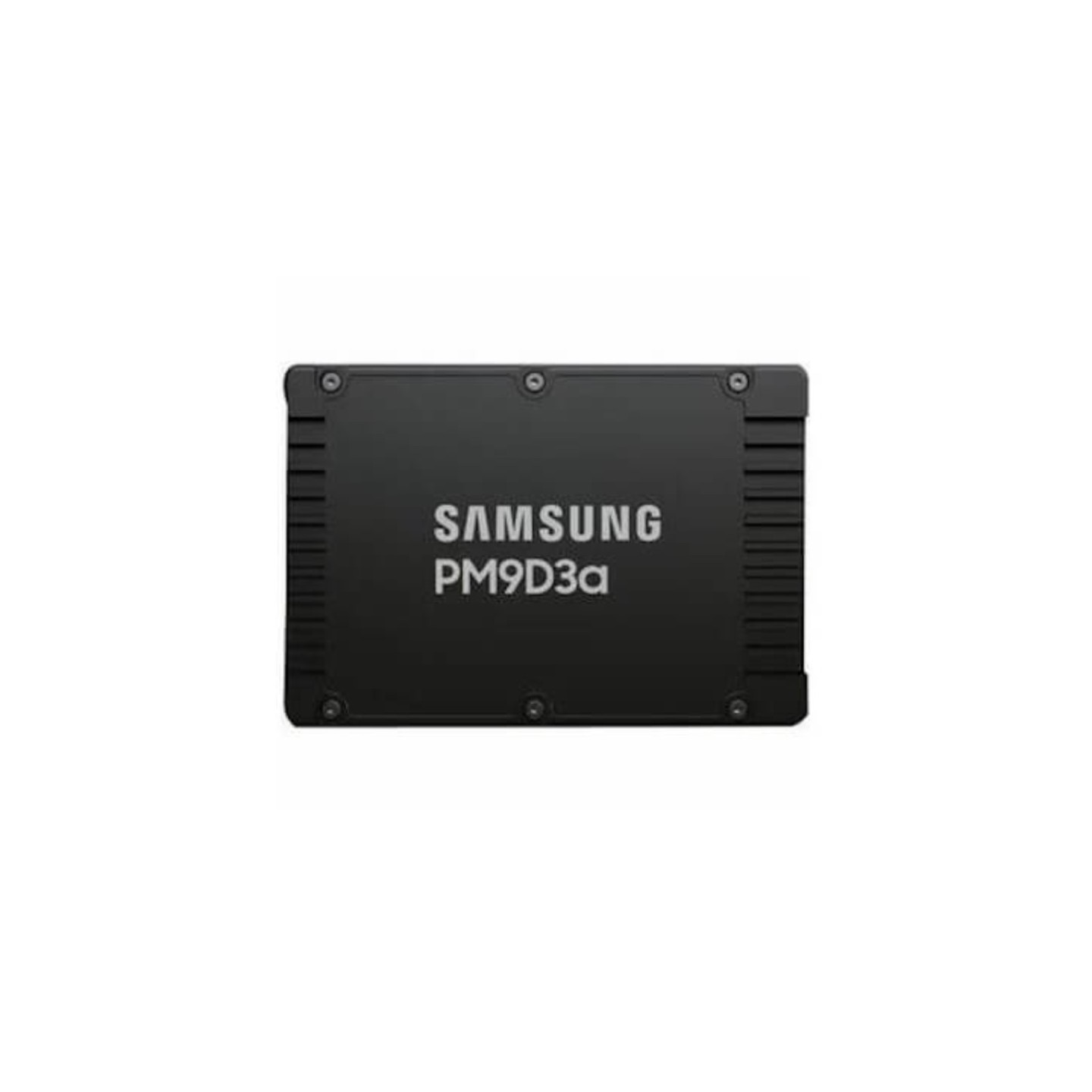

Samsung PM9D3a 7.68TB 2.5" U.2 PCIe 5.0 x4 NVMe SSD MZVL67T6HBLC (Boxed)
Samsung PM9D3a 7.68TB enterprise NVMe SSD w/ PCIe 5.0 x4: up to 12,000 MB/s read, 6,800 MB/s write, 2M/400K IOPS. U.2 form factor for data centers, 1 DWPD, MTBF 2.5M hrs.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Storage (SSD & HDD) - Device Type | Internal SSD |
|---|---|
| Storage (SSD & HDD) - Capacity | 24TB+ 8TB |
| Storage (SSD & HDD) - Sequential Read Speed (SSD) | Above 10000 MB s |
| Storage (SSD & HDD) - Interface | PCIe 5.0 (Gen5) |
| Storage (SSD & HDD) - DRAM Cache (SSD) | Yes |
| Storage (SSD & HDD) - Heatsink (SSD) | Not Included |
| Storage (SSD & HDD) - Form Factor | 2.5 inch U.2 |
| Storage (SSD & HDD) - PCIe Lanes (SSD) | x4 |
The Samsung PM9D3a 7.68TB is a high-performance enterprise NVMe SSD designed for data center, cloud infrastructure, and AI-driven applications. Built on Samsung's eighth-generation V-NAND technology, this drive delivers exceptional performance with sequential read speeds up to 12,000 MB/s and sequential write speeds up to 6,800 MB/s[3][4].
This 2.5-inch U.2 form factor drive features PCIe 5.0 x4 interface with NVMe 2.0 specification support, providing maximum bandwidth for demanding workloads. The PM9D3a includes advanced data protection features such as enhanced power-loss protection (PLP), end-to-end data path protection, and hardware-based AES-XTS 256-bit encryption. With an MTBF of 2,500,000 hours, 1 DWPD endurance, and 14,016 TBW, it ensures reliability in hyperscale environments[2][7].
- Interface: PCIe 5.0 x4 NVMe 2.0
- Sequential Performance: 12,000 MB/s read / 6,800 MB/s write[3]
- Random Performance: 2,000K IOPS read / 400K IOPS write[3][4]
- Form Factor: 2.5-inch U.2
- Security: AES-XTS 256-bit encryption, TCG Opal 2.02 compliant
- Reliability: 2,500,000 hours MTBF, enhanced PLP[2]
- Endurance: 1 DWPD, 14,016 TBW[2]
| Capacity | 7.68TB |
| Form Factor | 2.5-inch U.2 |
| Interface | PCIe 5.0 x4 |
| NVMe Version | NVMe 2.0 |
| Sequential Read Speed | 12,000 MB/s |
| Sequential Write Speed | 6,800 MB/s |
| Random Read (4KB) | 2,000,000 IOPS |
| Random Write (4KB) | 400,000 IOPS |
| Power Consumption (Read) | 12.3W (typical) |
| Power Consumption (Write) | 14.8W (typical) |
| Idle Power | 4.5W (typical) |
| MTBF | 2,500,000 hours |
| Encryption | AES-XTS 256-bit |
| Security Features | TCG Opal 2.02, End-to-End Data Protection |
| Compliance | OCP 2.5, RoHS/Halogen-Free |
| Drive Dimensions (L x W x H) | 118.75 x 33.75 x 9.5 mm |
| Drive Weight | 66g |
| Bytes per Sector | 512 (default), 520, 4096, 4160 bytes |
| Data Protection | Enhanced Power-Loss Protection (PLP), Static and Dynamic Wear Leveling |
| DRAM Cache | Yes |
| Endurance (DWPD) | 1 DWPD |
| TBW (JEDEC Workload) | 14,016 TB |
