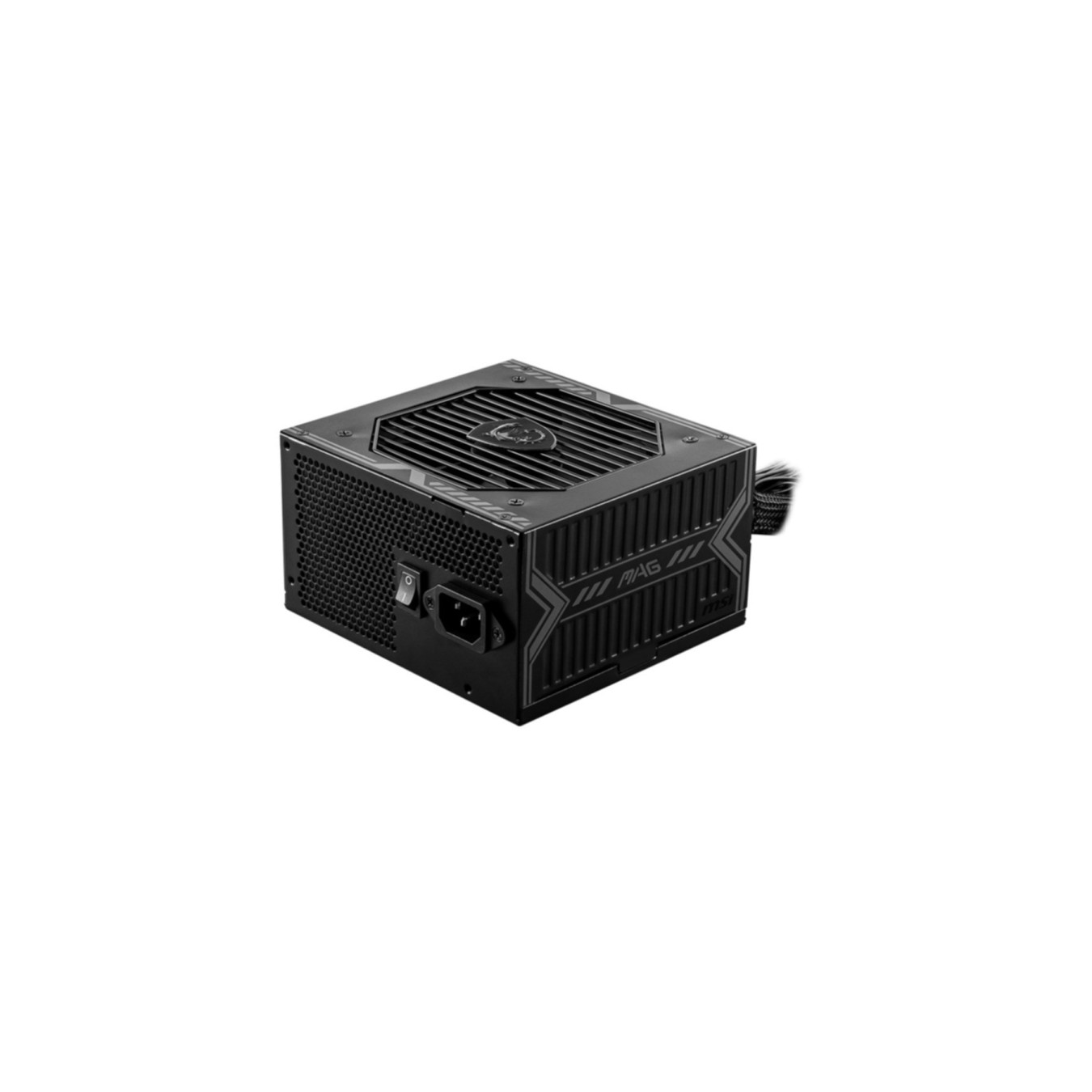

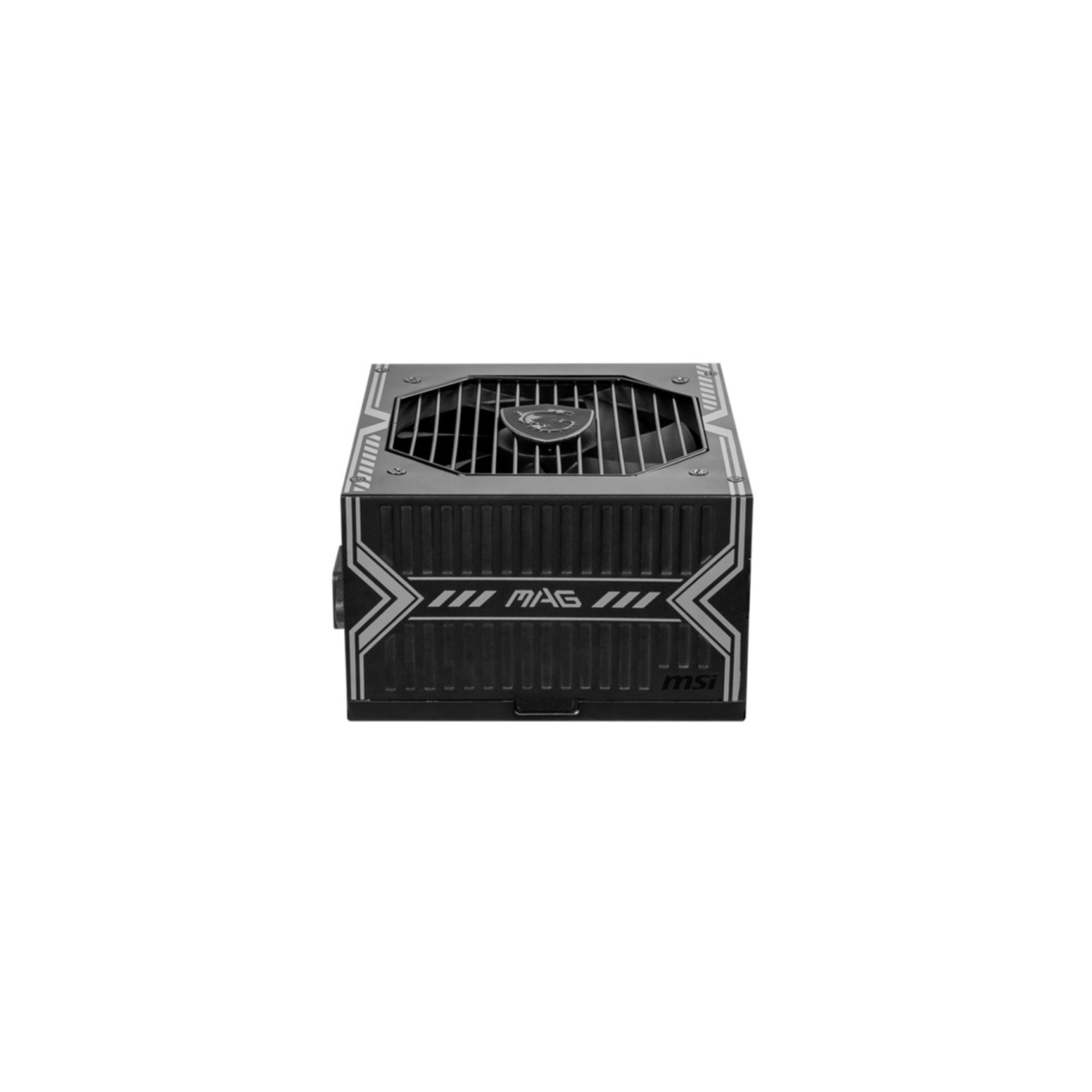

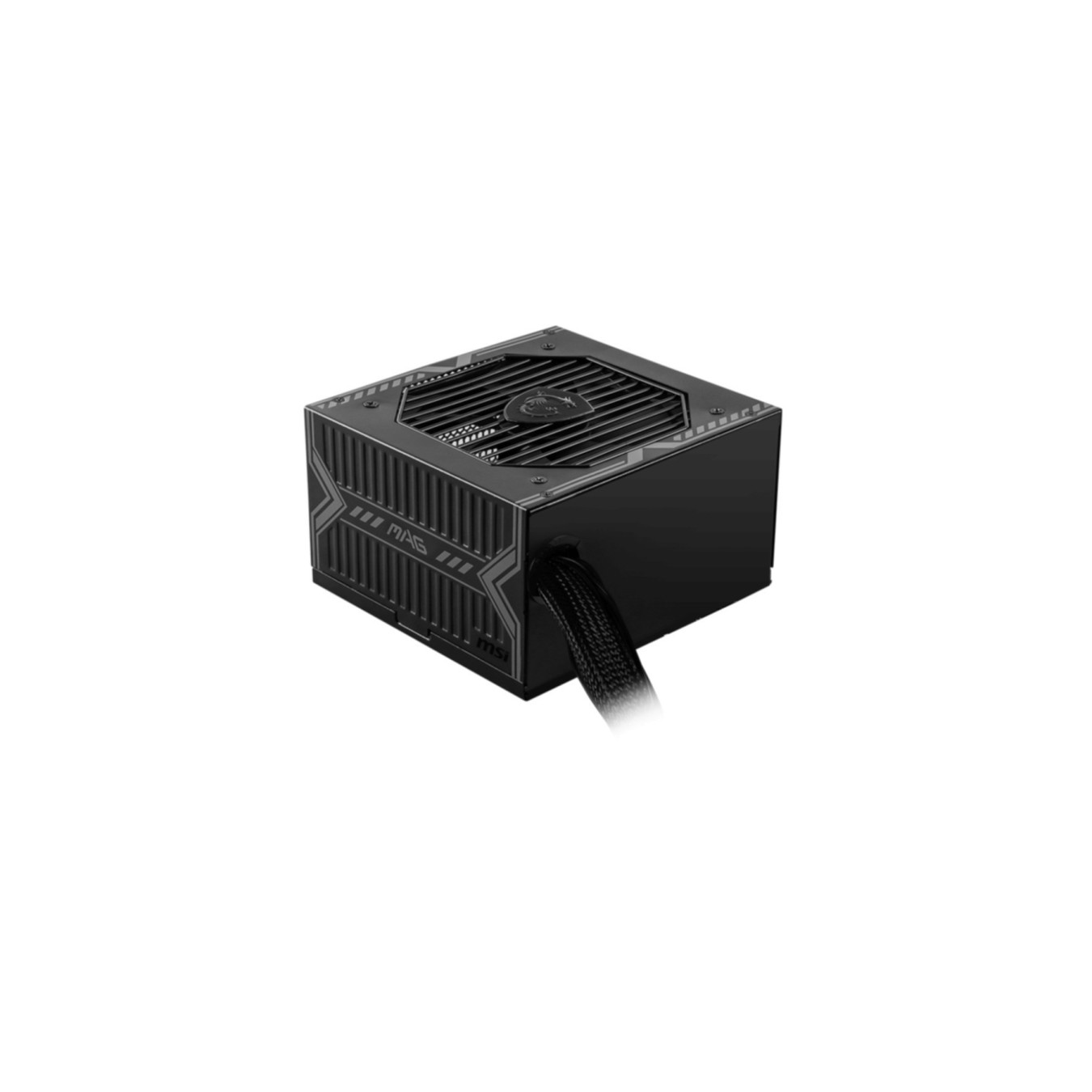

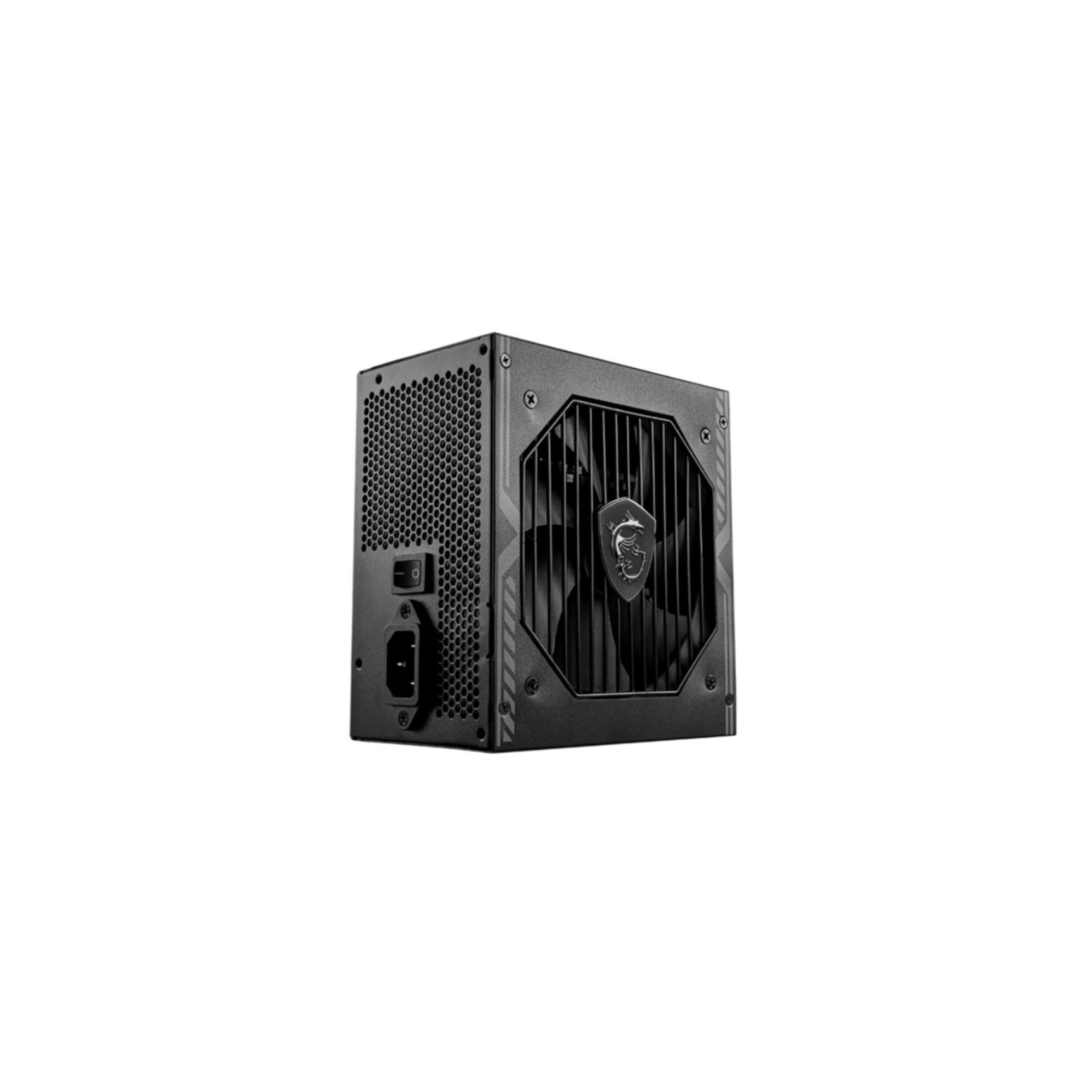

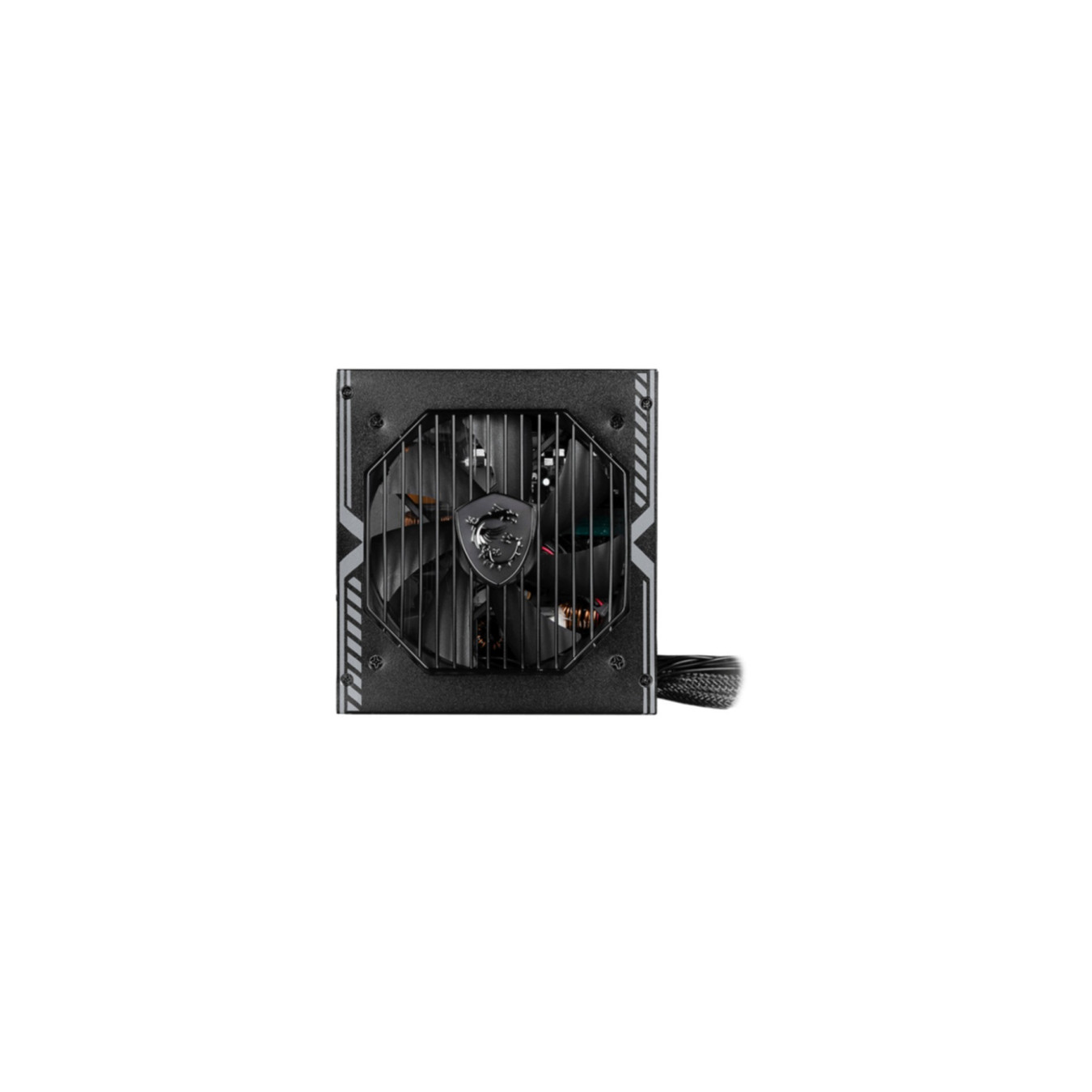

MSI MAG A750BN - 750W PSU - PCIe 5.0 Ready, 80 PLUS Bronze, Non-Modular
750W ATX power supply, 80 PLUS Bronze efficiency, PCIe 5.0-ready output for modern GPUs, non-modular cabling, built-in protection and temperature-adaptive design.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Modularity | Non-modular |
|---|
The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
The MAG A750BN PCIE5's distinctive design patterns symbolize unity and strength. It unites all the components by reliably and stably supplying power to the entire system. With the MAG A750BN PCIE5's , any system has the power it needs to survive all challenges.
PCIE5.0 READY
It has an output port that is compliant with PCIe 5.0, enabling to support the RTX 4070* series graphics cards.
80 PLUS BRONZE CERTIFICATION
The efficiency of your power supply directly influences your system’s performance and power consumption. The 80 PLUS certification promises lower energy consumption and qualified efficiency level.
PROTECTION DEISGN
Protection is designed to protect the unit mechanisms and provides comprehensive protection.
TEMPERATURE ADAPTATION
Engineered for reliability, your system operates safely at peak performance even in high-temperature conditions. This rugged power supply ensures sustained operation regardless of your environment.
120MM LOW NOISE FAN
The 120mm fan reduces the noise generated while maintaining excellent heat dissipation.
| Total power | 750 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Maximum input current (@110V) | 10 A |
| Maximum input current (@220V) | 5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 750 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 85% |
| Power protection features | Over current, Over power, Over voltage, Short circuit |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power connectors (16-pin) | 1 |
| ATX Power connector (24-pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Illumination | No |
| On/off switch | Yes |
| Package width | 150 mm |
| Package depth | 140 mm |
| Package height | 86 mm |
