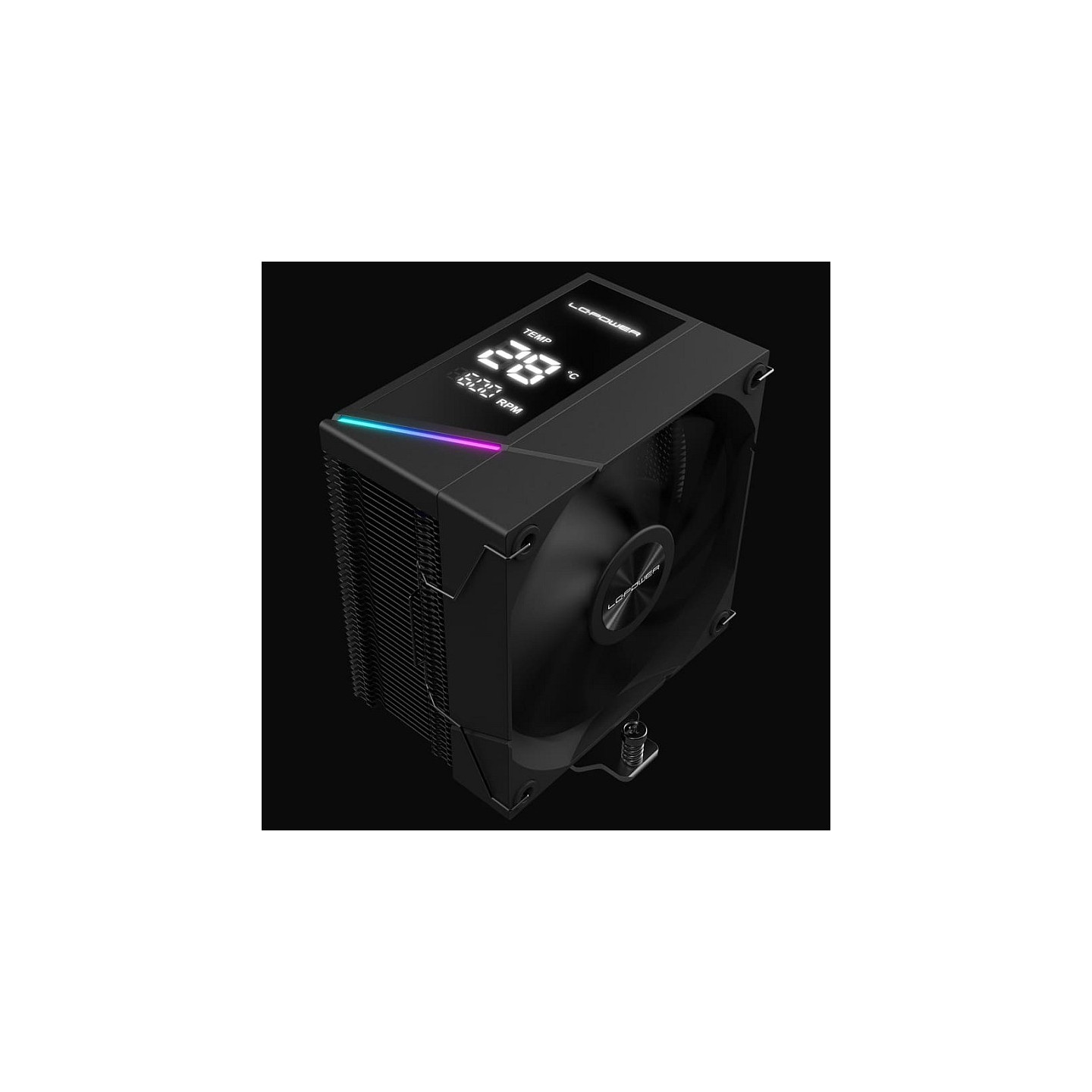

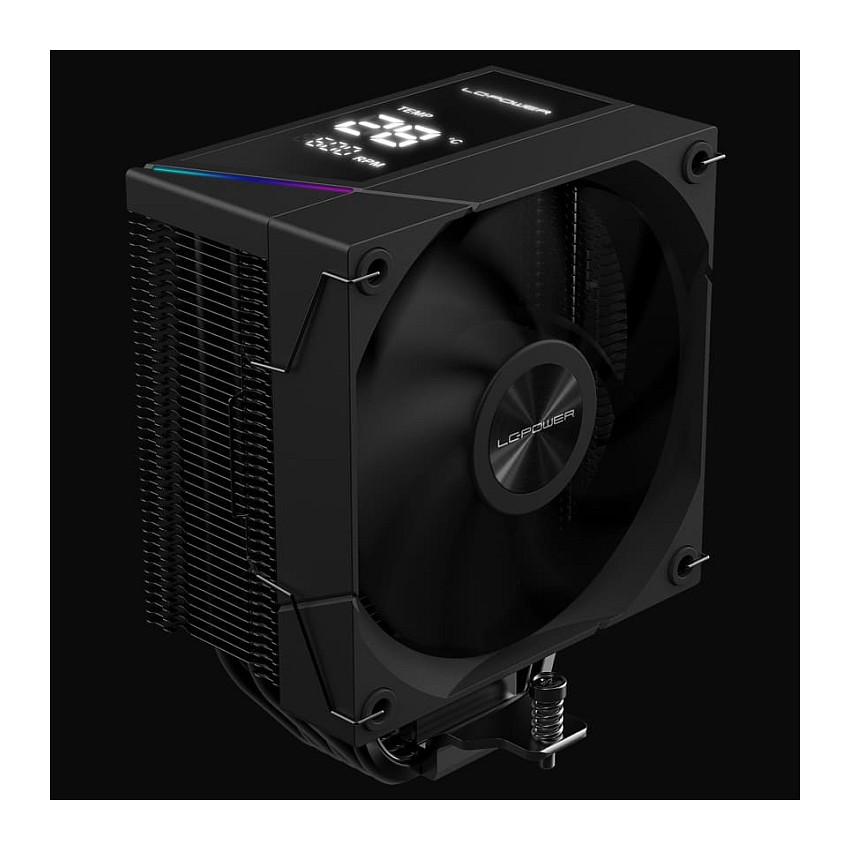

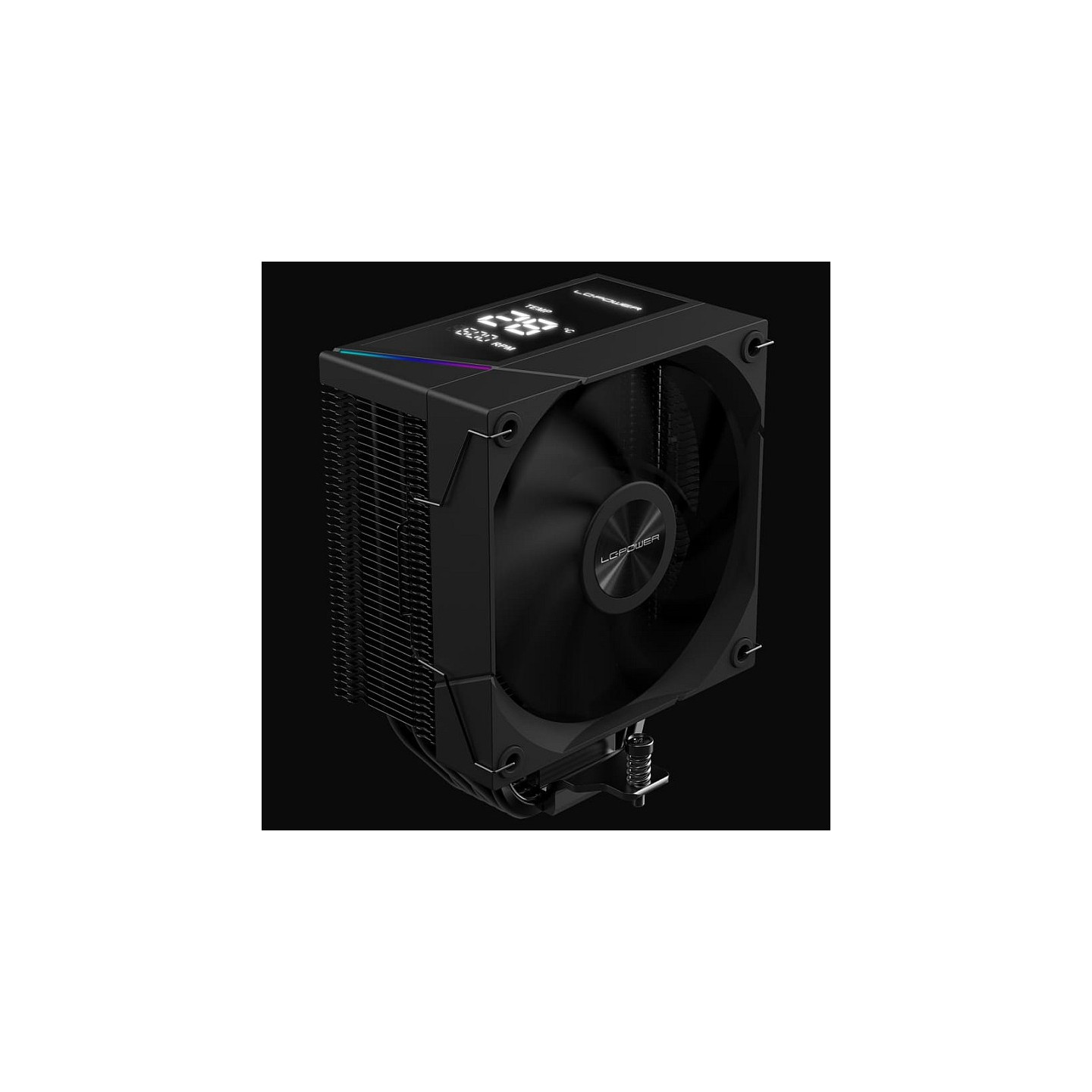

LC-Power LC-CC-120-DB6 120mm CPU Air Cooler - LGA1700/AM5 (Boxed)
LC-Power LC-CC-120-DB6 is a 120mm tower CPU air cooler with FDB bearing fan (600-2200 RPM, 89.5 CFM, 2.85 mmH2O). Supports Intel LGA1851/1700/1200 & AMD AM4/AM5 up to 230W TDP. Black, PWM, low noise at 35.3 dB.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Device Type | CPU Air Cooler |
|---|---|
| Cooling (CPU & Case) - Socket Support | AMD AM4 AMD AM5 Intel LGA1200 Intel LGA1700 Intel LGA1851 |
| Cooling (CPU & Case) - Fan Size | 120 mm |
| Cooling (CPU & Case) - Lightning | None |
| Cooling (CPU & Case) - Connector | 4-Pin PWM |
| Cooling (CPU & Case) - Color | Black |
The LC-Power LC-CC-120-DB6 is a reliable budget-friendly tower-style CPU air cooler designed for modern processors. Featuring a 120mm fan with fluid dynamic bearing (FDB) for smooth, durable operation, it delivers strong cooling performance with 89.5 CFM airflow and 2.85 mmH2O static pressure. Speed adjustable from 600 to 2200 RPM via PWM for quiet operation up to 35.3 dB.
Compatible with Intel LGA1851, LGA1700, LGA1200 and AMD AM4/AM5 sockets, it handles up to 230W TDP, ideal for mid-range gaming and productivity builds. The all-black design with plastic construction weighs 600g and measures 120x25x120mm for the fan. Voltage range 6-12V, 4-pin connector ensures easy integration.
- Key Specs: 600-2200 RPM, 89.5 CFM, 2.85 mmH2O, 35.3 dB max
- Compatibility: LGA1851/1700/1200, AM4/AM5 up to 230W
- Features: FDB bearing, PWM control, CE certified
| Recommended Placement | Processor |
| Type | Air Cooling |
| Fan Diameter | 12 cm |
| Supported Processor Sockets | LGA 1851, LGA 1200, LGA 1700, AM4, AM5 |
| Rotation Speed (min.) | 600 RPM |
| Rotation Speed (max.) | 2200 RPM |
| Noise Level (high speed) | 35.3 dB |
| Maximum Airflow | 89.5 cfm |
| Maximum Air Pressure | 2.85 mmH2O |
| Feature | PWM Support |
| Bearing Type | Fluid Dynamic Bearing (FDB) |
| Product Color | Black |
| Material | Plastic |
| Number of Fans | 1 Fan |
| Fan Connector | 4-pin |
| Certification | CE |
| TDP | 230 W |
| Power Supply | 230 W |
| Power Consumption (typical) | 4.68 W |
| Voltage | 6 - 12 V |
| Rated Current | 0.39 A |
| Maximum Current | 0.39 A |
| Weight | 600 g |
| Fan Dimensions (W x D x H) | 120 x 25 x 120 mm |
