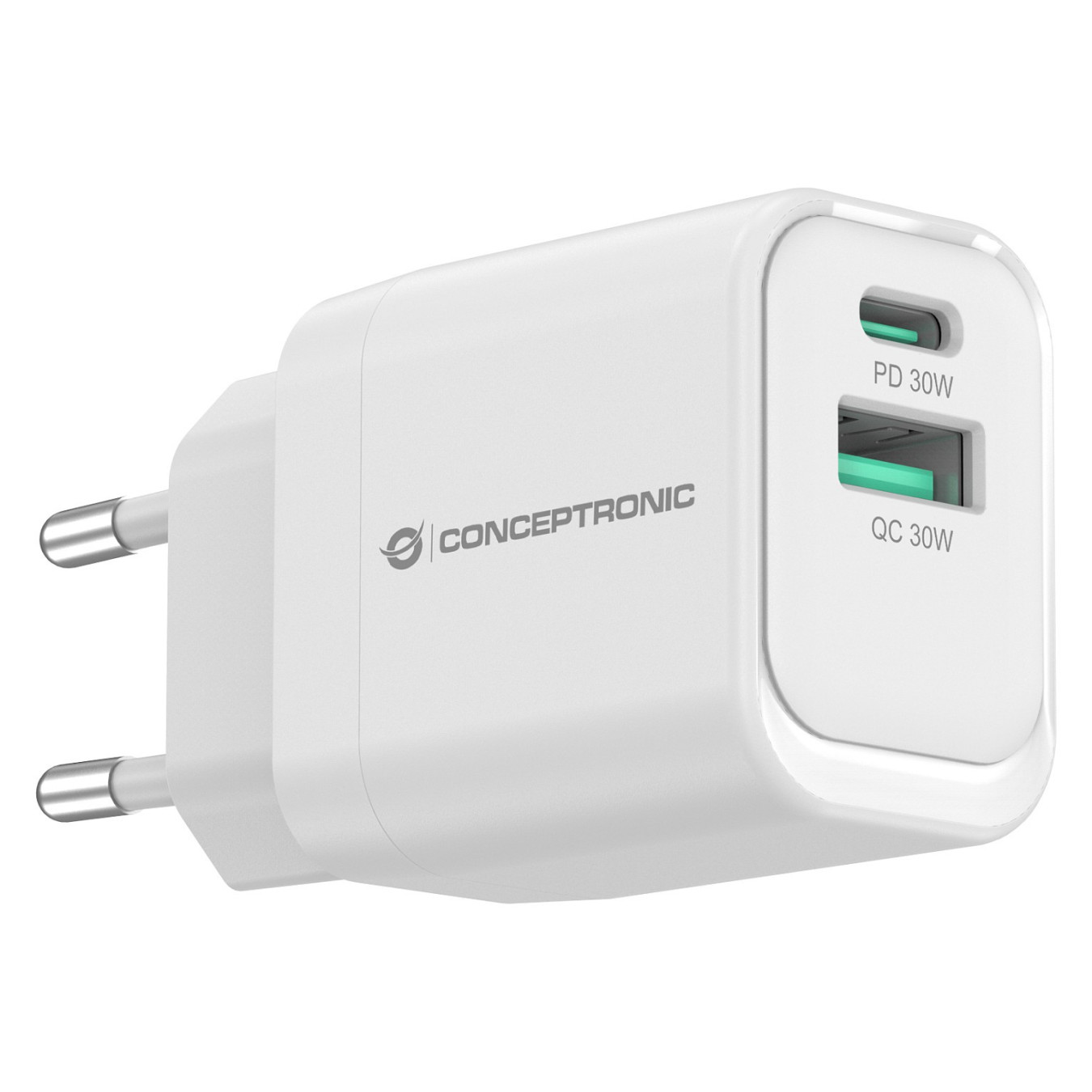

CONCEPTRONIC Ladegerät 2Port GaN USB-C -A 33WPD3.0 PPS ws
Conceptronic ALTHEA19W33 2-Port 33W GaN USB-PD-Ladegerät. USB-C x 1. USB-A x 1. QC 3.0. PPS. PD 3.0. Drinnen. AC. 20 V. Weiß
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Conceptronic ALTHEA19W33 2-Port 33W GaN USB-PD-Ladegerät. USB-C x 1. USB-A x 1. QC 3.0. PPS. PD 3.0. Aufladetyp: Drinnen. Energiequelle: AC. Aufladekompatibilität: Universal. Eingangsspannung: 100 - 240 V. Maximale Ausgangsspannung: 20 V. USB Typ-C Anzahl Anschlüsse: 1. Schnellladung. Energieschutzeigenschaften: Überhitzung. Überlastschutz. Kurzschluß. Produktfarbe: Weiß
| Aufladekompatibilität | Universal |
| Energiequelle | AC |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A | 1 |
| USB Typ-C Anzahl Anschlüsse | 1 |
| Feature | Schnellinstallationsanleitung |
| Schnellladetechnik | Power Delivery 3.0. Programmable Power Supply (PPS). Quick Charge 3.0 |
| Aufladetyp | Drinnen |
| Anzahl simultan anschließbarer Geräte (max) | 2 |
| USB-Stromversorgung Revision | 3.0 |
| Energieschutzeigenschaften | Überhitzung. Überlastschutz. Kurzschluß |
| Produktfarbe | Weiß |
| Gehäusematerial | Polycarbonat (PC) |
| Eingangsspannung | 100 - 240 V |
| Eingangsfrequenz | 50 - 60 Hz |
| Eingangsstrom | 0.8 A |
| Max. Leistung | 33 W |
| Maximale Ausgangsspannung | 20 V |
| Minimale Ausgangsspannung | 5 V |
| Ausgangsstrom Anschluss 1 | 3 A |
| Ausgangsstrom Anschluss 2 | 3 A |
| Breite | 42.5 mm |
| Tiefe | 40 mm |
| Höhe | 28 mm |
| Gewicht | 57.3 g |
| Verpackungsbreite | 120 mm |
| Verpackungstiefe | 75 mm |
| Verpackungshöhe | 33 mm |
| Paketgewicht | 92.3 g |
| Verpackungsart | Karton mit Aufhänger |
| Betriebstemperatur | 0 - 35 °C |
| Temperaturbereich bei Lagerung | -20 - 80 °C |
| Luftfeuchtigkeit bei Lagerung | 20 - 80% |
| Menge pro Packung | 1 Stück(e) |
| Konformitätsbescheinigungen | CE. RoHS |
| Anzahl Kartons pro Palette | 36 Stück(e) |
| Zolltarifnummer (TARIC) | 8504408390 |
| Warentarifnummer (HS) | 850440 |
| Palettenbreite (brutto) | 120 cm |
| Palettenlänge (brutto) | 80 cm |
| Palettenhöhe (brutto) | 175.2 cm |
| Breite des Versandkartons | 257 mm |
| Länge des Versandkartons | 365 mm |
| Höhe des Versandkartons | 400 mm |
| Gewicht Versandkarton | 9.73 kg |
| Anzahl Produkte pro Versandkarton | 100 Stück(e) |
| Ursprungsland | China |
