Fortron VITA-650BD - 650W 80 PLUS Bronze ATX 3.1 Power Supply - Non-Modular, Black Flat Cables
Fortron VITA-650BD 650W ATX 3.1 PSU: 80 PLUS Bronze, non-modular black flat cables, single +12V rail (54.1A), DC-DC design, 105°C Japanese caps, 140mm compact size, full protections.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 600 - 699 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Bronze |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 4x 8/6 pins |
| PSU (Power Supplies) - Length | Up to 140 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V |
ATX 3.1 Compliant Powerhouse
The Fortron VITA-650BD delivers 650W with full ATX 3.1 support, handling up to 200% power excursions for modern GPUs and CPUs. 80 PLUS Bronze certified (≥88% efficiency at typical load) ensures low heat and quiet operation.
Stable and Efficient Design
Features a powerful single +12V rail (54.1A, 649.2W), +5V/+3.3V DC-DC circuits for voltage stability, and premium 105°C Japanese bulk capacitors for reliability under high temps and fluctuations. Compact 140x150x86mm size fits tight builds.
Non-modular with soft black flat cables for easy management. 120mm sleeve bearing fan keeps it cool. Full protections: OVP, OCP, OPP, OTP, SCP, UVP, SIP, NLO.

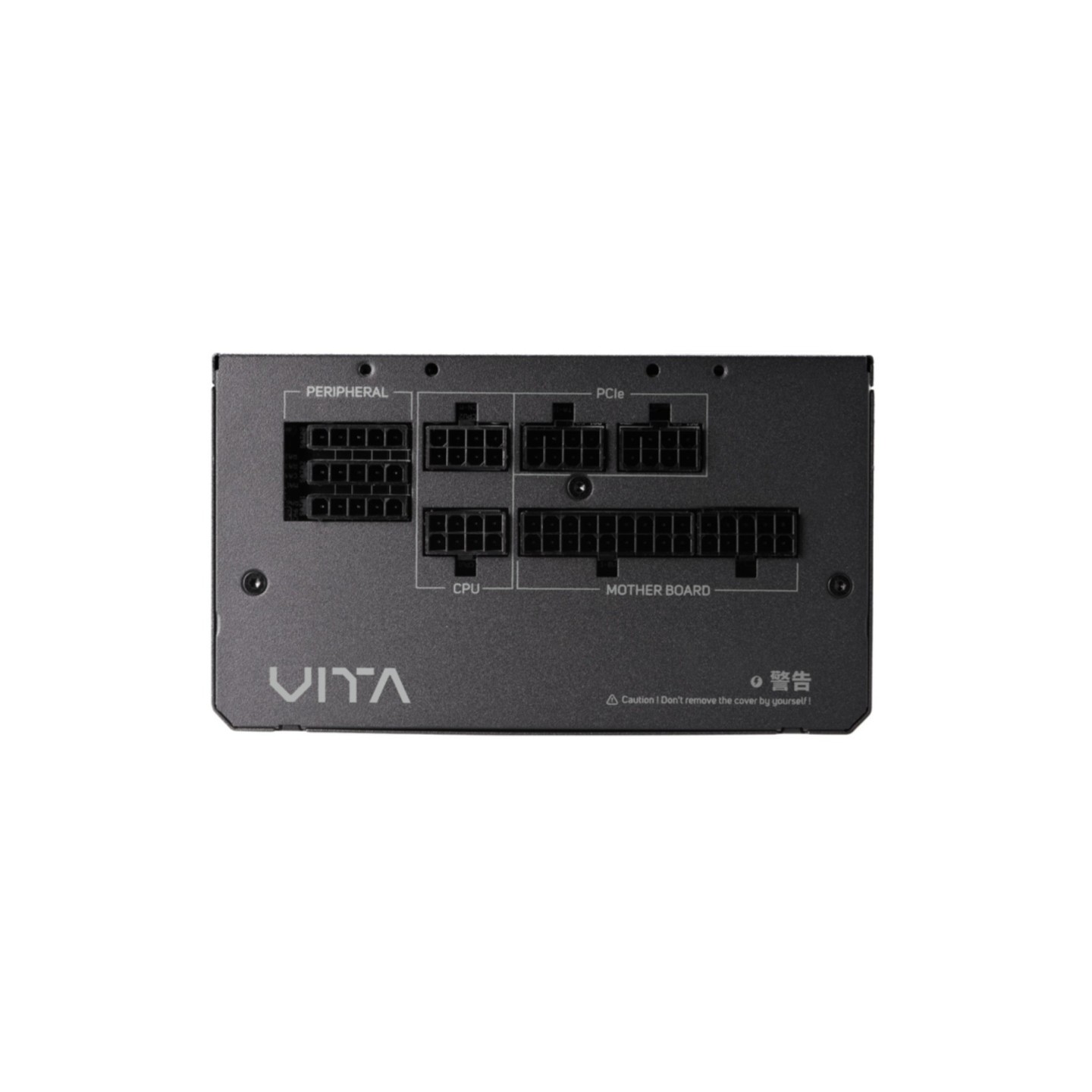

- 1x 20+4-pin ATX (60cm)
- 1x 4+4-pin EPS CPU (70cm) + 1x 8-pin ATX12V
- 4x 6+2-pin PCIe
- 8x SATA (500mm)
- 4x 4-pin Molex
| Total power | 650 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50-60 Hz |
| Input current | 5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 649.2 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 54.1 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | ≥88% at typical load |
| Power protection features | OVP, OCP, OPP, OTP, SCP, UVP, SIP, NLO |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 8 |
| SATA power cable length | 500 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 70 cm |
| Additional CPU power connector (8-pin ATX12V) | Yes |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS Bronze (230V EU) |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| EPS version | 2.92 |
| Bearing technology | Sleeve |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Cables included | CPU, Peripheral (Molex), SATA |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
