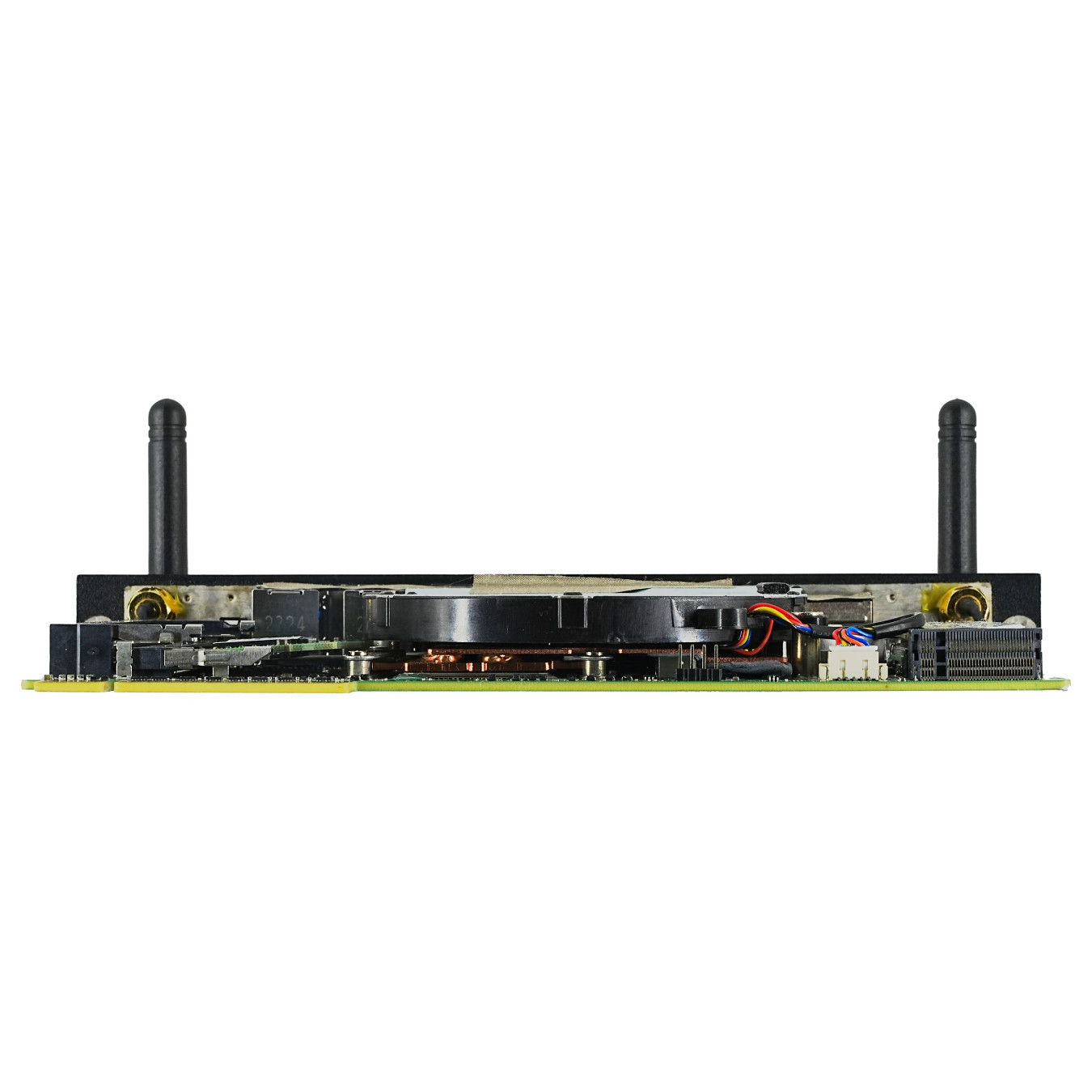

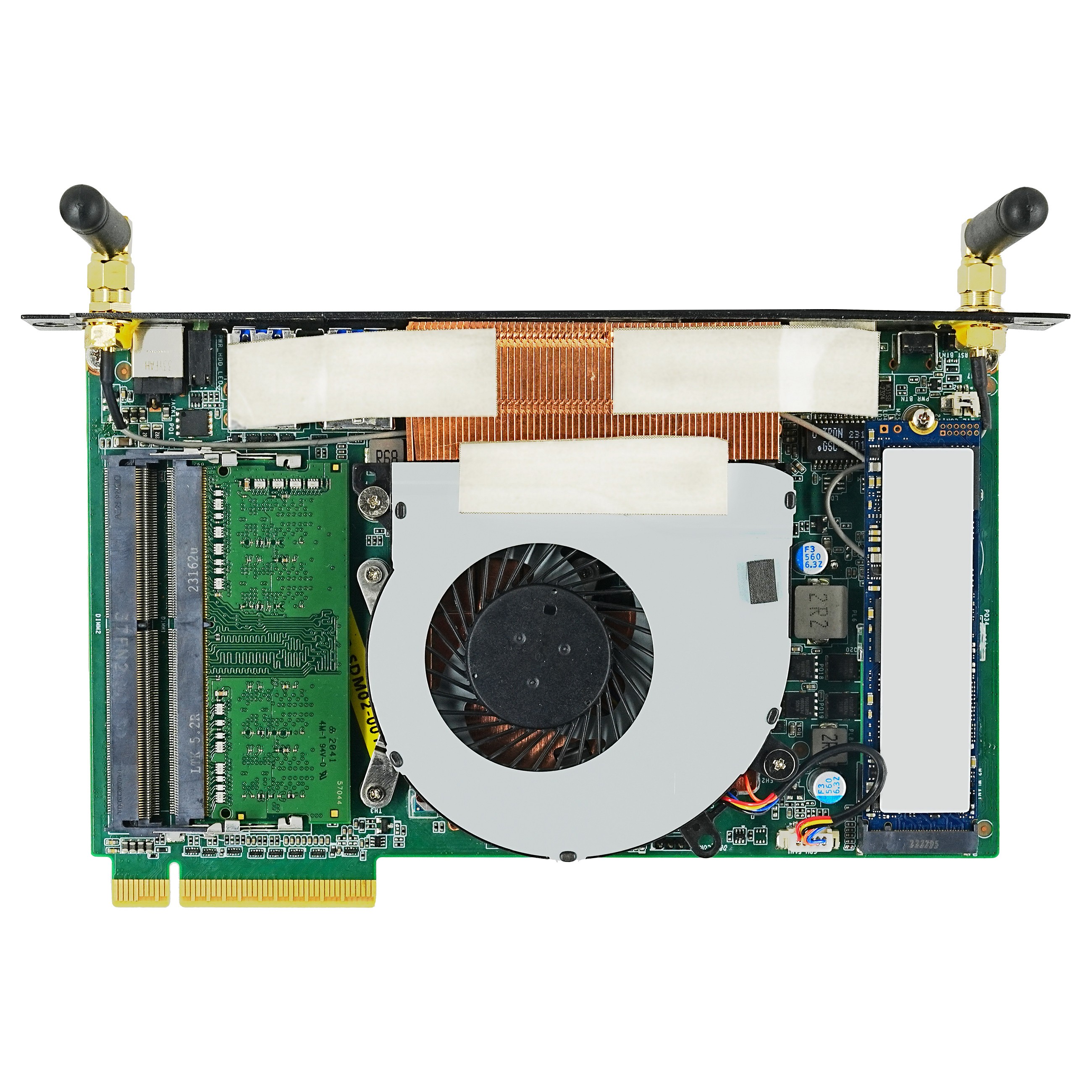

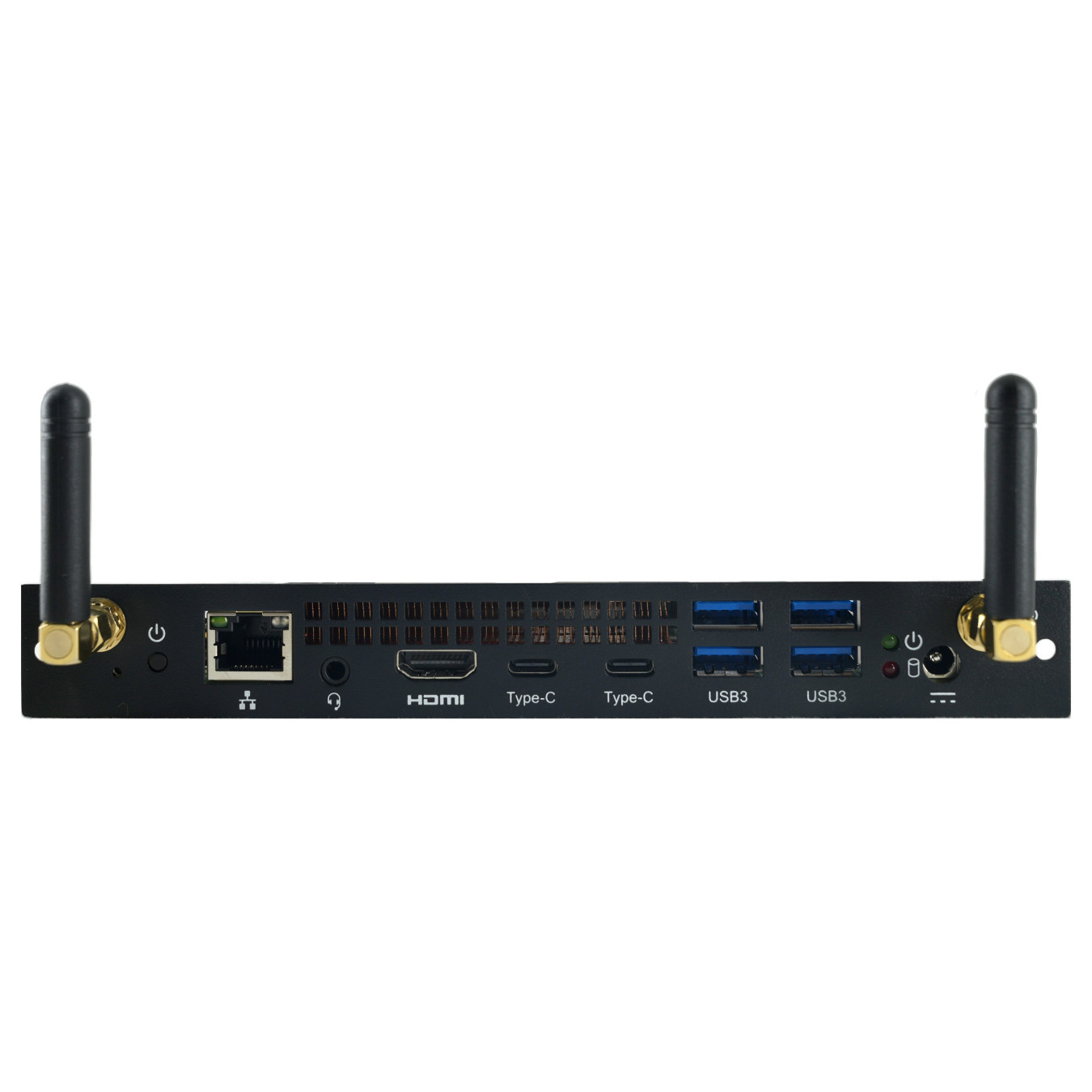

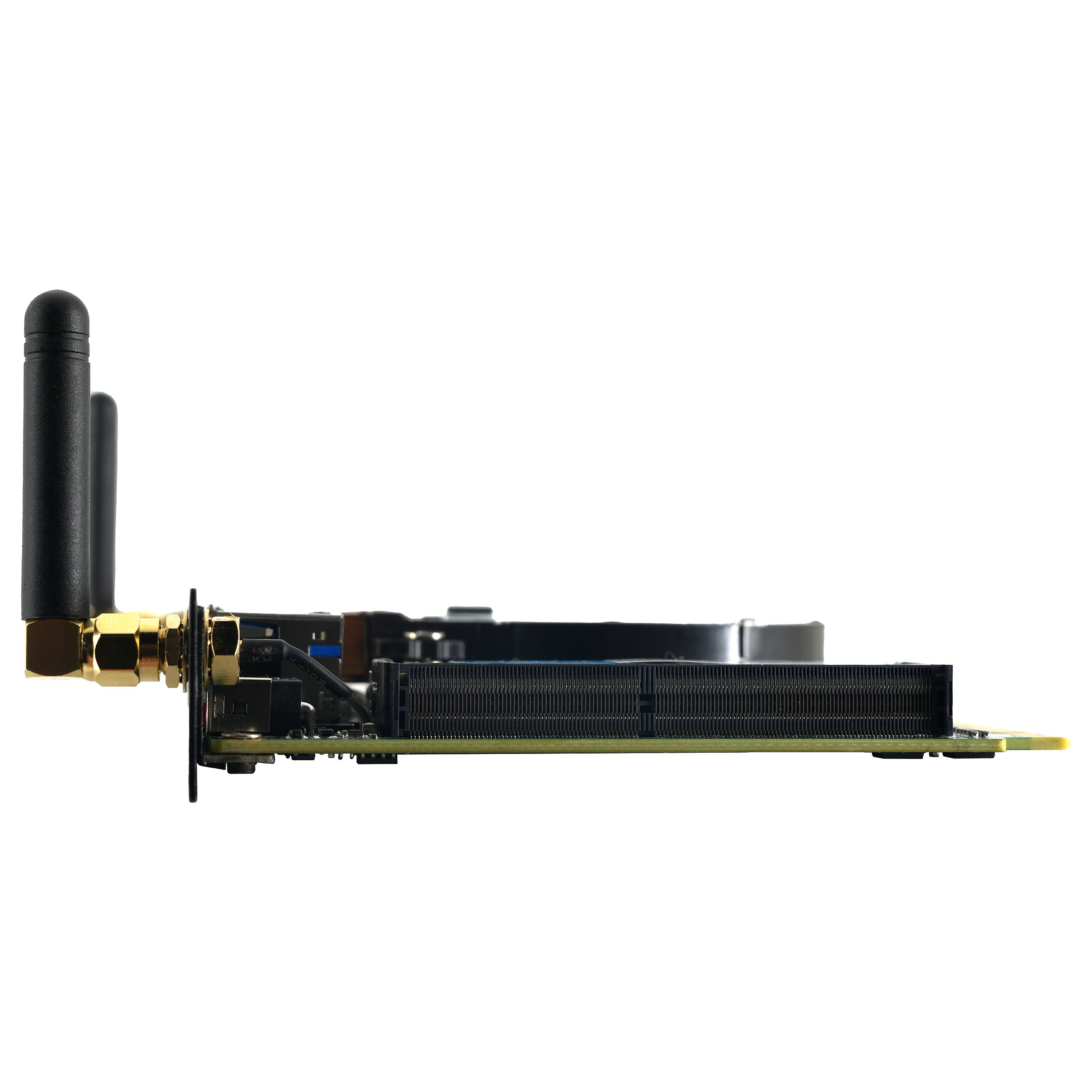

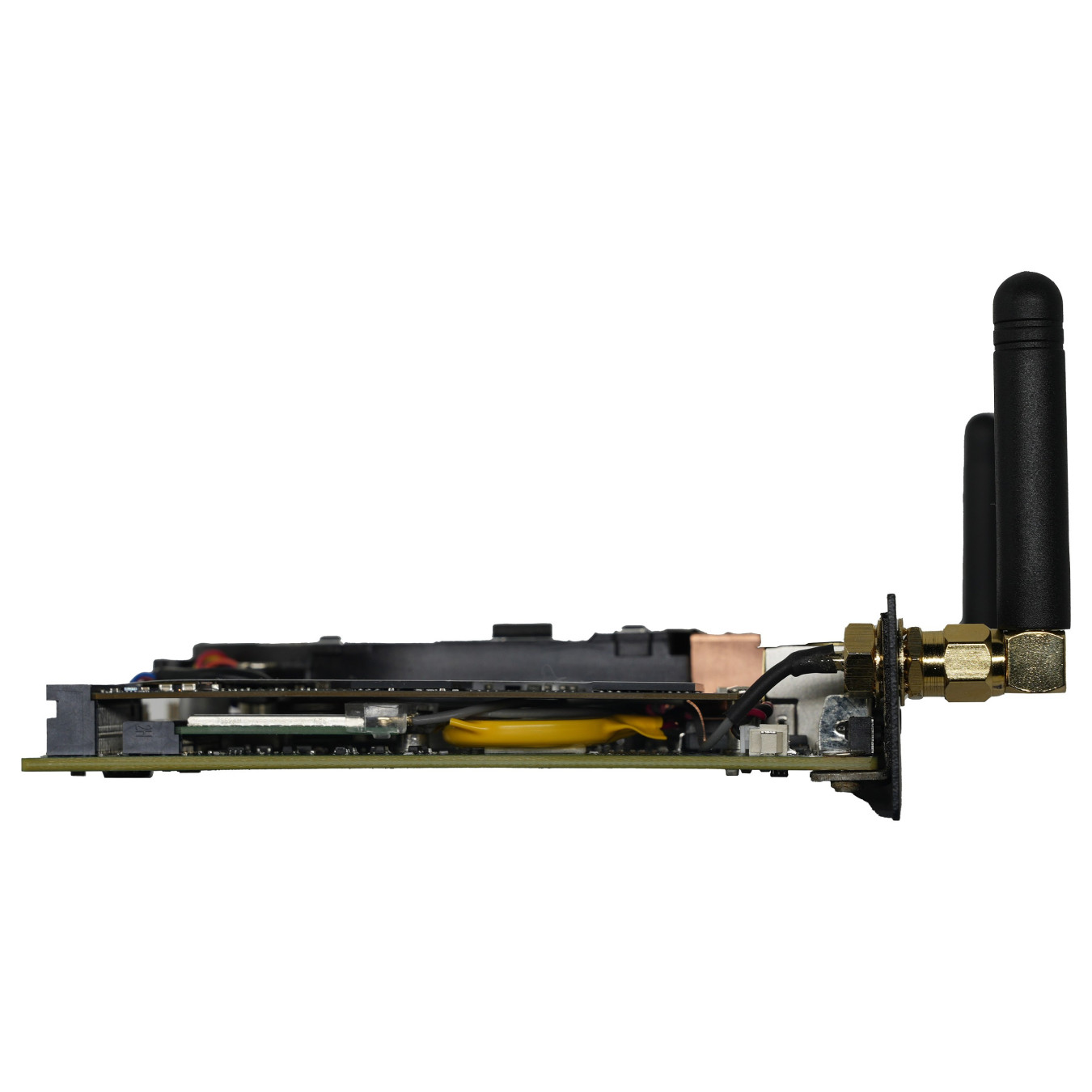

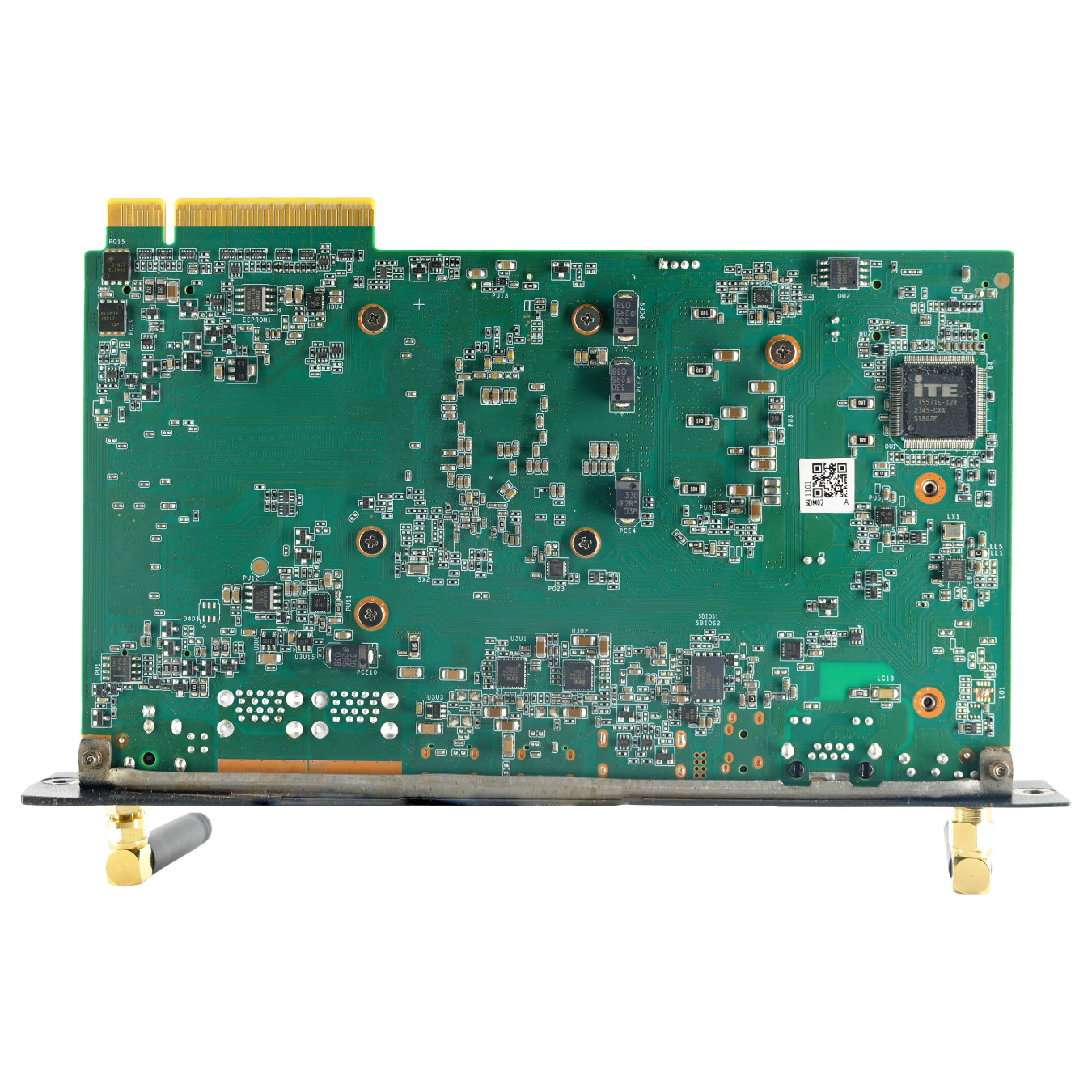

IIYAMA SDM-L Slot PC Intel i3-1220P 8GB DDR4 256GB M2 Windows 11
iiyama SDM31201BC-1L. Intel® Core™ i3. i3-1220P. 8 GB. 256 GB. Windows 11 IoT Enterprise. 64-Bit
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
iiyama SDM31201BC-1L. Prozessorfamilie: Intel® Core™ i3. Prozessor: i3-1220P. Speicherkapazität: 8 GB. Interner Speichertyp: DDR4-SDRAM. Gesamtspeicherkapazität: 256 GB. Speichermedien: SSD. Eingebautes Grafikkartenmodell: Intel® UHD Graphics. WLAN. Installiertes Betriebssystem: Windows 11 IoT Enterprise. Betriebssystemarchitektur: 64-Bit. Gehäusetyp: Mini PC. Produkttyp: Mini-PC. Gewicht: 400 g. Produktfarbe: Schwarz
| Prozessorhersteller | Intel |
| Prozessorfamilie | Intel® Core™ i3 |
| Prozessorgeneration | Intel® Core™ i3 Prozessoren der 12. Generation |
| Prozessor | i3-1220P |
| Anzahl Prozessorkerne | 10 |
| Prozessor-Threads | 12 |
| Leistungskerne | 2 |
| Effiziente Kerne | 8 |
| Leistungskern maximale Turbofrequenz | 4.4 GHz |
| Effizienter Kern maximale Turbofrequenz | 3.3 GHz |
| Prozessor-Cache | 12 MB |
| Prozessor Cache Typ | Smart Cache |
| Grundleistung des Prozessors | 28 W |
| Maximale Turboleistung | 64 W |
| Speicherkapazität | 8 GB |
| Interner Speichertyp | DDR4-SDRAM |
| Gesamtspeicherkapazität | 256 GB |
| Speichermedien | SSD |
| Gesamtkapazität der SSDs | 256 GB |
| Anzahl SSD installiert | 1 |
| SSD Speicherkapazität | 256 GB |
| SSD Schnittstelle | M.2 |
| SSD-Formfaktor | M.2 |
| Feature | Kombinierter Kopfhörer-/Mikrofon-Anschluss |
| Separates Grafikkartenmodell | Nicht verfügbar |
| Hersteller der eingebauten GPU | Intel |
| On-Board-Grafikadapterfamilie | Intel® UHD Graphics |
| Eingebautes Grafikkartenmodell | Intel® UHD Graphics |
| Ethernet LAN Datentransferraten | 100.10.1000 Mbit/s |
| Top WLAN-Standard | Wi-Fi 6 (802.11ax) |
| WLAN-Standards | 802.11a. 802.11b. 802.11g. Wi-Fi 4 (802.11n). Wi-Fi 5 (802.11ac). Wi-Fi 6 (802.11ax) |
| Bluetooth-Version | 5.3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ C | 2 |
| Anzahl HDMI-Anschlüsse | 1 |
| HDMI-Version | 2.0 |
| DisplayPorts-Version | 1.4 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Gehäusetyp | Mini PC |
| Produktfarbe | Schwarz |
| Audio-System | High Definition Audio |
| Produkttyp | Mini-PC |
| Betriebssystemarchitektur | 64-Bit |
| Installiertes Betriebssystem | Windows 11 IoT Enterprise |
| Kompatible Betriebssysteme | Windows 11 loT Enterprise (SAC) 64Bit |
| Stromverbrauch (Standardbetrieb) | 72 W |
| Stromverbrauch (Standby) | 0.5 W |
| Betriebstemperatur | -5 - 45 °C |
| Temperaturbereich bei Lagerung | -20 - 60 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 95% |
| Luftfeuchtigkeit bei Lagerung | 5 - 95% |
| Breite | 110 mm |
| Tiefe | 195 mm |
| Höhe | 25 mm |
| Gewicht | 400 g |
| Paketgewicht | 610 g |
