Armenius 76660N PCIe x8 to 2x M.2 NVMe Adapter - Bifurcation Low Profile (Boxed)
Armenius 76660N PCIe x8 bifurcation card adds 2x internal M.2 NVMe SSD slots. Low-profile design, 64 Gb/s bandwidth, no RAID. Ideal for expanding NVMe storage in compatible PCIe systems without external ports.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Expansion Cards - Product Type | Storage Controller and Adapter |
|---|---|
| Expansion Cards - Host Interface | PCIe x8 |
| Expansion Cards - Internal Connectivity | M.2 NVMe and SATA |
| Expansion Cards - Form Factor | Low Profile Half-Height |
| Expansion Cards - External Connectivity | Internal Only |

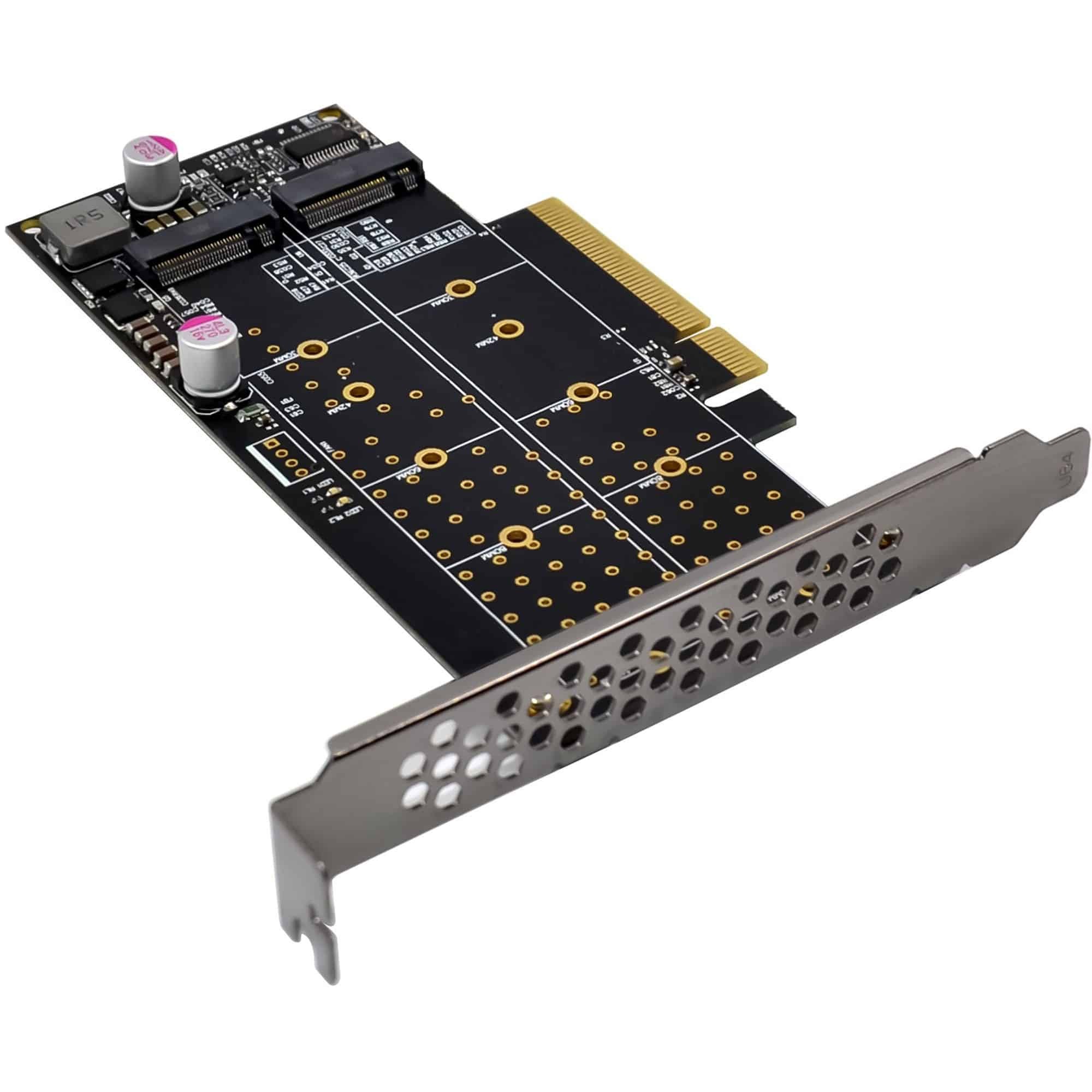

The Armenius 76660N is a PCIe x8 inline adapter card designed for bifurcation, enabling the connection of two internal M.2 NVMe SSDs. It supports simultaneous read/write operations on both drives, delivering up to 64 Gb/s total bandwidth. Perfect for users needing additional high-speed NVMe storage without external connections or RAID functionality.
This low-profile card fits in standard PCIe slots and is compatible with systems supporting PCIe bifurcation. No external ports are provided, keeping the setup fully internal and clean. It's an efficient solution for workstations, servers, or gaming PCs requiring expanded NVMe capacity.
- Connections: 2x internal M.2 NVMe SSD slots
- Interface: PCIe x8 (NVMe)
- Form Factor: Low Profile
- Special Feature: Bifurcation for dual NVMe support
- RAID Support: No
| Product Type | PCIe to Dual M.2 NVMe Adapter |
| MPN | 76660N |
| Brand | Armenius |
| EAN | 4043718341511 |
| Host Interface | PCIe x8 |
| Internal Connectivity | 2x M.2 NVMe SSD |
| External Connectivity | None |
| Form Factor | Low Profile |
| RAID Support | No |
| Transmission Rate | 64 Gb/s |
| Special Features | Bifurcation, Simultaneous reading and copying of 2 cards |
| Slot Type | PCIe |
