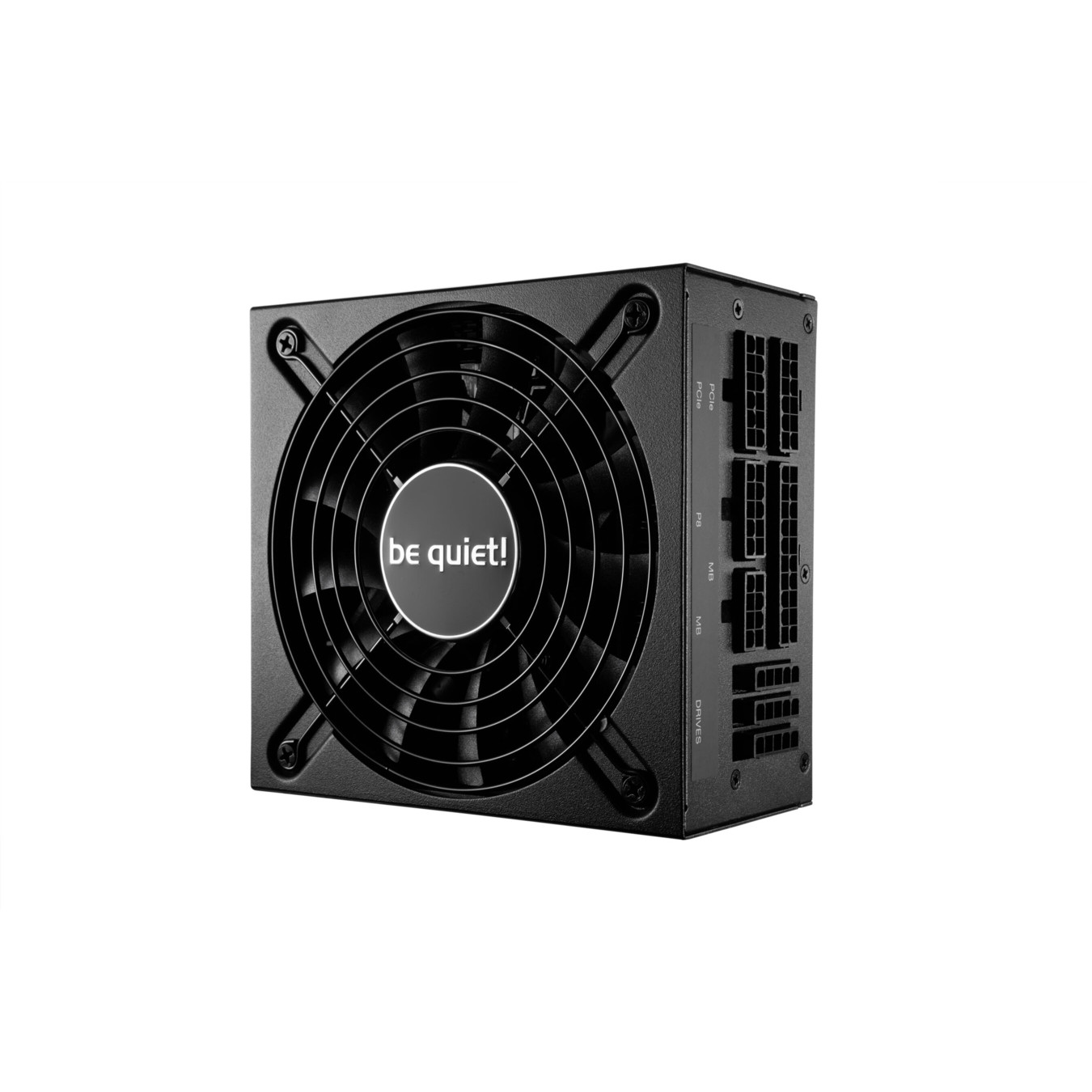

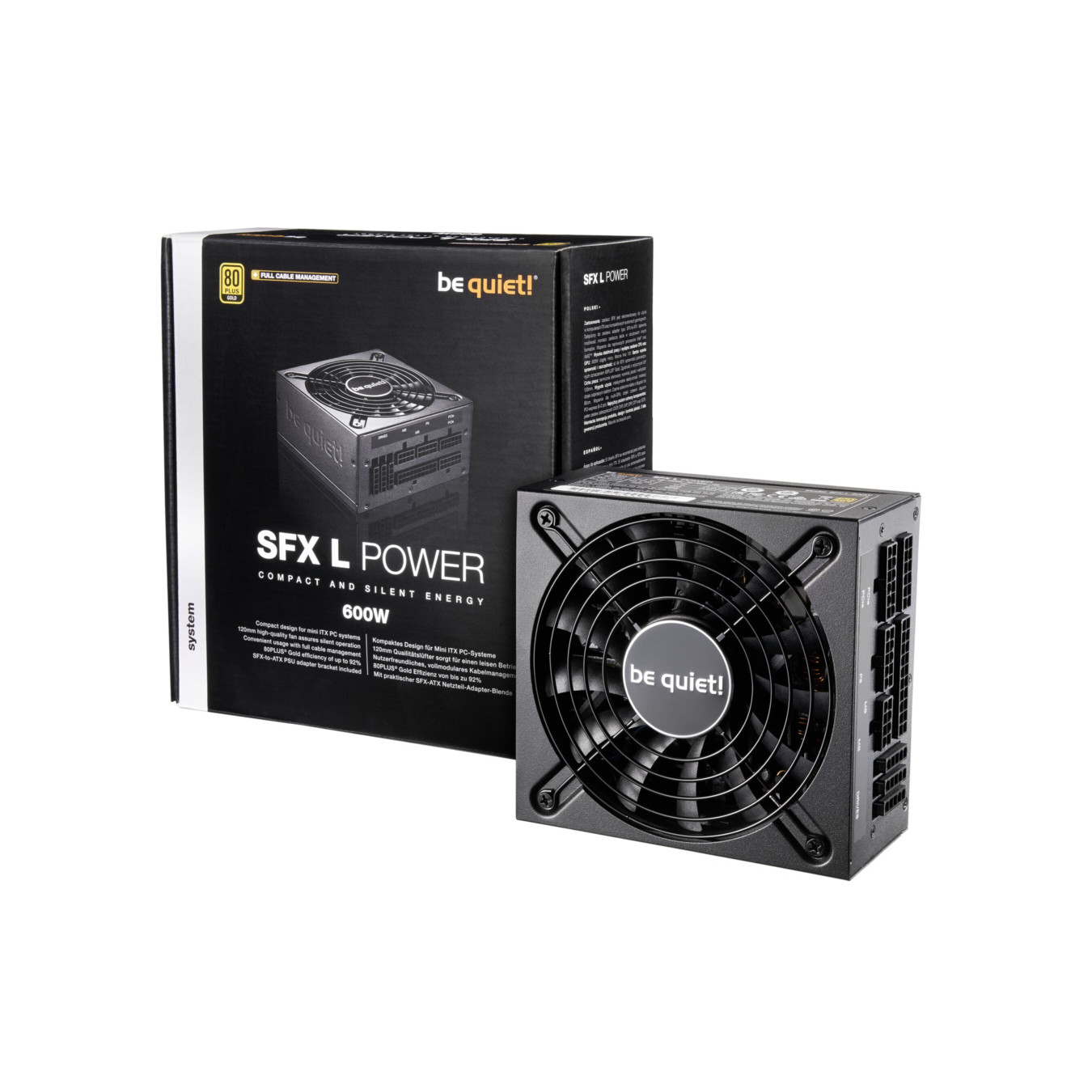

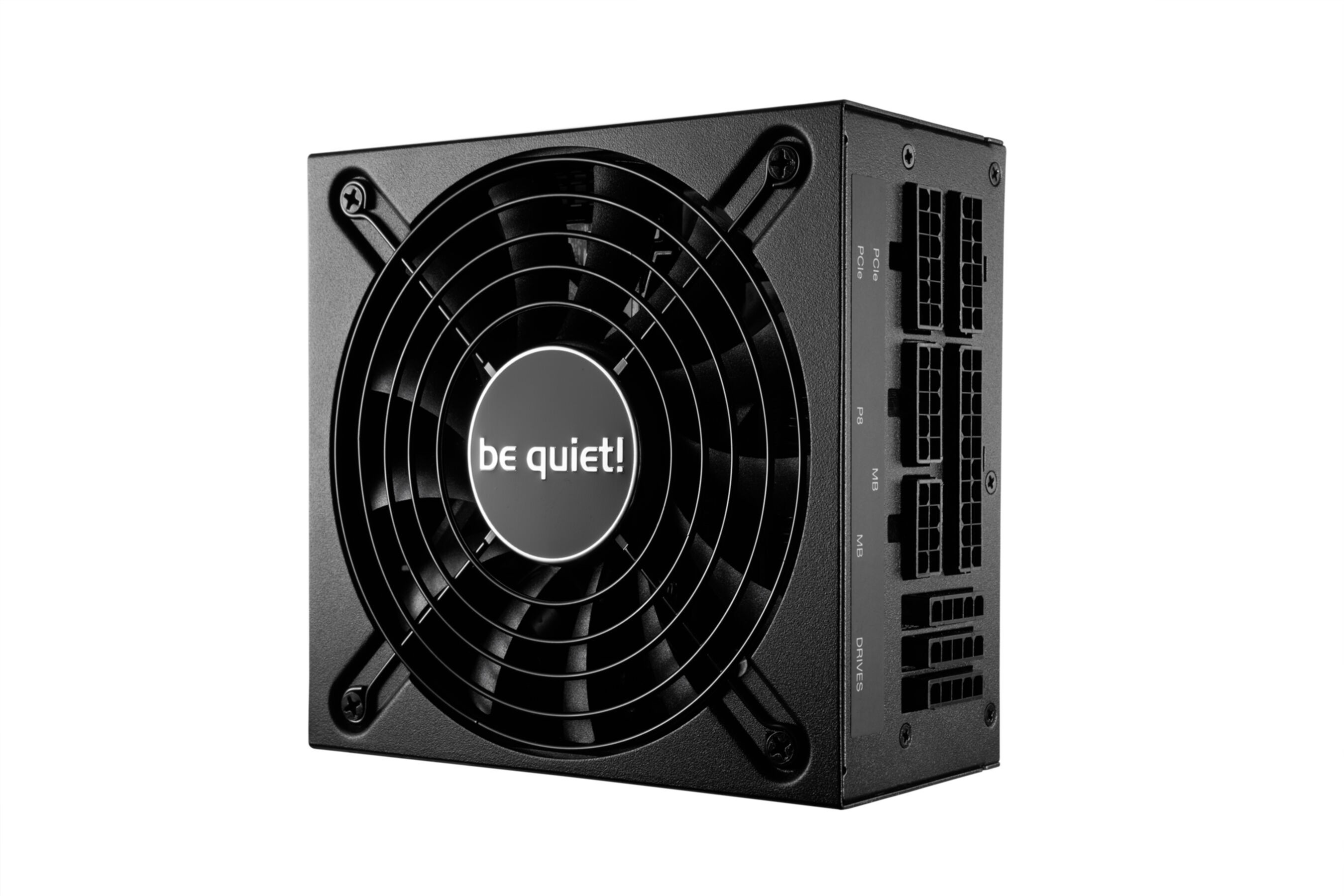

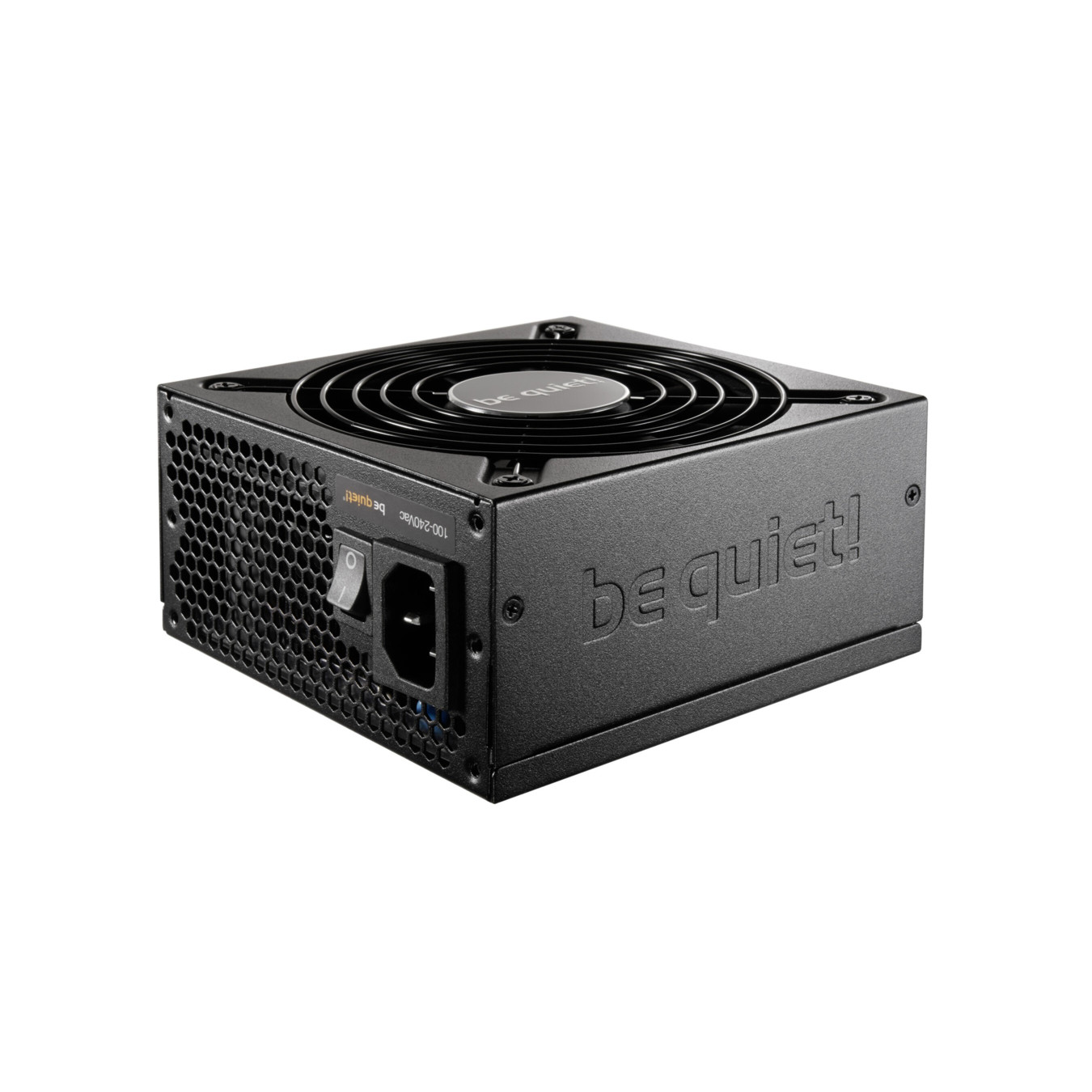

be quiet! SFX L Power 600W - Fully-Modular SFX-L PSU - 80 PLUS Gold, 120mm Fan
600W SFX-L PSU with fully-modular cables, 80 PLUS Gold efficiency and a quiet temperature-controlled 120mm fan — optimized for Mini-ITX and compact gaming systems.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Modularity | Fully modular |
|---|
Compact and Silent Energy
be quiet! SFX L Power 600W is especially recommended for mini ITX PCs and compact gaming systems. It performs well beyond the ordinary, with a great combination of quietness, features, reliability and efficiency.
POWERFUL, RELIABLE AND STABLE
A strong partner for Mini ITX and compact gaming PCs
The SFX L Power supplies CPUs and GPUs with steady and dependable power thanks to a stable 12V-rail, high quality Japanese capacitors and innovative technologies such as LLC, Synchronous Rectifier and DC-to-DC conversion. 4 PCIe connectors to support multi-GPU setups.
QUIET OPERATION FOR COMPACT SYSTEMS
Optimized for low-noise operation
This PSU is perfect for compact gaming PC or HTPC users who are looking for an SFX PSU that is fitted with a 120mm fan. This model includes a temperature-controlled fan. The SFX L Power was built to be very silent thanks to the fan technology used and it produces little wasted heat.
80 PLUS® GOLD CERTIFICATION
Very high operating efficiency
SFX L Power 600W is certified 80 PLUS Gold with an efficiency rating of up to 92% – a truly outstanding level for this class of PSU. The most compelling benefit: lower power consumption and consequently lower costs with cooler and quieter operation.
MODULAR AND FLAT CABLES
Highly compatible and convenient

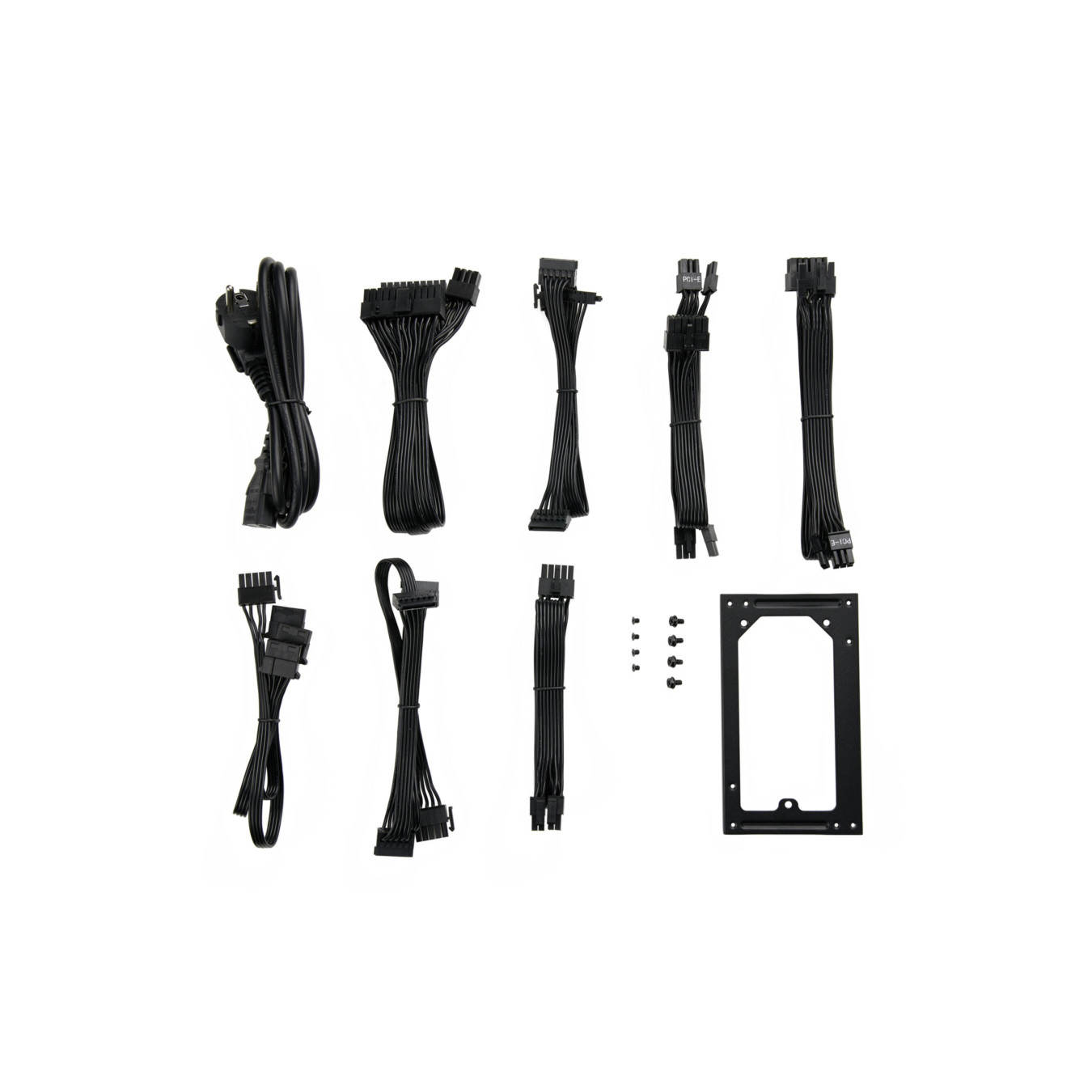

Entirely modular cables are enhanced by premium black flat cables. This simplifies the installation and keeps the system tidy.
SUPER VERSATILE INSTALLATION
Adapts to your individual requirements
This power supply is particularly versatile in deployment thanks to the SFX-to-ATX adapter bracket provided. Not only does it fit into cases with an SFX form factor, but can also be installed in a few simple steps into larger ATX cases.
| Total power | 600 W |
| Peak power | 650 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 10 A |
| Power factor | 0.99 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 600 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V) | 50 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 16.8 ms |
| Efficiency | 92% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 30 cm |
| Number of SATA power connectors | 6 |
| Number of PATA power connectors | 3 |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power cable length | 40 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 40 cm |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Supported motherboard form factors | Mini-ITX |
| Purpose | PC |
| Power supply unit (PSU) form factor | SFX |
| ATX version | 2.4 |
| Silent mode | Yes |
| Bearing technology | Sleeve |
| Product colour | Black |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Compliance certificates | RoHS |
| Certification | CE, CB, TÜV, FCC, cTUVus, RCM |
| Width | 125 mm |
| Depth | 130 mm |
| Height | 64 mm |
| Weight | 1.16 kg |
| Manual | Yes |
| Package width | 205 mm |
| Package depth | 220 mm |
| Package height | 80 mm |
| Package weight | 2.04 kg |
| Package type | Box |
| Sustainability certificates | ENERGY STAR |
| Master (outer) case width | 430 mm |
| Master (outer) case length | 430 mm |
| Master (outer) case height | 240 mm |
| Master (outer) case gross weight | 21.5 kg |
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 10 pc(s) |
| Screws included | Yes |
| Cable ties included | Yes |
| Noise level (silent mode, <30%) | 9.9 dB |
| Noise level (quiet mode, 50%) | 14.5 dB |
| Noise level (full-load mode, 100%) | 28.7 dB |
