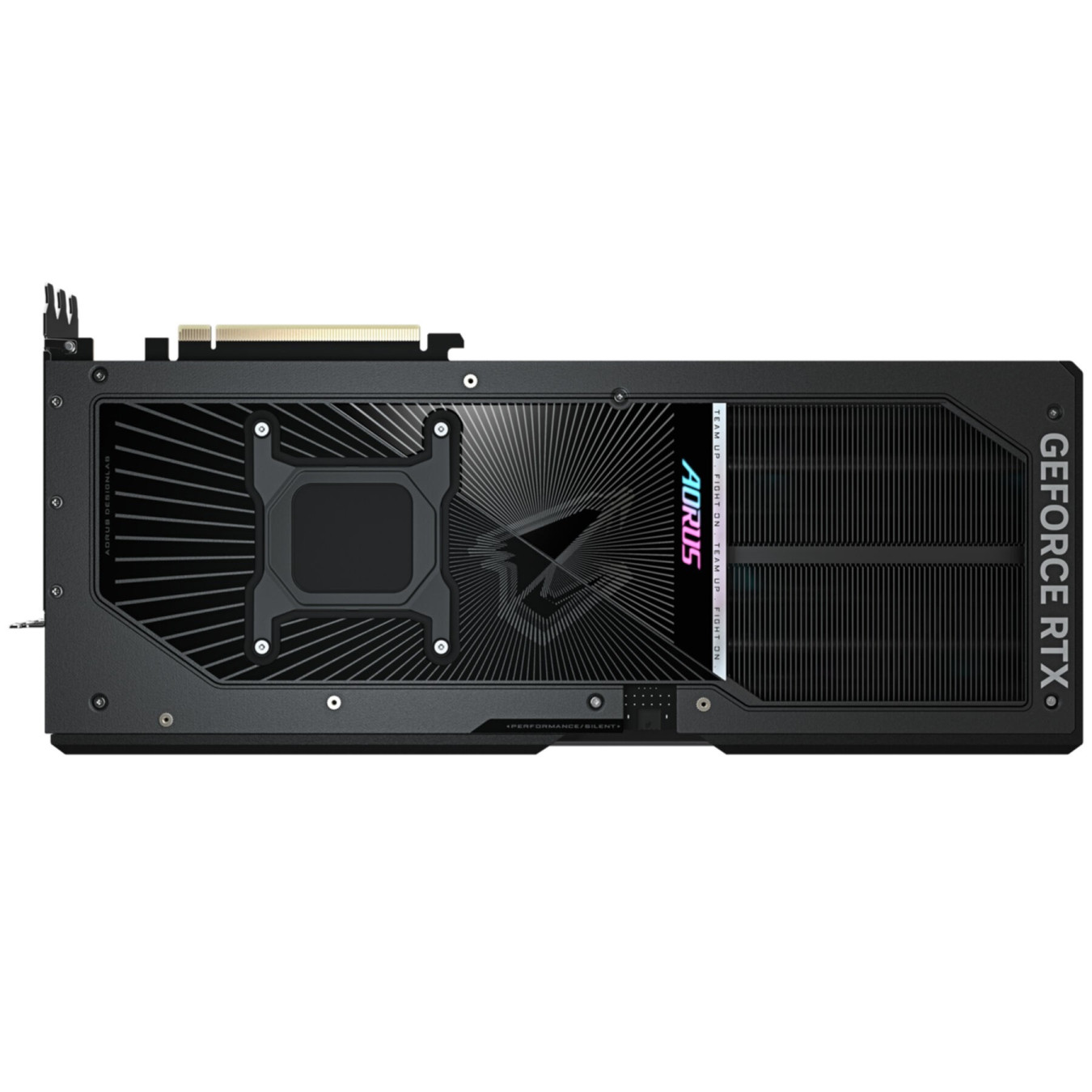

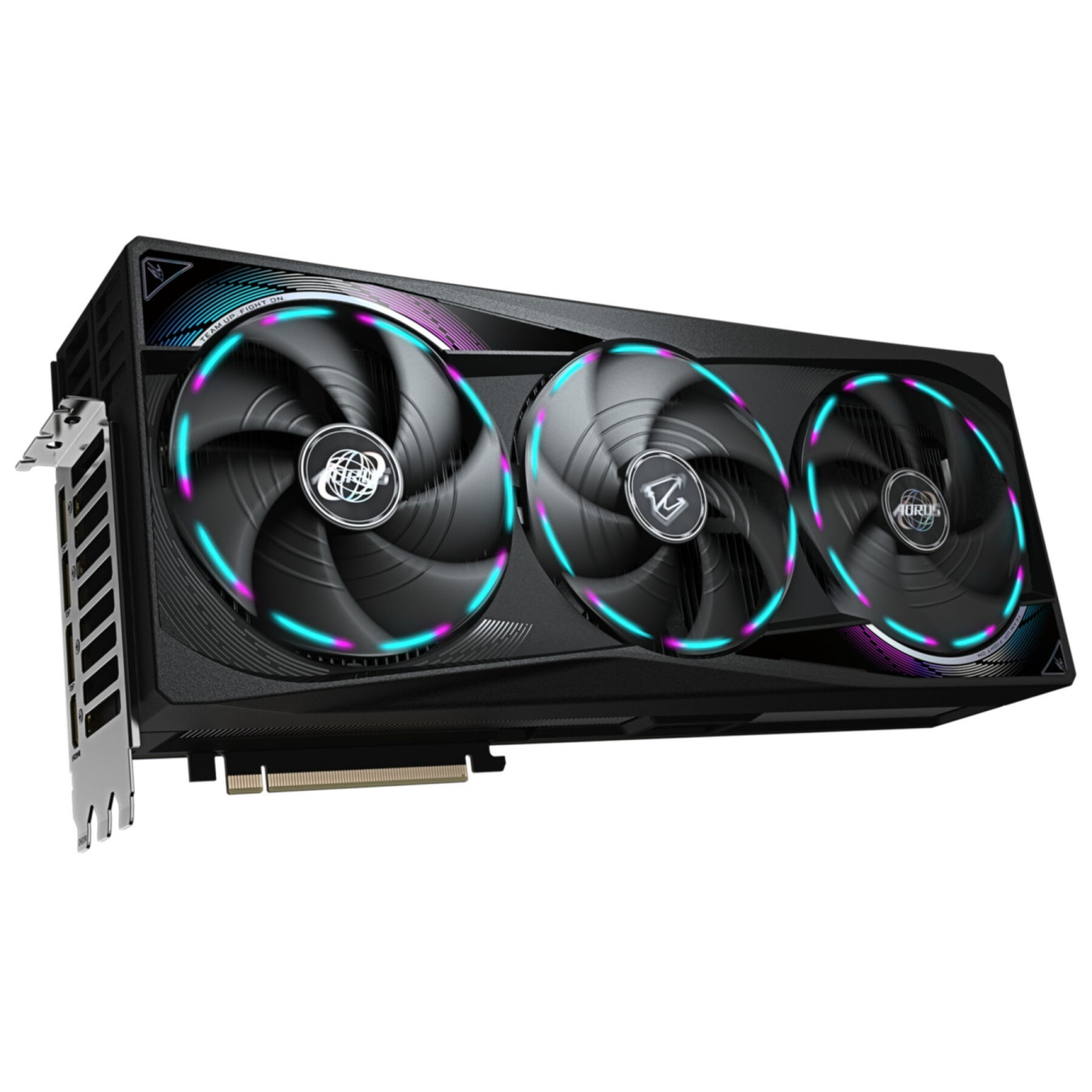

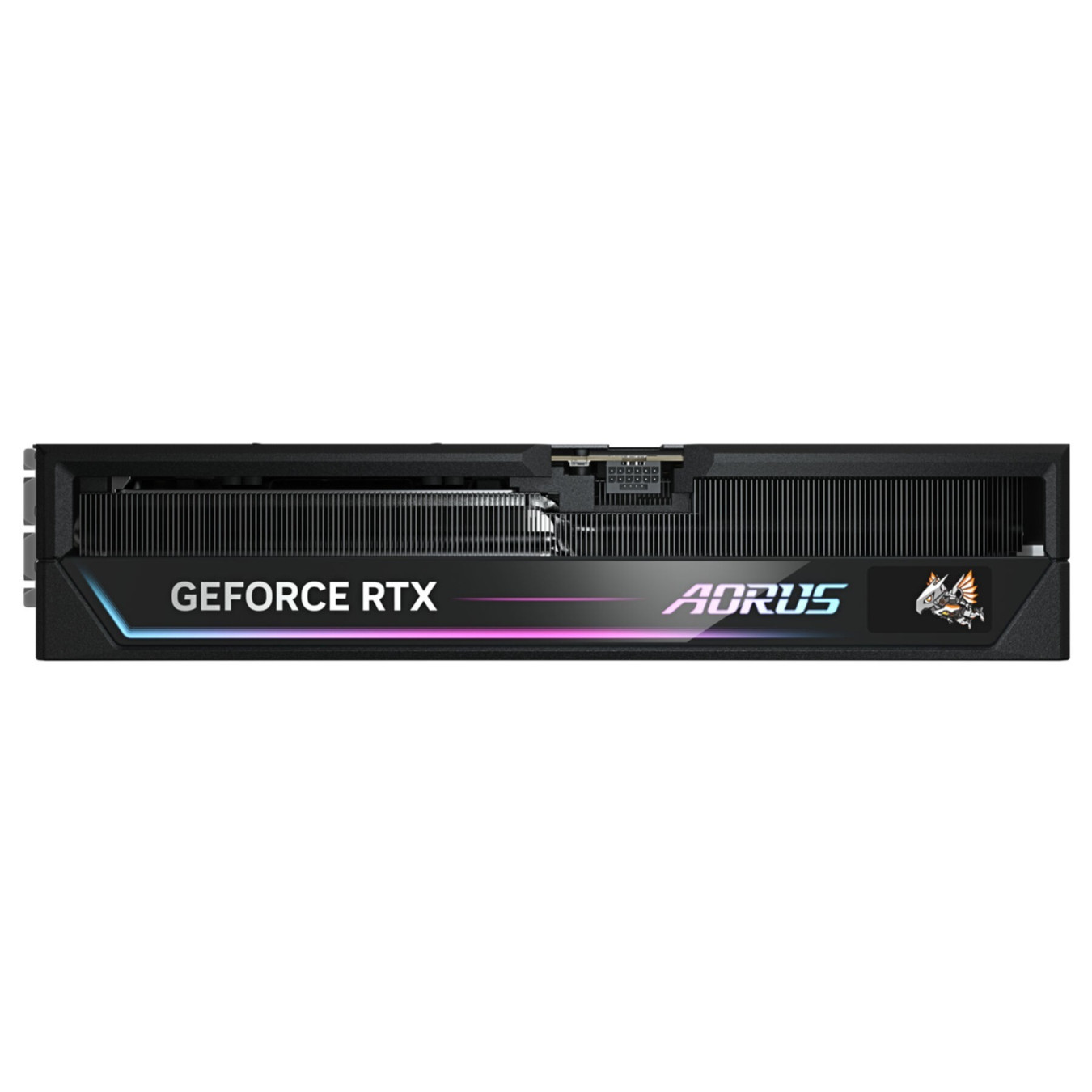

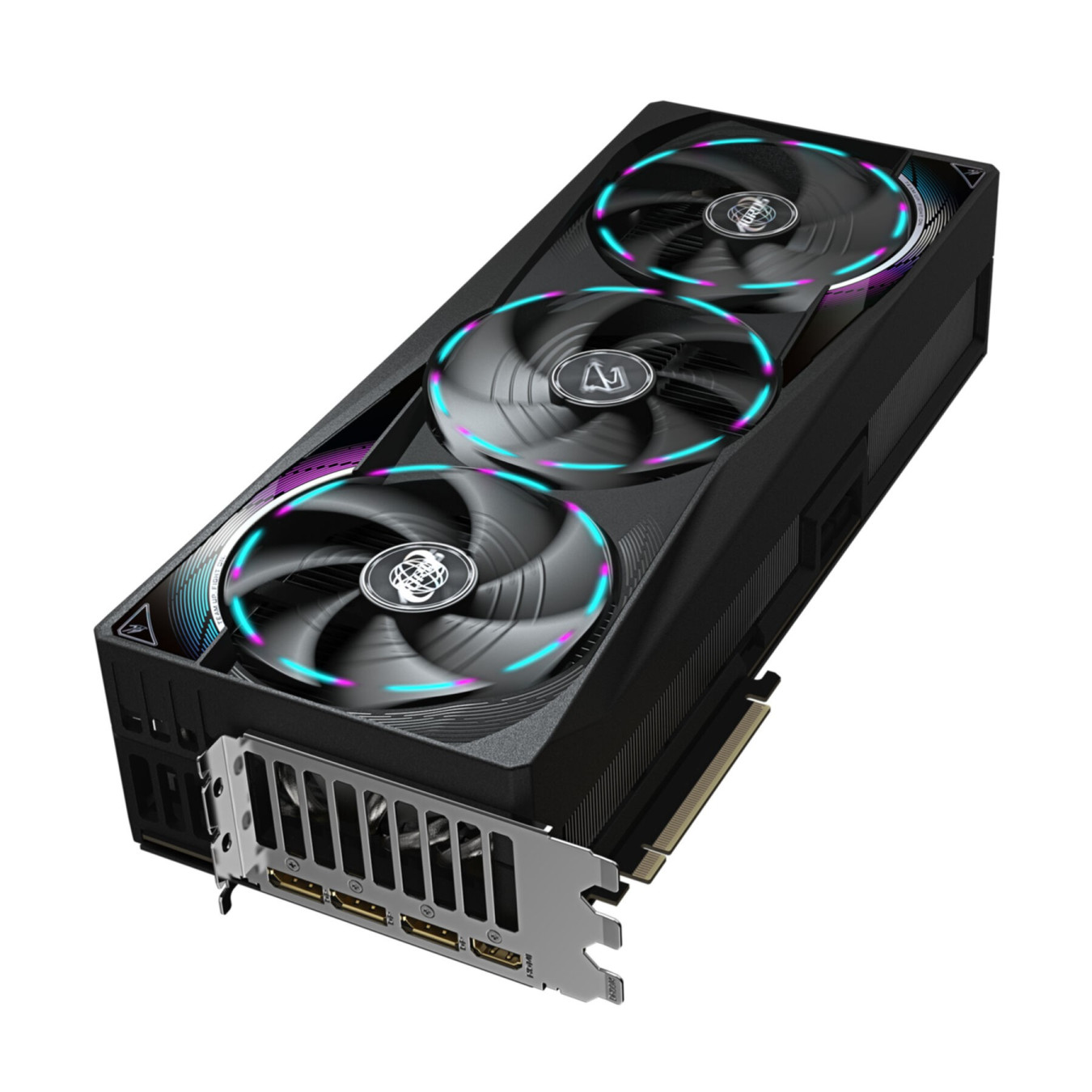

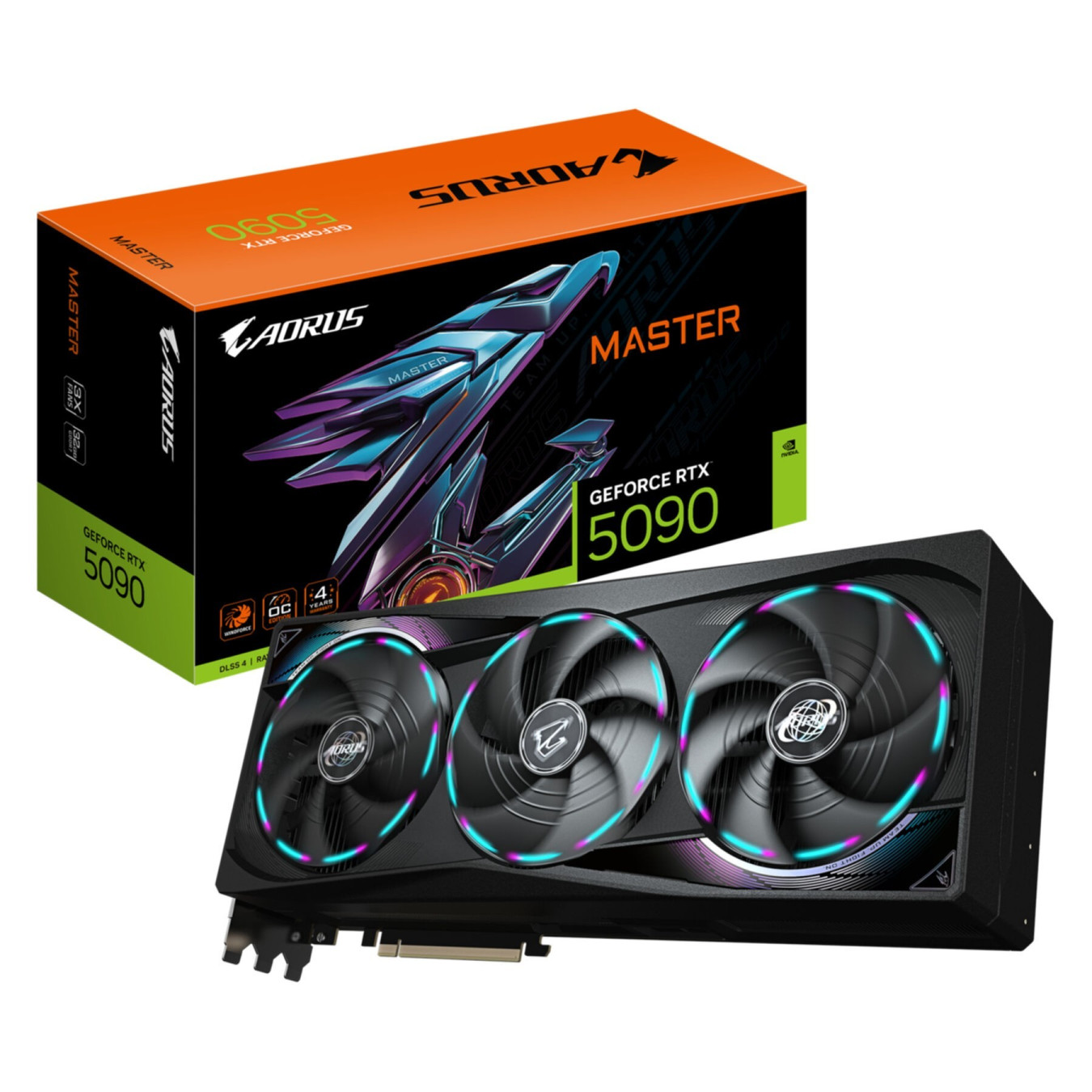

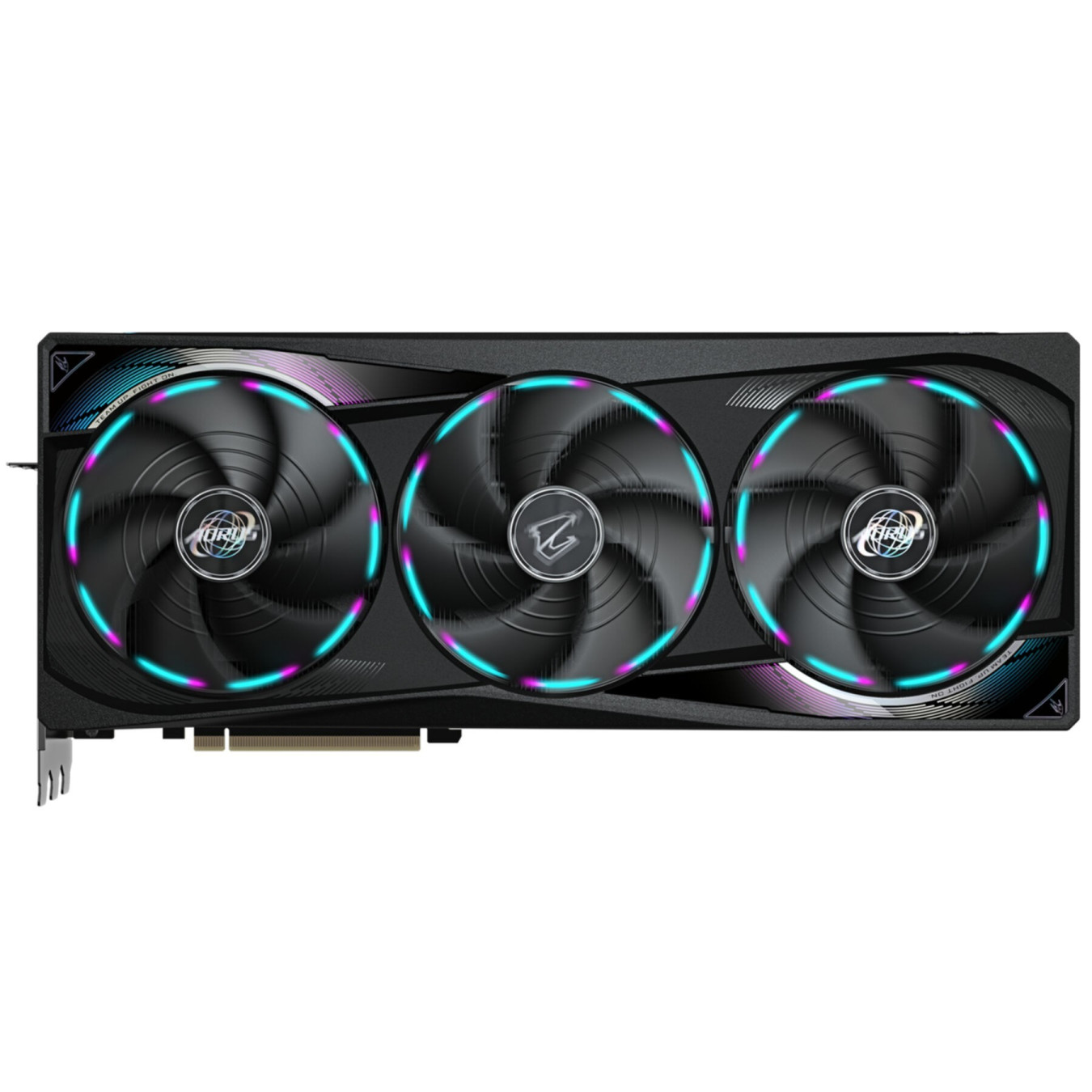

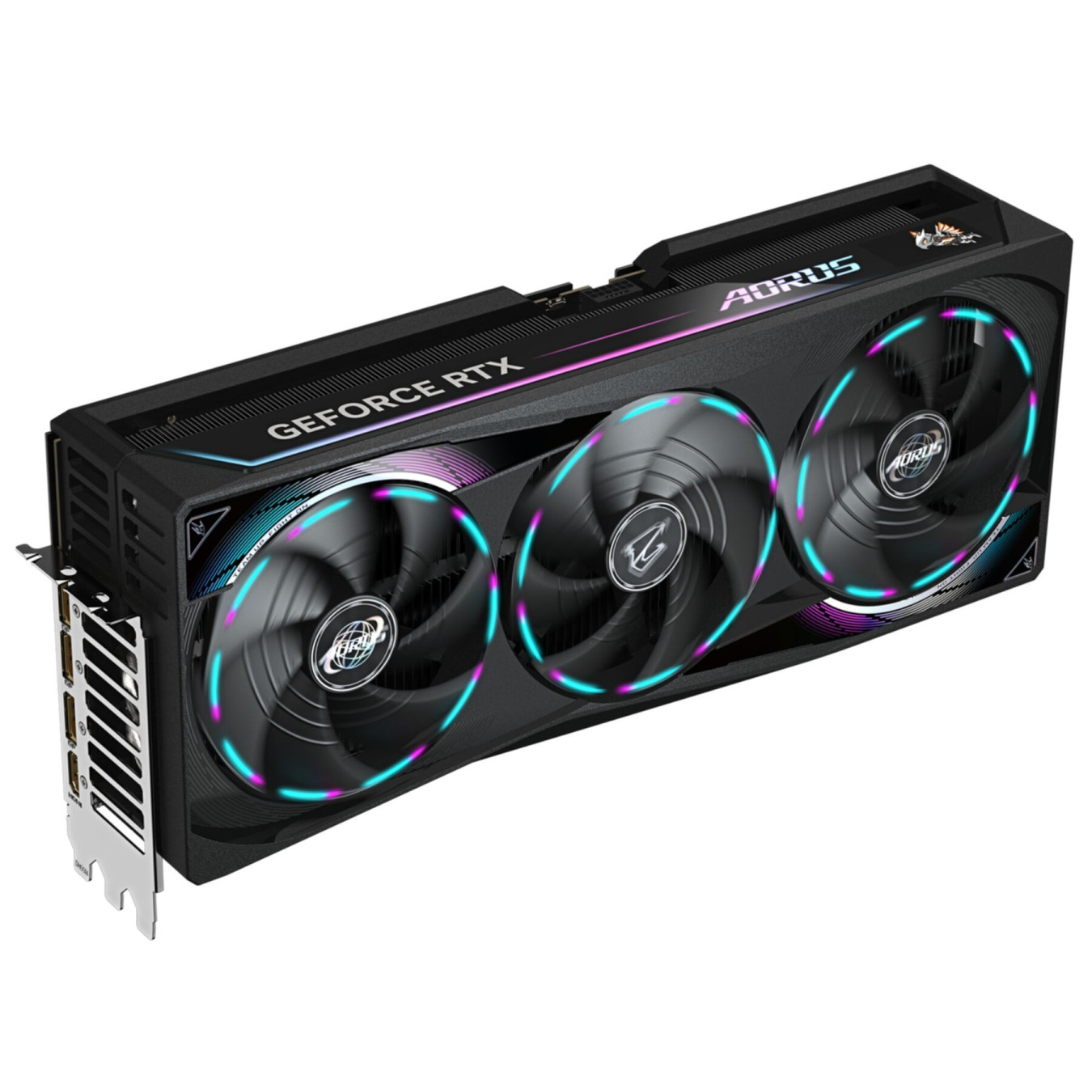

Gigabyte AORUS Master GeForce RTX 5090 32GB GDDR7 2655MHz PCIe 5.0 GV-N5090AORUS-M-32GD (Boxed)
GeForce RTX 5090 AORUS MASTER: 32GB GDDR7, 21760 CUDA cores, 2655MHz boost, PCIe 5.0. WINDFORCE 3X cooling, 3xDP 2.1b, 1xHDMI 2.1b, 1x16-pin, 1000W PSU req. Dual BIOS, RGB, 360mm length.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | NVIDIA GeForce RTX |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 5.0 x16 |
| GPU (Graphics Cards) - Cooler Type | Triple Fan |
| GPU (Graphics Cards) - Color | Black |
| GPU (Graphics Cards) - VRAM Capacity | 32 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR7 |
| GPU (Graphics Cards) - Outputs | DisplayPort 2.1 HDMI 2.1 |
| GPU (Graphics Cards) - Power Connector | 12VHPWR 16-pin |
| GPU (Graphics Cards) - Card Length | Extreme (341-360 mm) |
The Gigabyte AORUS GeForce RTX 5090 MASTER 32G is the ultimate graphics card powered by NVIDIA Blackwell architecture and GeForce RTX 5090 GPU. It features 32GB GDDR7 memory on a 512-bit interface at 28 Gbps, delivering massive bandwidth for 8K gaming, AI creation, and ray tracing with DLSS 4. Boost clock reaches 2655 MHz (reference 2407 MHz) with 21760 CUDA cores.
Advanced WINDFORCE cooling includes Hawk fans with alternate spinning, vapor chamber, superconducting heat pipes, composite metal grease, and server-grade thermal gel for exceptional thermal performance. It supports PCIe 5.0 x16, measures 360x150x75 mm (3.7 slots, ATX), and requires 1000W PSU with 1x 16-pin connector. Outputs: 3x DisplayPort 2.1b, 1x HDMI 2.1b for up to 7680x4320@60Hz on 4 displays. Premium features include Dual BIOS (Performance/Silent), RGB Halo, LCD edge view, reinforced structure, and 4-year warranty (online registration).
- ✅ NVIDIA RTX 5090 | 32GB GDDR7 512-bit 28Gbps
- ✅ 2655 MHz boost | 21760 CUDA cores | PCIe 5.0
- ✅ WINDFORCE 3X | 3 fans | Vapor chamber cooling
- ✅ 3x DP 2.1b + 1x HDMI 2.1b | Max 8K resolution
- ✅ Dual BIOS | RGB | 1000W req. | MPN: GV-N5090AORUS-M-32GD
| Graphics processor | GeForce RTX 5090 |
| Graphics processor family | NVIDIA |
| Core Clock | 2655 MHz (Reference: 2407 MHz) |
| CUDA cores | 21760 |
| Processor frequency | 2655 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Maximum displays per videocard | 4 |
| Discrete graphics card memory | 32 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 512 bit |
| Memory clock speed | 28000 MHz (28 Gbps) |
| Memory bandwidth (max) | 1792 GB/s |
| Interface type | PCI Express x16 5.0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| DisplayPorts quantity | 3 |
| DisplayPort version | 2.1b |
| DirectX version | 12 |
| OpenGL version | 4.6 |
| Cooling type | Active |
| Cooling technology | GIGABYTE WINDFORCE 3X |
| Number of fans | 3 fan(s) |
| Form factor | Full-Height/Full-Length (FH/FL) / ATX |
| Number of slots | 3.7 |
| Product colour | Black |
| Illumination | RGB Halo / Multi |
| Minimum system power supply | 1000 W |
| Supplementary power connectors | 1x 16-pin 12VHPWR |
| Dual BIOS | Yes (Performance / Silent) |
| Warranty period | 4 year(s) (Online registration required) |
| Weight | 2 kg |
| Length | 360 mm |
| Width | 150 mm |
| Height | 75 mm |
| Package width | 345 mm |
| Package depth | 520 mm |
| Package height | 490 mm |
| Package weight | 3 kg |
| Package type | Box |
| Manufacturer Part Number (MPN) | GV-N5090AORUS-M-32GD |
