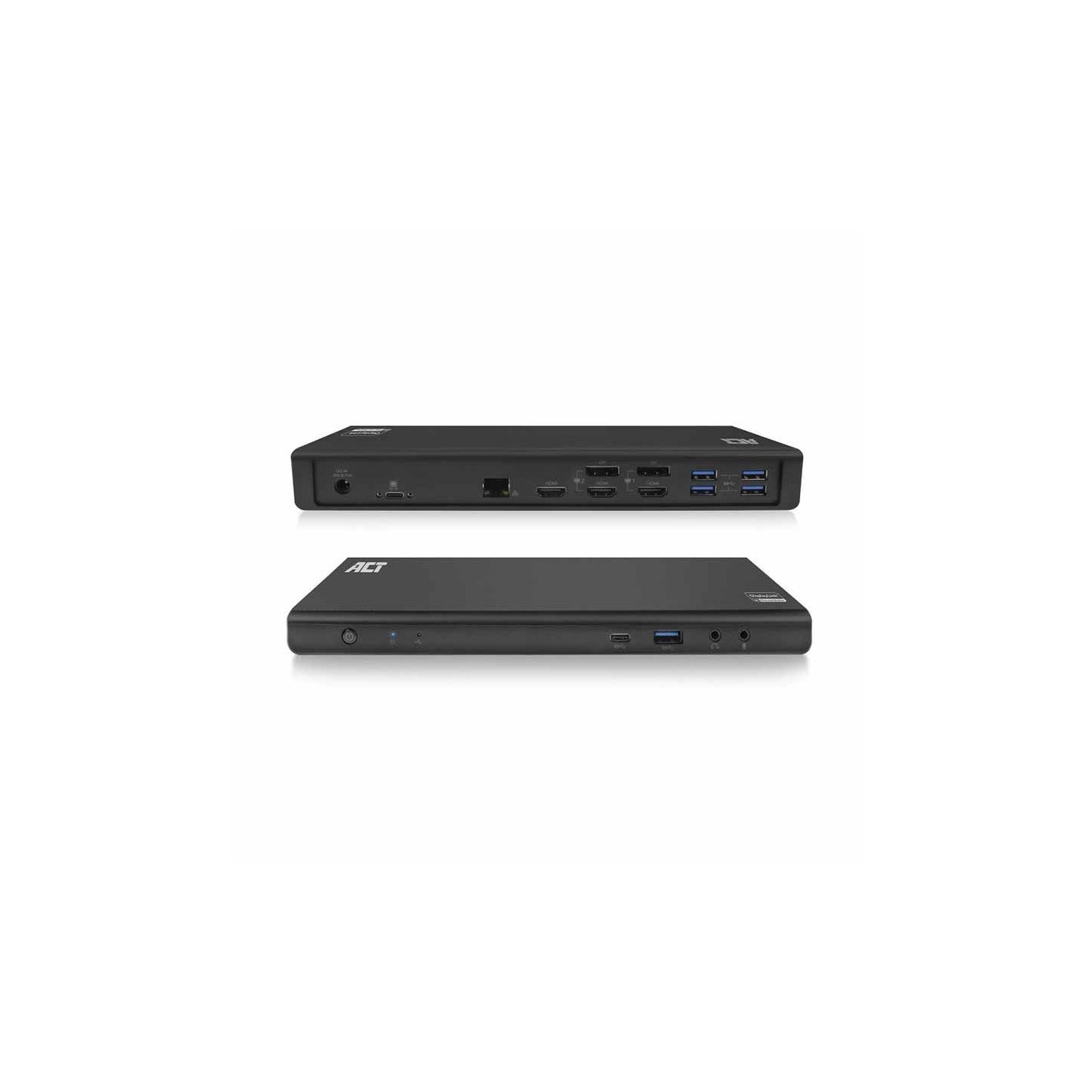

ACT AC7048 USB-C Triple 4K Docking Station (Boxed)
ACT AC7048 USB-C Triple 4K Docking Station connects 3x 4K@60Hz displays via HDMI/DP, 100W PD laptop charging, 5x USB-A, 1x USB-C, Gigabit Ethernet, audio jacks. DisplayLink tech for Windows/Mac. 135W PSU incl.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| USB Hubs & Docking Stations - Host Interface | USB-C |
|---|---|
| USB Hubs & Docking Stations - Downstream Ports | USB-A USB-C |
| USB Hubs & Docking Stations - Video Output | DisplayPort HDMI |
| USB Hubs & Docking Stations - Power Delivery | 100W |
| USB Hubs & Docking Stations - Ethernet | 1 Gbps |
| USB Hubs & Docking Stations - Special Features | Audio Jack Detachable Cable DisplayLink External Power Supply MST Support |
The ACT AC7048 is a universal USB-C docking station that transforms your Windows laptop or MacBook into a full workstation with a single USB-C connection. It supports up to three 4K monitors at 4096x2160@60Hz using DisplayPort 1.4 and HDMI 2.0 ports, leveraging DisplayLink DL-6950 chipset for multi-monitor extension on both platforms.
Equipped with five USB 3.2 Gen1 (5Gbps) Type-A ports, one USB-C port, Gigabit Ethernet (10/100/1000Mbps), dual 3.5mm audio jacks for mic/headphones, and 100W Power Delivery pass-through to charge your laptop. Includes a detachable 100cm USB-C cable and 135W external power supply (20V 6.75A). On/off button for easy peripheral management.
- Host: USB-C with 100W PD
- Video: 3x HDMI, 2x DisplayPort (triple 4K@60Hz)
- USB: 5x USB-A 3.2 Gen1, 1x USB-C
- Network: Gigabit RJ45
- Audio: 2x 3.5mm jacks
- MST & DisplayLink support
- Chipset: DisplayLink DL-6950
| Product Type | USB-C Triple 4K Docking Station |
| Host Interface | USB-C (USB 3.2 Gen 1) |
| Connection Cable | USB-C to USB-C, 100cm, Replaceable |
| Power Delivery | 100W pass-through (12V/5A, 15V/5A, 20V/5A, 9V/5A, 5V/5A) |
| USB Ports | 5x USB-A 3.2 Gen1 5Gbps, 1x USB-C 3.2 Gen1 |
| Display Outputs | 3x HDMI 2.0, 2x DisplayPort 1.4 |
| Max Resolution | 4096x2160 @60Hz (triple displays) |
| MST Support | Yes |
| Ethernet | Gigabit RJ45 (10/100/1000 Mbps) |
| Audio | 2x 3.5mm jack (mic/headphone) |
| Chipset | DisplayLink DL-6950 |
| Power Supply | External 135W (20V 6.75A) |
| Dimensions (WxDxH) | 250 x 84 x 31 mm |
| Color | Black |
