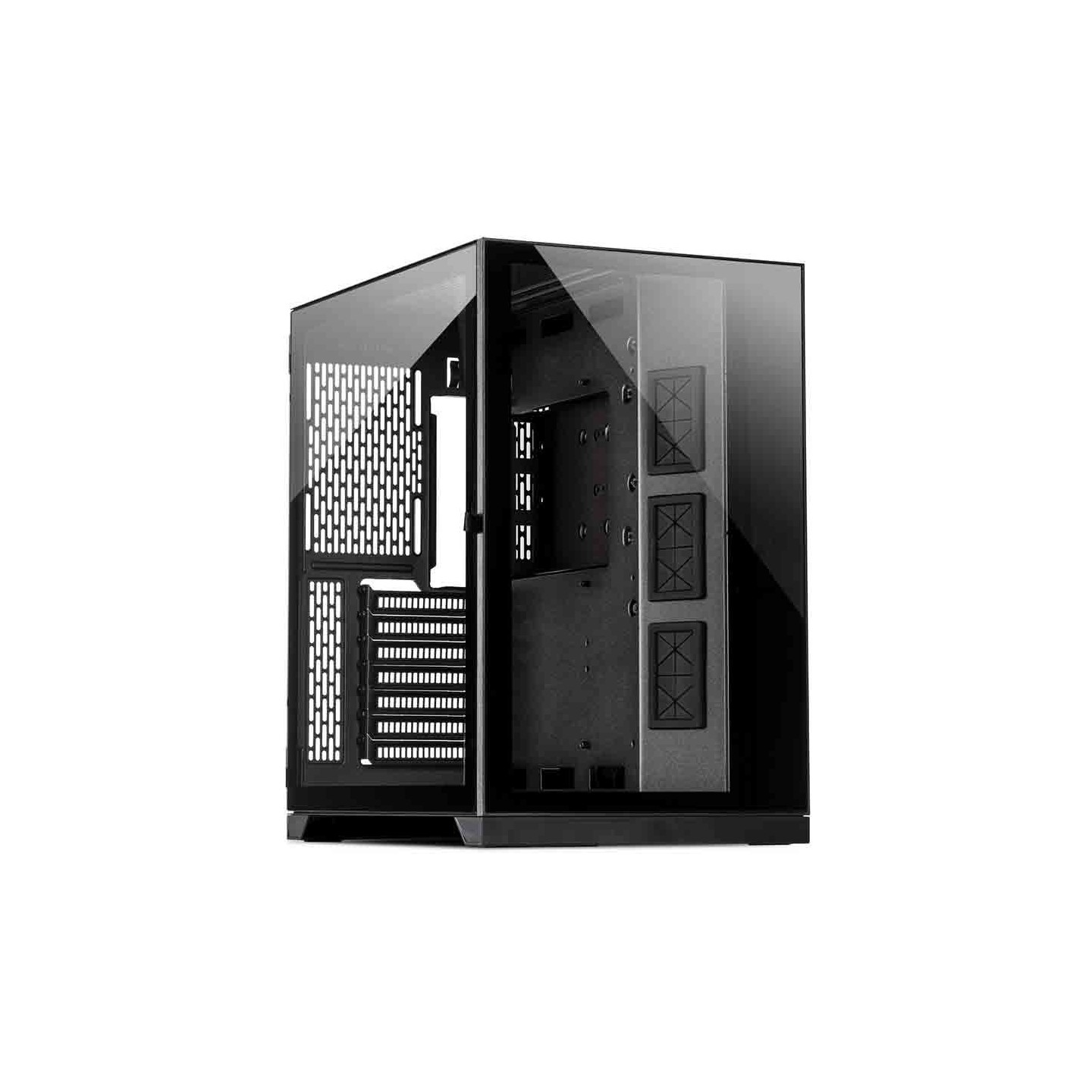

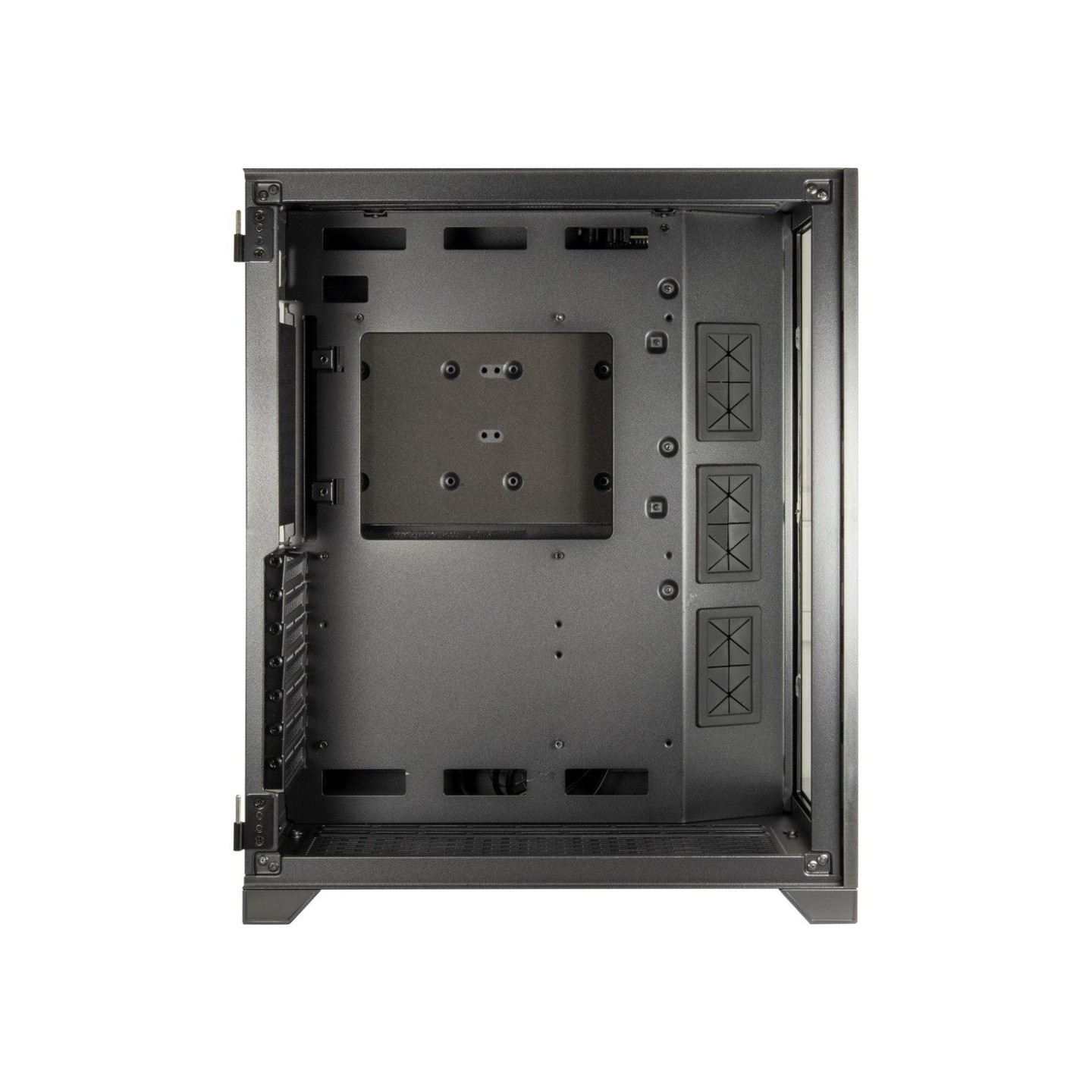

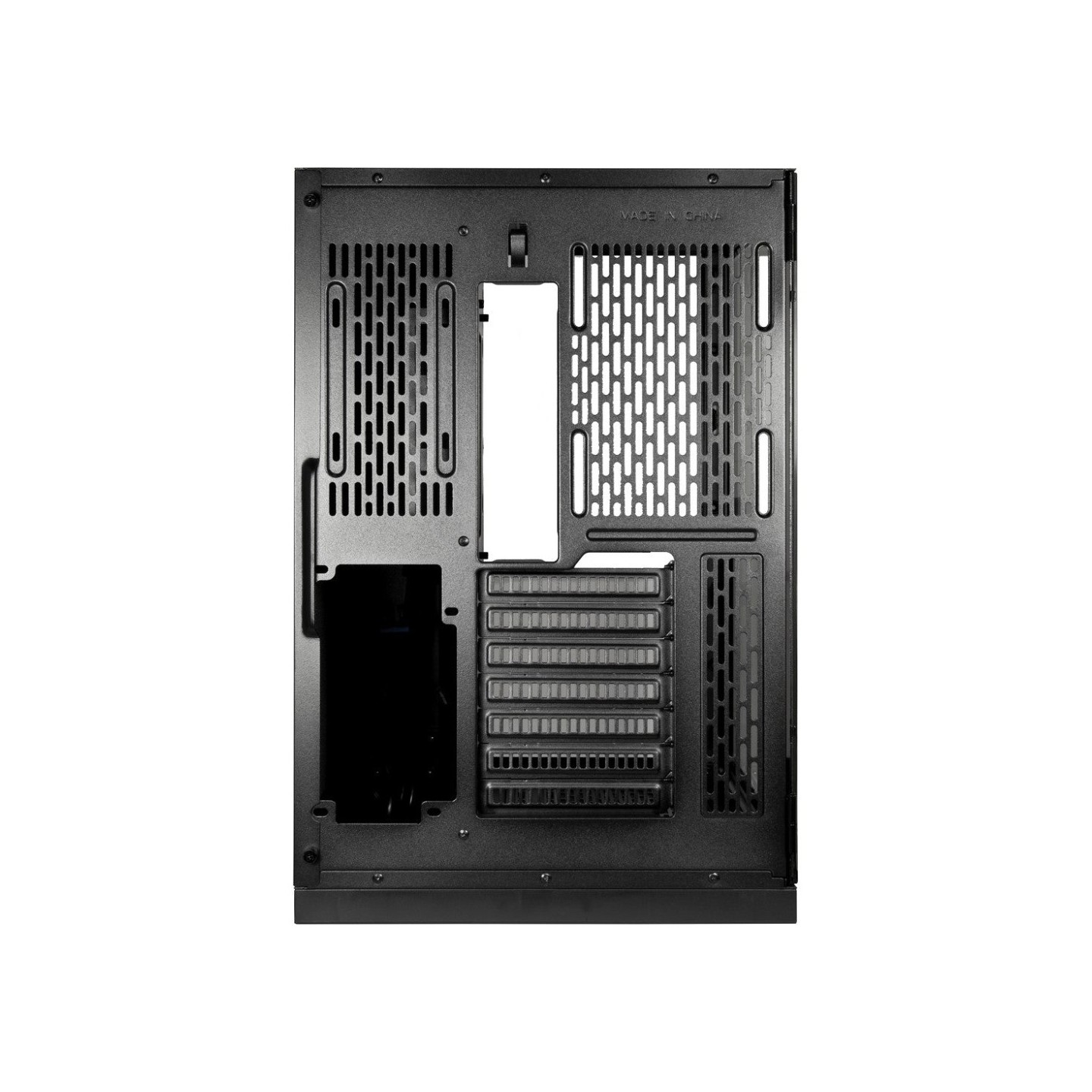

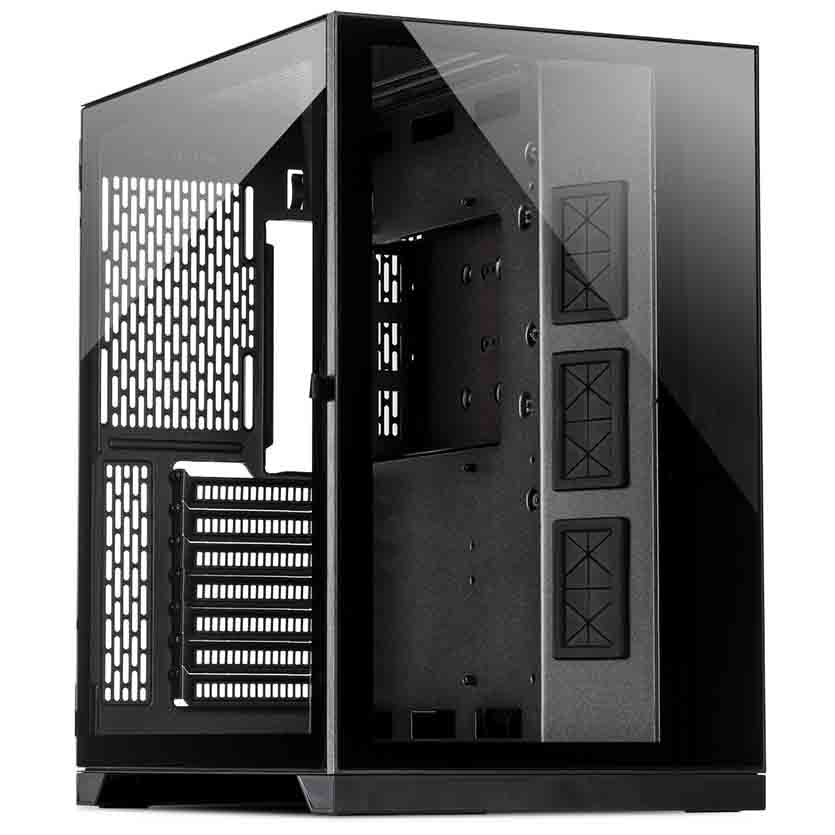

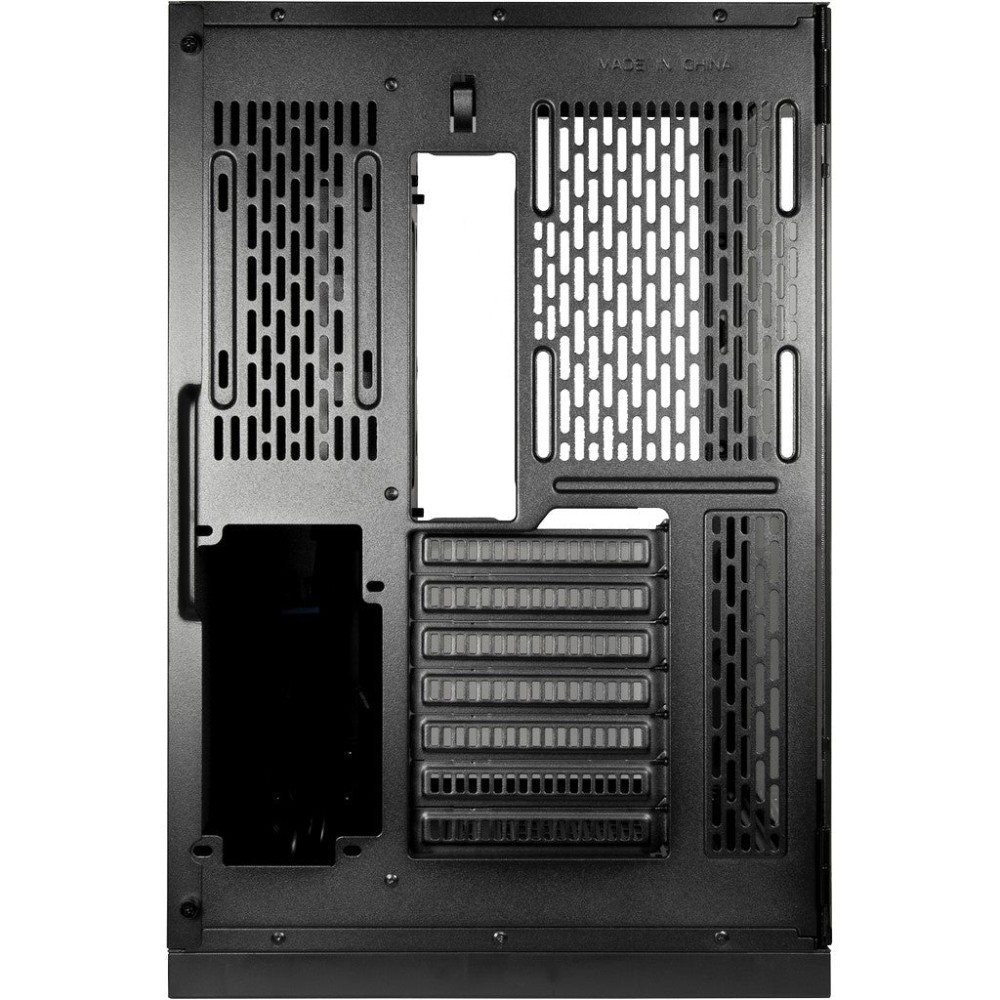

Inter-Tech C-702 Diorama ATX Mid Tower Case - No Fans/PSU (Boxed)
Inter-Tech C-702 Diorama is a black ATX mid-tower case w/o PSU & fans. Supports 160mm CPU coolers, 325mm GPUs, 120/240/280mm radiators. Tempered glass panels, 2x3.5" + 3x2.5" bays, magnetic dust filters. Dimensions: 430x285x360mm.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PC Cases - Motherboard Support | ATX Micro ATX Mini ITX |
|---|---|
| PC Cases - Radiator Support | 120 mm 240 mm 280 mm |
| PC Cases - Included Fans | 0 |
| PC Cases - Front I/O | Audio Jacks USB A |
| PC Cases - Form Factor | Mid Tower |
| PC Cases - Max GPU Length | 301–330 mm |
| PC Cases - Color | Black |
| PC Cases - CPU Cooler Clearance | 151-165 mm |
The Inter-Tech C-702 Diorama is a stylish ATX mid-tower PC case designed for gamers and builders seeking a balance of performance, cooling, and aesthetics. Featuring large tempered glass front and side panels with magnetic tool-free access, it showcases your components while providing excellent airflow potential. No power supply or fans are included, giving you full customization freedom.
Key specs include support for ATX, Micro-ATX, and ITX motherboards, up to 160mm CPU coolers, and 325mm graphics cards. Storage options are generous with 2x 3.5" HDD bays and 3x 2.5" SSD bays (2 dedicated + 1 rear mount). Front I/O offers 1x USB 3.0, 2x USB 2.0, and audio jacks. Cooling supports up to 5x 120mm or 4x 140mm fans, plus 120/240/280mm radiators at top/bottom.
- Tempered glass front & side panels with magnetic locks
- Drive bays: 2x 3.5" internal, 3x 2.5" (2+1 rear)
- Fan mounts: Rear 1x120mm, Top/Bottom 2x120/140mm each
- Dust filters: Magnetic top/side, bottom filter
- Cable management: Rubber grommets, velcro ties, PSU shroud
- PSU: ATX mount behind motherboard tray
| Form Factor | ATX, Micro-ATX, Mini-ITX |
| Dimensions (HxWxD) | 430 x 285 x 360 mm |
| CPU Cooler Max Height | 160 mm |
| GPU Max Length | 325 mm |
| 3.5 | 2 |
| 2.5 | 3 (2 dedicated + 1 rear) |
| Front USB 3.0 | 1x |
| Front USB 2.0 | 2x |
| Front Audio | 1x Mic, 1x Headphone |
| Fan Mounts Rear | 1x 120 mm |
| Fan Mounts Top | 2x 120/140 mm |
| Fan Mounts Bottom | 2x 120/140 mm |
| Radiator Support | 120 mm, 240 mm, 280 mm |
| Power Supply | ATX (not included) |
| Side Panel | Tempered Glass |
| Front Panel | Tempered Glass |
| Included Fans | 0 |
| Color | Black |
