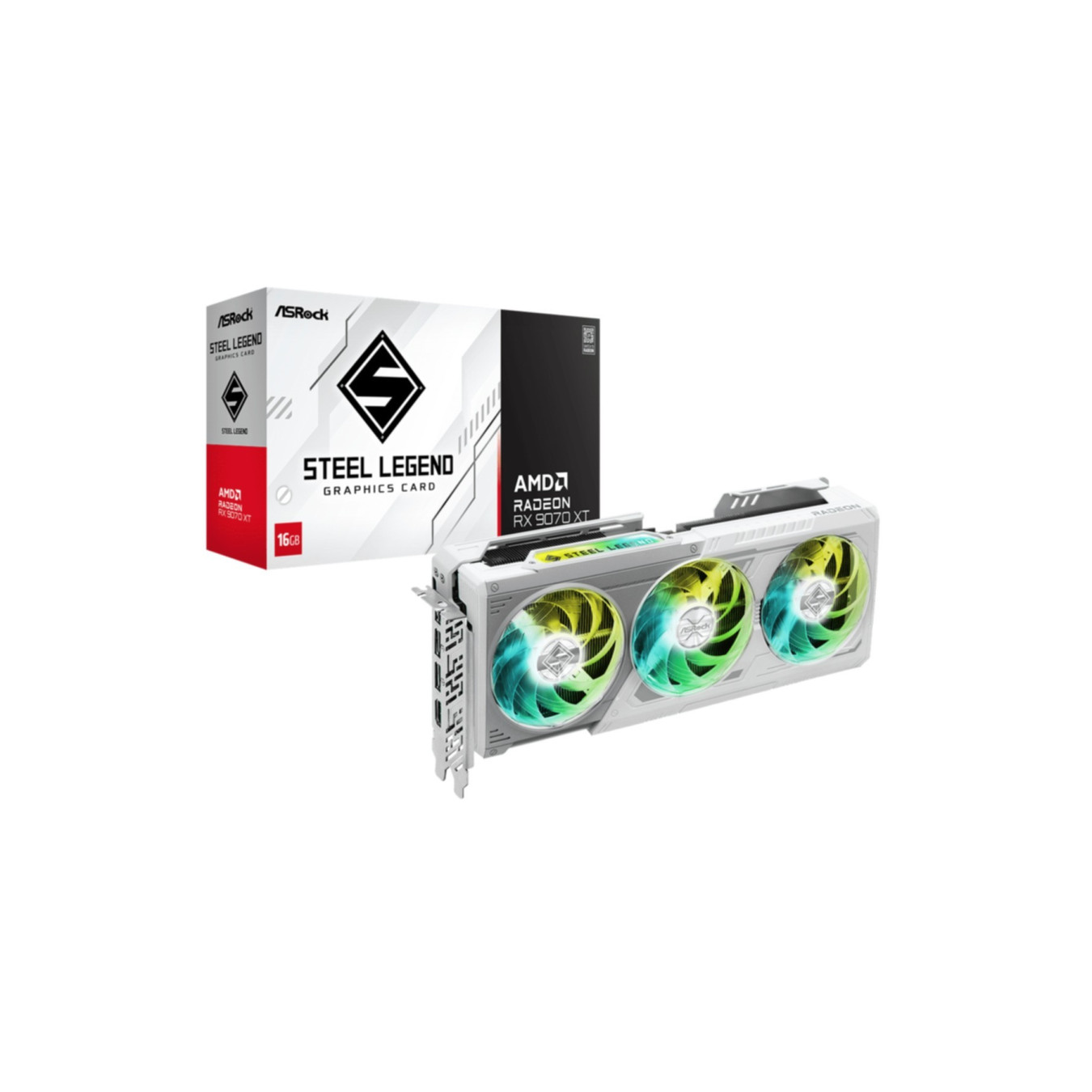

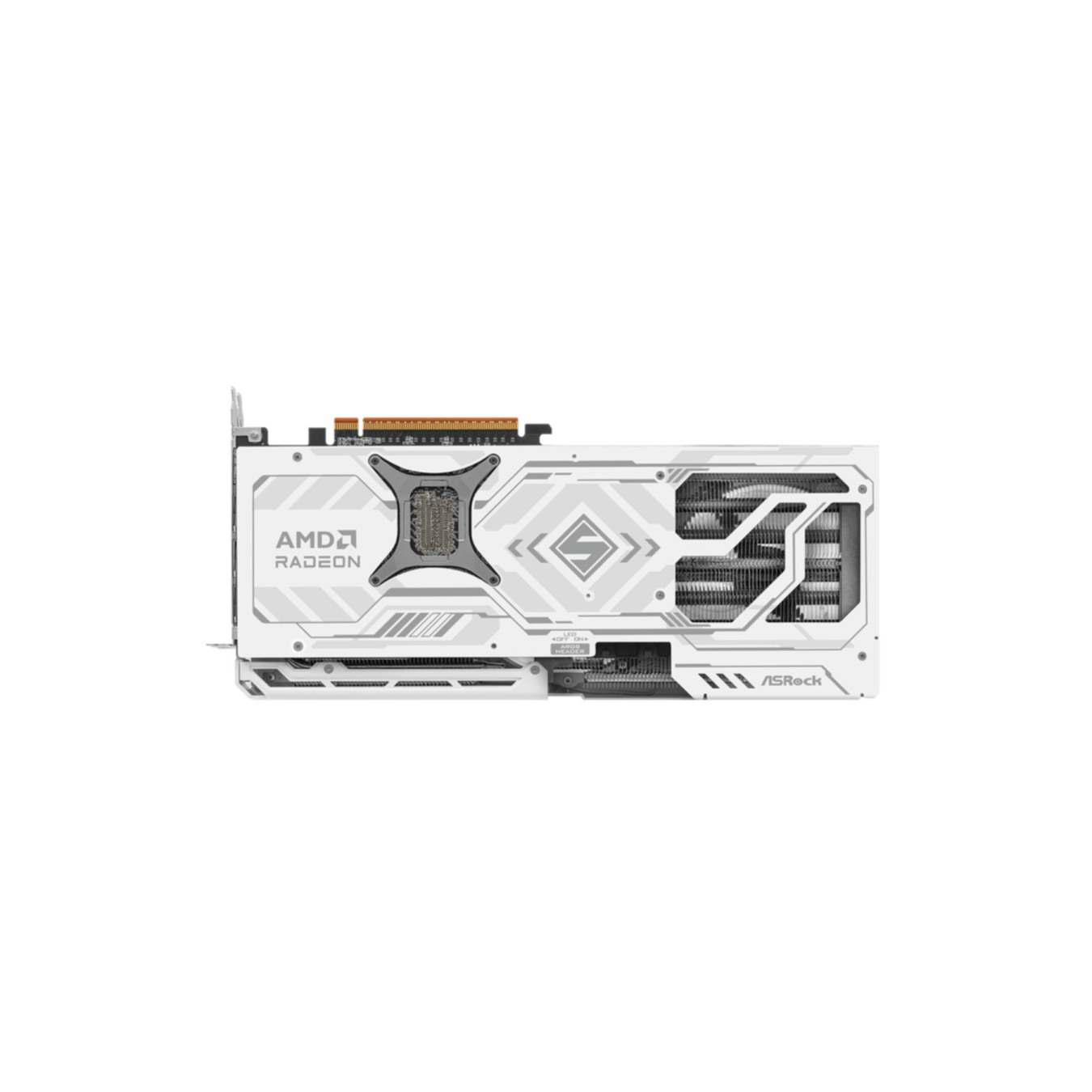

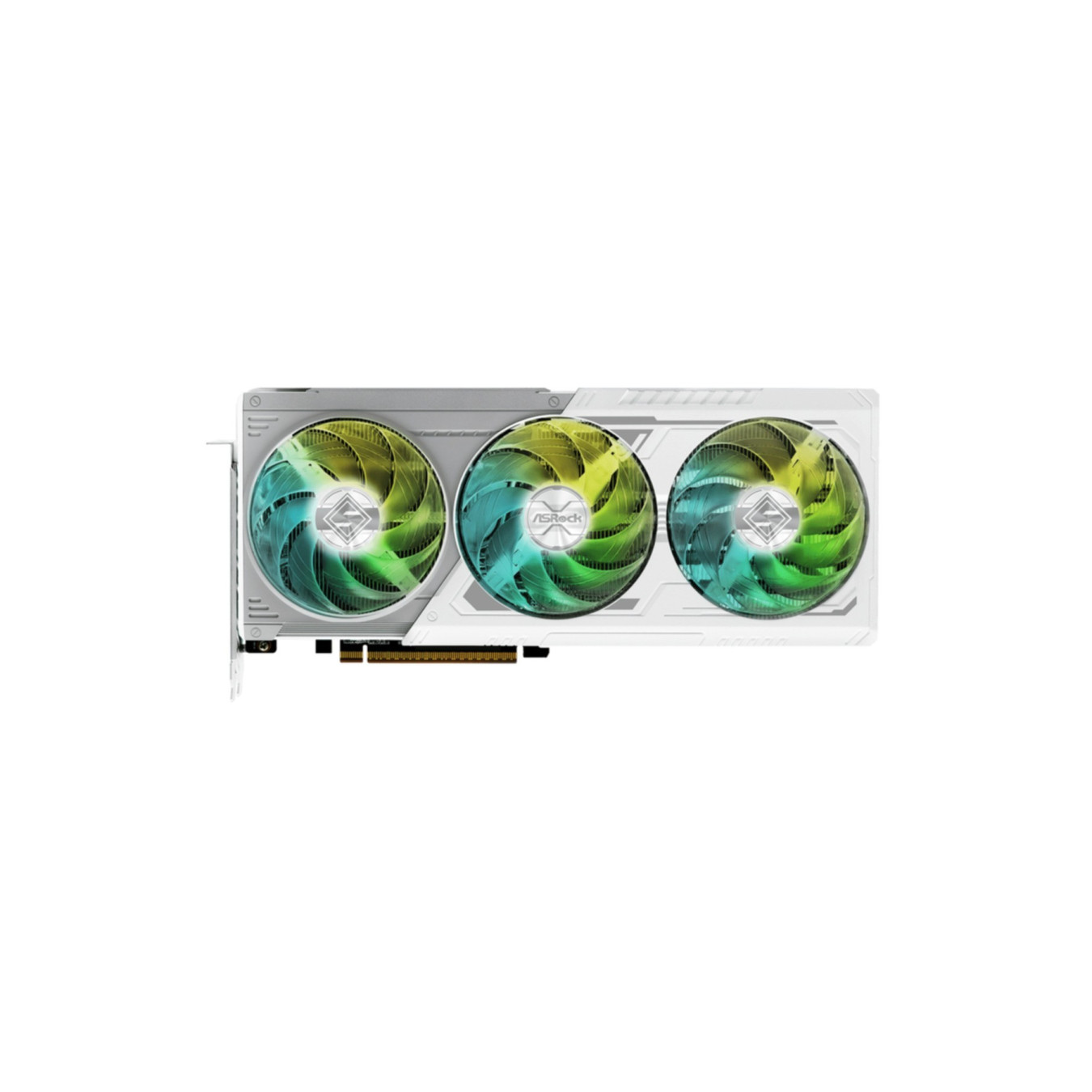

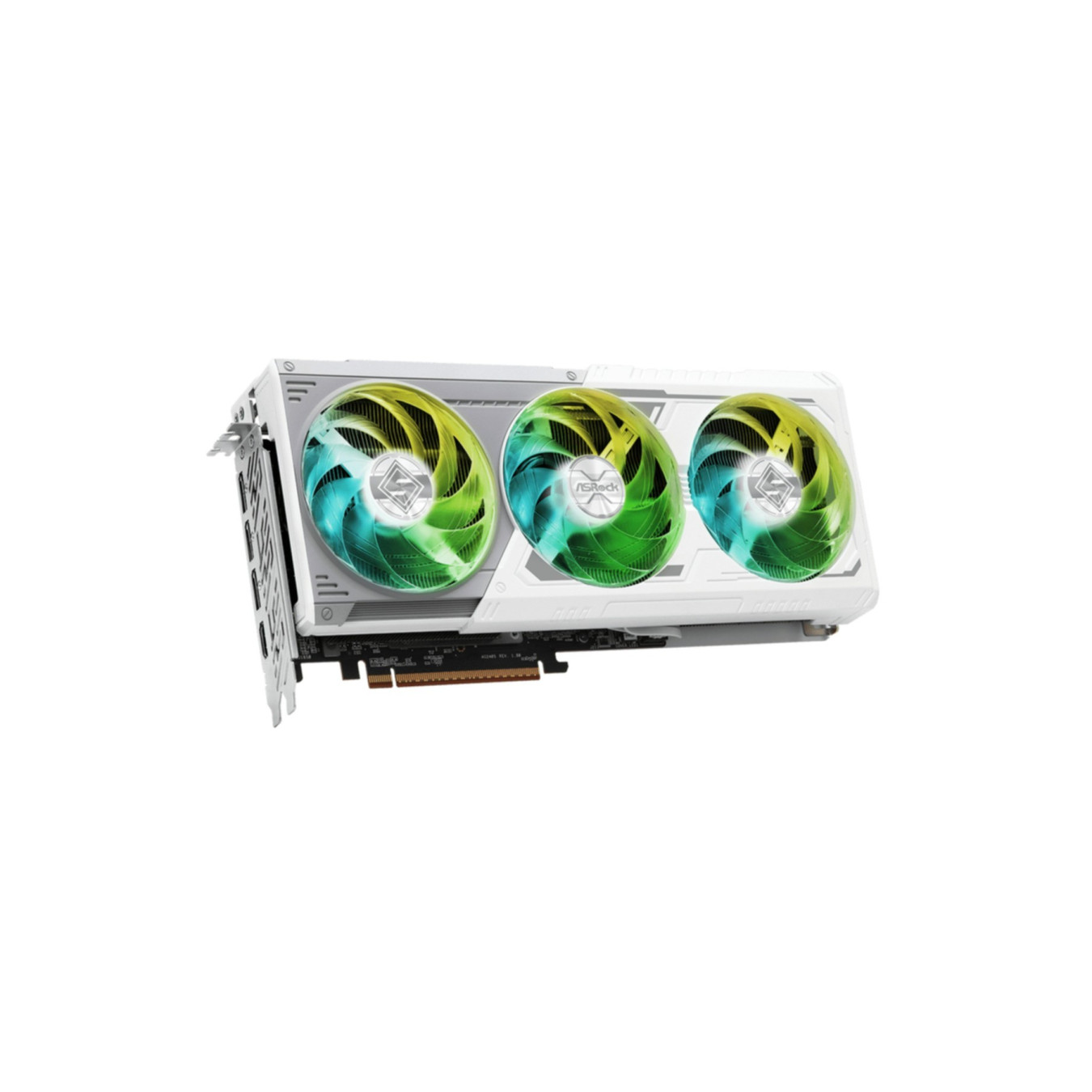

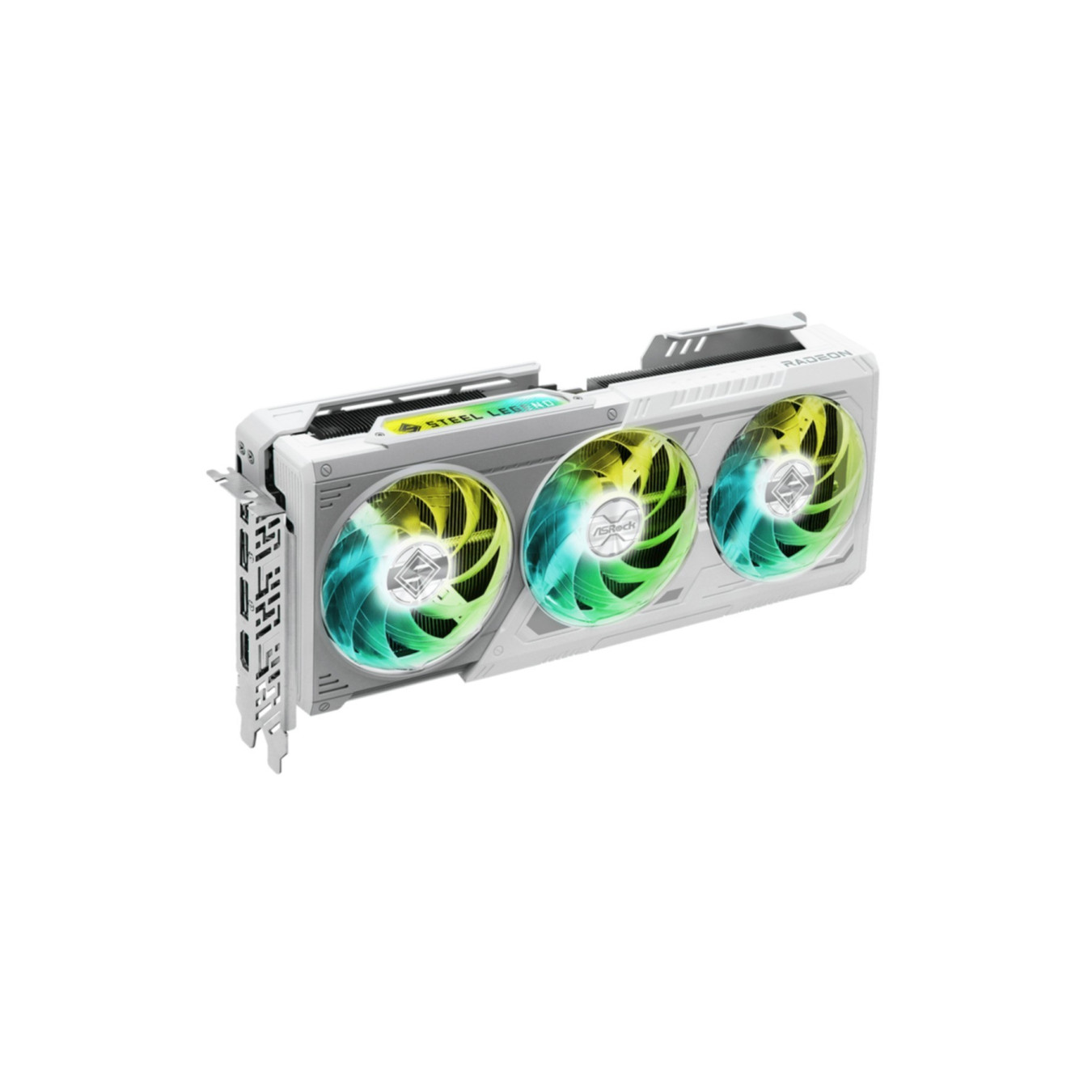

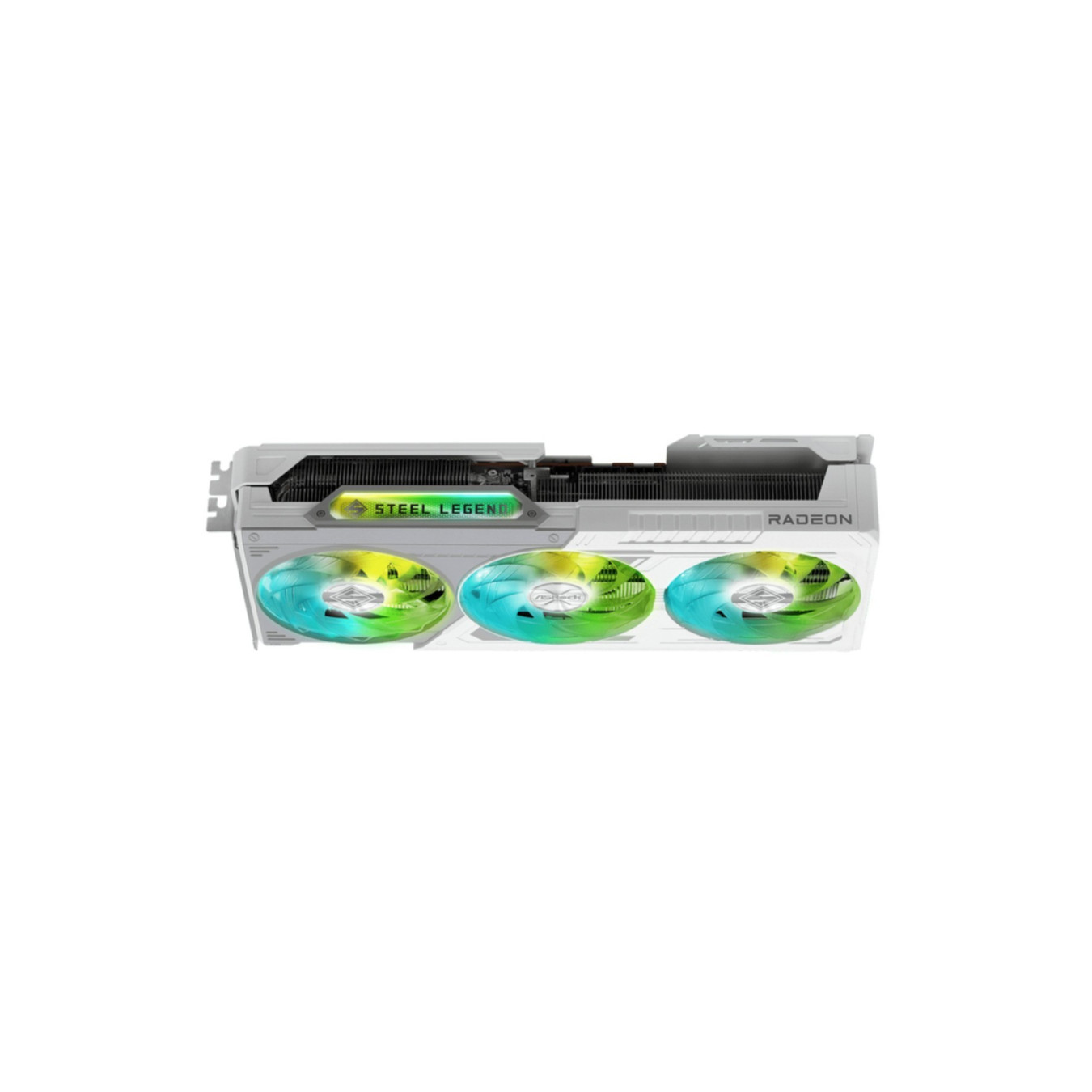

ASRock Radeon RX 9070 XT Steel Legend 16GB GDDR6 - PCIe 5.0 Triple-Fan Graphics Card
ASRock Radeon RX 9070 XT Steel Legend with 16GB GDDR6, 2970 MHz boost, PCIe 5.0, triple-fan cooling, ARGB lighting, and support for up to 7680x4320 resolution.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | AMD Radeon RX |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 5.0 x16 |
| GPU (Graphics Cards) - Cooler Type | Triple Fan |
| GPU (Graphics Cards) - Color | Black |
| GPU (Graphics Cards) - Backplate | Yes |
| GPU (Graphics Cards) - VRAM Capacity | 16 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR6 |
| GPU (Graphics Cards) - Outputs | DisplayPort 2.1 HDMI 2.1 |
| GPU (Graphics Cards) - Power Connector | 2x8-pin |
| GPU (Graphics Cards) - Card Length | Large (281-300 mm) |
The ASRock Radeon RX 9070 XT Steel Legend is a high-performance graphics card built on AMD's latest RDNA 4 architecture, featuring 64 compute units and 4096 stream processors. With 16GB of GDDR6 memory on a 256-bit bus, this card delivers exceptional performance for 4K gaming, content creation, and professional workloads. The card operates at a game clock of 2400 MHz with a boost clock reaching up to 2970 MHz, providing excellent performance headroom for demanding applications.
The Steel Legend design emphasizes both aesthetics and cooling efficiency with a triple-fan cooling system, reinforced metal frame, stylish metal backplate, and integrated ARGB LEDs that synchronize with compatible ASRock motherboards via Polychrome SYNC. Connectivity is comprehensive with 3x DisplayPort 2.1a and 1x HDMI 2.1b outputs, supporting resolutions up to 7680x4320. The card requires 2x PCIe 8-pin power connectors and has a TDP of 304W, with an 800W power supply recommended for stable operation. Built on PCIe 5.0 x16 interface, it offers maximum bandwidth for modern systems.
Key specifications include FreeSync support for AMD-based systems, HDCP compliance, and a compact form factor at 298mm length with 2.9-slot width, making it compatible with most modern PC cases. The card was released in March 2025 and ranks 8th in performance benchmarks among current-generation graphics cards.
- 16GB GDDR6 256-bit memory with 20 Gbps memory clock
- 2400 MHz game clock / 2970 MHz boost clock
- 4096 stream processors with 64 RDNA 4 compute units
- 3x DisplayPort 2.1a + 1x HDMI 2.1b connectivity
- Triple-fan cooling with metal backplate and reinforced frame
- Integrated ARGB LEDs with Polychrome SYNC support
- 2x PCIe 8-pin power connectors, 304W TDP
- PCIe 5.0 x16 interface, FreeSync support
- Maximum resolution: 7680x4320
| GPU Chipset | AMD Radeon RX 9070 XT |
| Architecture | RDNA 4 |
| Compute Units | 64 |
| Stream Processors | 4096 |
| Memory Capacity | 16 GB |
| Memory Type | GDDR6 |
| Memory Interface | 256-bit |
| Memory Clock | 20 Gbps |
| Game Clock | 2400 MHz |
| Boost Clock | 2970 MHz |
| PCIe Interface | PCIe 5.0 x16 |
| DirectX Support | DirectX 12 Ultimate |
| OpenGL Support | OpenGL 4.6 |
| Maximum Resolution | 7680 x 4320 |
| DisplayPort Outputs | 3x DisplayPort 2.1a |
| HDMI Outputs | 1x HDMI 2.1b |
| Power Connectors | 2x PCIe 8-pin |
| TDP | 304 W |
| Recommended PSU | 800 W |
| Cooling System | Triple-Fan Design |
| Card Length | 298 mm |
| Card Height | 131 mm |
| Card Depth | 58 mm |
| Slot Width | 2.9 slots |
| Card Weight (Unboxed) | 1155 g |
| Backplate | Metal Backplate |
| FreeSync Support | Yes |
| G-SYNC Support | No |
| HDCP Support | Yes |
| Multi-View Support | 4 |
| RGB Lighting | ARGB with Polychrome SYNC |
| Release Date | March 2025 |
