PHC0300 SOLAR CONNECTOR SET, MC4 M F FOR 2.5 4 6 mm2 CABLES, LOGILINK
PHC0300 SOLAR CONNECTOR SET, MC4 M/F FOR 2.5/4/6 mm² CABLES, LOGILINK

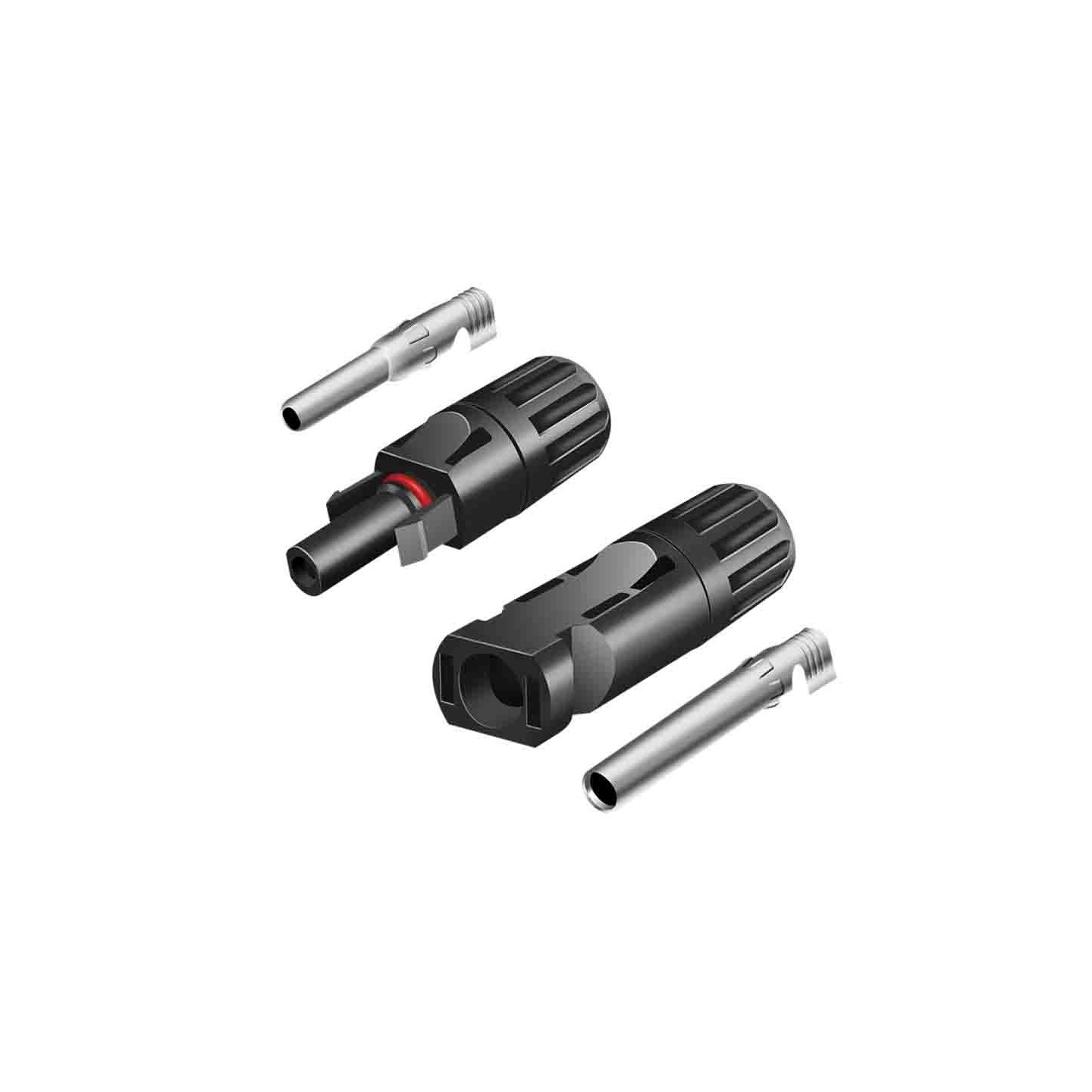

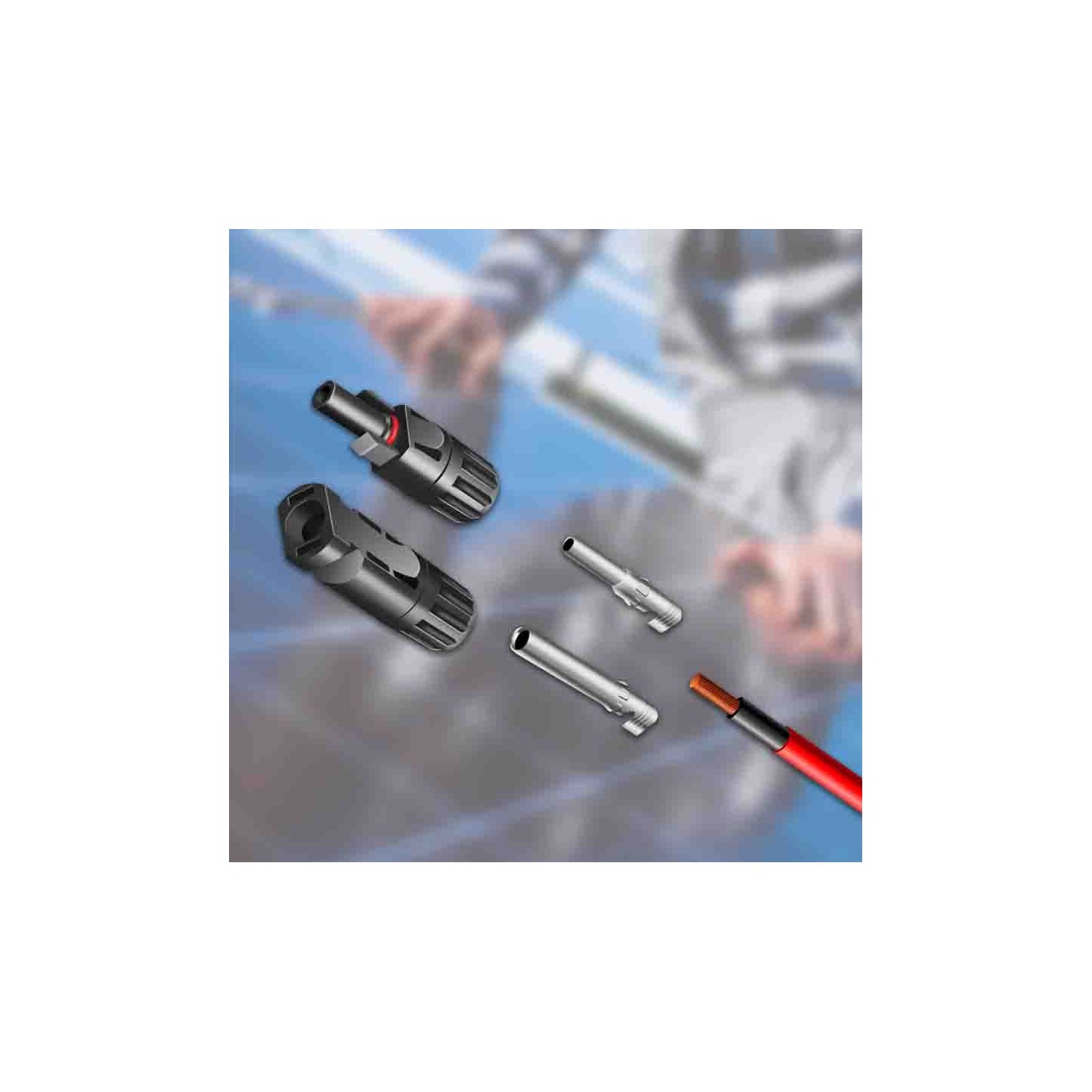

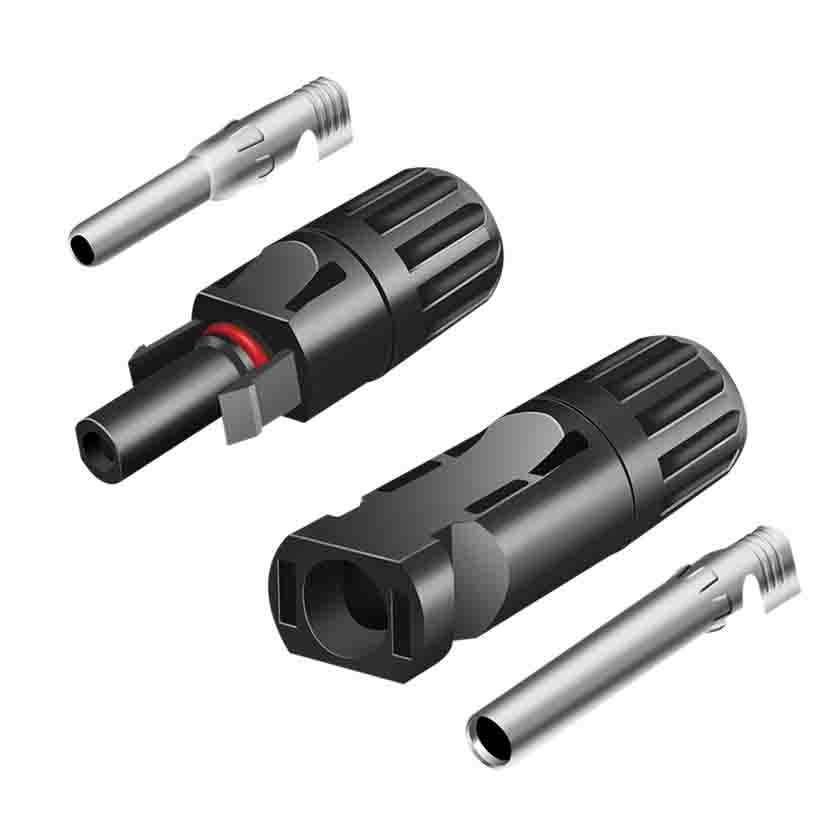

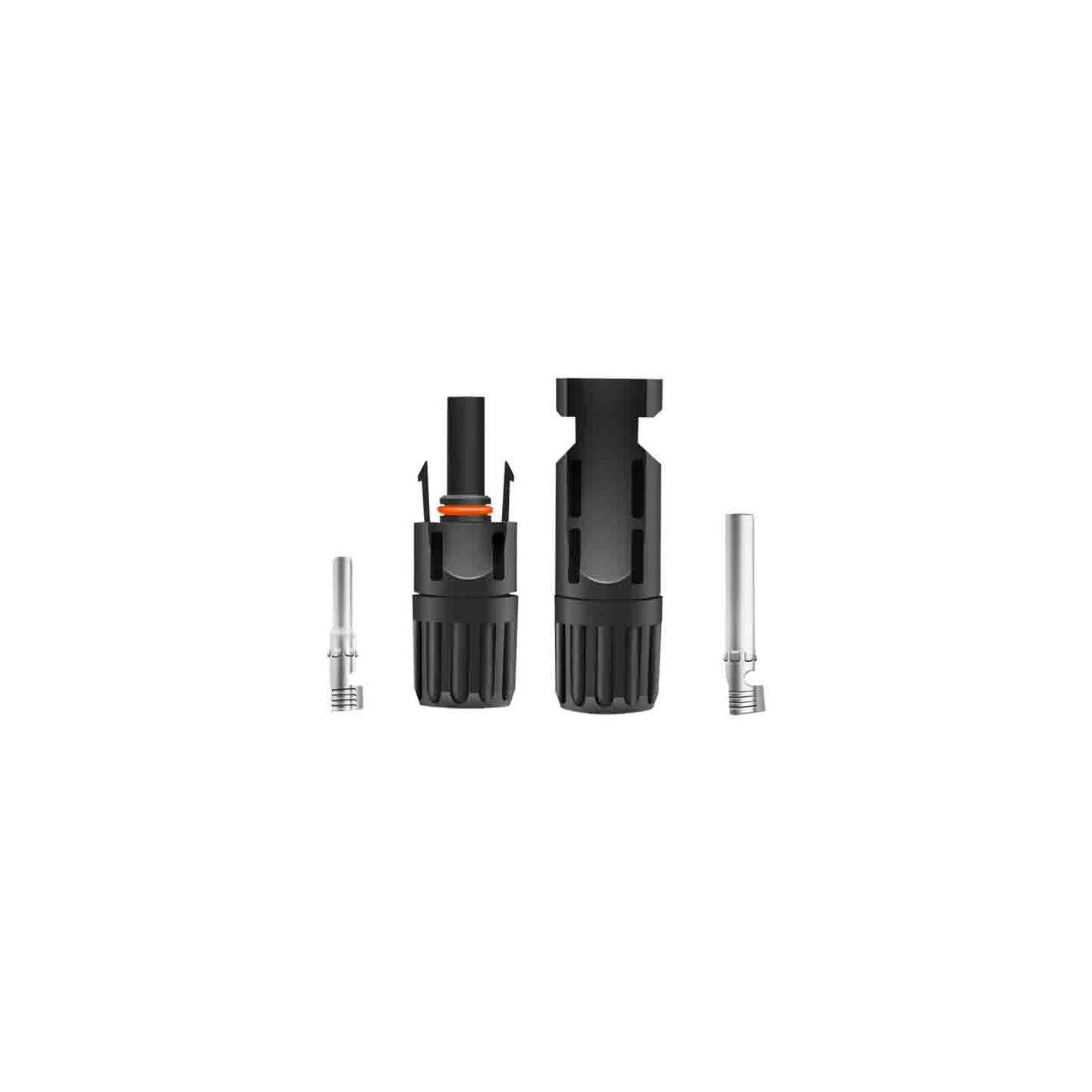

Connector 1: MC4 (Male)
Connector 2: MC4 (Female)
Set of 2 pcs / TUV Certified
Conform with IEC 62852:2015
Protection class: IP67 ...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
PHC0300 SOLAR CONNECTOR SET, MC4 M/F FOR 2.5/4/6 mm² CABLES, LOGILINK
Connector 1: MC4 (Male)
Connector 2: MC4 (Female)
Set of 2 pcs / TUV Certified
Conform with IEC 62852:2015

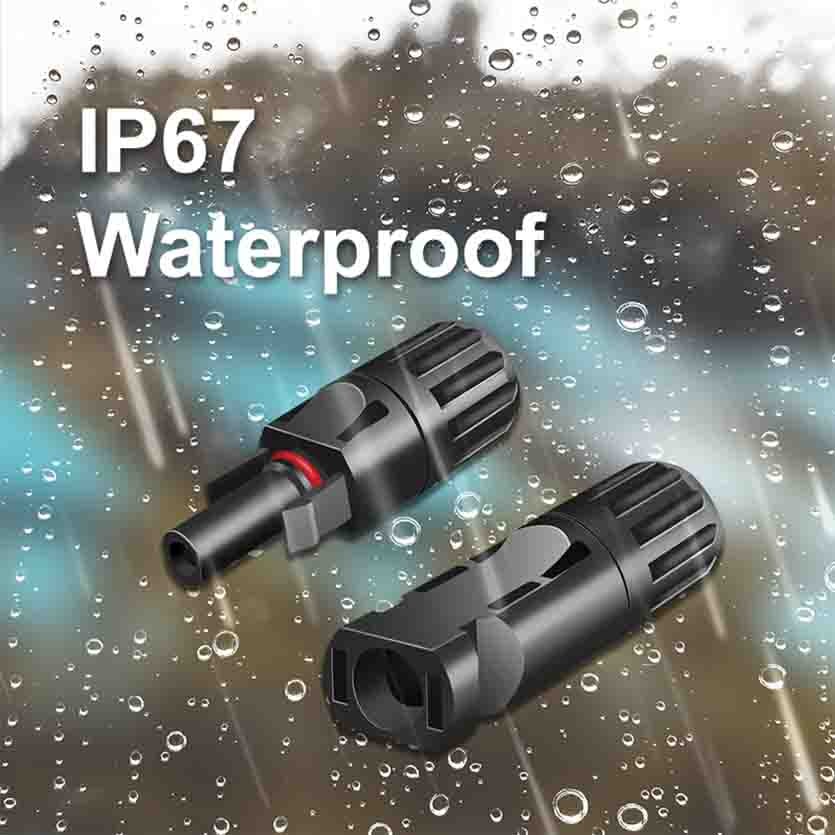

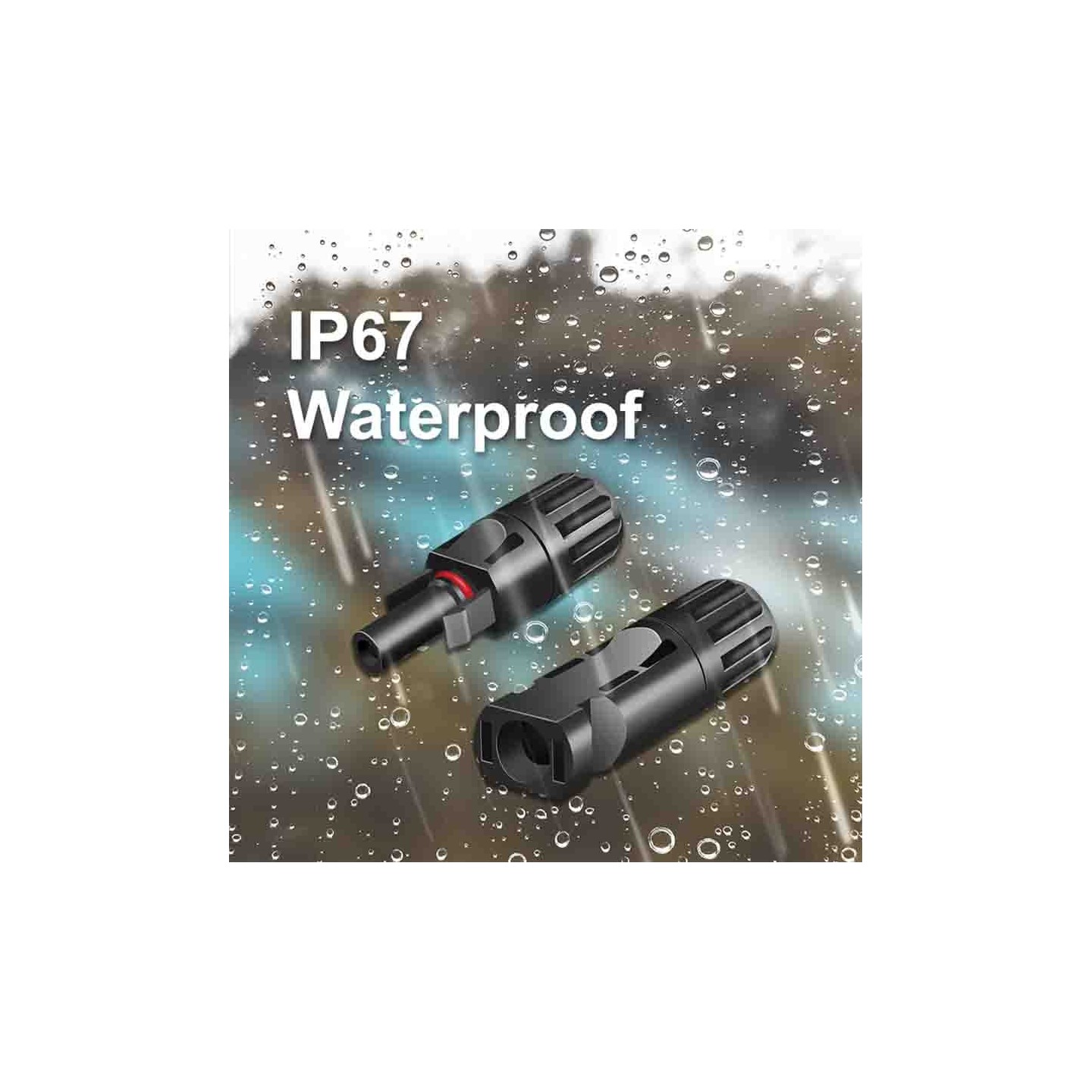

Protection class: IP67 / Flame class: UL94V-0
Rated Voltage: 1000V
Rated Current: 30A (DC)
Temperature range of work environment: -40 oC to 85 oC
Suitable for cables with a wire cross – section of 2.5 to 6mm2
Conform to safety class II
Plastic housing
Color: Black
Packaging: PE Bag
Weight: 0.019kg
