ASUS Dual GeForce RTX 5060 OC 8GB GDDR7 2535MHz Boost Black/Grey (Boxed)
ASUS Dual RTX 5060 OC Edition: 8GB GDDR7, 2535MHz boost (OC 2565MHz), PCIe 5.0. Dual Axial-tech fans cool this VR-ready GPU for 1080p/1440p gaming with DLSS 4. 3xDP 2.1b, HDMI 2.1b.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | NVIDIA GeForce RTX |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 5.0 x16 |
| GPU (Graphics Cards) - Cooler Type | Dual Fan |
| GPU (Graphics Cards) - Color | Black |
| GPU (Graphics Cards) - Backplate | No |
| GPU (Graphics Cards) - VRAM Capacity | 8 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR7 |
| GPU (Graphics Cards) - Outputs | DisplayPort 2.1 HDMI 2.1 |
| GPU (Graphics Cards) - Power Connector | 1x8-pin |
| GPU (Graphics Cards) - Card Length | Standard (221-260 mm) |
The ASUS Dual GeForce RTX 5060 OC delivers excellent 1080p gaming performance with boosts up to 1440p using DLSS 4. Featuring 3840 CUDA cores, 8GB GDDR7 memory on a 128-bit bus, and NVIDIA's latest Blackwell architecture, this GPU excels in modern titles like Cyberpunk 2077 and Black Myth: Wukong when paired with AI upscaling. The compact dual-fan design with Axial-tech cooling keeps temperatures low during extended sessions, making it ideal for small form factor builds.
Equipped with PCIe 5.0 interface, it supports up to 4 displays at 8K resolution (7680x4320). Connectivity includes 3x DisplayPort 2.1b and 1x HDMI 2.1b for future-proof setups. VR-ready and powered by a single 8-pin connector, it requires a 550W PSU minimum. The Full-Height/Half-Length form factor (228mm long) fits most cases while weighing just 647g.
- Boost Clock: 2535 MHz (2565 MHz OC Mode)
- Memory: 8GB GDDR7 @ 28 Gbps
- Cooling: 2x Axial-tech Fans, Active
- Power: 1x 8-pin, 550W min PSU

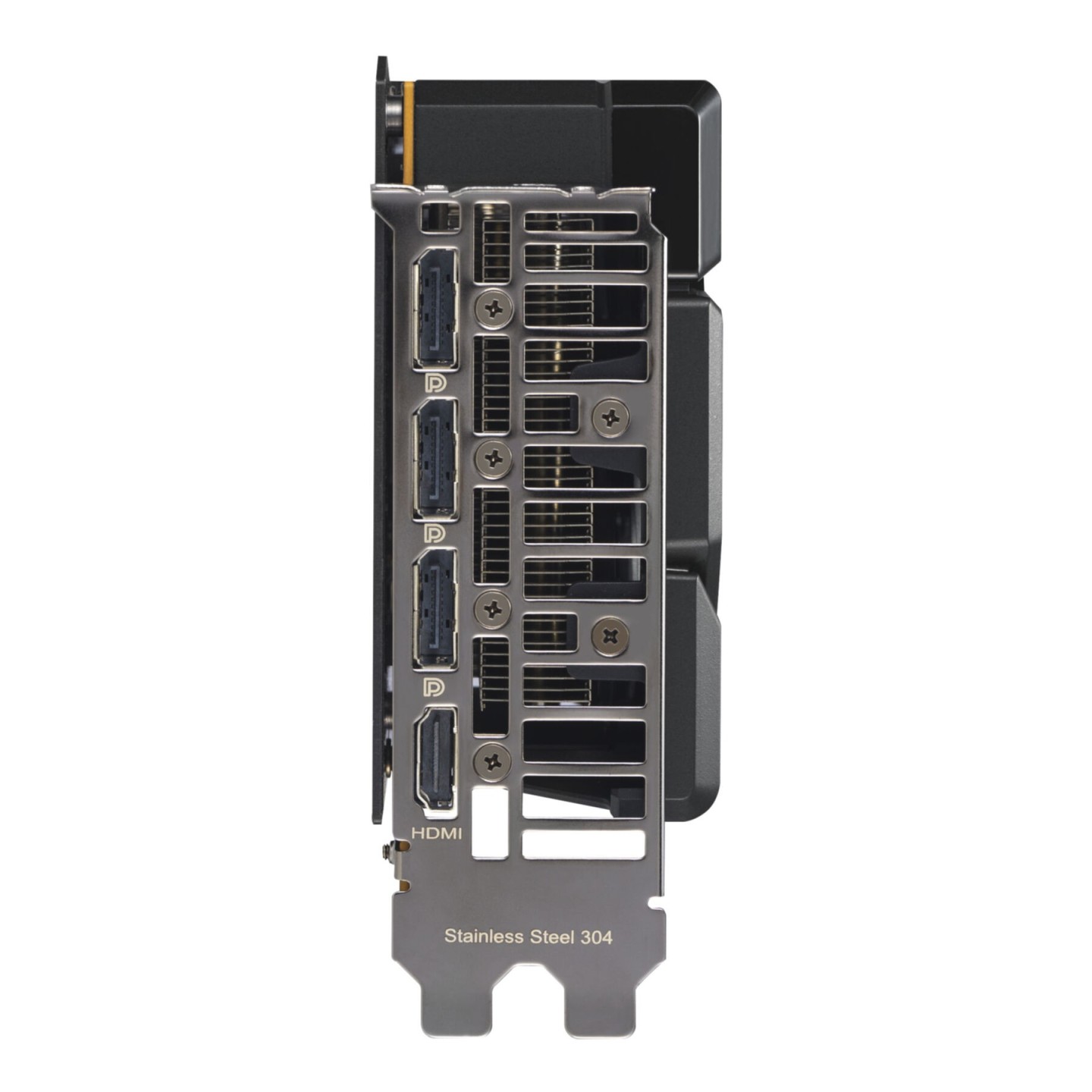

- Outputs: 3x DP 2.1b, 1x HDMI 2.1b
- Dimensions: 228 x 123 x 50 mm
| CUDA cores | 3840 |
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5060 |
| Processor boost clock speed | 2535 MHz |
| Processor frequency (OC mode) | 2565 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 128 bit |
| Data transfer rate | 28 Gbit/s |
| Interface type | PCI Express 5.0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| DisplayPorts quantity | 3 |
| DisplayPort version | 2.1b |
| OpenGL version | 4.6 |
| HDCP version | 2.3 |
| NPU performance up to | 623 TOPs |
| Cooling type | Active |
| Cooling technology | ASUS Axial-tech |
| Number of fans | 2 fan(s) |
| Form factor | Full-Height/Half-Length (FH/HL) |
| Number of slots | 2.5 |
| Product colour | Black/Grey |
| Minimum system power supply | 550 W |
| Supplementary power connectors | 1x 8-pin |
| Weight | 647 g |
| Length | 228 mm |
| Depth | 50 mm |
| Height | 123 mm |
| Package width | 368 mm |
| Package depth | 220 mm |
| Package height | 68 mm |
| Package weight | 1.11 kg |
| Package type | Box |
