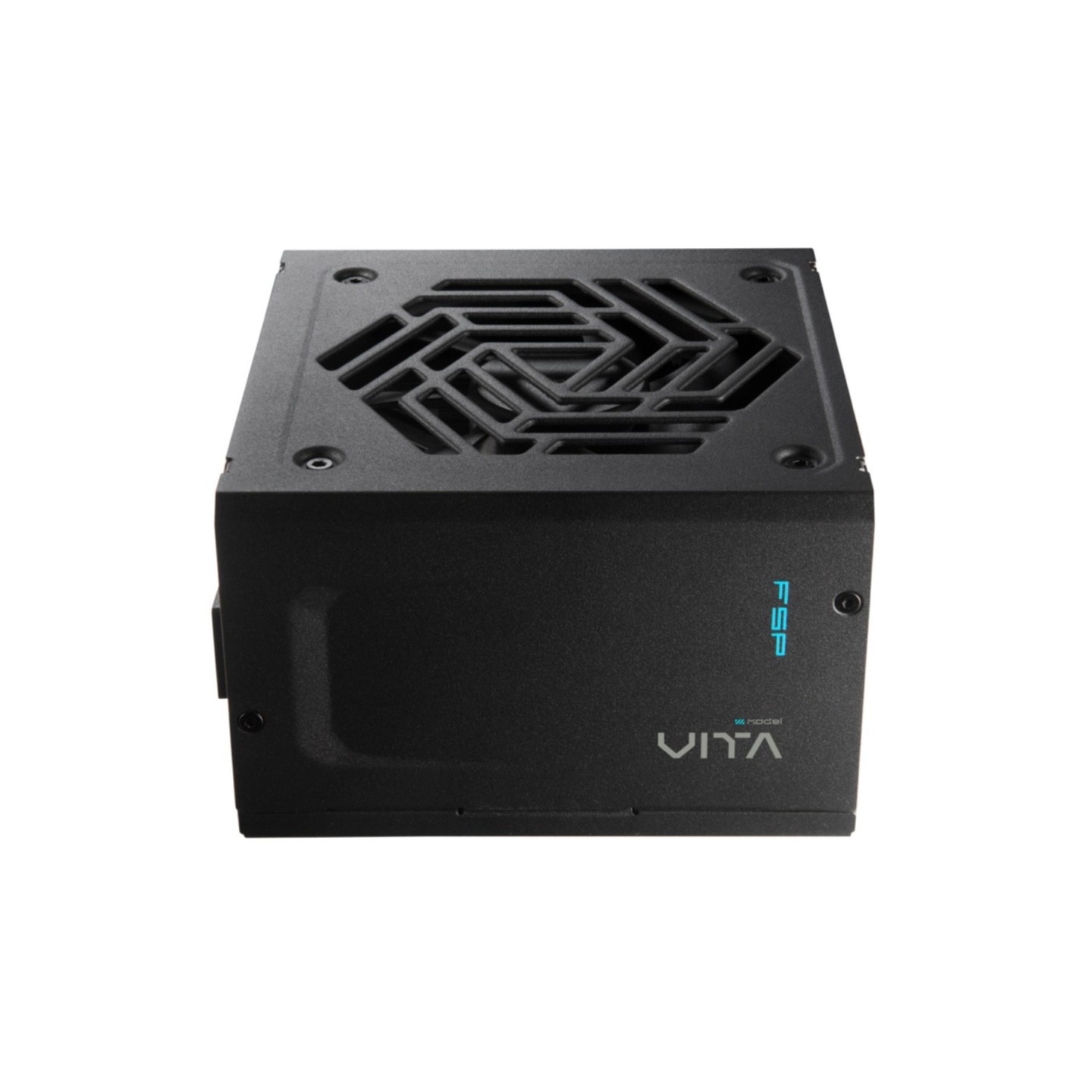

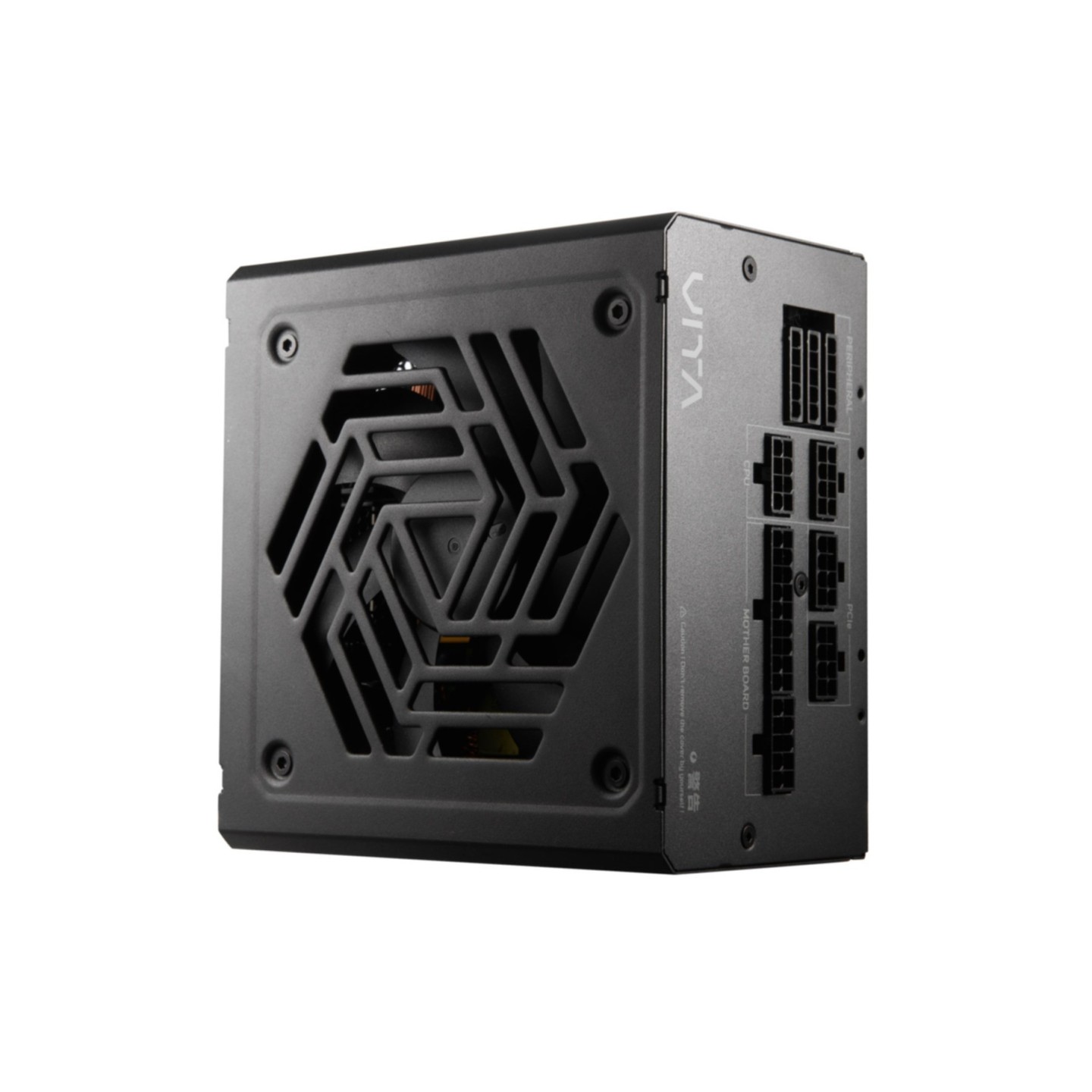

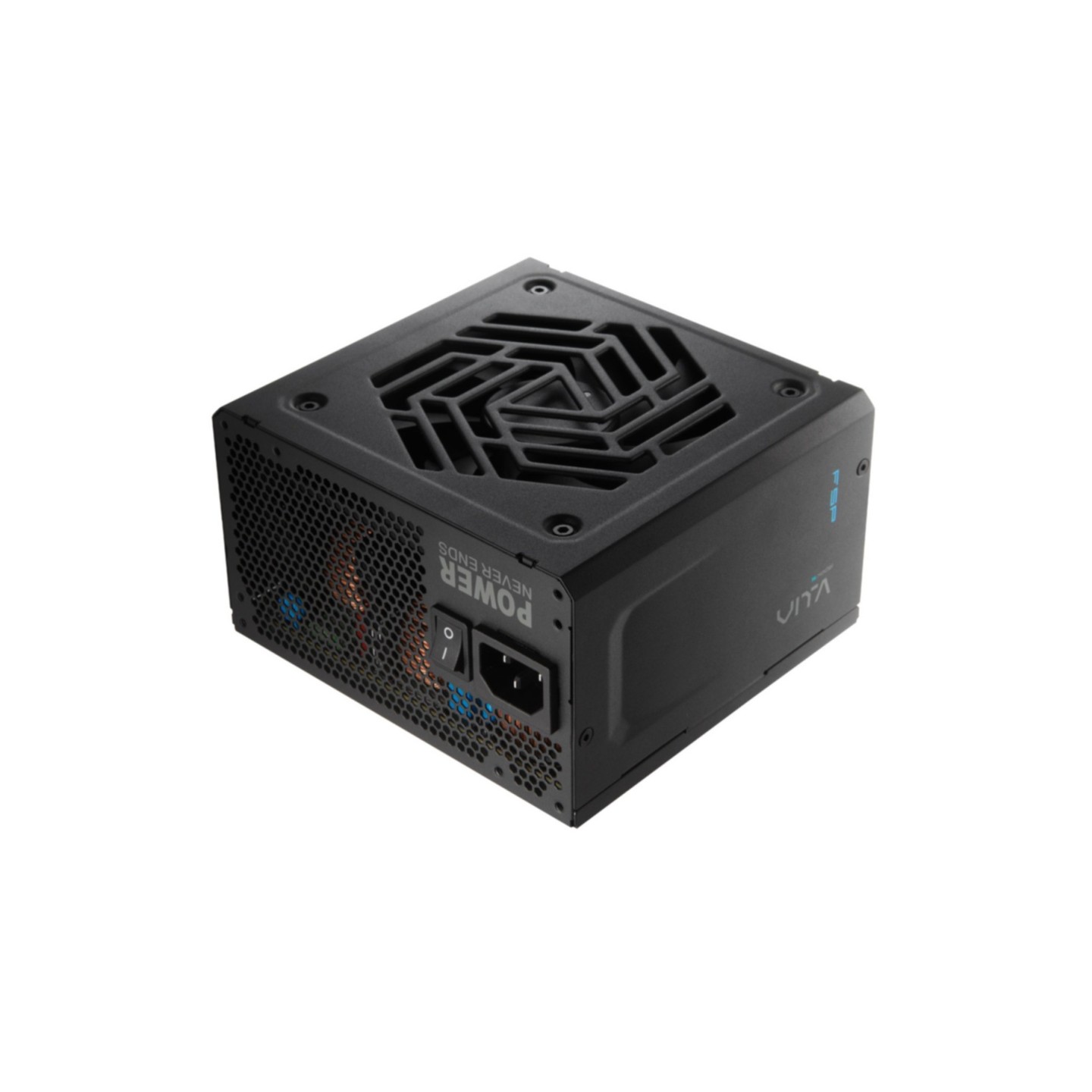

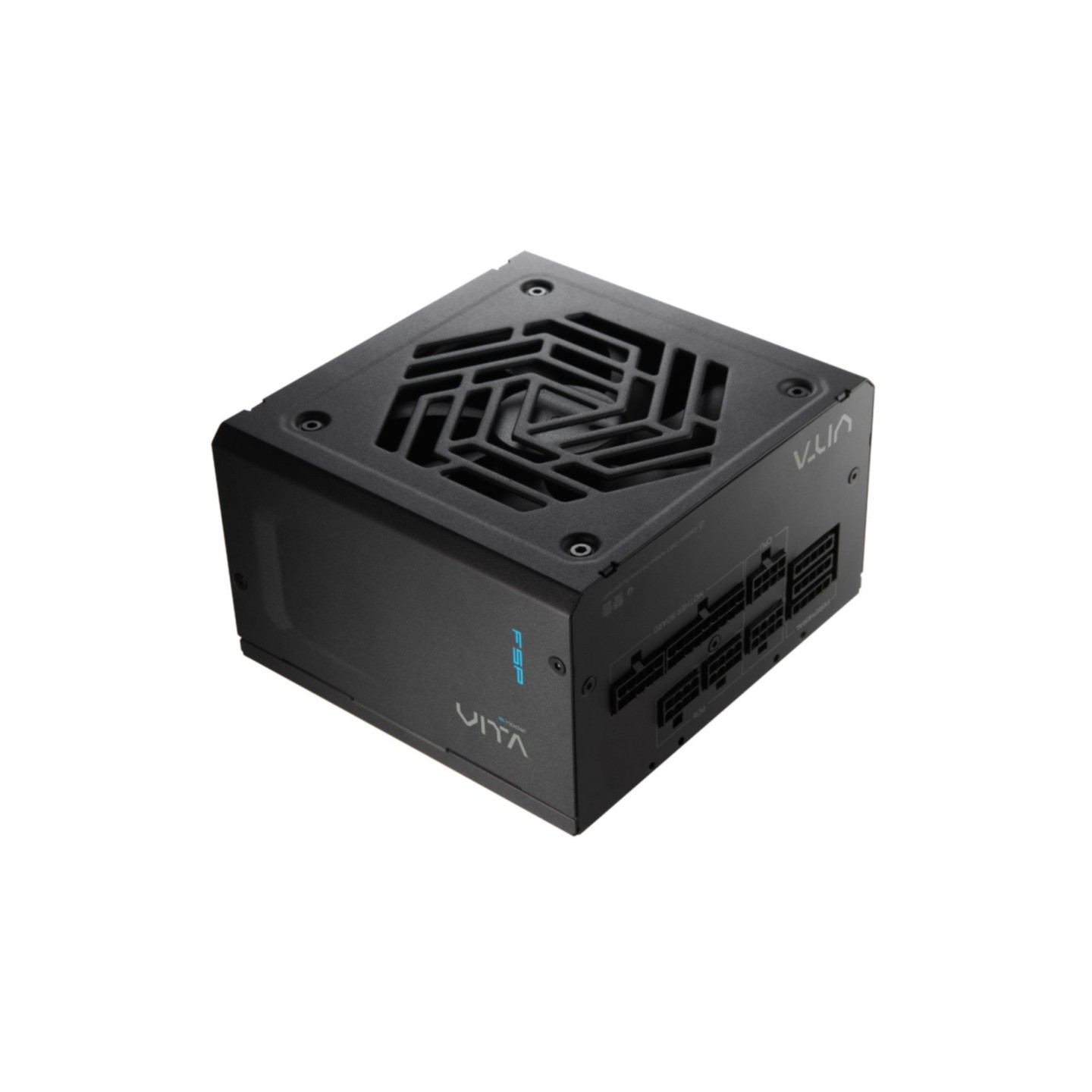

Fortron VITA-550BD - 550W ATX 3.1 Fully Modular PSU, 80 PLUS Bronze (Retail)
550W ATX 3.1 fully modular PSU with 80 PLUS Bronze efficiency, single +12V rail (45.8A), 120mm sleeve fan, 105°C Japanese caps & black flat cables. Supports 200% excursion for modern GPUs.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 500 - 599 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Bronze |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 4x 8/6 pins |
| PSU (Power Supplies) - Length | Up to 140 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V |
ATX 3.1 Ready for Future-Proofing
The Fortron VITA-550BD follows ATX 3.1 standards, supporting 200% power excursions for peak stability with next-gen GPUs and CPUs. Delivers 550W total power via a powerful single +12V rail at 45.8A.
High Efficiency & Reliability
80 PLUS Bronze certified (≥88% at typical load) with active PFC, DC-DC design on +5V/3.3V rails, and 105°C Japanese bulk capacitors for harsh environments. Features comprehensive protections: OVP/OCP/OPP/OTP/SCP/UVP/SIP/NLO.
- Fully modular black flat cables for tidy builds
- Compact size: 140 x 150 x 86 mm
- 120mm sleeve bearing fan (HYB tech)

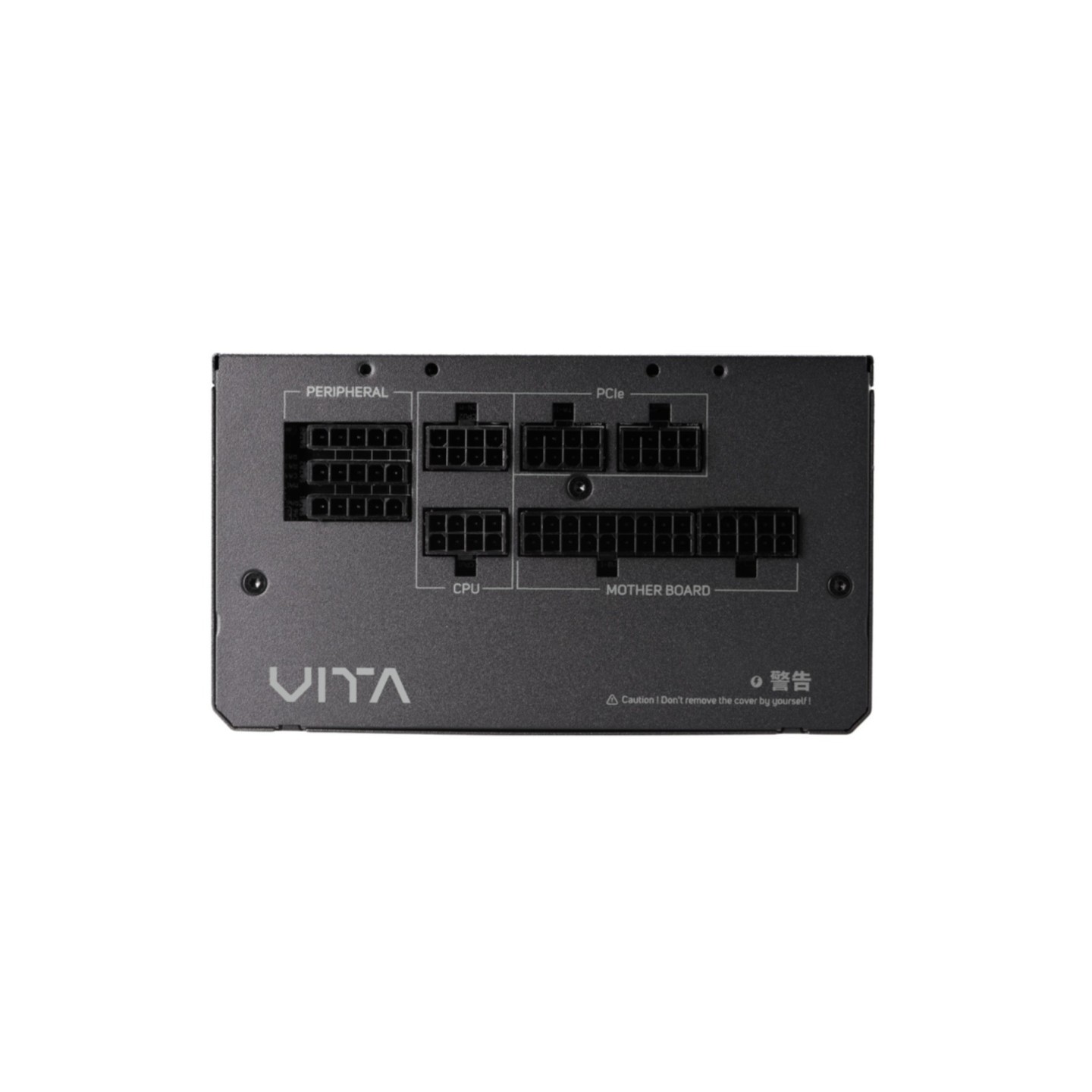

- Connectors: 20+4pin ATX, 4+4pin EPS, 4x 6+2pin PCIe, 8x SATA, 4x Molex
- 5-year warranty
| Total power | 550 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50-60 Hz |
| Input current | 4 A |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+12V) | 45.8 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 550 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Efficiency | ≥88% at typical load |
| 80 PLUS certification | 80 PLUS Bronze (230V EU) |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| EPS version | 2.92 |
| Cabling type | Fully Modular |
| Bearing technology | Sleeve (HYB) |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Power protection features | OVP, OCP, OPP, OTP, SCP, UVP, SIP, NLO |
| Motherboard power connector | 20+4 pin ATX |
| CPU power connector (4+4 pin) | Yes (1x) |
| PCI Express power connectors (6+2 pin) | 4 |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Warranty | 5 Years |
