76661L 7-Port PCIe USB-A 3.2 Gen1 Card SATA Power (Boxed)
PCIe 7-port USB 3.2 Gen1 expansion card w/ VIA VL805+VL812 chipset. 7x USB-A external ports up to 5Gbps, 1x SATA power connector. PCIe 2.0, Win/Linux compatible. Backward compatible USB 2.0/1.1.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Expansion Cards - Product Type | IO Port Expansion |
|---|---|
| Expansion Cards - Host Interface | PCIe x1 |
| Expansion Cards - Internal Connectivity | External Only |
| Expansion Cards - Form Factor | Standard Profile Full-Height |
| Expansion Cards - External Connectivity | USB Type-A |

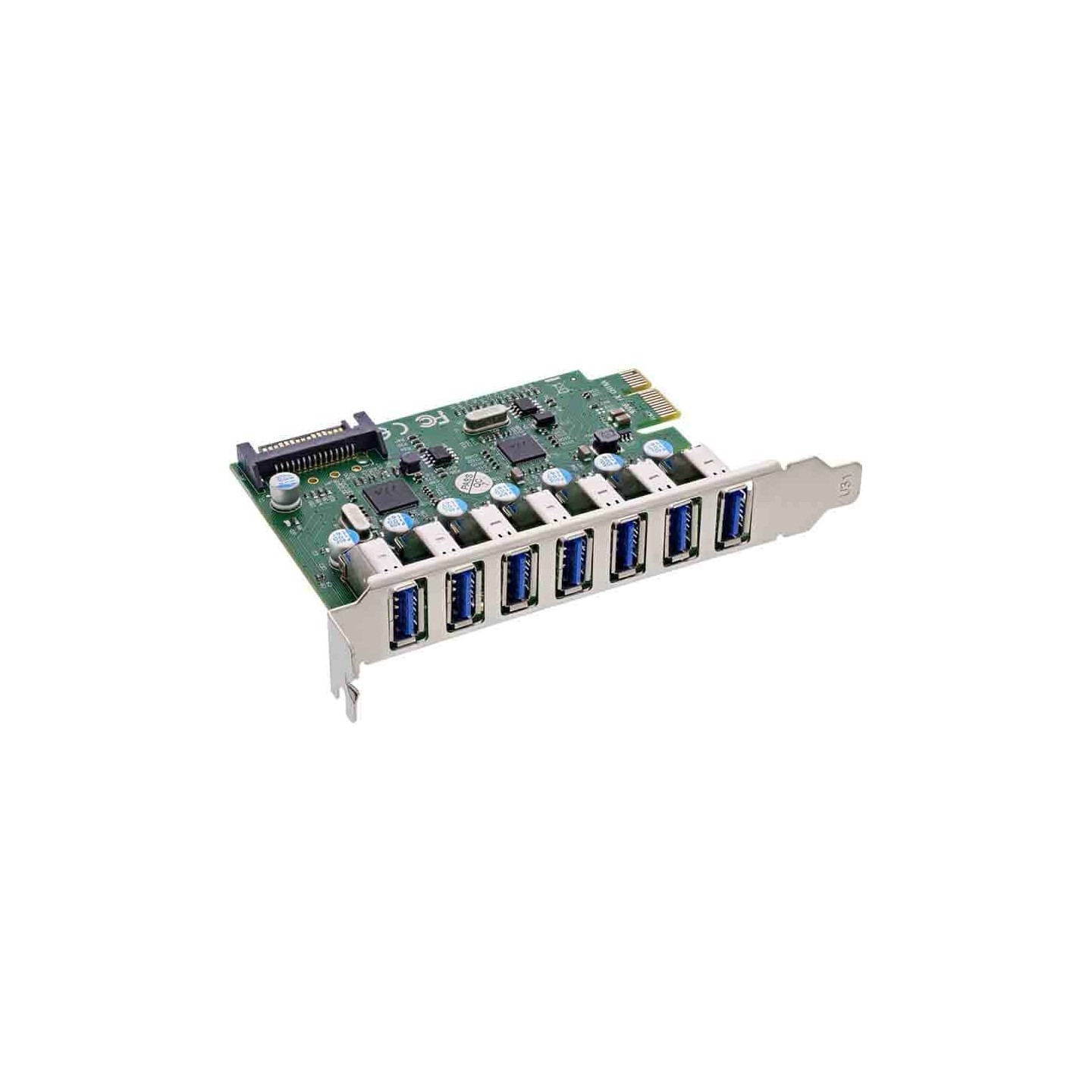

The 76661L 7-Port Interface Card from inLine is a reliable PCIe expansion solution for adding multiple high-speed USB connections to your PC. Featuring the proven VIA VL805+VL812 chipset combination, it delivers stable performance across a wide range of devices.
It provides 7x external USB-A 3.2 Gen.1 ports supporting data rates up to 5 Gb/s, with full backward compatibility to USB 2.0 (480 Mb/s) and 1.1 (12/1.5 Mb/s). An internal 15-pin SATA power connector ensures adequate power (up to 5V/900mA per port) for demanding peripherals like external drives or hubs, even with multiple devices connected simultaneously.
Compatible with PCI Express 2.0, Windows XP/Server 2008+, and Linux Kernel 2.6+, this card installs easily in standard PCIe slots. Ideal for workstations needing extra USB expansion without compromising speed or reliability.
- Chipset: VIA VL805 + VL812
- Interface: PCIe 2.0 x1
- Power: 1x SATA 15-pin
- OS Support: Win XP+, Linux 2.6+
- No low-profile bracket
| Chipset | VIA VL805 + VL812 |
| Host Interface | PCI Express 2.0 |
| External Ports | 7x USB-A 3.2 Gen.1 |
| Internal Connections | 1x SATA power connector (15-pin) |
| Data Transfer Rates | 5 Gbps / 480 Mbps / 12 Mbps / 1.5 Mbps |
| Power Output per Port | 5V/900mA (with SATA power) |
| OS Support | Windows XP+, Server 2008+, Linux Kernel 2.6+ |
| Low Profile | No |
| RAID | No |
| Slot Type | PCIe x1 |
| Working Temperature | 0-70°C |
