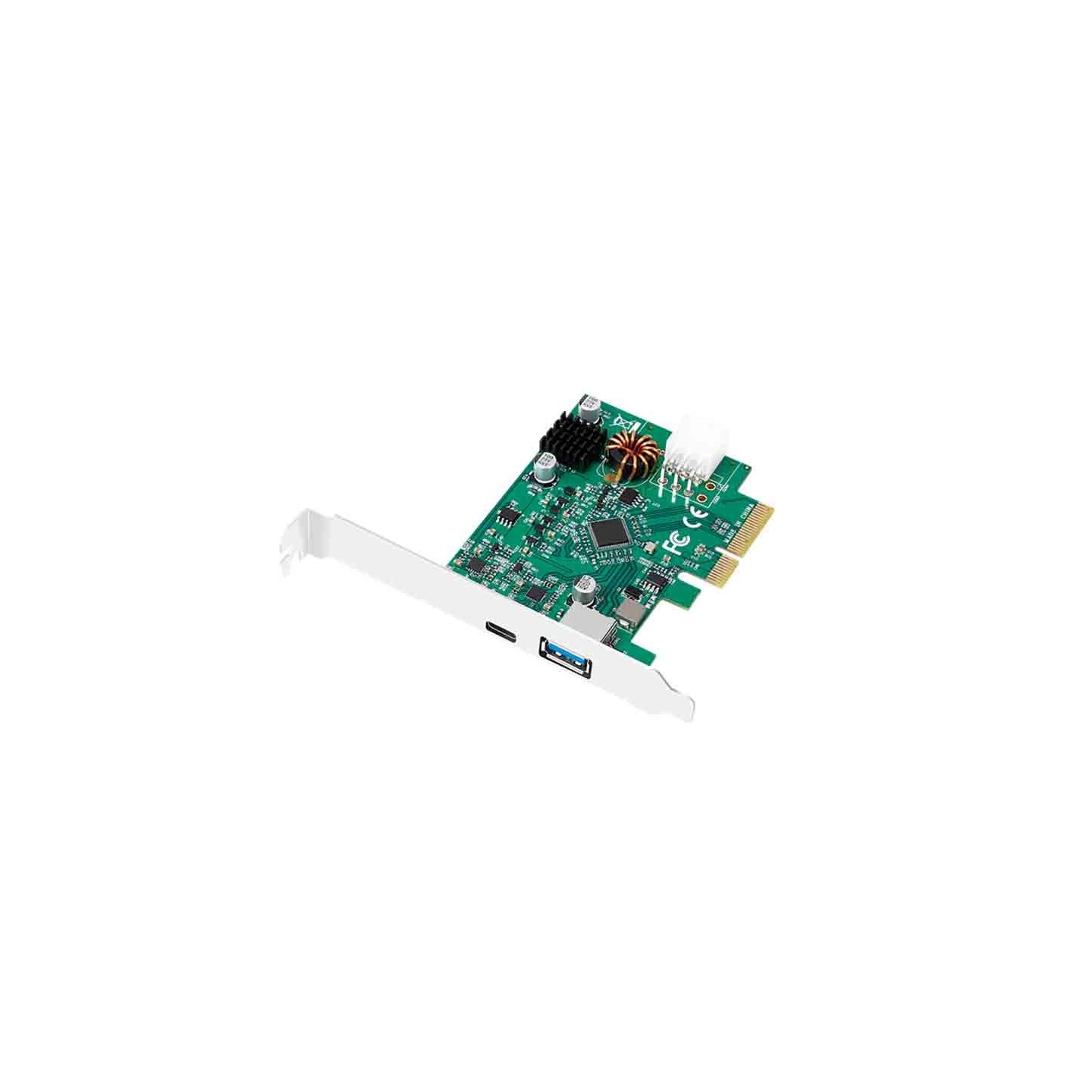

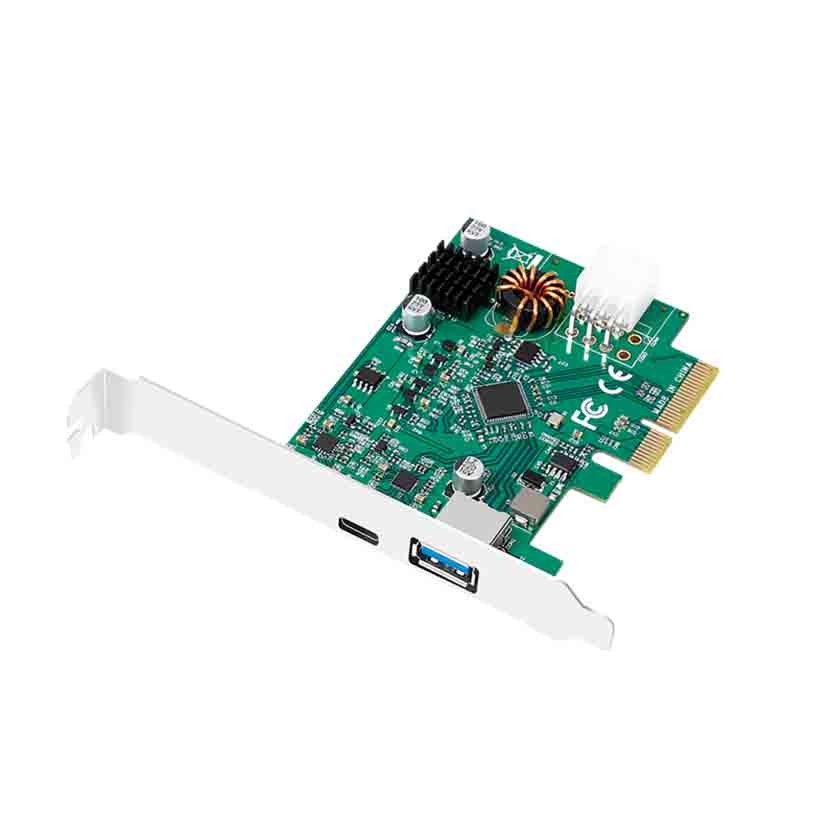

LogiLink PC0089 PCIe USB 3.2 Gen2x1 Card, USB-C PD3.0 & USB3.0 (Boxed)
LogiLink PC0089 PCI Express card adds 1x USB 3.2 Gen2x1 Type-C (PD 3.0, 10Gbps) and 1x USB 3.2 Gen1x1 Type-A port. PCIe 3.0 x2 interface. Supports Windows/Linux. Gross weight 110g.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Expansion Cards - Product Type | IO Port Expansion |
|---|---|
| Expansion Cards - Host Interface | PCIe x4 |
| Expansion Cards - Form Factor | Standard Profile Full-Height |
| Expansion Cards - External Connectivity | USB Type-A USB Type-C and Thunderbolt |
The LogiLink PC0089 is a PCI Express expansion card that enhances your desktop PC with high-speed USB 3.2 connectivity. It features one USB 3.2 Gen 2x1 Type-C port supporting Power Delivery 3.0 up to 30W and data transfer rates up to 10 Gbit/s, alongside one USB 3.2 Gen 1x1 Type-A port for legacy devices.
Compliant with PCI Express 3.0 2-lane (x2) interface, this card is ideal for users needing fast USB expansion. It supports Windows 10/8.x/7/Vista, Server 2008 R2, and Linux Kernel 2.6+. Compact design: 12x9.2x2.2 cm, 58g net weight.
- 1x USB 3.2 Gen2 Type-C (PD 3.0, 10Gbps)
- 1x USB 3.2 Gen1 Type-A (5Gbps)
- PCIe 3.0 x2 interface
- USB Power Delivery up to 30W
- Compatible: Windows, Linux
| Product Type | PCIe USB Expansion Card |
| MPN | PC0089 |
| EAN | 4052792060263 |
| Host Interface | PCI Express 3.0 x2 |
| USB Ports | 1x USB 3.2 Gen1x1 Type-A, 1x USB 3.2 Gen2x1 Type-C |
| Max Transfer Rate | 10 Gbit/s |
| Power Delivery | USB-C PD 3.0 max. 30W |
| OS Compatibility | Windows 10/8.x/7/Vista, Server 2008 R2 32/64-bit, Linux Kernel 2.6+ |
| Dimensions (Card) | Height 12cm, Width 2.2cm, Length 9.2cm |
| Net Weight | 0.058kg |
| Gross Weight | 0.110kg |
| Additional Power | 6-pin (possible) |
