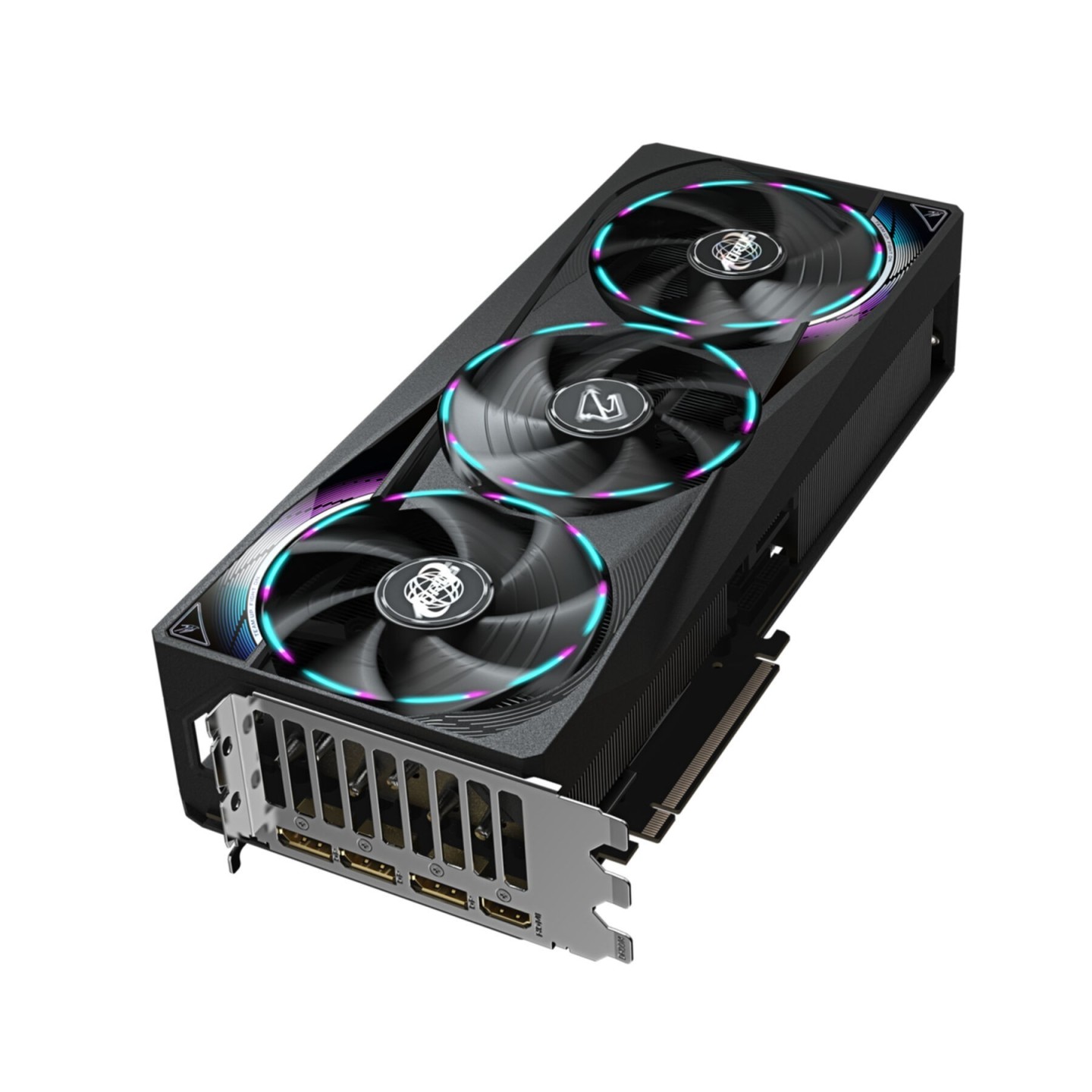

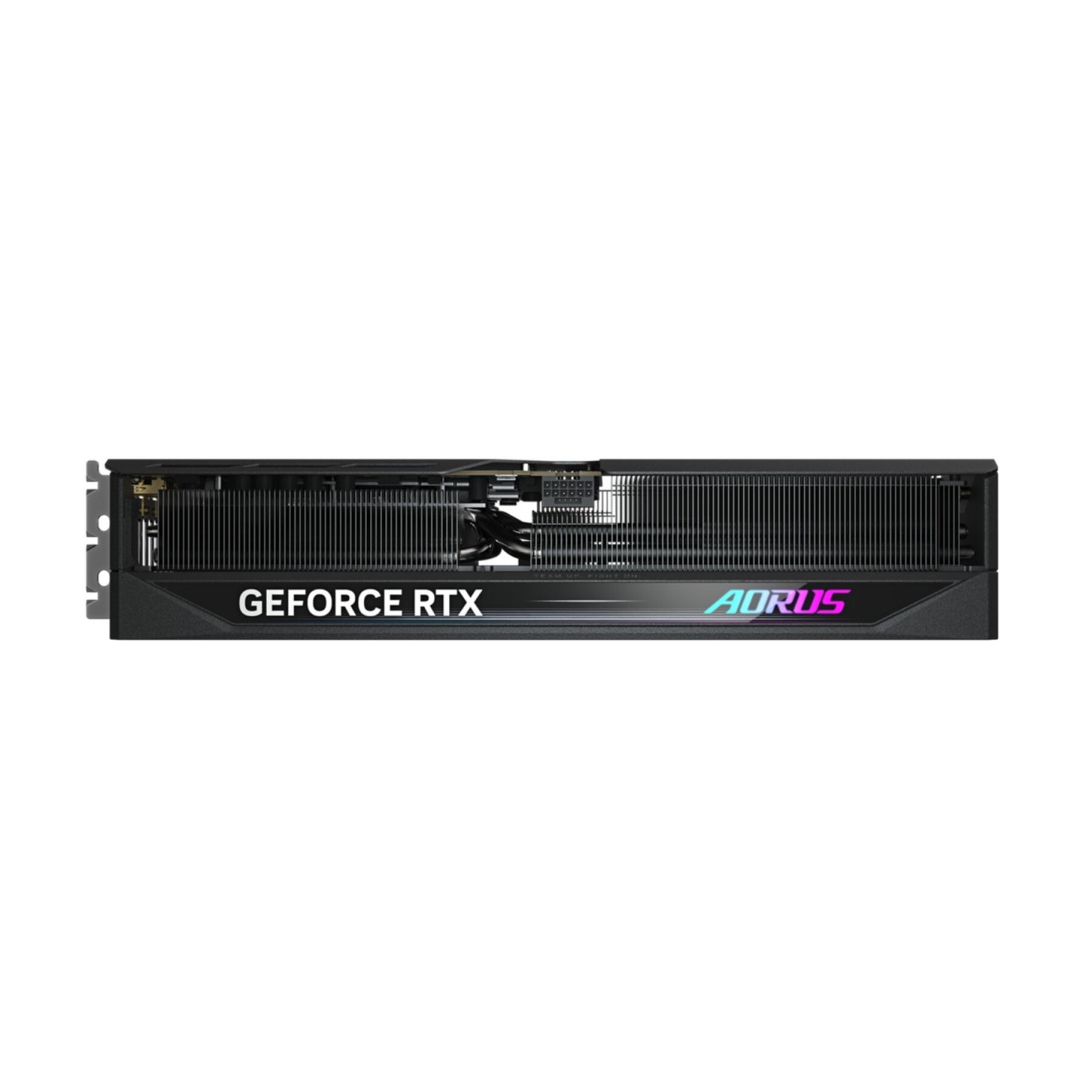

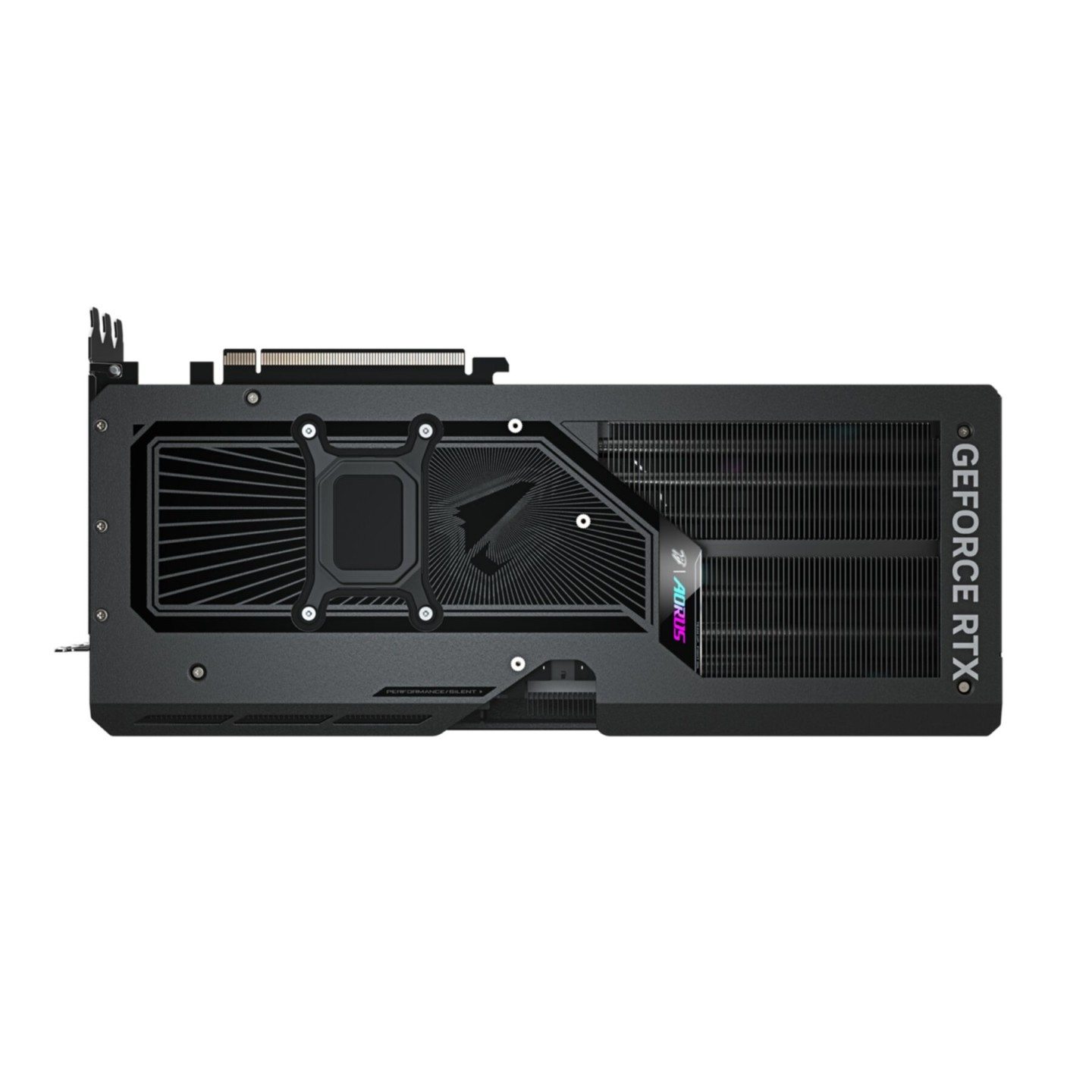

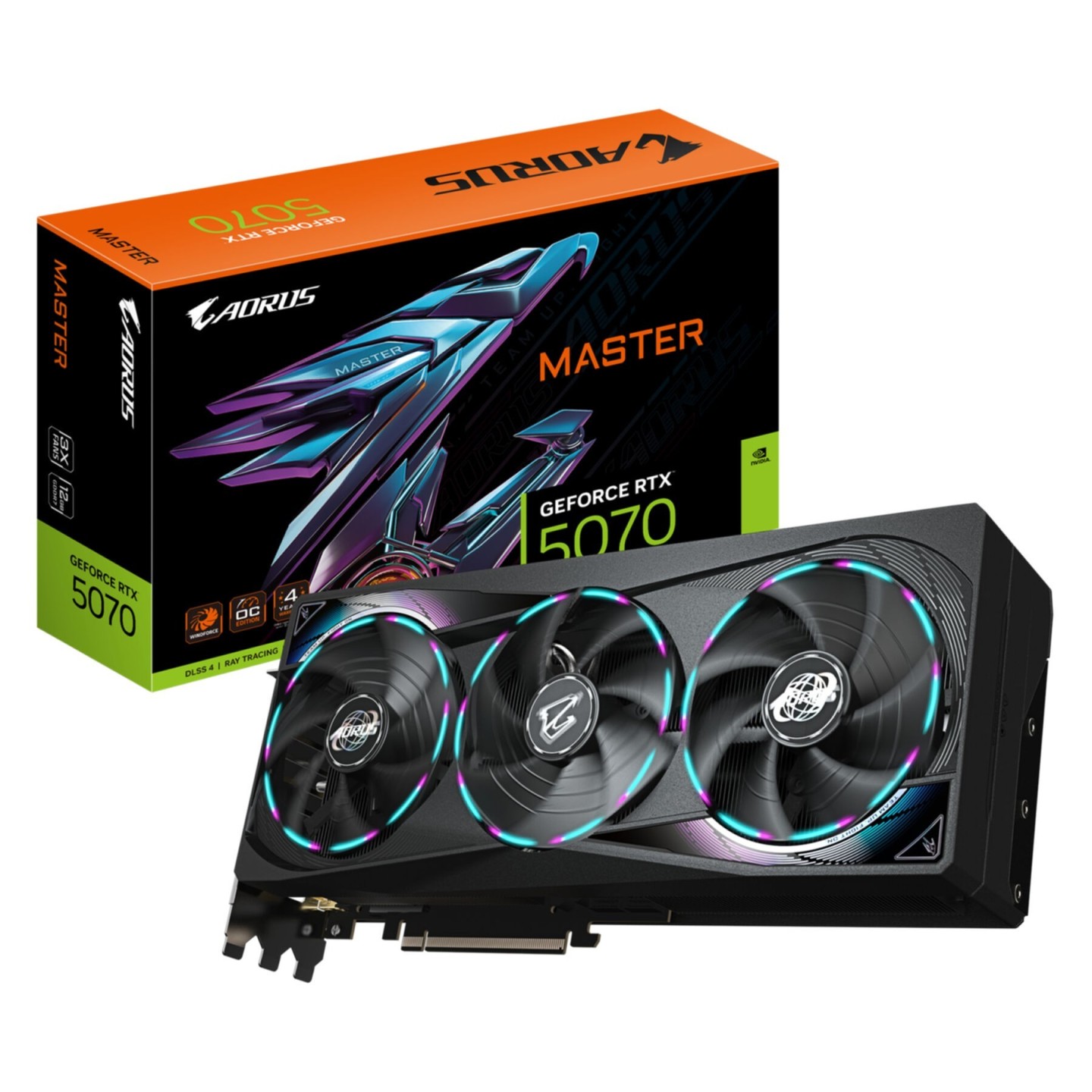

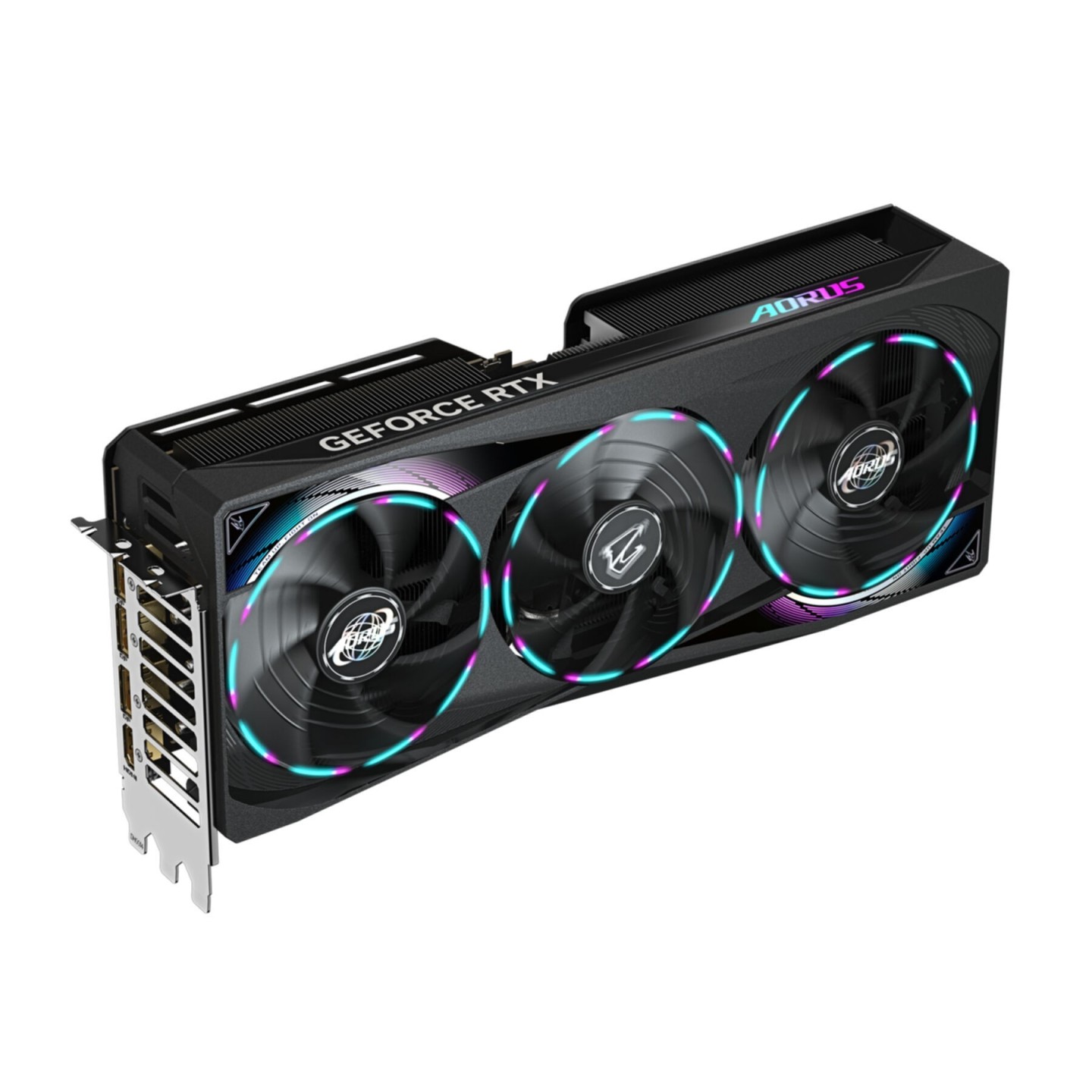

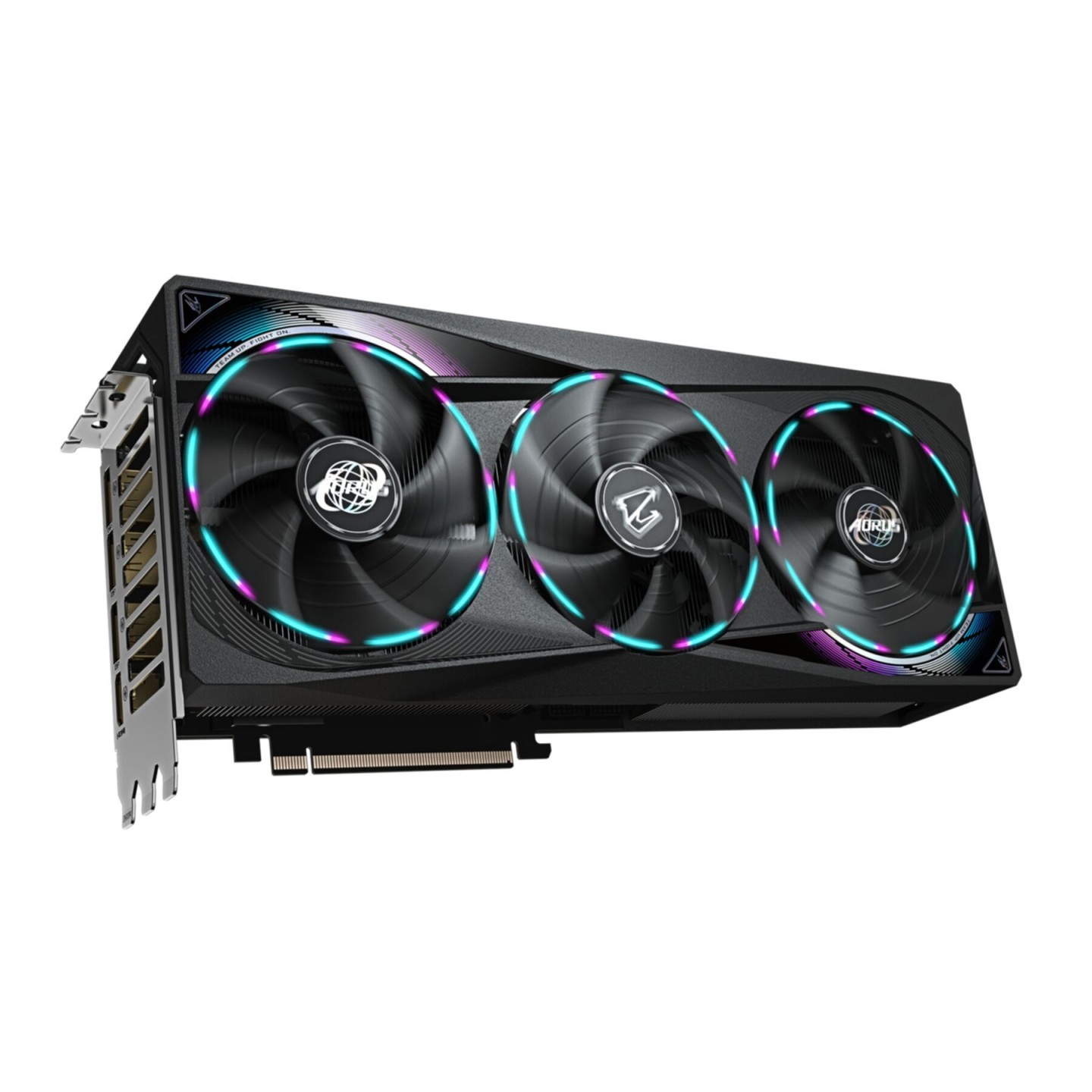

GIGABYTE AORUS Master GeForce RTX 5070 - Black, 12GB GDDR7, 2715 MHz, PCIe 5.0 (Boxed)
GeForce RTX 5070 GPU with 12GB GDDR7 (192-bit), 2715 MHz boost (ref 2512 MHz), 6144 CUDA cores, WINDFORCE 3X cooling, PCIe 5.0, 1xHDMI 2.1b + 3xDP 2.1b. Supports 4K/8K, DLSS 4, Blackwell arch.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | NVIDIA GeForce RTX |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 5.0 x16 |
| GPU (Graphics Cards) - Cooler Type | Triple Fan |
| GPU (Graphics Cards) - Color | Black |
| GPU (Graphics Cards) - Backplate | Yes |
| GPU (Graphics Cards) - VRAM Capacity | 12 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR7 |
| GPU (Graphics Cards) - Outputs | DisplayPort 2.1 HDMI 2.1 |
| GPU (Graphics Cards) - Power Connector | 12VHPWR 16-pin |
| GPU (Graphics Cards) - Card Length | Extended (301-320 mm) |
The GIGABYTE AORUS GeForce RTX™ 5070 MASTER 12G (GV-N5070AORUS M-12GD) delivers elite gaming performance powered by NVIDIA Blackwell architecture. Featuring 6144 CUDA cores, a factory-overclocked 2715 MHz boost clock, and 12GB GDDR7 memory at 28 Gbps on a 192-bit bus, it handles 8K resolution (7680x4320) across 4 displays. Advanced NVIDIA DLSS 4 with Multi Frame Generation boosts FPS while reducing latency, paired with full ray tracing via 4th-gen RT Cores.
WINDFORCE 3X cooling with Hawk fans, server-grade thermal gel, RGB Halo lighting, Dual BIOS (Performance/Silent), and reinforced structure ensure quiet, reliable operation under load. ATX form factor (317x136x64 mm, 2-slot) fits most builds, powered by 1x 16-pin connector (750W PSU recommended). Ideal for gamers and creators leveraging NVIDIA Reflex 2, ACE, Studio tools, and G-SYNC.
- Key Technologies: DLSS 4, Reflex 2, Neural Rendering, 5th-Gen Tensor Cores
- Outputs: 3x DisplayPort 2.1b, 1x HDMI 2.1b
- Warranty: 4 years (online registration required)
- MPN: GV-N5070AORUS M-12GD
| MPN | GV-N5070AORUS M-12GD |
| CUDA cores | 6144 |
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5070 |
| Processor frequency | 2715 MHz (Reference: 2512 MHz) |
| Maximum resolution | 7680 x 4320 pixels |
| Maximum displays per videocard | 4 |
| Discrete graphics card memory | 12 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 192 bit |
| Memory clock speed | 28000 MHz (28 Gbps) |
| Memory bandwidth (max) | 537.6 GB/s |
| Interface type | PCI Express x16 5.0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| DisplayPorts quantity | 3 |
| DisplayPort version | 2.1b |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| Warranty period | 4 year(s) |
| Cooling type | Active |
| Cooling technology | GIGABYTE WINDFORCE 3X |
| Number of fans | 3 fan(s) |
| Form factor | ATX (Full-Height/Full-Length) |
| Number of slots | 2 |
| Product colour | Black |
| Minimum system power supply | 750 W |
| Supplementary power connectors | 1x 16-pin |
| Weight | 2 kg |
| Length | 317 mm |
| Depth | 64 mm |
| Height | 136 mm |
| Package width | 264 mm |
| Package depth | 427 mm |
| Package height | 105 mm |
| Package weight | 3 kg |
| Package type | Box |
| Dual BIOS | Yes (Performance / Silent) |
| RGB Lighting | RGB Halo |
