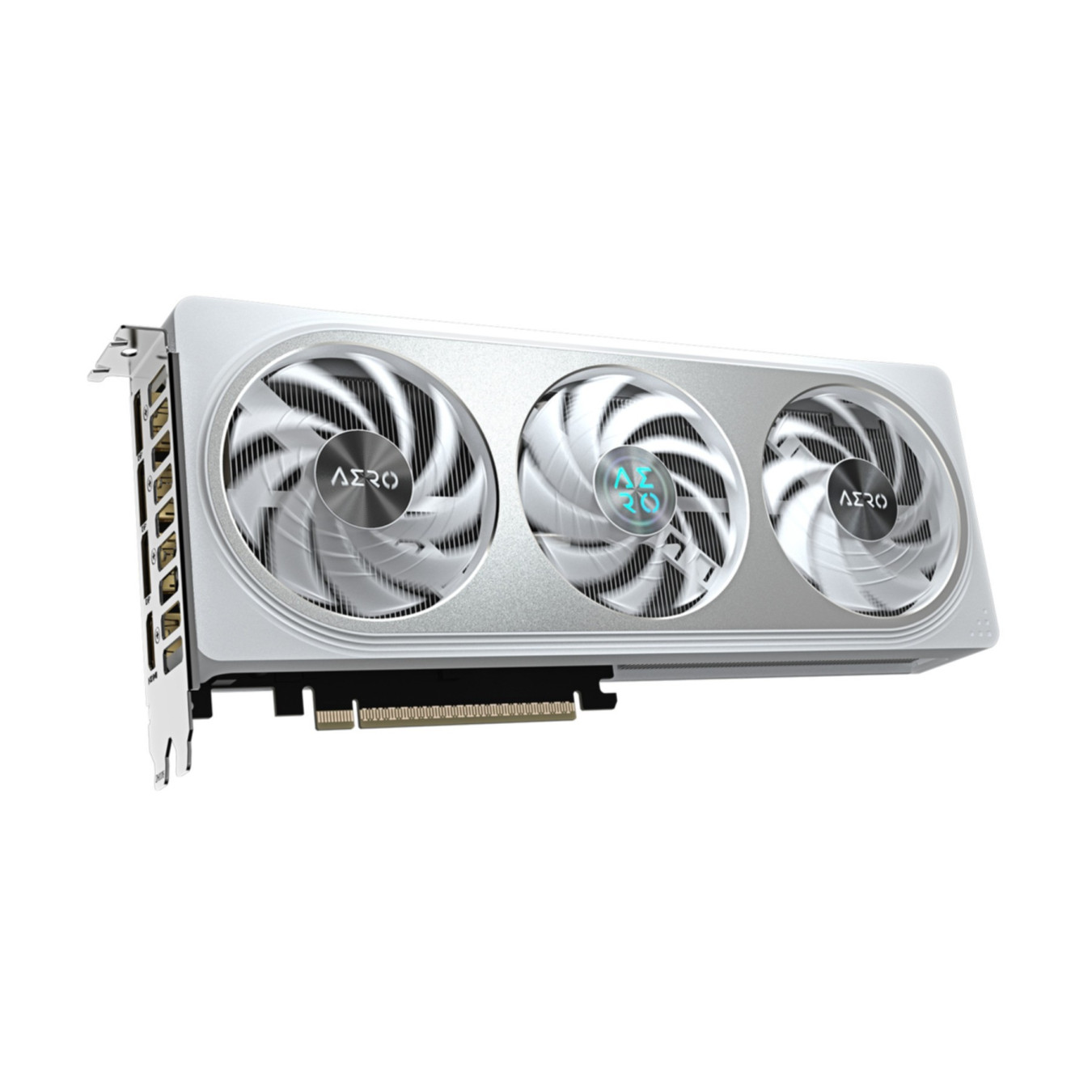

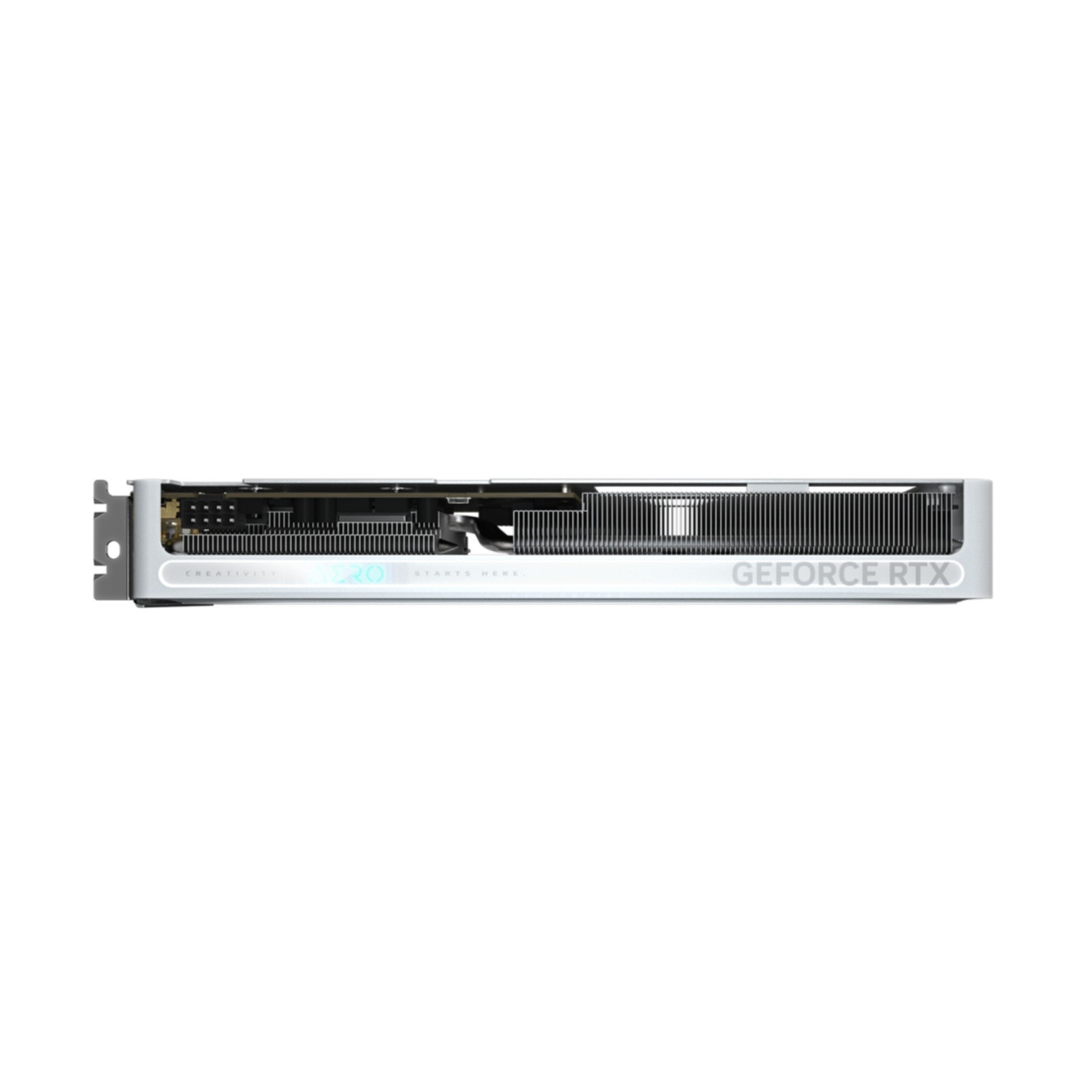

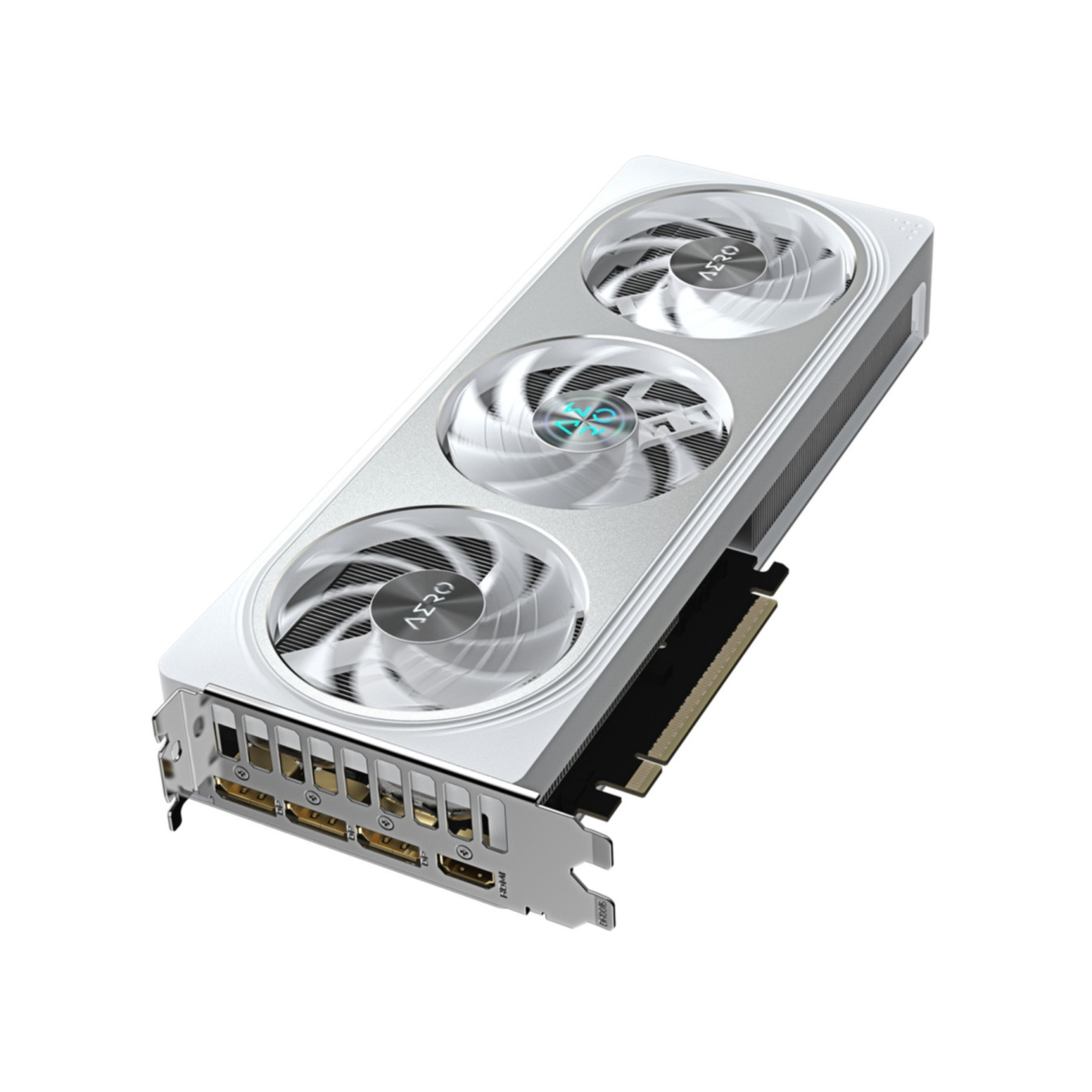

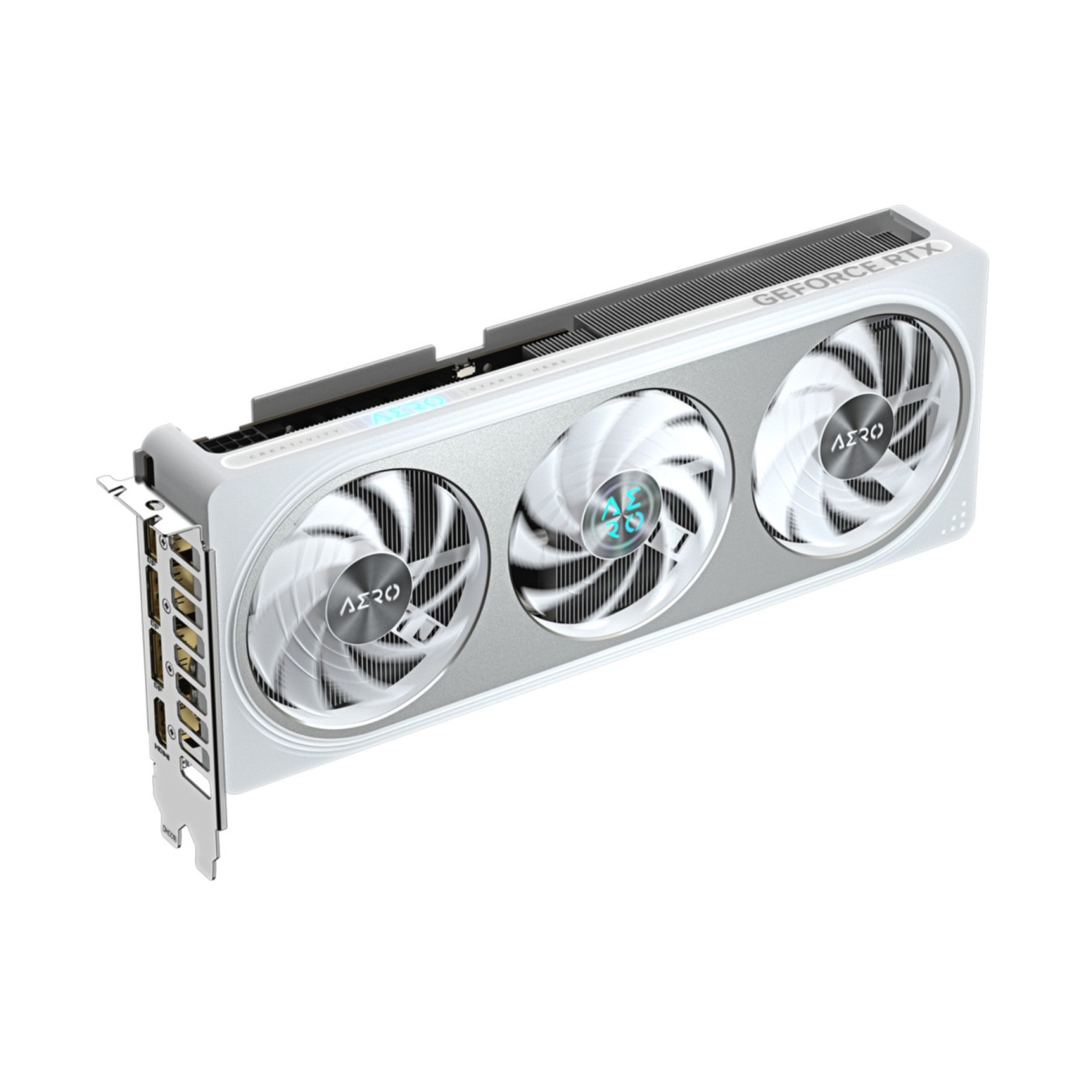

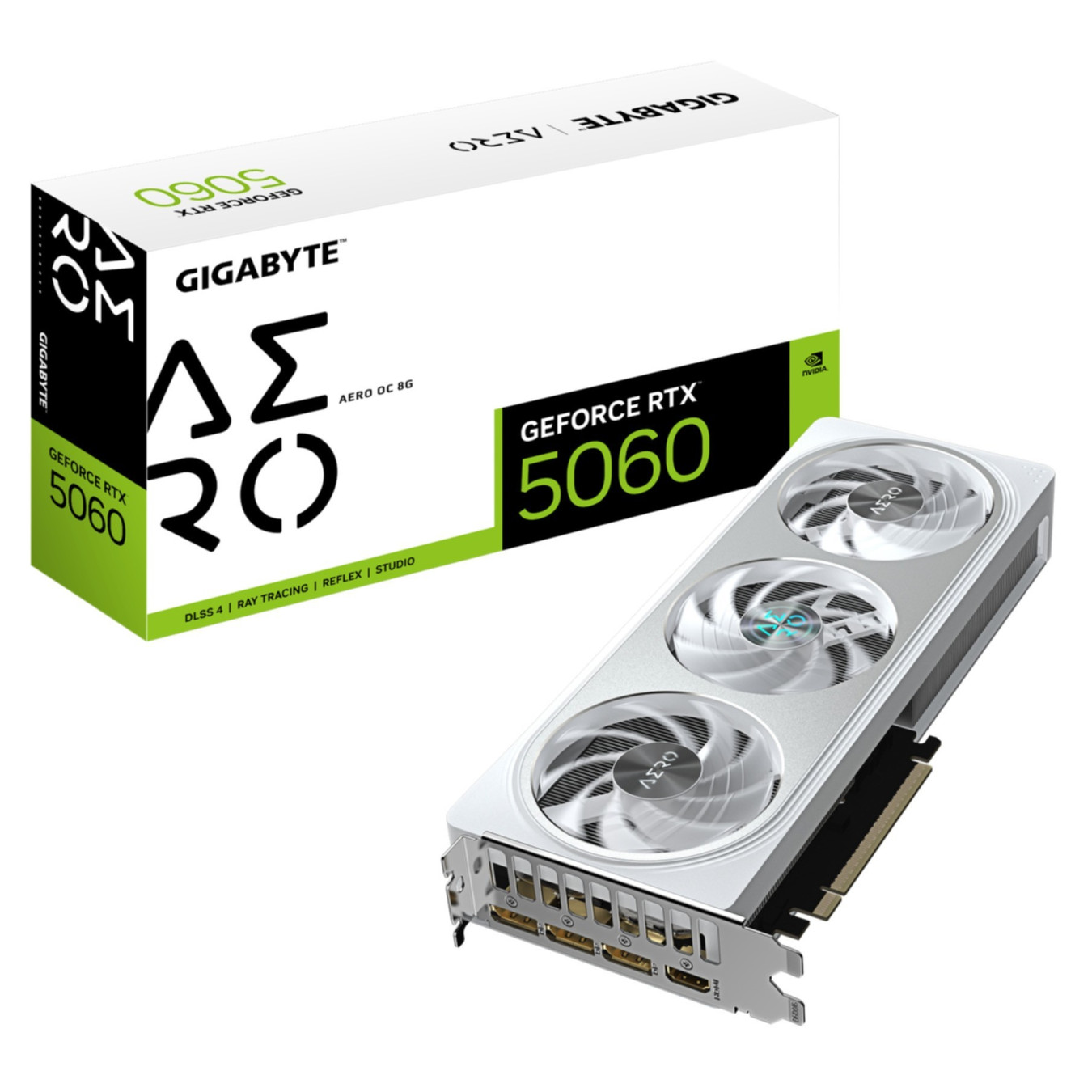

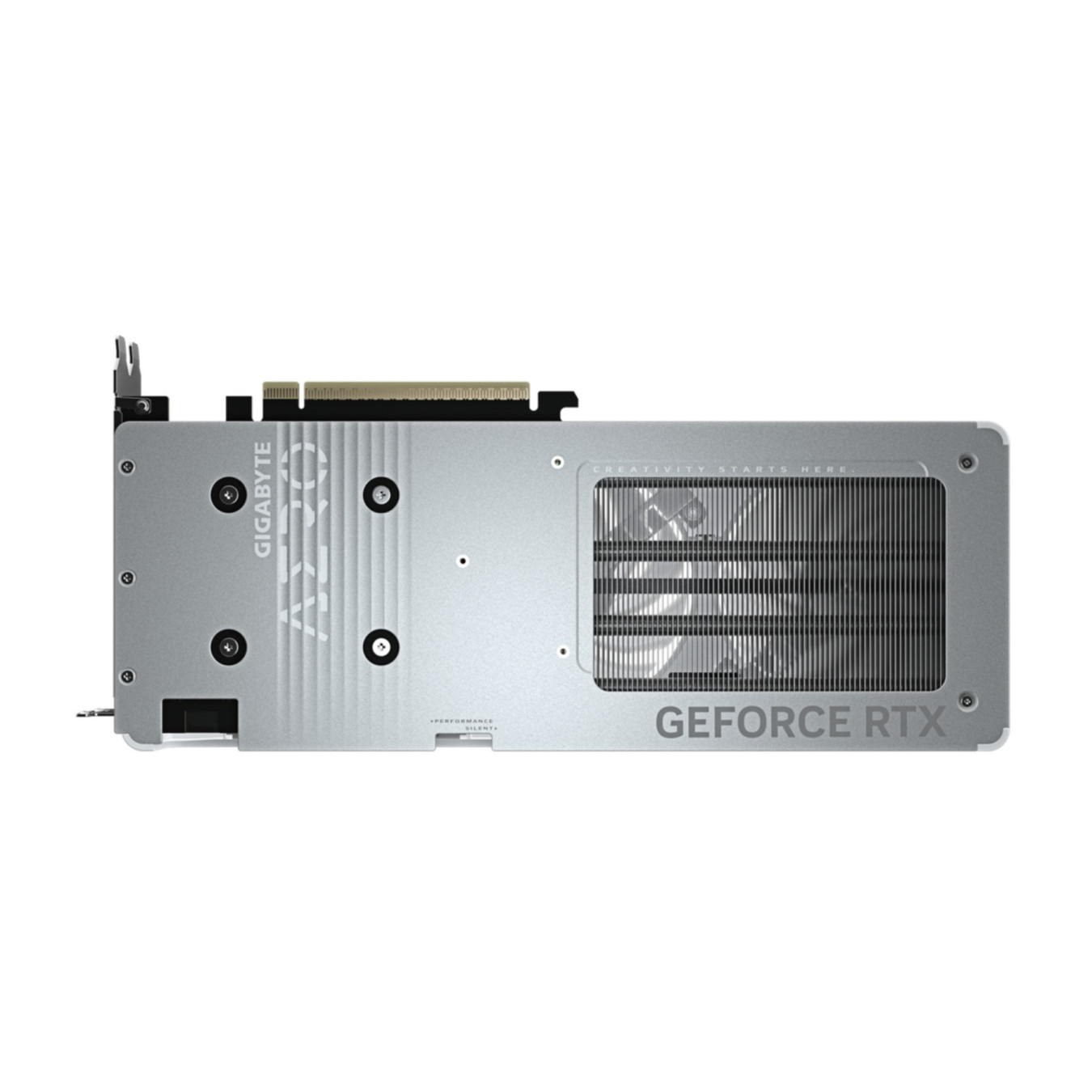

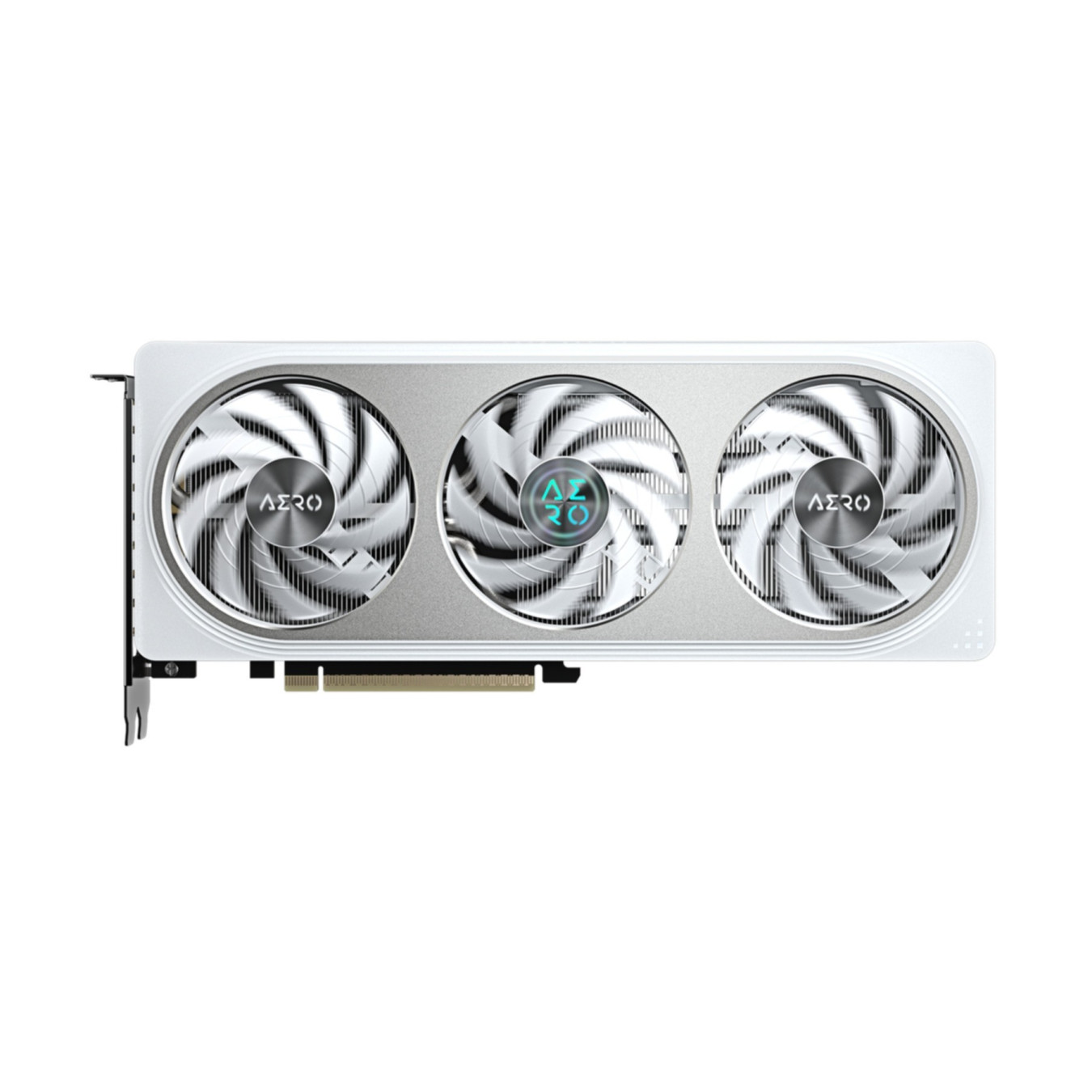

Gigabyte GeForce RTX 5060 AERO OC - 8GB GDDR7 White, 2595MHz Boost, WINDFORCE 3X, PCIe 5.0
GeForce RTX 5060 AERO OC — 8GB GDDR7, 3840 CUDA cores, 2595 MHz boost, PCIe 5.0, 1x HDMI 2.1b + 3x DisplayPort 2.1b, WINDFORCE 3X 3-fan cooling, OC edition.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - VRAM Capacity | 8 GB |
|---|---|
| GPU (Graphics Cards) - Power Connector | 1x8-pin |
| GPU (Graphics Cards) - Card Length | 281-320 mm |
| GPU (Graphics Cards) - Slot Thickness | 2-slot |
| GPU (Graphics Cards) - Cooler Type | Open-air (axial) |
GIGABYTE GeForce RTX 5060 AERO OC 8G Graphics Card - 8GB GDDR7. 128bit. PCI-E 5.0. 2595 MHz Core Clock. 3 x DisplayPort. 1 x HDMI. GV-N5060AERO OC-8GD. Graphics processor family: NVIDIA. Graphics processor: GeForce RTX 5060. Processor frequency: 2595 MHz. Discrete graphics card memory: 8 GB. Graphics card memory type: GDDR7. Memory bus: 128 bit. Memory clock speed: 28000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12.0. OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active. Number of fans: 3 fan(s). Illumination colour: Multi
| Feature | Quick installation guide |
| CUDA cores | 3840 |
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5060 |
| Processor frequency | 2595 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 128 bit |
| Memory clock speed | 28000 MHz |
| Data transfer rate | 28 Gbit/s |
| Interface type | PCI Express 5.0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| DisplayPorts quantity | 3 |
| DisplayPort version | 2.1b |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| Warranty period | 3 year(s) |
| Cooling type | Active |
| Cooling technology | GIGABYTE WINDFORCE 3X |
| Number of fans | 3 fan(s) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 2 |
| Illumination colour | Multi |
| Product colour | White |
| Minimum system power supply | 500 W |
| Supplementary power connectors | 1x 8-pin |
| Thermal Design Power (TDP) | 109 W |
| Weight | 790 g |
| Length | 281 mm |
| Depth | 40 mm |
| Height | 117 mm |
| Package width | 182.5 mm |
| Package depth | 354 mm |
| Package height | 75 mm |
| Package weight | 1.14 kg |
| Package type | Box |
| Products per shipping (inner) case | 1 pc(s) |
