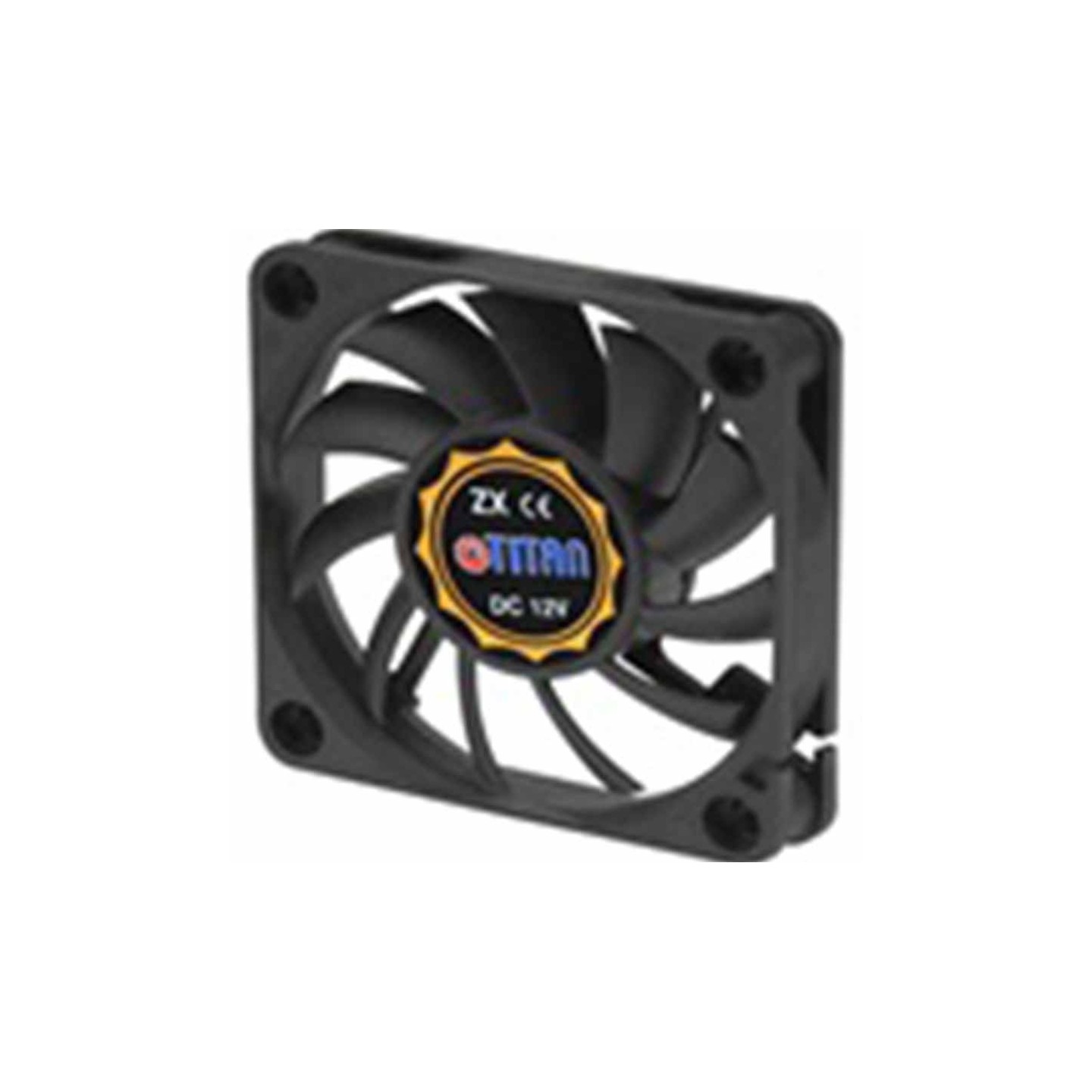

TITAN 33326L Fan 60x60x10mm 3600RPM Z-Axis Bearing (Retail)
TITAN 33326L 60x60x10mm case fan with 3600 RPM speed,
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Device Type | Case Fan |
|---|---|
| Cooling (CPU & Case) - Socket Support | Universal |
| Cooling (CPU & Case) - Fan Size | 60 mm |
| Cooling (CPU & Case) - Lightning | None |
| Cooling (CPU & Case) - Connector | 3-Pin Molex |
| Cooling (CPU & Case) - Color | Black |
| Cooling (CPU & Case) - Special Features | Low Noise |
The TITAN 33326L is a compact 60x60x10mm DC cooling fan designed for efficient airflow in PC cases, servers, and industrial equipment. Operating at 3600 RPM, it delivers a maximum airflow of 25.5 m³/h (15 CFM) while maintaining low noise levels below 26 dBA, making it suitable for noise-sensitive builds.
Equipped with a Z-axis bearing for smooth, long-lasting operation and a 3-pin connector providing RPM tacho signal for motherboard monitoring. It uses a 12V Molex power connector compatible with standard mainboards and PSUs. The black plastic frame ensures reliable performance in various cooling applications.
- Dimensions: 60 x 60 x 10 mm
- Speed: 3600 RPM
- Airflow: 25.5 m³/h (15 CFM)
- Noise: <26 dBA
- Bearing: Z-axis
- Connector: 3-pin + Molex 12V
| Fan Dimension | 60 x 60 x 10 mm |
| Rated Voltage | 12 V DC |
| Rotational Speed | 3600 RPM |
| Maximum Air Flow | 25.5 m³/h (15 CFM) |
| Noise Level | <26 dBA |
| Bearing Type | Z-axis Bearing |
| Connector | 3-pin (Tacho) + 12V Molex |
| Rated Current | 0.12 A (estimated from series) |
| Power Consumption | 2.88 W (estimated from series) |
| Static Pressure | 0.09 Inch H₂O (from series) |
| Tacho Signal | Yes |
