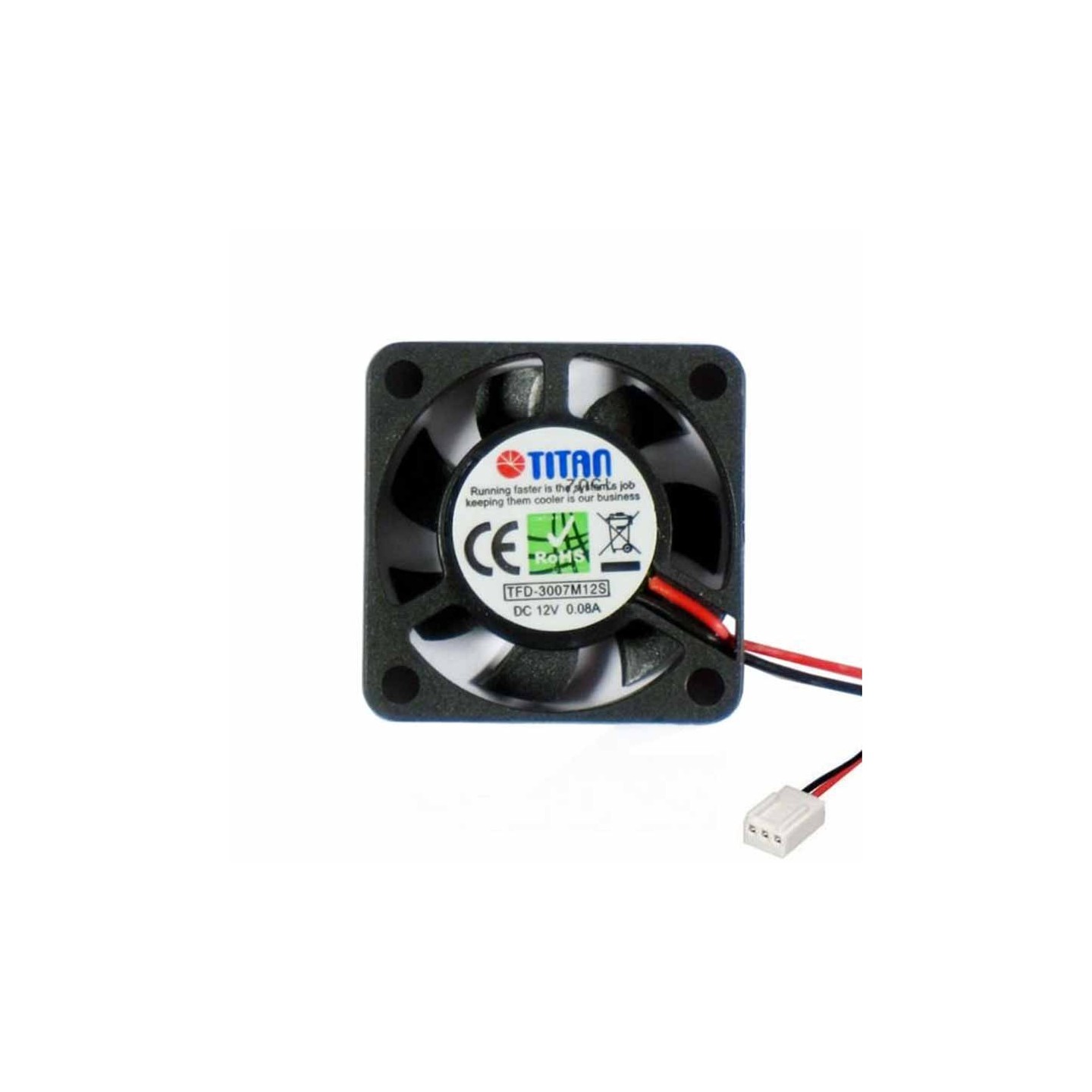

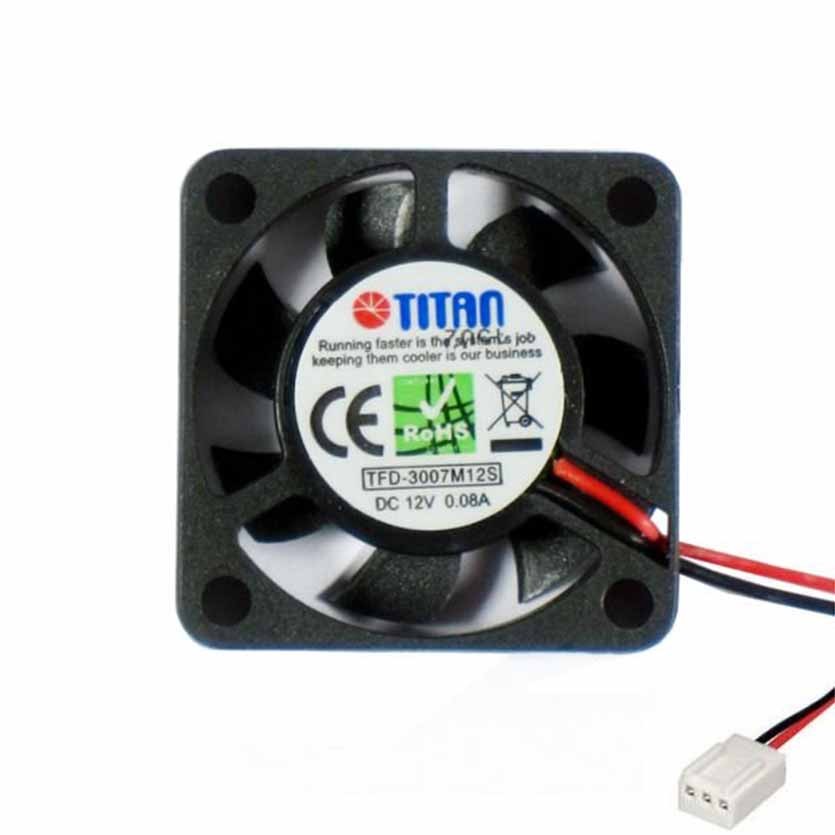

TITAN TFD-3007M12S 30x30x7mm Case Fan 7500 RPM (Boxed)
TITAN TFD-3007M12S 30x30x7mm case fan. 12V DC, 0.08A, 0.96W, 7500 RPM, 4.7m³/h airflow,
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Device Type | Case Fan |
|---|---|
| Cooling (CPU & Case) - Fan Size | 40 mm |
| Cooling (CPU & Case) - Connector | 3-Pin |
| Cooling (CPU & Case) - Color | Silver / Grey |
| Cooling (CPU & Case) - Special Features | Low Noise Low Profile |
The TITAN 33323 (TFD-3007M12S) is an ultra-thin 30x30x7mm DC cooling fan designed for precision thermal management in compact electronic devices. Featuring a slide bearing for quiet operation, it operates at 12V DC with 0.08A current draw (0.96W power consumption) and delivers 7500 RPM for 4.7m³/h airflow at under 20dBA noise level.
Ideal for cabinet ventilation, amplifiers, servers, telecom equipment, and industrial applications where space is limited. The fan offers approximately 25,000 hours of product life, making it reliable for continuous use in home, office, or professional environments.
- Dimensions: 30 x 30 x 7 mm
- Voltage: 12V DC
- Speed: 7,500 RPM
- Airflow: 4.7 m³/h
- Noise: <20 dBA
- Bearing: Slide bearing
- Connector: 12V DC (3-pin compatible)
| Type | TFD-3007M12S |
| Fan Size | 30 x 30 x 7 mm |
| Bearing Type | Slide Bearing |
| Rated Voltage | 12 V DC |
| Rated Current | 0.08 A |
| Power Consumption | 0.96 W |
| Rotational Speed | 7,500 RPM |
| Airflow | 4.7 m³/h |
| Noise Level | <20 dBA |
| Product Life | ca. 25,000 hours |
| Connector | 12 V DC (3-pin) |
