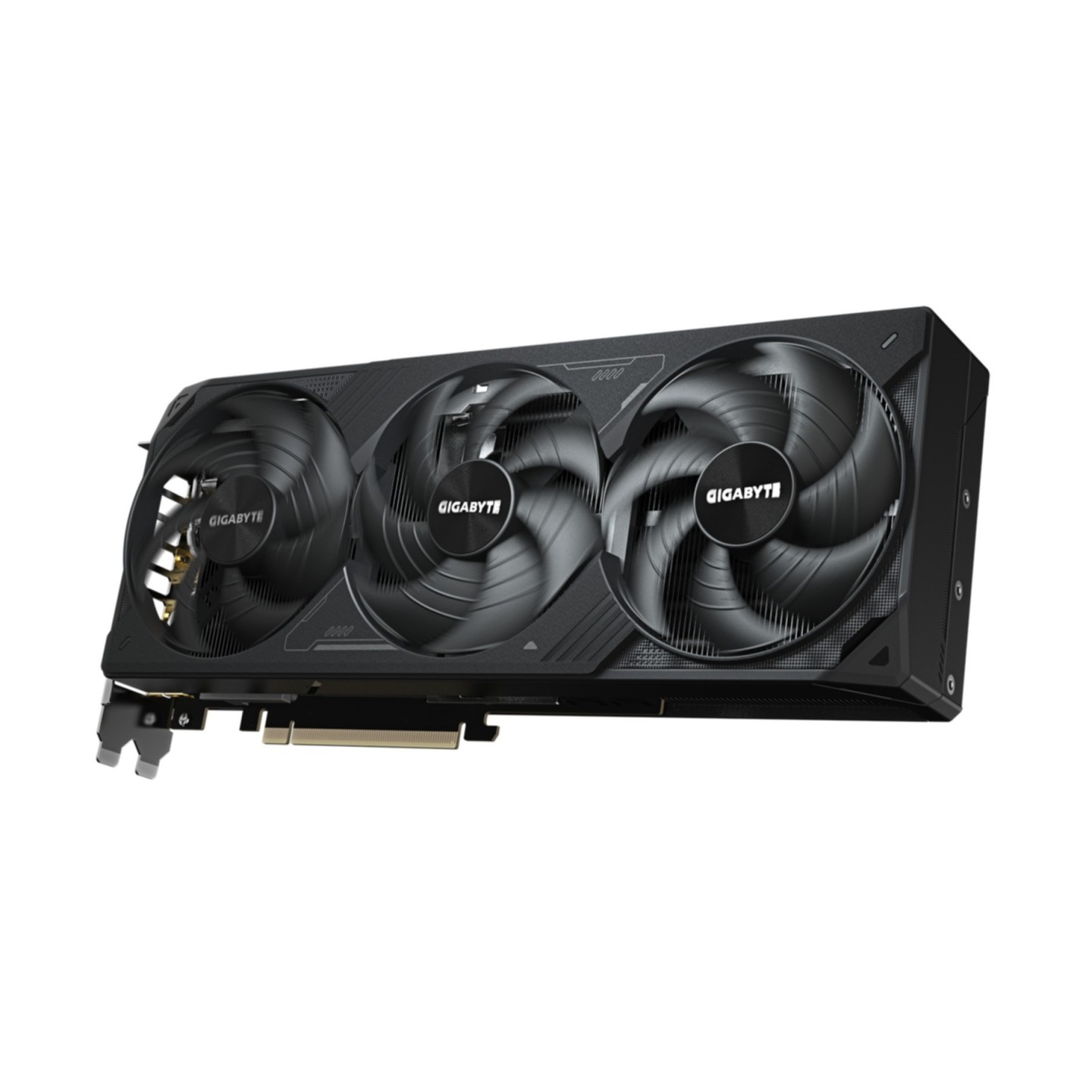

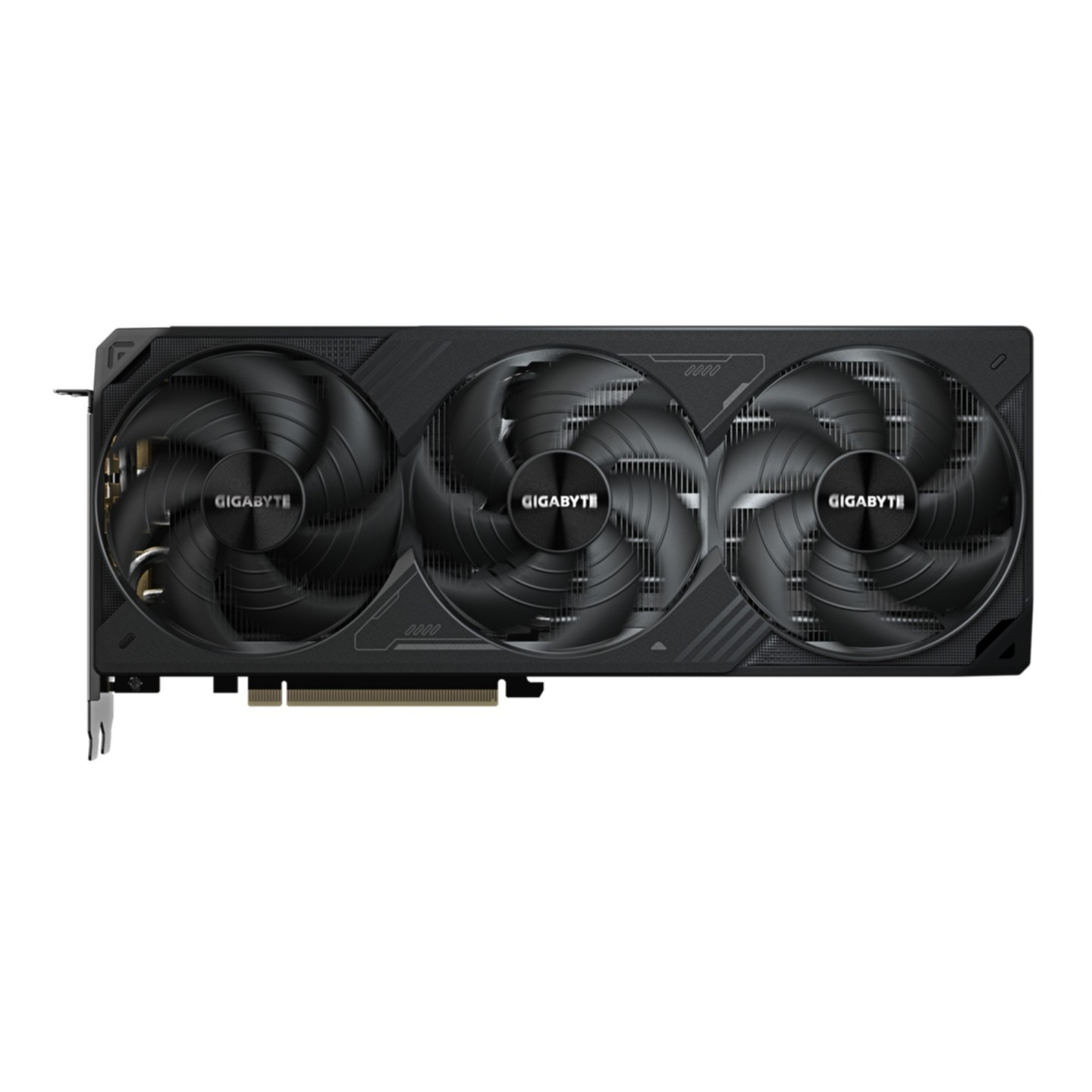

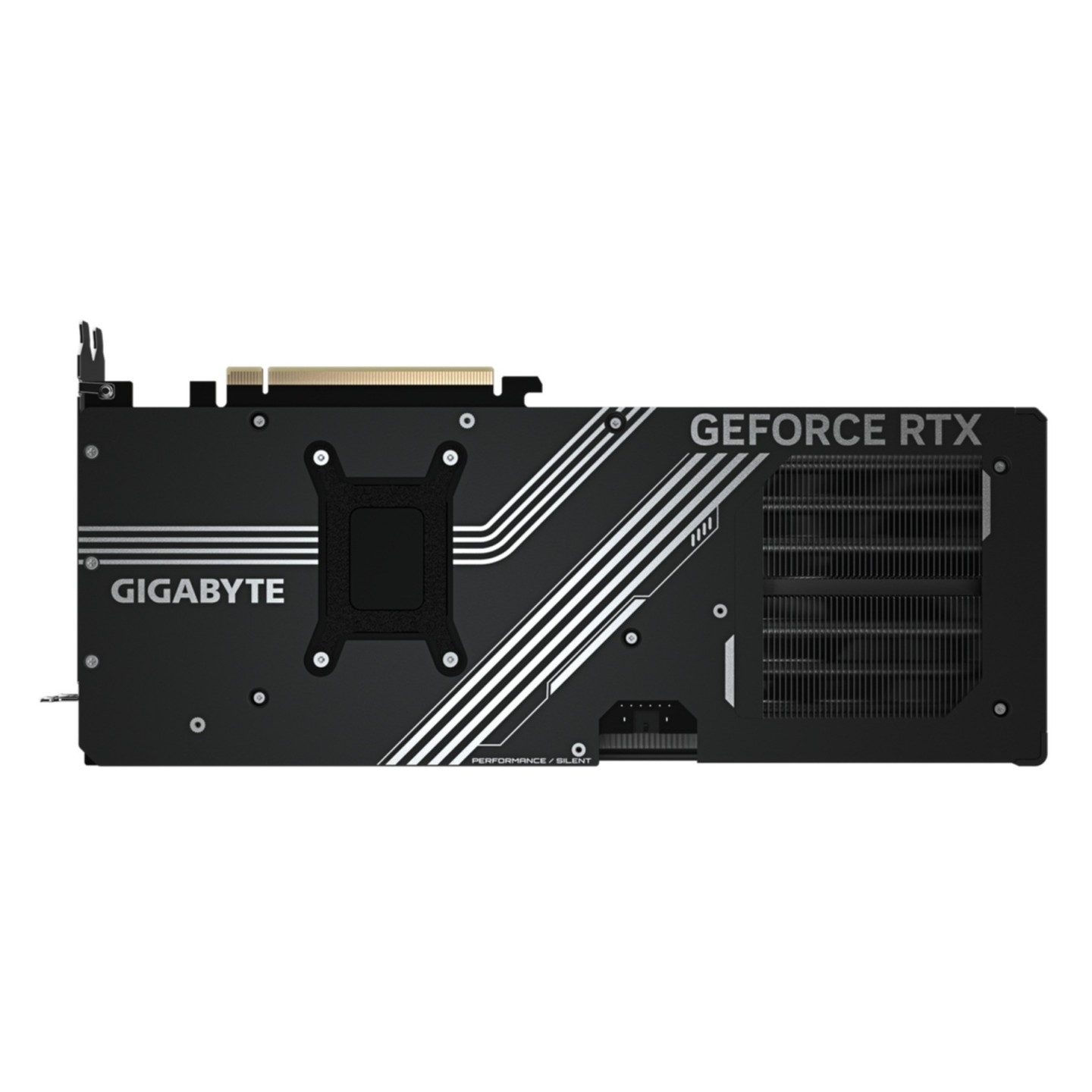

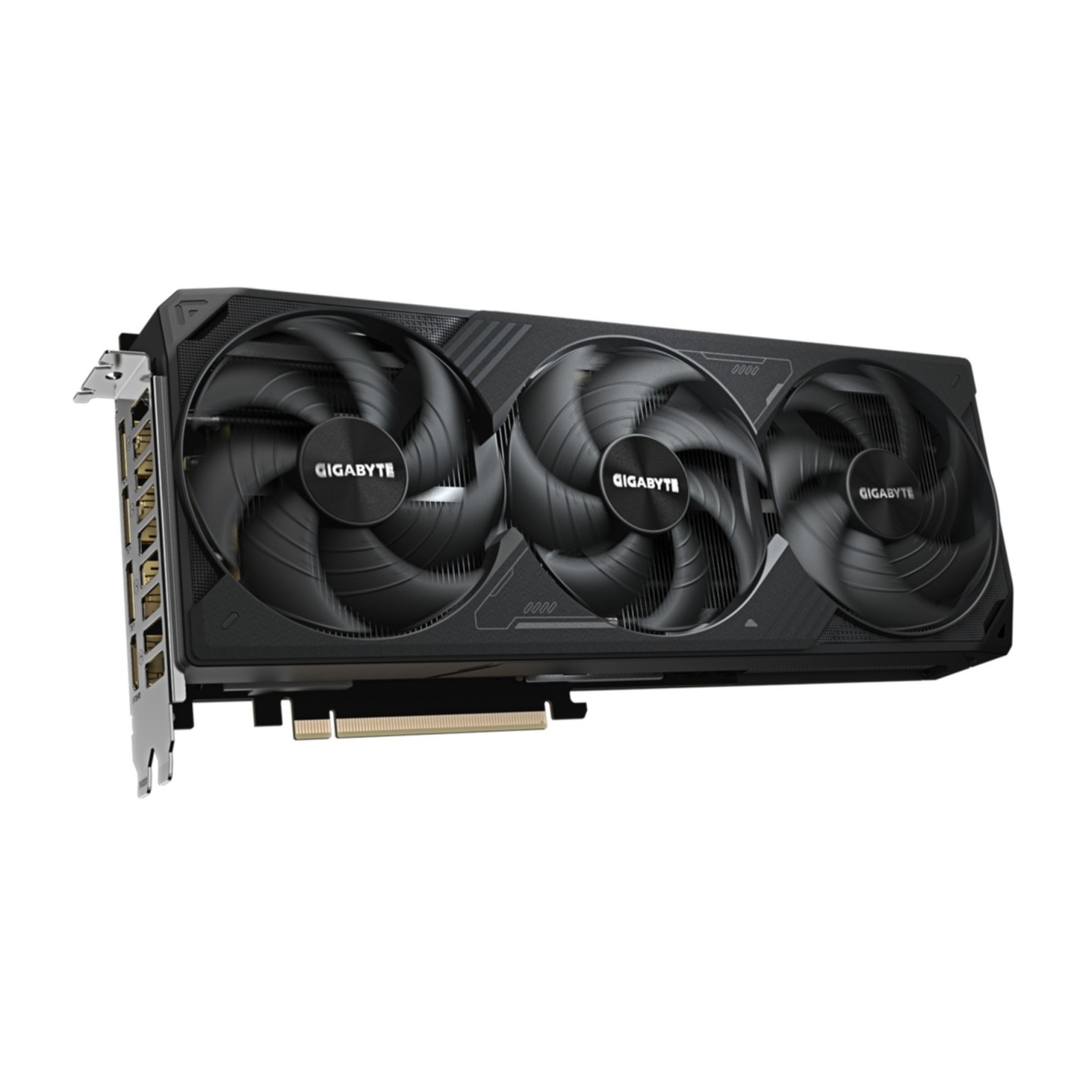

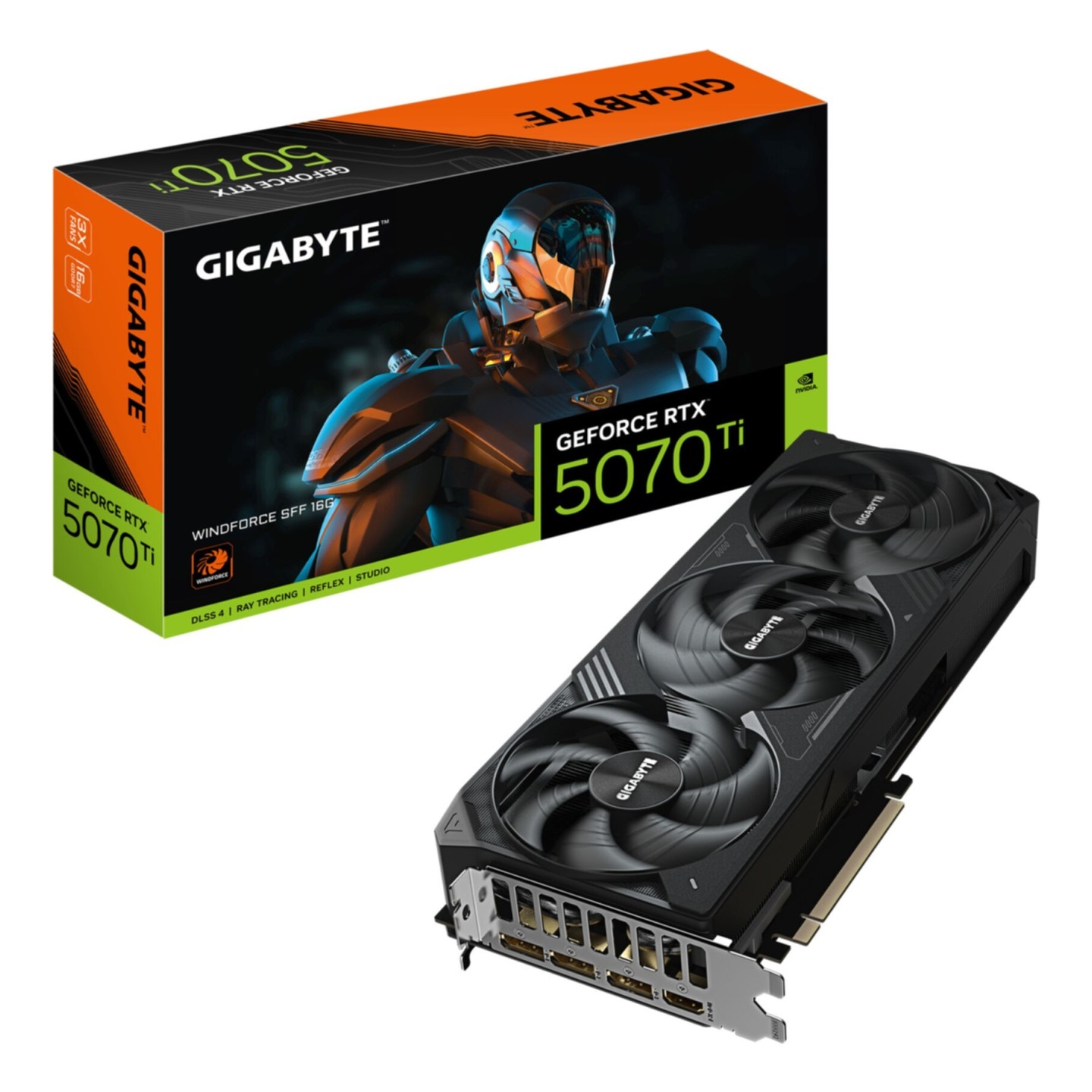

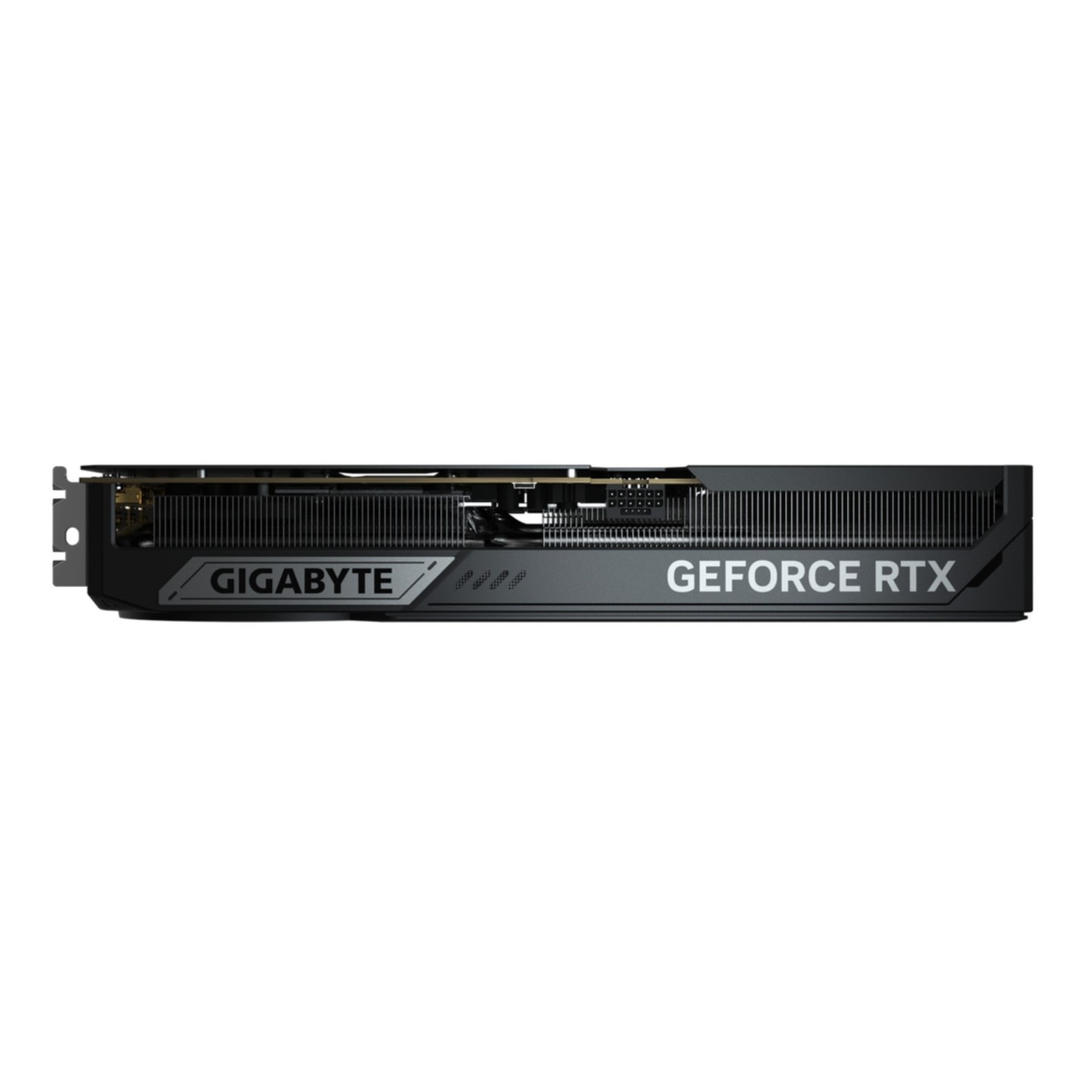

Gigabyte GeForce RTX 5070 Ti WINDFORCE SFF 16G - 16GB GDDR7 2452 MHz Black GV-N507TWF3-16GD (Boxed)
GeForce RTX 5070 Ti with 16GB GDDR7, 8960 CUDA cores, 2452 MHz core, PCIe 5.0 x16. WINDFORCE 3X cooling with Hawk fans, Dual BIOS, SFF-ready. 1x HDMI 2.1b, 3x DP 2.1b, up to 8K.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | NVIDIA GeForce RTX |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 5.0 x16 |
| GPU (Graphics Cards) - Cooler Type | Triple Fan |
| GPU (Graphics Cards) - Color | Black |
| GPU (Graphics Cards) - VRAM Capacity | 16 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR7 |
| GPU (Graphics Cards) - Outputs | DisplayPort 2.1 HDMI 2.1 |
| GPU (Graphics Cards) - Power Connector | 12VHPWR 16-pin |
| GPU (Graphics Cards) - Card Length | Extended (301-320 mm) |
The GIGABYTE GeForce RTX 5070 Ti WINDFORCE SFF 16G (GV-N507TWF3-16GD) delivers exceptional performance powered by NVIDIA's Blackwell architecture. Featuring 16GB GDDR7 memory on a 256-bit interface and 8960 CUDA cores, it supports up to 7680x4320 resolution across 4 displays. The 2452 MHz core clock ensures smooth gaming and content creation with DLSS 4, Reflex 2, and full ray tracing.
WINDFORCE 3X cooling uses Hawk fans, server-grade thermal gel, and alternate spinning for optimal temperatures and quiet operation. Dual BIOS offers Performance or Silent modes, while SFF-ready design fits small form factor cases. Powered by a single 16-pin connector with 300W TDP, it requires a 750W PSU minimum.
- 16GB GDDR7 256-bit, 28 Gbps memory
- PCIe 5.0 x16 interface

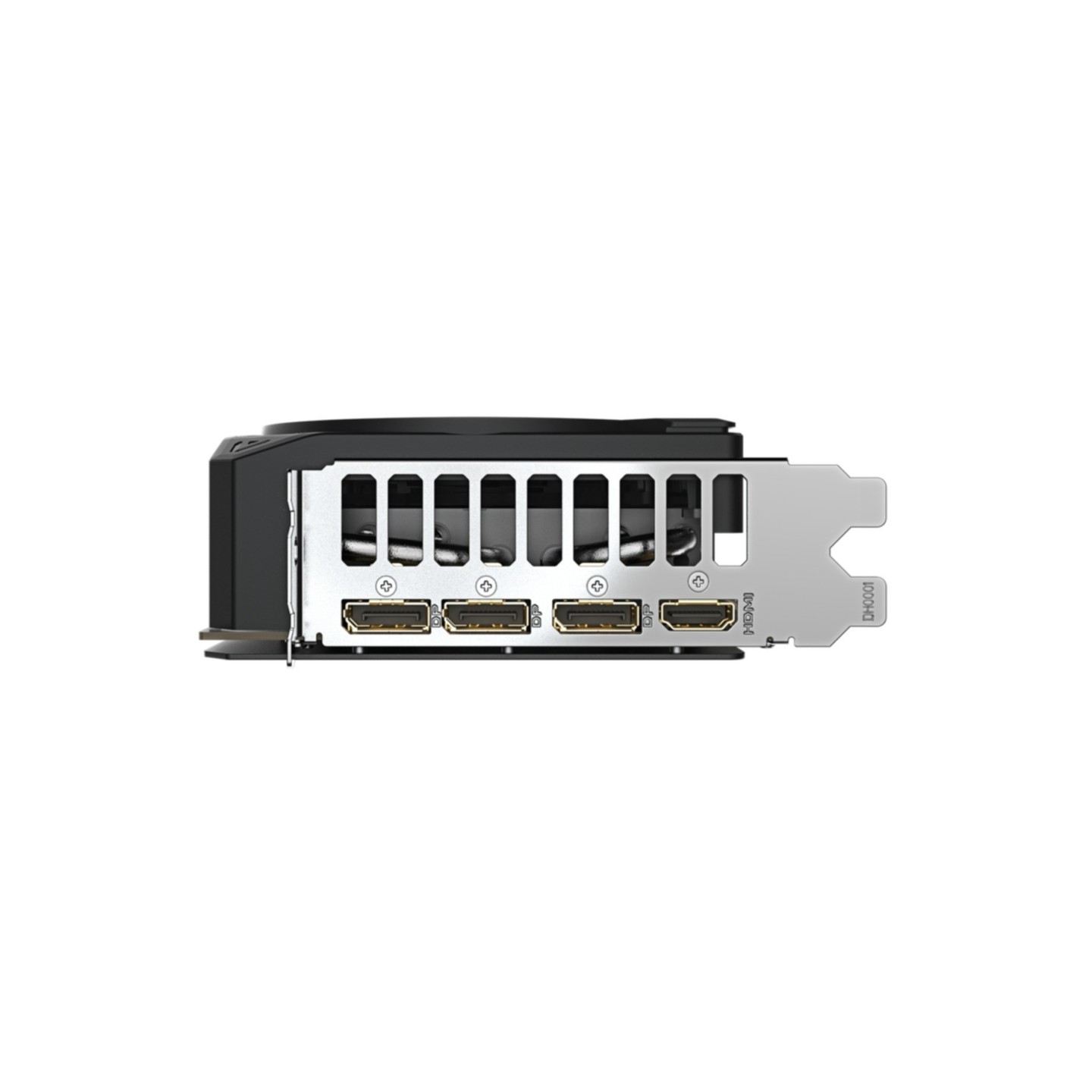

- 1x HDMI 2.1b + 3x DisplayPort 2.1b
- WINDFORCE cooling with 3 fans
- Dual BIOS (Performance/Silent)
- SFF-ready, 304mm length
| Manufacturer Part Number | GV-N507TWF3-16GD |
| SFF ready | Yes |
| CUDA cores | 8960 |
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5070 Ti |
| Processor frequency | 2452 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Maximum displays per videocard | 4 |
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 256 bit |
| Memory clock speed | 28000 MHz |
| Data transfer rate | 28 Gbit/s |
| Interface type | PCI Express x16 5.0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| DisplayPorts quantity | 3 |
| DisplayPort version | 2.1b |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| Warranty period | 3 year(s) |
| Cooling type | Active |
| Cooling technology | GIGABYTE WINDFORCE 3X |
| Number of fans | 3 fan(s) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 2 |
| Product colour | Black |
| Minimum system power supply | 750 W |
| Supplementary power connectors | 1x 16-pin |
| Thermal Design Power (TDP) | 300 W |
| Weight | 1.21 kg |
| Length | 304 mm |
| Depth | 50 mm |
| Height | 126 mm |
| Dual BIOS | Performance / Silent |
| Architecture | NVIDIA Blackwell |
