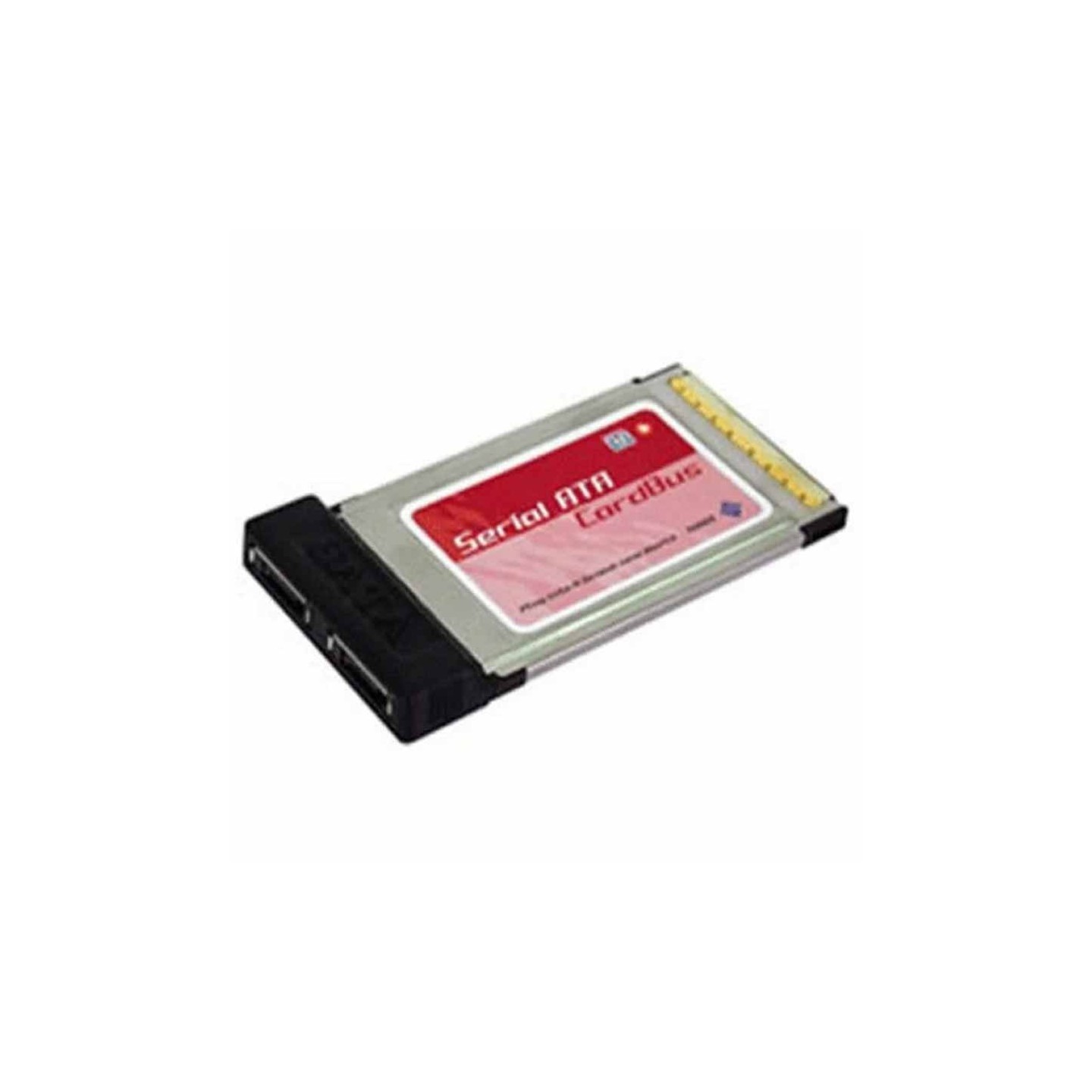

PQ-167 S ATA CardBus Adapter - Dual SATA Channel Controller (Boxed)
PQ-167 Serial ATA CardBus adapter enables connection of two independent SATA devices via legacy CardBus interface. Supports 1.5Gb/s transfer rate with 32-bit 33 MHz CardBus compatibility.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Expansion Cards - Product Type | Storage Controller and Adapter |
|---|---|
| Expansion Cards - Host Interface | Legacy PCI |
| Expansion Cards - Internal Connectivity | SATA Ports |
The PQ-167 S ATA CardBus Adapter is a legacy expansion card designed for older laptop and portable computer systems equipped with CardBus slots. This adapter accepts hot-swap commands through the CardBus interface and manages data transfers between the host system and Serial ATA storage devices.
The card features dual independent Serial ATA channels, with each channel supporting one Serial ATA device independently. It operates at 32-bit 33 MHz CardBus speeds with Serial ATA Generation 1 transfer rates of 1.5Gb/s (150MB/s). This adapter is ideal for extending SATA storage connectivity on legacy systems that lack native SATA support or additional SATA ports.
Key Features:
- Dual independent SATA channels
- Hot-swap command support
- 32-bit 33 MHz CardBus interface
- 1.5Gb/s (150MB/s) Serial ATA Gen 1 transfer rate
- One SATA device per channel support
- Legacy PCMCIA-based connectivity
| Interface Type | CardBus (32-bit, 33 MHz) |
| SATA Channels | 2 independent channels |
| Devices Supported | 1 SATA device per channel (2 total) |
| Transfer Rate | 1.5Gb/s (150MB/s) - SATA Gen 1 |
| Hot-Swap Support | Yes |
| Form Factor | CardBus Card (85 x 54 x 10mm typical) |
| Connector Type | Serial ATA (7-pin) |
| Compatibility | Legacy laptops and portable systems with CardBus slots |
