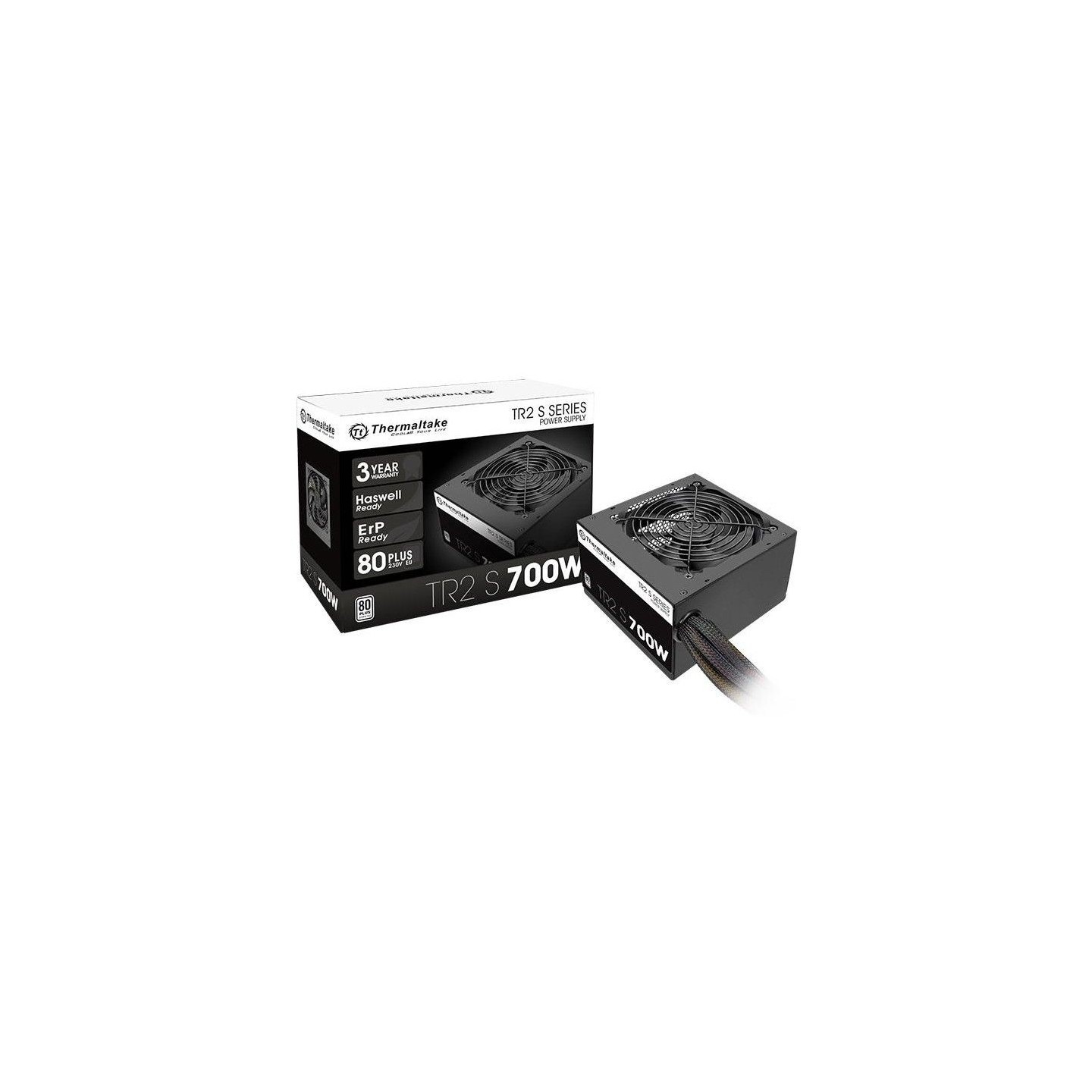

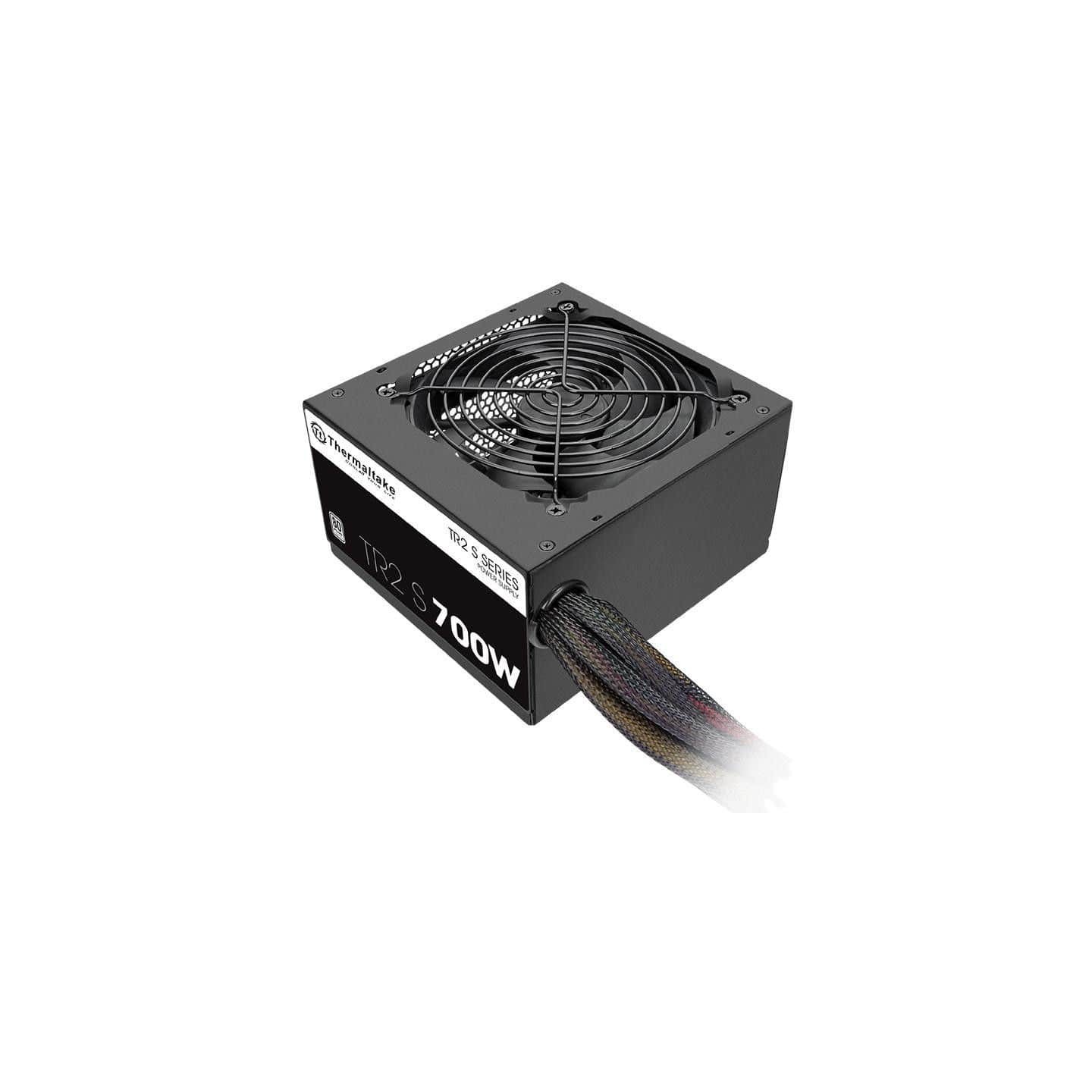

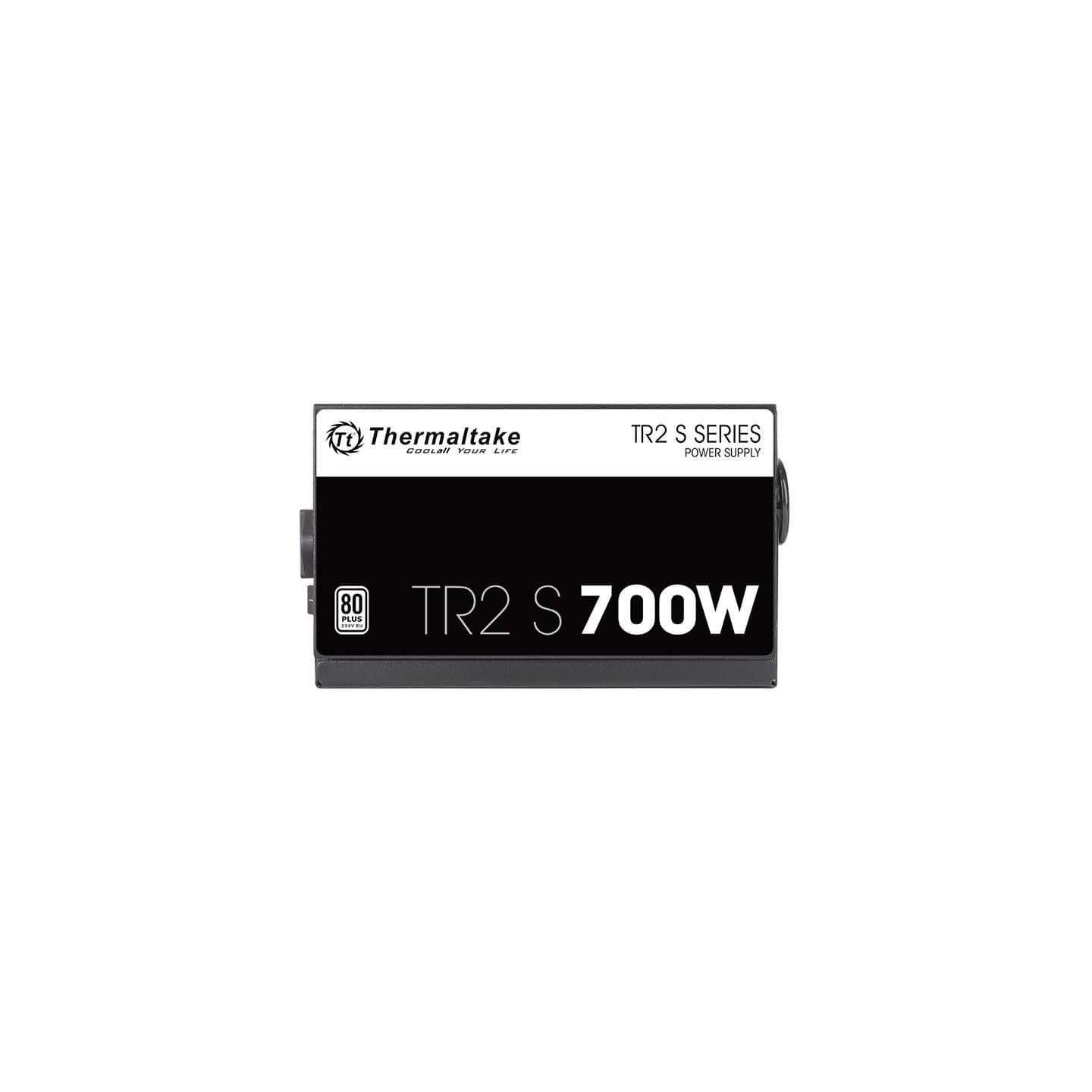

Thermaltake TR2 S 700W 80+ ATX PSU - PS-TRS-0700NPCWEU-2 (Boxed)
Thermaltake TR2 S 700W 80 PLUS certified ATX PSU with 86% efficiency, single +12V rail, 2x PCIe 6+2pin, 6x SATA, non-modular black design. Active 120mm fan, ideal for mainstream PCs. Dimensions: 150x86x140mm.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 700 - 799 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 2x 8/6 pins |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V |
The Thermaltake TR2 S 700W (PS-TRS-0700NPCWEU-2) is a reliable ATX power supply certified 80 PLUS 230V EU, delivering up to 86% efficiency for energy savings. It features a single powerful +12V rail (58.3A max) for stable performance in mainstream gaming and productivity builds.
Equipped with non-modular cabling, it includes 1x 20+4pin ATX, 1x 4+4pin EPS, 2x 6+2pin PCIe, 6x SATA, 5x Molex, and 1x floppy connector. A quiet 120mm top-mounted fan ensures effective cooling at 1800 RPM. High-quality components and protections (OVP/OPP/SCP/OTP) guarantee longevity with 100,000 hours MTBF.
- Total Power: 700W
- Efficiency: 86% (80 PLUS)
- Form Factor: ATX (150x86x140mm)
- Cooling: 1x 120mm fan
- Connectors: 2x PCIe 6+2pin, 1x EPS 4+4pin
| Total power | 700 W |
| AC input voltage | 200-240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 8-9 A |
| Power Factor Correction (PFC) type | Active |
| Efficiency | 86% |
| 80 PLUS certification | 80 PLUS 230V EU |
| Motherboard power connector | 20+4 pin ATX |
| CPU power connector | 4+4 pin EPS |
| PCI Express power connectors (6+2 pin) | 2 |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 5 |
| Floppy disk drive connector | Yes |
| Cabling type | Non-Modular |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.3 |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 |
| Fan speed | 1800 RPM |
| Fan location | Top |
| Dimensions (W x H x D) | 150 x 86 x 140 mm |
| Weight (gross) | 1.54 kg |
