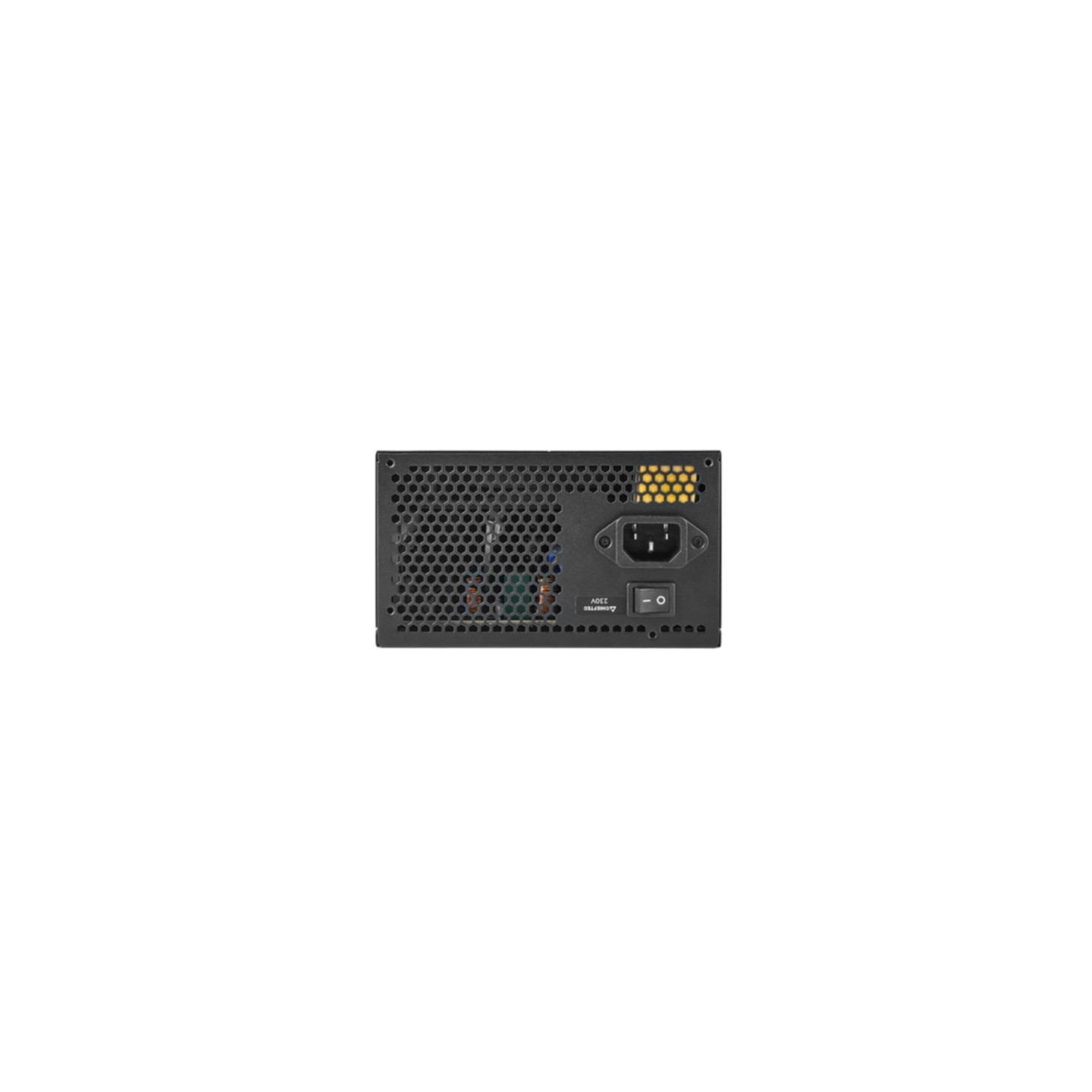

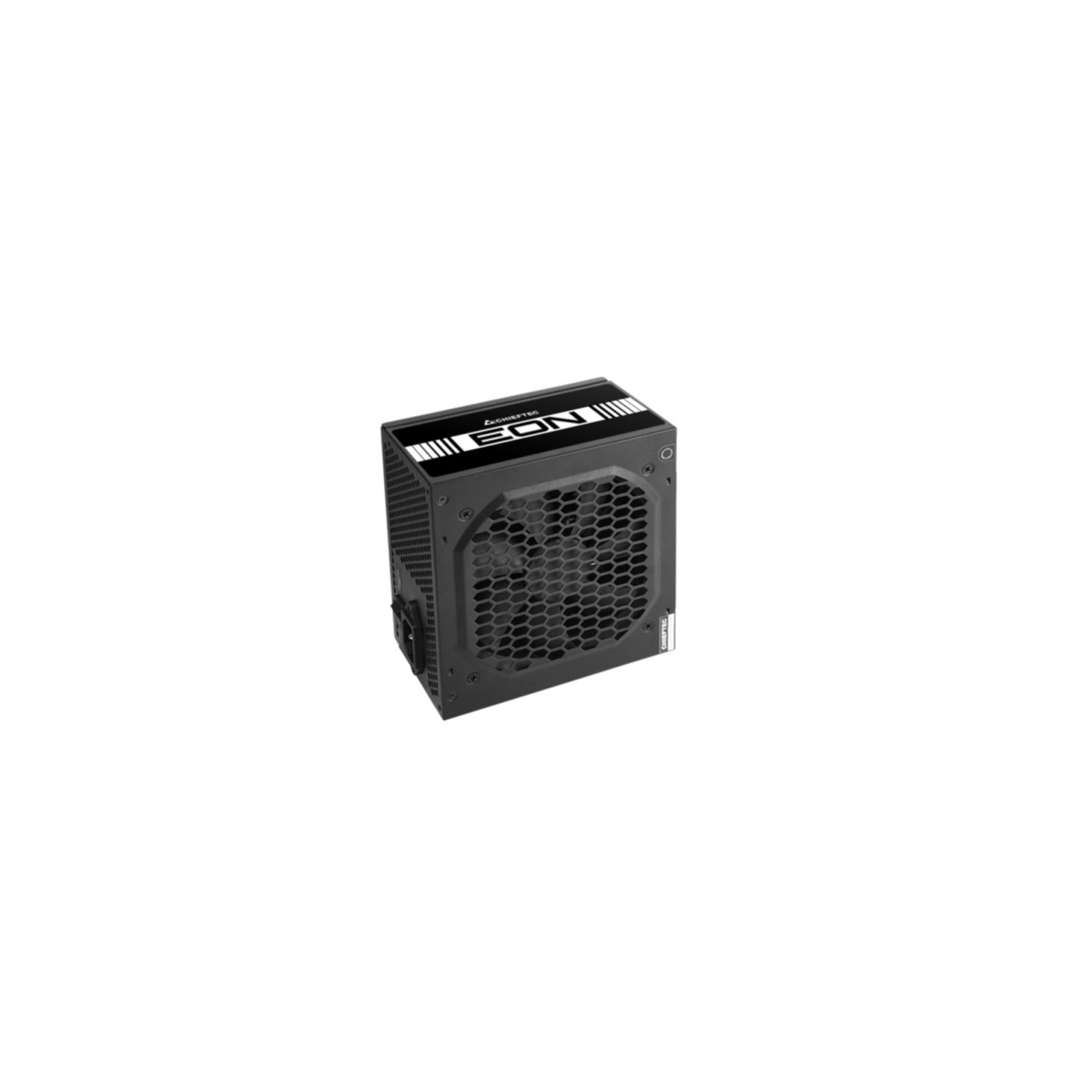

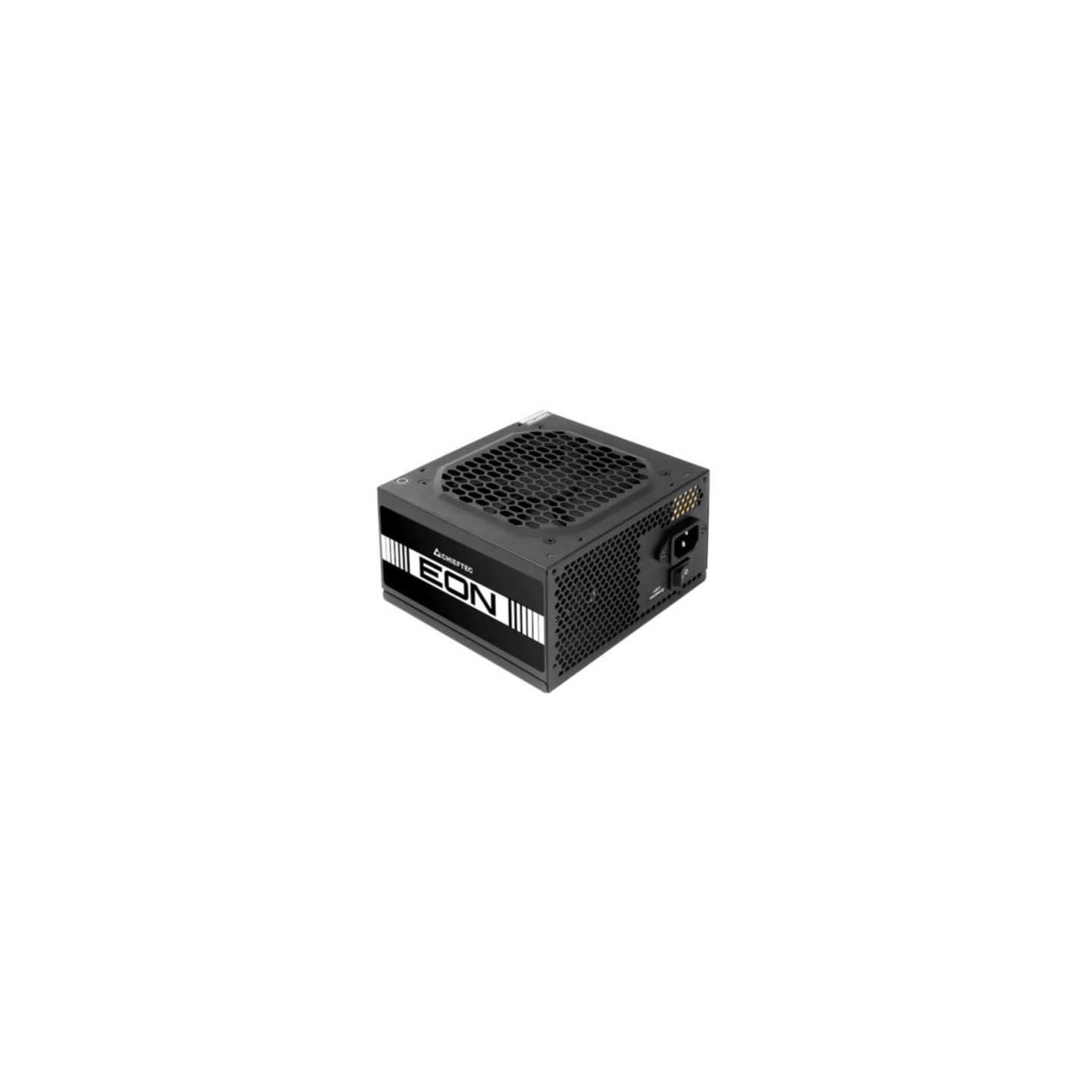

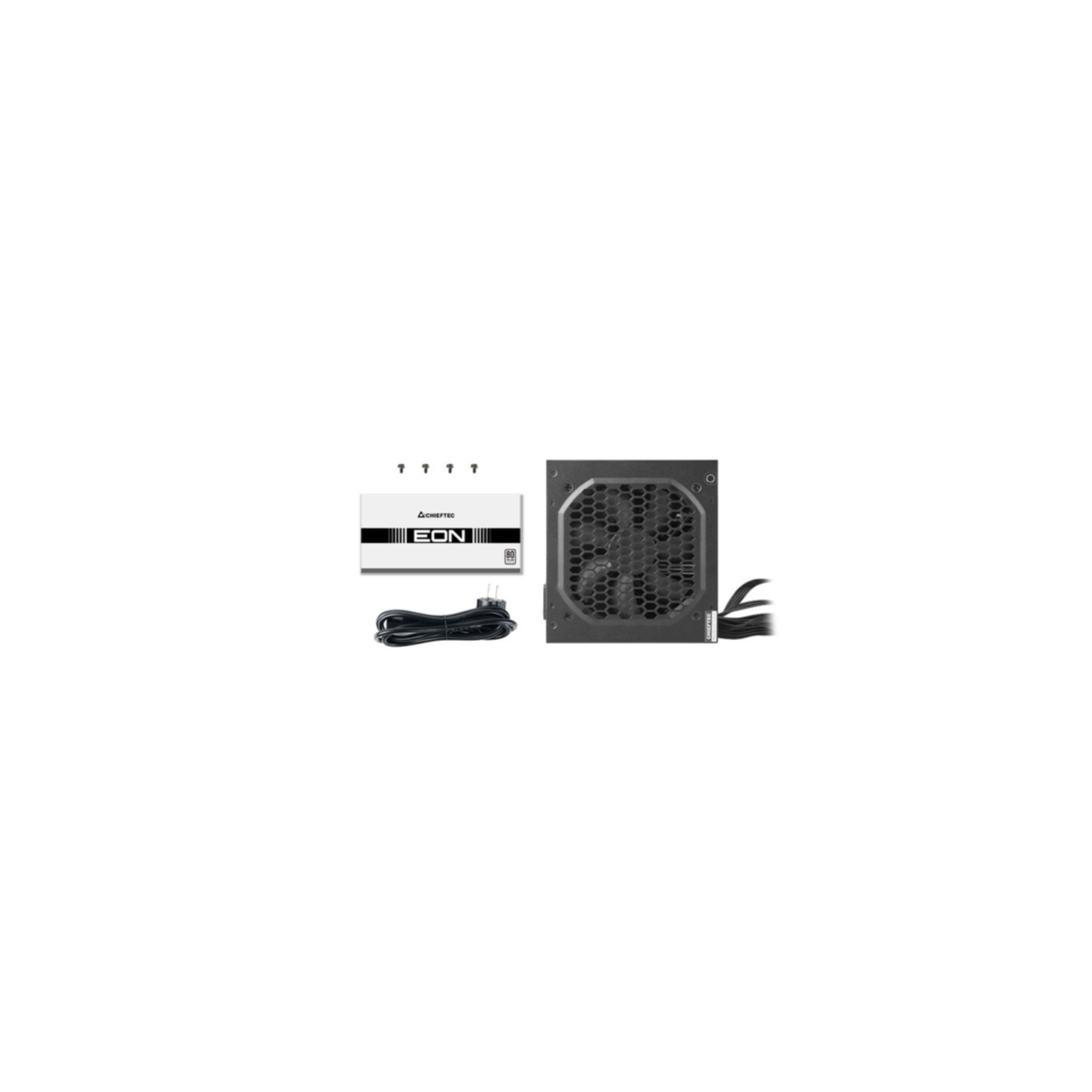

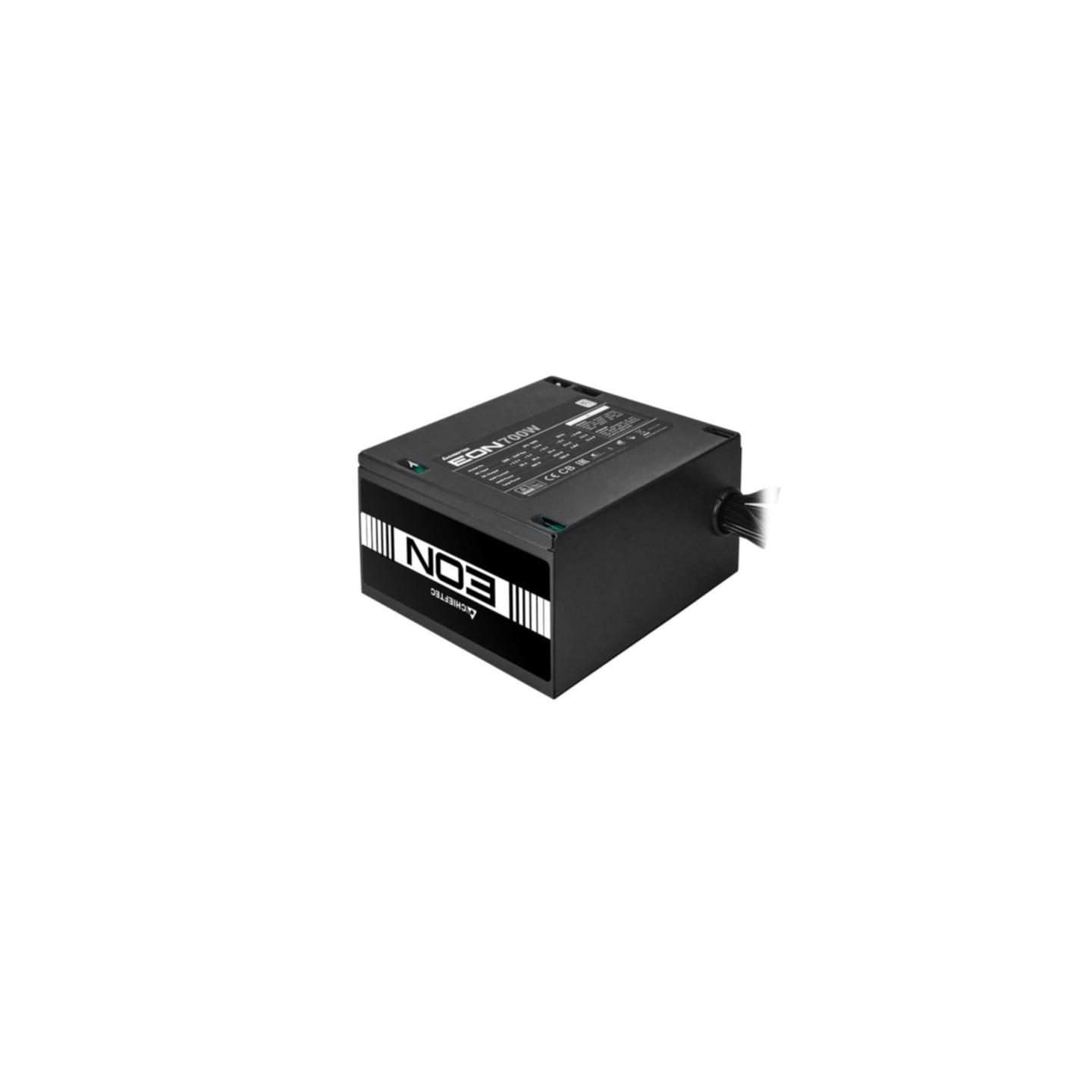

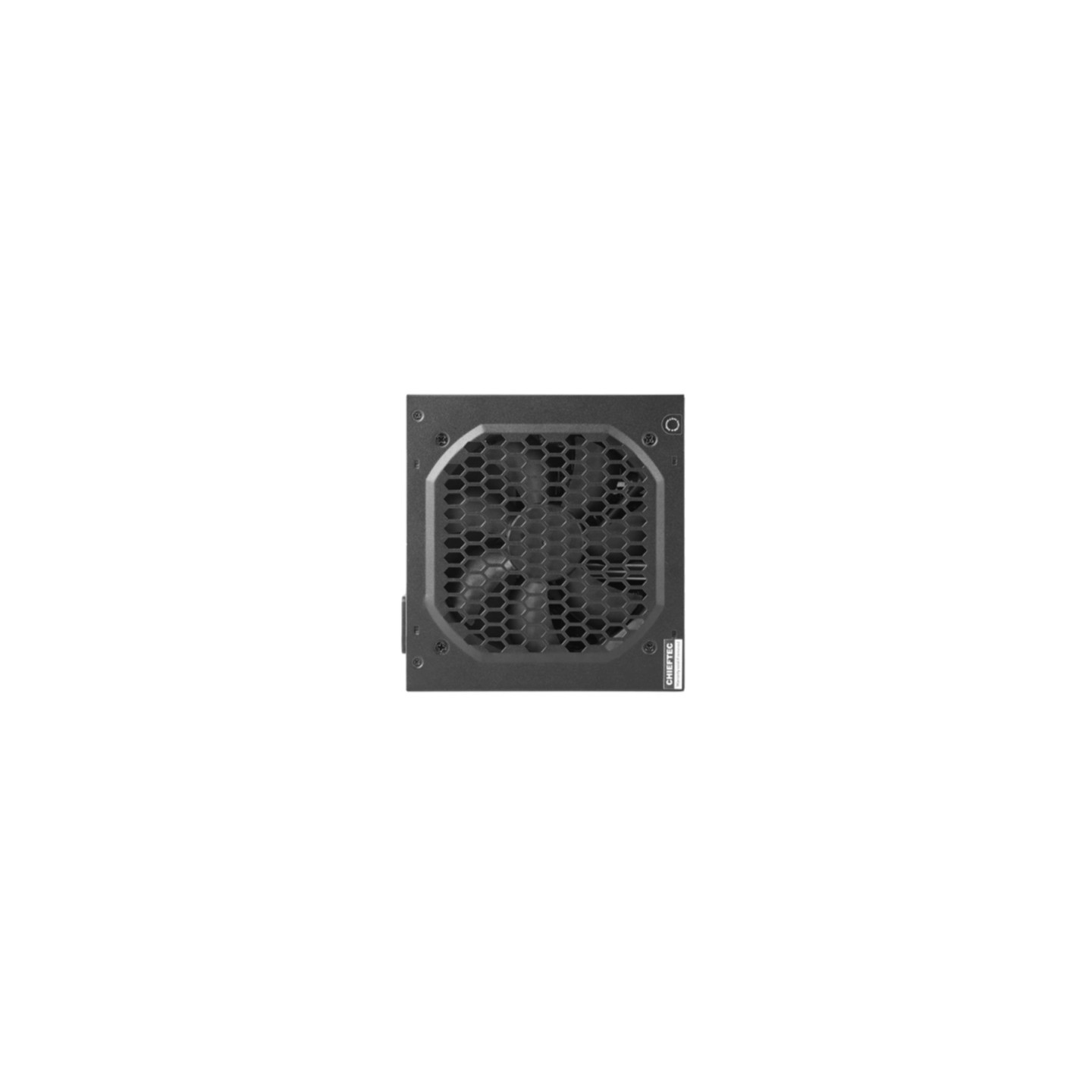

Chieftec EON ZPU-400S - 400W ATX Power Supply, Black, 80 PLUS, 120mm Fan (Boxed)
Chieftec EON ZPU-400S: 400W non-modular ATX PSU with 80 PLUS 230V EU efficiency, active PFC, silent 120mm fan, full protections, and extended cables for reliable PC power.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 400 - 499 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 8/6 pins |
| PSU (Power Supplies) - Length | 141-160 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V |
The Chieftec EON ZPU-400S delivers 400W of reliable power in a non-modular ATX form factor, certified 80 PLUS Standard for 230V EU with active PFC (0.9 PF) for efficient operation.
Equipped with a silent 120mm fan, steel black chassis, and extra-long native cables including 55cm ATX 20+4pin, EPS 4+4pin CPU, 1x PCIe 6+2pin, 4x SATA, and 2x Molex connectors. Multi-protection safeguards against short circuit, over/under voltage, over power, and inrush.
- Total Power: 400W continuous
- Efficiency: 80 PLUS Standard 230V EU
- Connectors: 20+4pin ATX, 4+4pin EPS, 1x 6+2pin PCIe, 4x SATA, 2x 4pin Molex
- Dimensions: 150x86x140mm; Warranty: 2 years
| Total power | 400 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 Hz |
| Input current | 3 A |
| Maximum input current (@220V) | 3 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (-12V) | 4.8 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V1) | 30 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.4 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Short circuit, Over Voltage, Under Voltage, Over Power, Surge and Inrush |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 55 cm |
| Number of SATA power connectors | 4 |
| SATA power cable length | 550, 600 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 150, 450 mm |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS Standard 230V EU |
| Supported motherboard form factors | ATX |
| Purpose | PC/Server |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.3 |
| Product colour | Black |
| Fan diameter | 12 cm |
| On/off switch | Yes |
| Compliance certificates | CB, CE, EAC, RoHS |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 1.15 kg |
| Package weight | 1.4 kg |
| Package type | Box |
| Sustainability certificates | ErP |
| Warranty period | 2 year(s) |
